two dimensional mixer

Higao Tech supply best price of two dimensional motion mixer machine in china. Two dimensional mixer machine with two different mixing movement is used a lot to mix granular materials with high capacity.

item no.:
2D series two dimensional mixer
Payment:
T/T 30% deposit and 70% before shipment
product origin:
made in china
Color:
Shining Polish or Matte Shinning Polish
shipping port:
Shanghai Port
Lead Time：
30 Days

contact now

Product Detail
specification

Higao Tech supply best price of two dimensional mixer in china. Two dimensional mixer machine with two different mixing movement is used a lot to mix granular materials with high capacity.

1. Introduction:
Two dimensional mixer machine is used to mix powder, granule, particle in pharmaceutical, foodstuff, chemical and other industries, especially for mixing granular materials.

2. Principle and features:

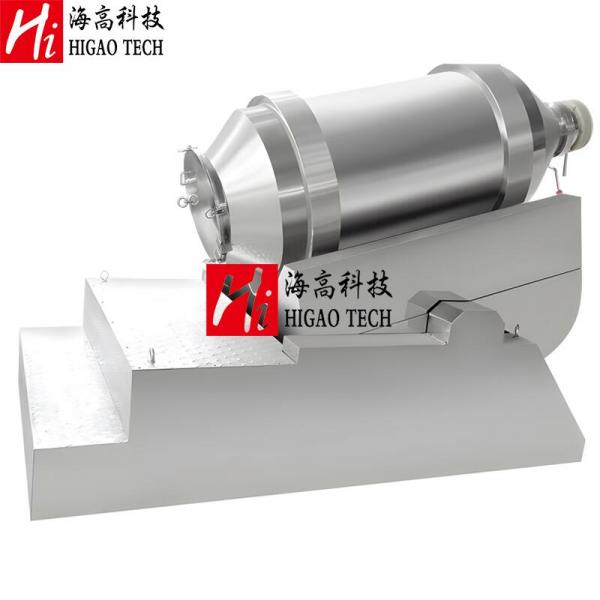

Two dimensional mixer machine is composed of rotary barrel and a swing barrel. Rotary barrel makes self-rotation around its axis and swing barrel also swings around horizontal axis synchronously, which makes material mixed evenly and effectively.
Two dimensional mixer machine is featured with short mixing time, good uniformity, big output, easy to discharge and clean.

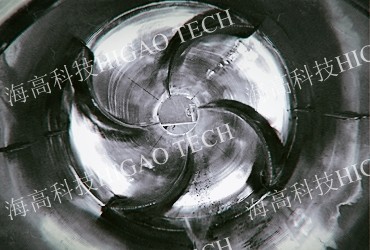

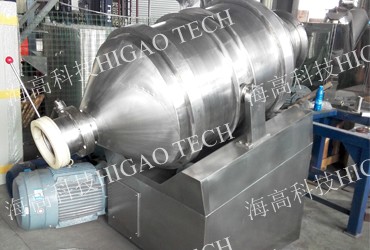

two dimensional swing mixer

3. Surface Treatment and Steel Grade:

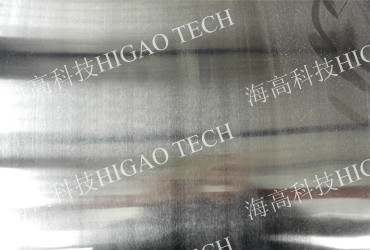

The surface treatment of polishing for Two Dimensional Mixer is mirror finish.
Stainless steel 304 and 316L are available.

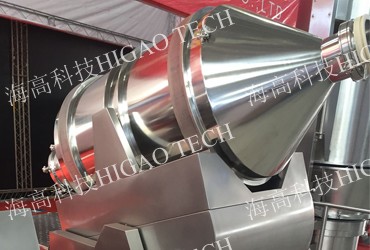

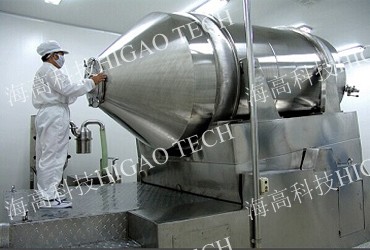

two dimensional granular mixing machine

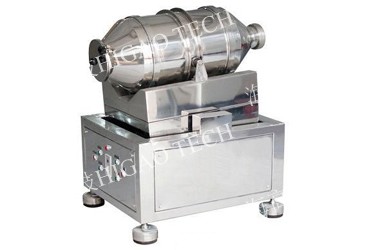

two dimensional mixer for granular materials

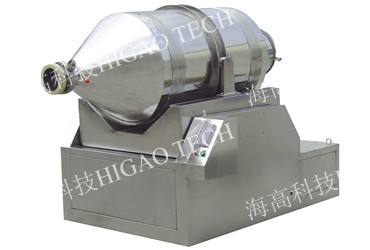

2D Series Two Dimensional Mixer (2D Mixer) of HIGAO TECH
Model	Total volume	Loading volume	Rotary motor	Swing motor	Dimension(L×W×H)	Weight
2D-50	50L	25L	0.55kw/20rpm	0.75kw/11.5rpm	900×750×950mm	110kg
2D-100	100L	50L	0.75kw/20rpm	1.1kw/11.5rpm	1350×800×1150mm	180kg
2D-200	200L	100L	1.1kw/20rpm	1.1kw/7.5rpm	1800×1000×1350mm	280kg
2D-300	300L	150L	1.1kw/17rpm	1.1kw/7.5rpm	1850×1050×1450mm	350kg
2D-400	400L	200L	1.1kw/15rpm	1.1kw/7.5rpm	1950×1150×1550mm	500kg
2D-600	400L	300L	1.1kw/15rpm	1.5kw/7.5rpm	2000×1300×1600mm	1000kg
2D-800	500L	400L	1.5kw/12rpm	1.5kw/7.5rpm	2100×1400×1700mm	1500kg
2D-1000	600L	500L	1.5kw/12rpm	2.2kw/7.5rpm	2500×1500×1800mm	1700kg
2D-1500	800L	750L	3kw/10rpm	4kw/7.5rpm	2600×1650×2000mm	2000kg
2D-2000	1000L	1000L	4kw/8rpm	4kw/5rpm	2800×1750×2100mm	2500kg
2D-3000	1500L	1500L	5.5kw/6rpm	5.5kw/5rpm	3200×2100×2500mm	3500kg
2D-4000	2000L	2000L	7.5kw/5rpm	11kw/3.7rpm	3600×2500×2900mm	4000kg
2D-6000	6000L	3000L	7.5kw/5rpm	11kw/3.7rpm	4500×3900×3500mm	6000kg
2D-8000	8000L	4000L	11kw/4rpm	15kw/3.7rpm	5000×3300×4000mm	7500kg
