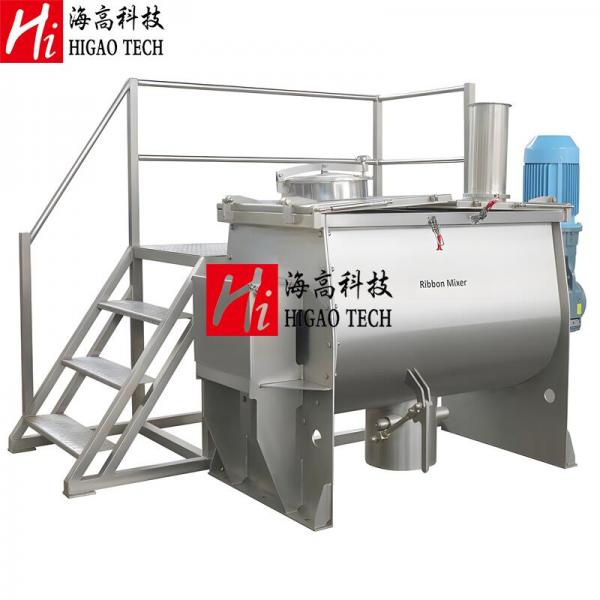

horizontal ribbon mixer

Higao Tech offer high quality horizontal ribbon mixer machine used to mix many kinds of powders and granules at a low price in china.
  • item no.:

    RM Series ribbon mixer
  • Payment:

    T/T 30% deposit and 70% before shipment
  • product origin:

    made in china
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification
  • Photo Gallery
  • how to select
Higao Tech offer high quality horizontal ribbon mixer machine used to mix many kinds of powders and granules at a low price in china.
customized powder mixing production line by Higao Tech
1. Introduction of Ribbon Mixer:
Horizontal ribbon mixer machine has a single blending shaft with double helical ribbons. ribbon mixer machine is widely used in mixing dry powder, granules, particles, pellets, low viscous paste materials with spraying liquid or oil during the mixing process.
horizontal ribbon mixer horizontal ribbon blender horizontal ribbon paddle mixer
2. Working Principle:
The vortex outer ribbon combined with rotating direction drives materials from two sides to the centre; at the same time inner ribbon drives material from centre to outsides. This convective activity shorts the mixing time and betters the mixing effect.
ribbon mixer ribbon blender ribbon agitator
3. Multiple blending structures:
We have another blending structure called ribbon paddle type mixer.
We designed this structure by combining customers requirement and did many times of tests, and finally it works.
horizontal ribbon mixer machine horizontal ribbon blender machine industrial ribbon mixer
4. Liquid and oil spray system for ribbon mixer:
Liquid spray system can be equipped to mix some liquid with powdery materials in the mixer. Customers can spray oil, water, adhesive, liquid additives, etc.
industrial ribbon blender ribbon mixer with liquid spray system ribbon blender with liquid spray system
5. Crushing and dispersing functions-high speed choppers:
High speed choppers can be installed on the ribbon mixer to help the materials disperse better during mixing process.
There are two types of chopper blades. Tulip shaped chopper (single) and X-mass tree type chopper (Multiple) are available.
ribbon mixer with oil spray system ribbon blender with oil spray system ribbon mixer with liquid spraying device
6. Heating and cooling jacket:
Ribbon Mixer with heating jacket or cooling jacket can be equipped to heat or cool the materials by setting a certain temperature to make the materials keep some property or some special reaction.
ribbon mixer with oil spraying device horizontal double ribbon mixer ribbon type powder mixer
7. Discharging method:
Controlled by manual, electric and pneumatic. But now pneumatic flap valve is becoming a popular discharging way.
ribbon mixer for powder mixing ribbon mixer for dry powder mixing ribbon mixer with heating jacket
8. Processing method of spare parts:
Spare parts of Ribbon Mixer are processed by laser cutting machine. It assures the accuracy and quality. Also the appearance is very smooth and beautiful.
ribbon mixer with cooling jacket jacketed ribbon mixer explosion proof ribbon mixer
9. Welding and soldering details:
Our welding workers are very professional, some of them have more than 10 years working experience.The welding tracks are rather fluent and smooth. The welding standard is based on Germany industrial standard.
ribbon mixer with high speed choppers ribbon mixer with vacuum drying system vacuum ribbon mixer
10. Steel grade of Horizontal Ribbon Mixer Machine:
You can choose stainless steel 304(SUS304), stainless steel 316L(SUS316L), stainless steel 316 Titanium(SUS316TI), carbon steel covered with paint, special coating on the surface of the barrel, such as Teflon(PTFE) coating, ceramic coating, porcelain enamel(or called enamel glass), etc.
316L Titanium ribbon mixer lab scale ribbon mixer batch type ribbon mixer for mixing dry powder

Company Profile
dry powder mixing system manufacturer-Higao Tech
dry powder blending system manufacturer-Higao Tech

RM Series Ribbon Mixer of HIGAO TECH

Model

Total volume

Loading volume

Capacity

Loading coefficient

Mixing time

Motor/speed

Dimension(L×W×H)

Weight

RM-100

100L

50L

50kg

40~60%

0~999Min

2.2kw/58rpm

1190×740×790mm

380kg

RM-200

200L

100L

100kg

40~60%

0~999Min

3kw/53rpm

2030×630×980mm

450kg

RM-300

300L

180L

200kg

40~60%

0~999Min

4kw/41rpm

2280×680×880mm

550kg

RM-500

500L

300L

300kg

40~60%

0~999Min

5.5kw/41rpm

2670×780×1240mm

900kg

RM-1M3

1M3

0.6M3

600kg

40~60%

0~999Min

11kw/33rpm

3140×980×1400mm

1600kg

RM-2M3

2M3

1.2M3

1200kg

40~60%

0~999Min

15kw/33rpm

3860×1200×1650mm

2700kg

RM-3M3

3M3

1.8M3

1800kg

40~60%

0~999Min

18.5kw/33rpm

4460×1300×1700mm

3600kg

RM-4M3

4M3

2.4M3

2500kg

40~60%

0~999Min

22kw/27rpm

4950×1400×2000mm

4200kg

RM-5M3

5M3

3M3

3000kg

40~60%

0~999Min

30kw/27rpm

5280×1550×2100mm

5100kg

RM-6M3

6M3

3.6M3

3600kg

40~60%

0~999Min

37kw/27rpm

5530×1560×2200mm

5600kg

RM-8M3

8M3

4.8M3

4800kg

40~60%

0~999Min

45kw/22rpm

5100×1720×2500mm

6500kg

RM-10M3

10M3

6M3

6000kg

40~60%

0~999Min

45kw/22rpm

5610×1750×2650mm

7800kg

RM-15M3

15M3

9M3

9000kg

40~60%

0~999Min

55kw/14rpm

5820×2000×2900mm

11000kg

RM-20M3

20M3

12M3

12000kg

40~60%

0~999Min

75kw/14rpm

6060×2350×3160mm

13000kg

RM-30M3

30M3

18M3

15000kg

40~60%

0~999Min

110kw/12rpm

6200×2500×3350mm

16000kg

horizontal ribbon mixer with CE certificate horizontal ribbon mixer with UL certificate
horizontal ribbon mixer with CUL certificate horizontal ribbon mixer with CSA certificate

















Before choosing Ribbon Mixer, we need to know your detailed requirement: pls read carefully.
1. how many materials do you need to mix?
A, B, C, D......
2. the name of each material?
A:____; B:____; C:____; D:____; .......
3. how many percent of each material for one batch mixing?
A:____%; B:____%; C:____%; D:____%; .......
4. what is your capacity for one batch?
____Liters/batch
5. bulk density of each material?
A:____g/cm3; B:____g/cm3; C:____g/cm3; D:____g/cm3; .......
6. Do you need liquid spray during mixing?
YES or NO
7. How many liters of liquid will you spray for one batch?
____Liters/batch
8. Discharging method?
Pneumatic or Manual
9. Steel material you need?
all Carbon Steel with paint; Stainless steel for product contact; all Stainless Steel;
10. Stainless Steel grade you need?
SUS304; SUS304Ti; SUS316L; SUS316Ti;......
11. Your materials corrosive?
YES or NO
12. Do you need special coating for the mixing barrel and belnder?
PTFE(Teflon); ceramics; porcelain enamel; ......
13. Do you need (EX)Explosion-Proof?
YES or NO
Explosion-Proof motor; Explosion-Proof electronic components; Explosion-Proof electric control box?
YES or NO
14. Do you need platform and supporting frames?
YES or NO
15. Do you need installation in working site?
YES or NO
16. Your Power Voltage:
110V, 220V, 240V, 380V, 400V, 415V, 440V?
50Hz or 60Hz?
Single phase or Three phase?
