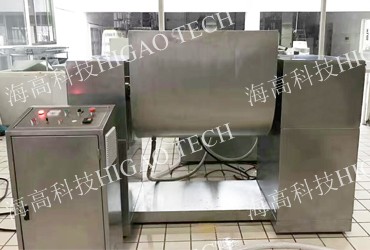

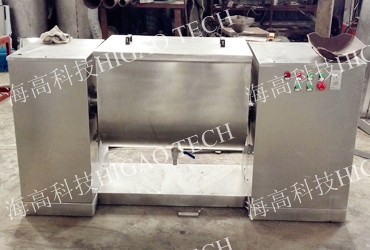

single shaft sigma blade mixer

Higao Tech offer high quality stainless steel single shaft sigma blade mixer to make bread and cake in china. Sigma blade mixer machine is used to mix sticky materials, such as mixing flour and water to make dough, kneading soap, and other viscous materials.
  • item no.:

    SSM series single shaft sigma blade mixer
  • Payment:

    T/T 30% deposit and 70% before shipment
  • product origin:

    made in china
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification
Higao Tech offer high quality stainless steel single shaft sigma blade mixer to make bread and cake in china. Sigma blade mixer machine is used to mix sticky materials, such as mixing flour and water to make dough, kneading soap, and other viscous materials.

1. Introduction:
Single shaft sigma blade mixer machine is especially used to mix paste materials, mix powder, granules, particles in pharmaceutical, foodstuff, chemical fields. such as flour, dough, soap, etc.
single arm sigma mixer single shaft sigma mixer single shaft sigma blade mixer
2. Working principle and features:
Single shaft sigma blade mixer machine can reach good mixing effect by mechanical driving to push the material to move to and from inside the kneading machine.
You can control the mixing time by setting the time relay between 0~999 minutes on the dough kneading mixer, the sigma blade mixer machine will stop automatically when time is up.
Then you can adjust the tank to rotate till its reaching a proper position and push the output button to make the Z or sigma shaped blade blender reverse to discharge the materials automatically.
single shaft sigma arm mixer single sigma arm mixer single sigma blade mixer
3. Liquid spray system, Heating and cooling jacket:
Liquid spray device also can be added to the mixer to reach some mixing effect.
Single Shaft Sigma Blade Mixer can be equipped with heating or cooling jacket to circulate heat source.
Z blade single sigma mixer Z blade single sigma arm mixer single sigma kneader
4. Surface treatment and steel grade of single shaft sigma blade mixer machine:
We use mirror shinning polish treatment for the sigma mixer to make it healthy and hygienic.
Single Shaft Sigma Blade Mixer can be made of SS304 or SS316L according to customers demand and purpose.
single Z blade sigma kneader mixer single Z blade sigma kneading machine single Z blade sigma kneading mixer

SSM Series Single Shaft Sigma Blade Kneader Mixer of HIGAO TECH

Model

Total volume

Loading volume

Sigma agitator

Discharger/angle

Dimension(L×W×H)

Weight

SSM-50

50L

30L

1.5kw/24rpm

0.18kw/105°

1265×430×720mm

200kg

SSM-100

100L

60L

2.2kw/24rpm

0.55kw/105°

1580×500×830mm

300kg

SSM-200

200L

120L

4kw/24rpm

0.75kw/105°

1850×600×1000mm

450kg

SSM-300

300L

180L

5.5kw/24rpm

1.1kw/105°

2160×700×1200mm

550kg

SSM-400

400L

240L

7.5kw/24rpm

1.5kw/105°

2280×700×1250mm

700kg

SSM-500

500L

300L

7.5kw/24rpm

1.5kw/105°

2450×700×1250mm

800kg

SSM-600

600L

360L

11kw/24rpm

2.2kw/105°

2500×900×1350mm

850kg
