Higao Tech supply best price of non-gravity double shaft paddle mixer with high quality and made from stainless steel 304 in china.
customized double shaft paddle mixer production line for powder mixing

customized double shaft paddle mixer production line for powder mixing

1. Introduction:
Non-gravity double shaft paddle mixer is used to mix dry bulk solids like powder, granules, fiber, and mix bulk solids with liquids (moistening + granulating coating) or pastes.
Double shaft paddle mixer is designed and engineered for intensive mixing of two different wet and dry materials, or blending liquids and sludges with dry solids. These raw materials include sticky clays, sludges, filter cakes, silty soil, sandy soils and other abrasives.

2. Working Principle:
Double shaft paddle mixer consists of two parallel shafts with blending paddles fixed at a pre-determined angle. Blending paddles agitate materials, then make the movement of materials reach the critical rotation speed and there it can throw the materials to the highest point of the parabola. The critical point is called non-gravity point or zero-gravity point. So we sometimes people call this double shaft paddle mixer as Double shaft non-gravity mixer, or zero-gravity mixer, weightless mixer.
Relative rotation of the mixing paddles results in higher mixing efficiency.
Double shaft paddle mixer promotes a homogeneous mix for different particle sizes and density of the materials.

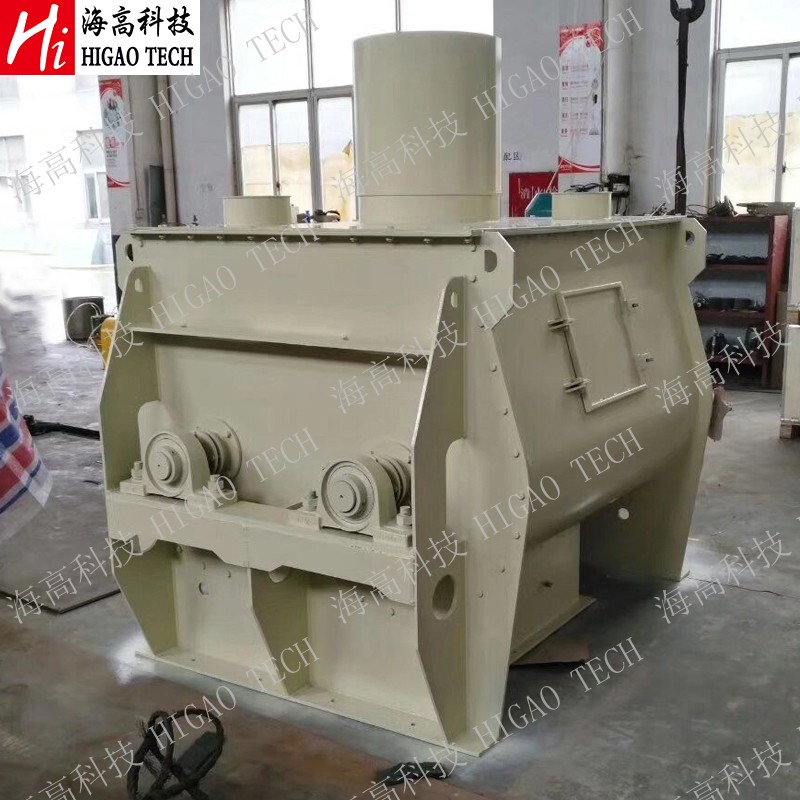

horizontal double shaft paddle mixer

horizontal non-gravity double shaft paddle mixer

3. Discharging method:
Controlled by manual, electric and pneumatic. But now pneumatic flap valve is becoming a popular discharging way.
double shaft paddle mixer with pneumatic discharge valve

double shaft paddle mixer with pneumatic discharge valve

variable speed double shaft paddle mixer

4. Processing method of spare parts:
We use high-class lase cutting machine to improve the quality of our Twin Shaft Paddle Mixer. Also our machine has achieved world first-class standard.
variable speed twin shaft paddle mixer

horizontal zero gravity twin shaft paddle mixer

horizontal non-gravity twin shaft paddle mixer

5. Welding and soldering details:
You can see from the treatment of the welding that our team are well-trained and experienced with skilled process technologies.
horizontal zero-gravity mixer

double shaft paddle mixer for dry mortar mixing

6. Steel grade of non-gravity double shaft paddle mixer:
According to different crafts and applied industries, customers can choose different steel materials to customize Twin Shaft Paddle Mixer. Mild steel or stainless steel, etc.
double shaft paddle mixer with liquid spray

double shaft paddle mixer with liquid spray

double shaft paddle mixer with vacuum drying system

DPM Series Non-Gravity Double Shaft Paddle Mixer (Twin Shaft Paddle Mixer) of HIGAO TECH
Model	Total volume	Loading volume	Working capacity	Spindle speed	Motor	Dimension(L×W×H)	Weight
DPM-100	100L	60L	60kg	49rpm	3kw	1200×1100×750mm	300kg
DPM-200	200L	120L	120kg	41rpm	4kw	1250×1150×950mm	650kg
DPM-300	300L	180L	180kg	41rpm	5.5kw	1400×1250×1050mm	500kg
DPM-500	500L	300L	300kg	37rpm	7.5kw	1450×1500×950mm	800kg
DPM-1000	1000L	600L	600kg	33rpm	11kw	1800×1850×1350mm	1200kg
DPM-1500	1500L	900L	900kg	33rpm	15kw	1850×1950×1200mm	1500kg
DPM-2M³	2M³	1.2M³	1200kg	31rpm	15kw	2200×2400×1600mm	2200kg
DPM-3M³	3M³	1.8M³	1800kg	29rpm	22kw	2300×2300×1650mm	3500kg
DPM-4M³	4M³	2.4M³	2500kg	29rpm	22kw	2700×2400×1850mm	4500kg
DPM-5M³	5M³	3M³	3000kg	23rpm	30kw	2950×3100×2100mm	6000kg
DPM-6M³	6M³	3.6M³	3600kg	23rpm	37kw	3100×3200×2100mm	7000kg
DPM-8M³	88M³	4.8M³	4800kg	21rpm	45kw	3200×3300×2200mm	8000kg
DPM-10M³	10M³	6M³	6000kg	21rpm	55kw	3550×3350×2400mm	9500kg
DPM-12M³	12M³	7.2M³	7200kg	17rpm	75kw	4700×3600×2500mm	11000kg
DPM-15M³	15M³	9M³	9000kg	17rpm	90kw	5000×4000×2700mm	12000kg
