Higao Tech supply best price of single shaft paddle mixer to mix all kinds of powders and granules to make a better mixing effect, so as to improve the quality of products in china.

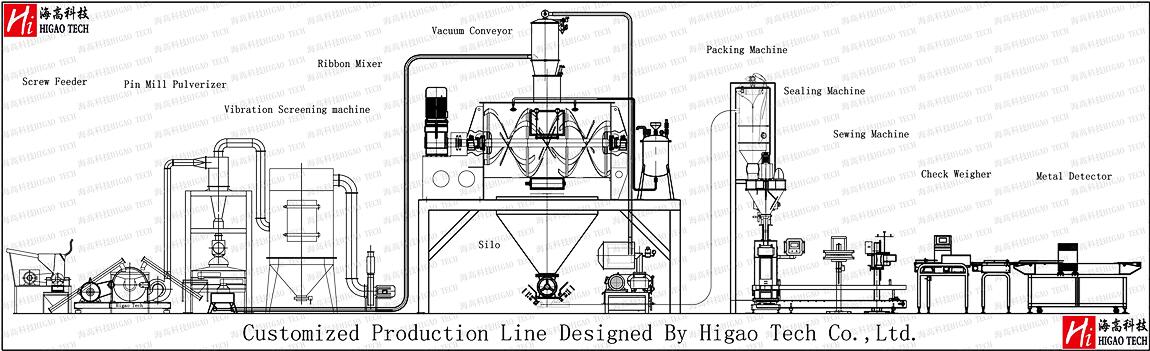

customized ribbon paddle mixer production line for powder mixing

customized ribbon paddle mixer production line for powder mixing

1. Introduction:
Single shaft paddle mixer is used to mix dry bulk solids like powder, granules, fiber, also mix bulk solids with liquids or pastes.
Single shaft paddle mixer machine is designed and engineered for intensive mixing of two different wet and dry materials, or blending liquids and sludges with dry solids. These raw materials include sticky clays, sludges, filter cakes, silty soil, sandy soils and other abrasives.
Single shaft paddle mixer machine has one shaft to mix materials, so usually this mixer is used for small capacity mixing.

2. Principle and features:

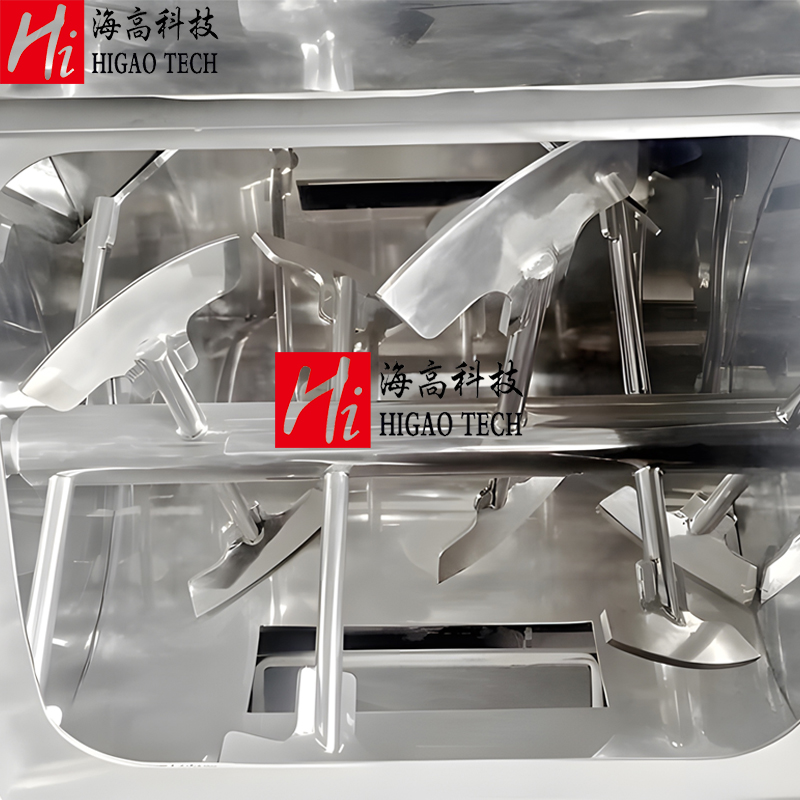

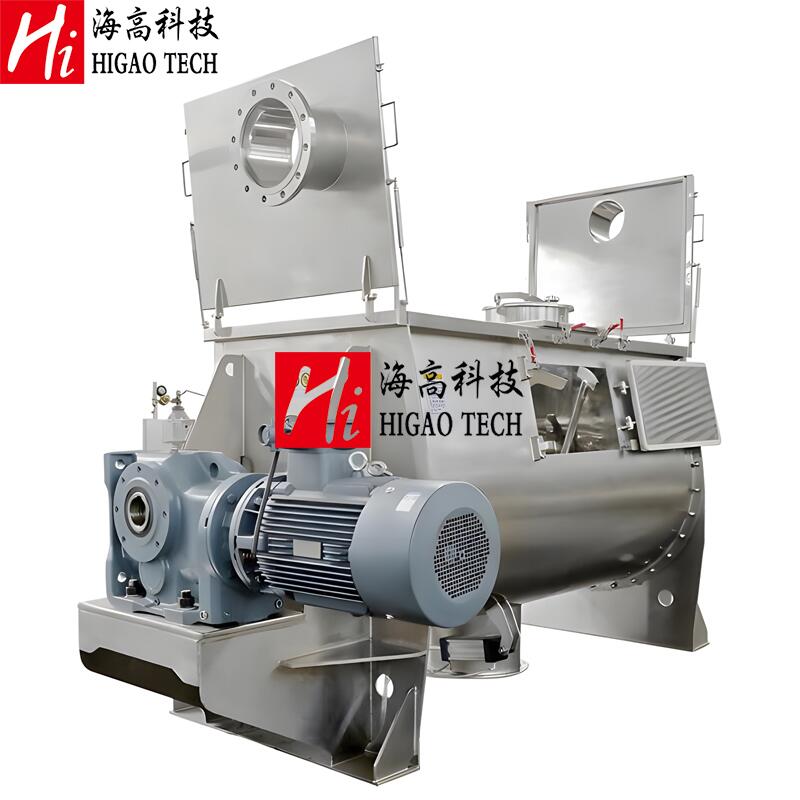

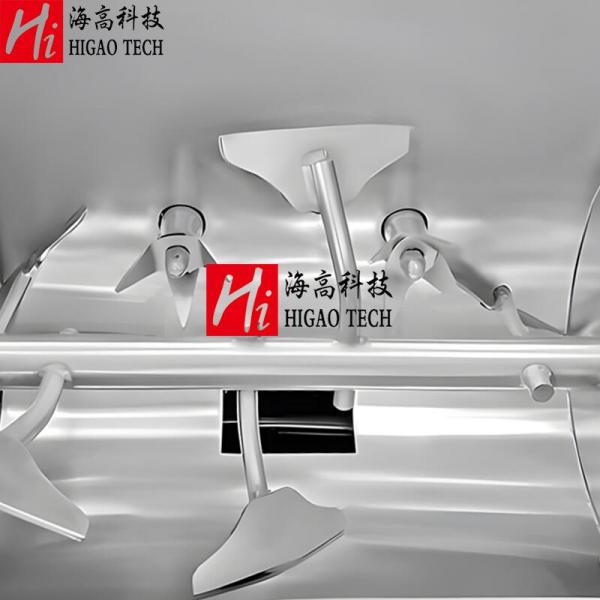

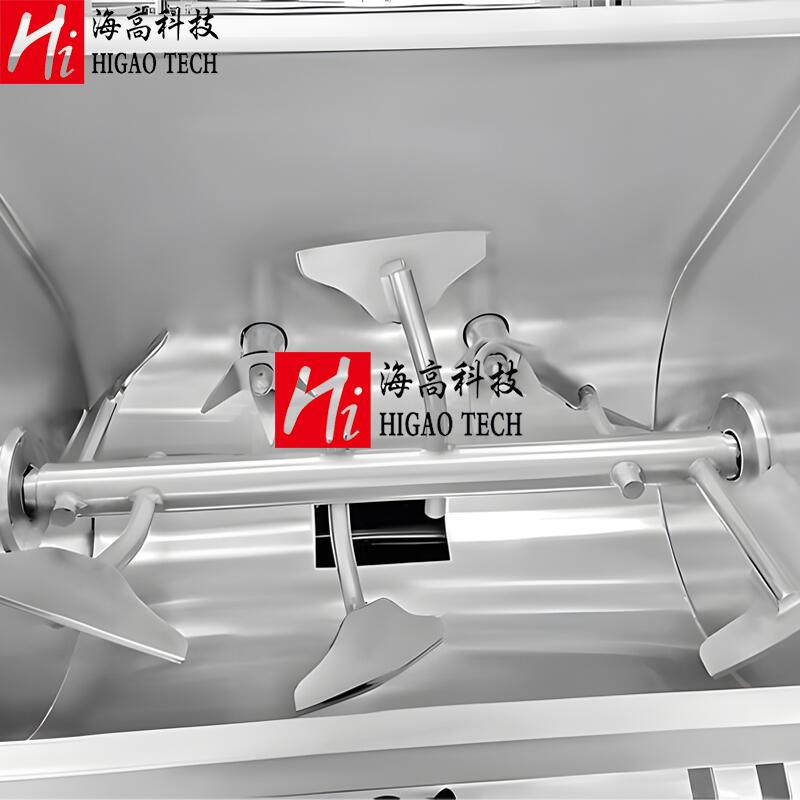

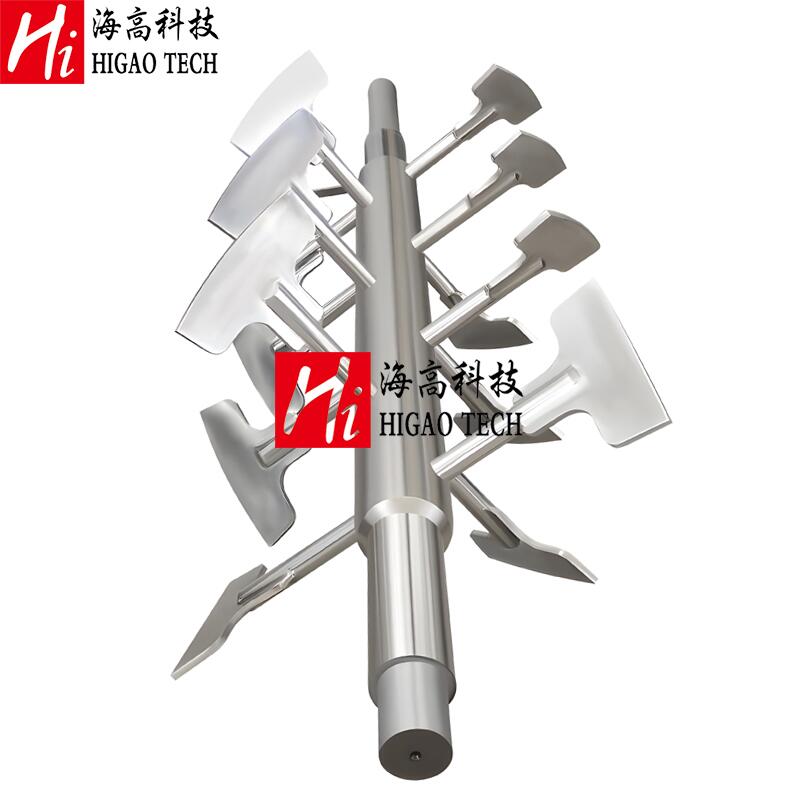

Single shaft paddle mixer machine consists of one shaft with paddles. Blending paddles will agitate materials, then make the movement of materials reach the critical rotation speed and throw the materials to the highest point.
Single shaft paddle mixer can make a homogeneous mixing effect for different sizes and density of the materials.

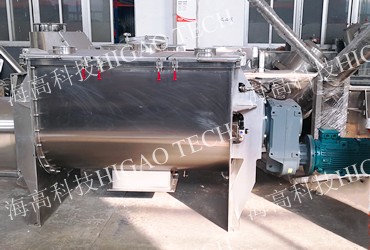

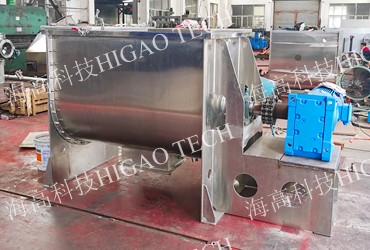

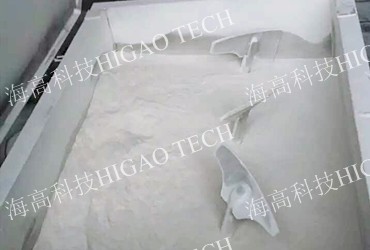

single shaft paddle blender

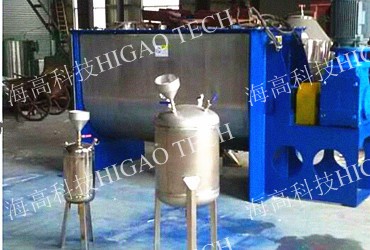

3. Liquid spray system, Heating and cooling jacket:
Single Shaft Paddle Mixer with liquid spray device and heating and cooling jacket can be added as an additional function.

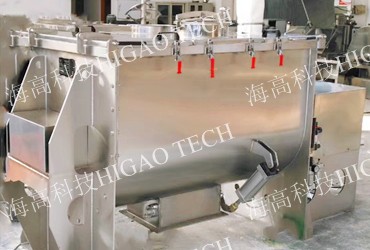

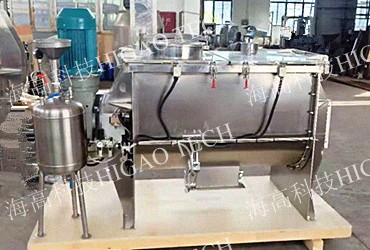

single shaft paddle mixer with liquid oil spray system

single shaft paddle mixer with liquid spray system

single shaft paddle mixer with oil spray system

4. Discharging method:
Discharging valves Controlled by manual, electric and pneumatic.such as flap valve, ball valve, rotary valves.

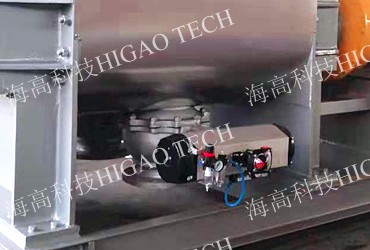

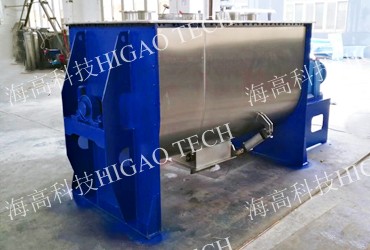

single shaft paddle mixer with pneumatic discharge valve

single shaft paddle mixer with pneumatic discharge valve

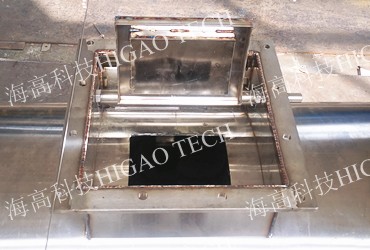

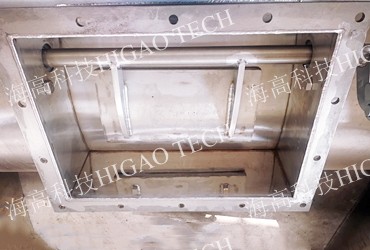

single shaft paddle mixer with bomb-bay discharge door

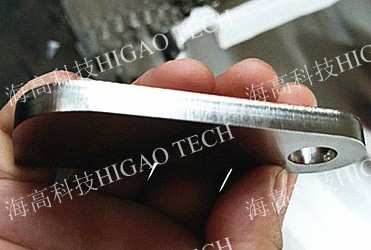

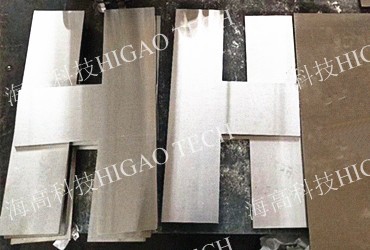

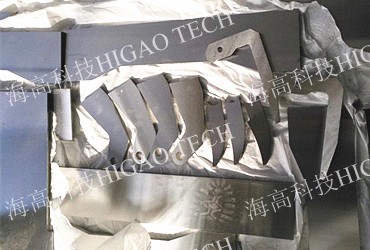

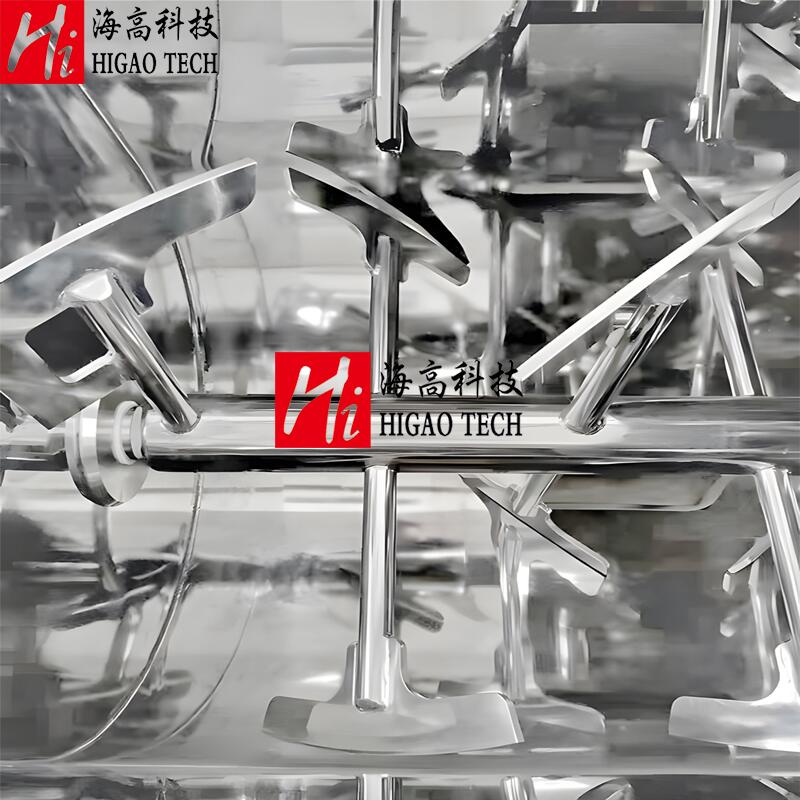

5. Processing method of spare parts:
In order to keep our spare parts of Single Shaft Paddle Mixer, we choose high accurate laser cutter to process these parts. And this way can make sure our Paddle Mixer can work better and a longer using time.

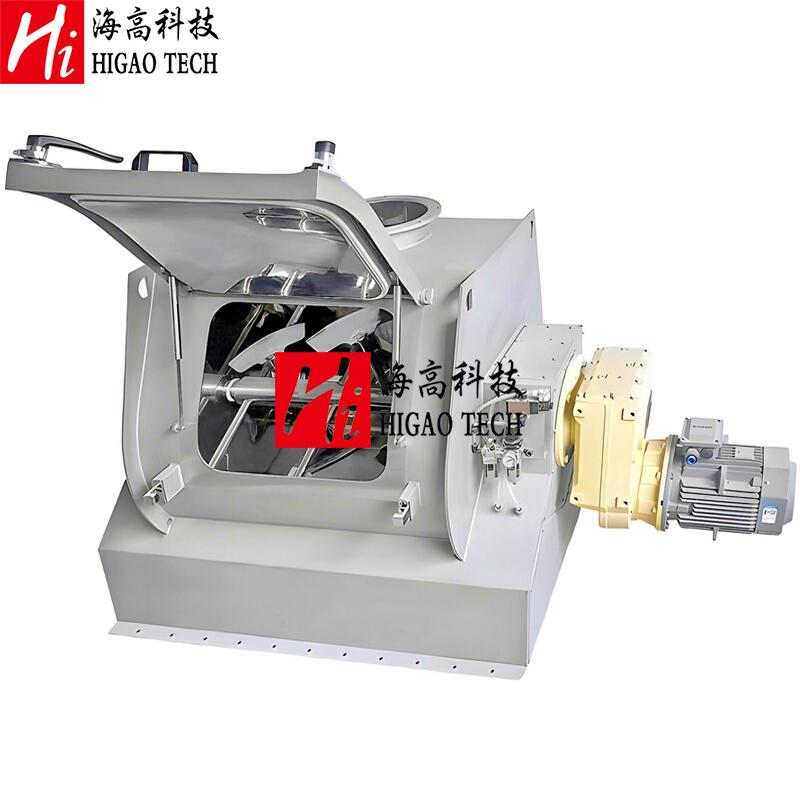

batch type single shaft paddle mixer with bomb-bay discharge door

batch type single shaft paddle mixer with bomb-bay discharge door

single shaft paddle mixer with pneumatic discharge door

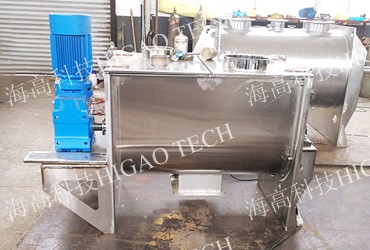

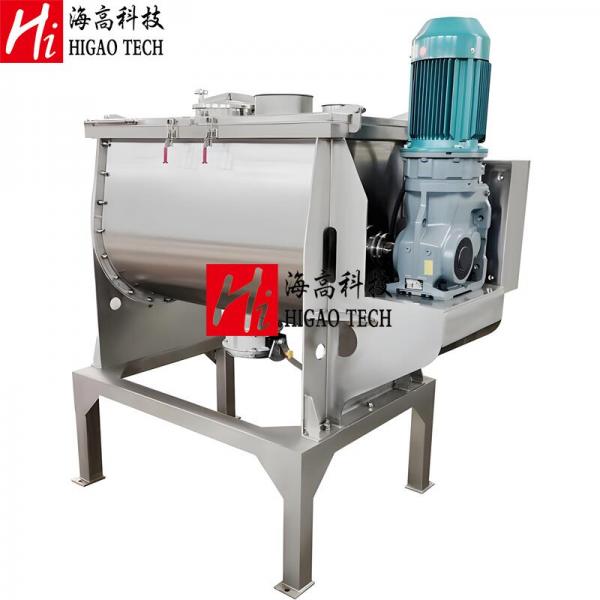

stainless steel single shaft paddle mixer

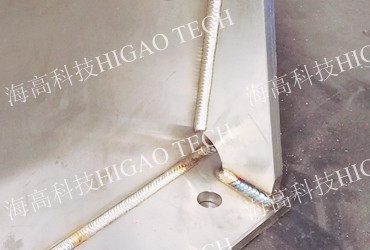

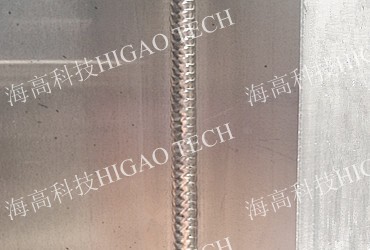

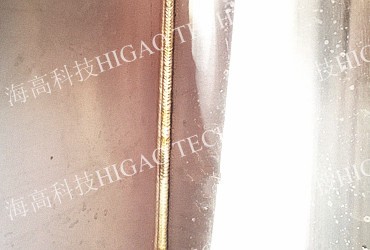

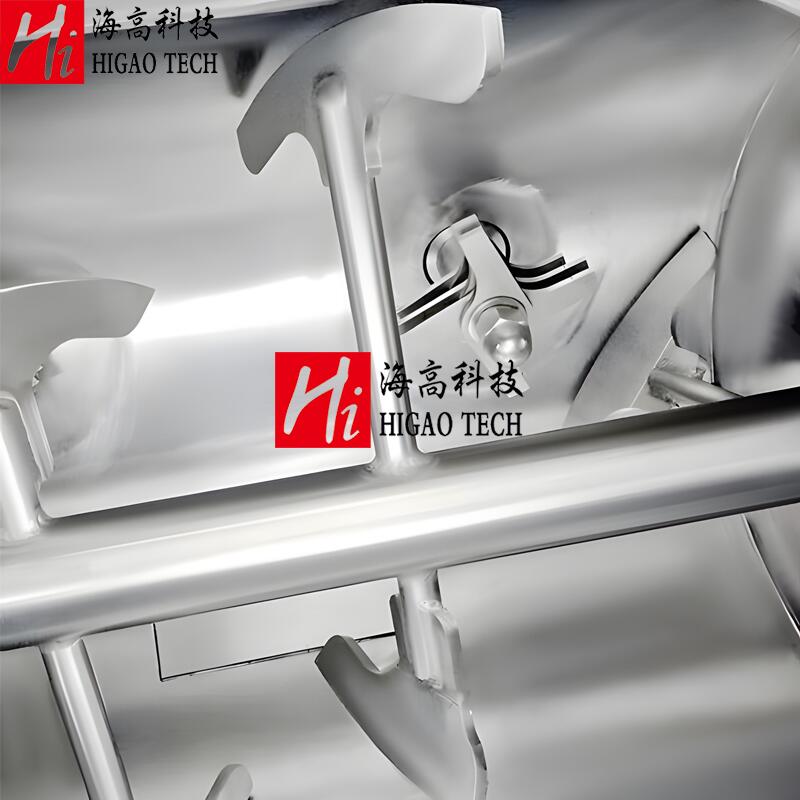

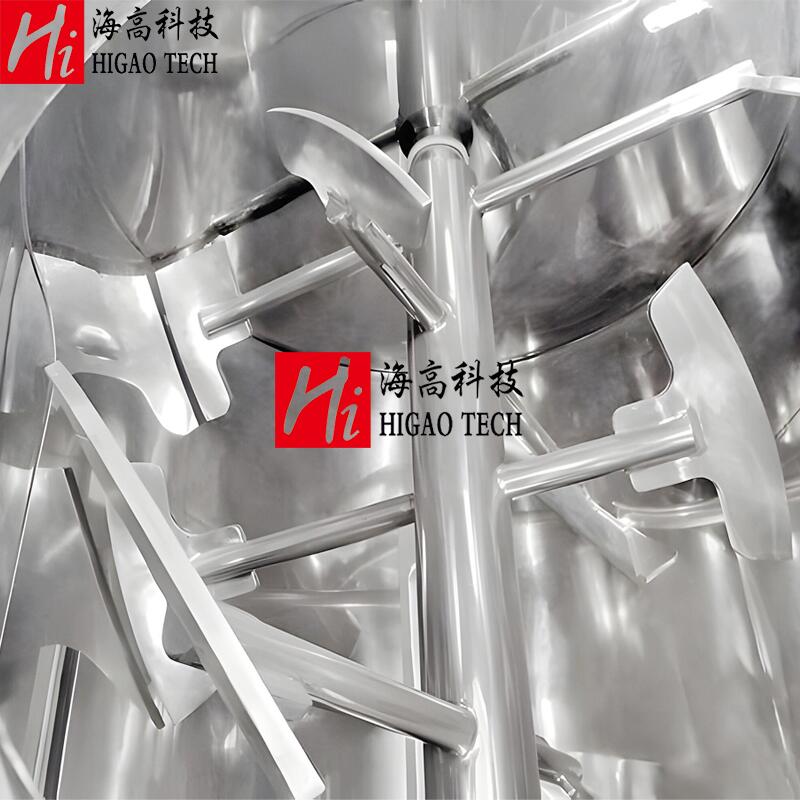

6. Welding and soldering details:
We take very good care of the soldering seam. Our team try our best to make it not only solid but ensure the best visual impression and customer satisfaction.
single shaft paddle mixer for dry powder mixing

single shaft paddle mixer for dry powder mixing

single shaft paddle mixer for powder granules mixing

single shaft paddle mixer for chemical powder

7. Steel grade of single shaft paddle mixer:

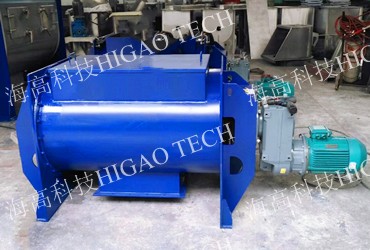

You can choose stainless steel 304(SUS304), stainless steel 316L(SUS316L), stainless steel 316 Titanium(SUS316TI), carbon steel covered with paint, special coating on the surface of the barrel, such as Teflon(PTFE) coating, ceramic coating, porcelain enamel(or called enamel glass), etc.
explosion proof single shaft paddle mixer

explosion proof single shaft paddle mixer

single shaft paddle mixer with heating jacket

single shaft paddle mixer with cooling jacket

SPM Series Single Shaft Paddle Mixer of HIGAO TECH
Model	Total volume	Loading volume	Capacity	Loading coefficient	Mixing time	Motor/speed	Dimension(L×W×H)	Weight
SPM-100	100L	50L	50kg	40~60%	0~999Min	2.2kw/58rpm	1190×740×790mm	380kg
SPM-200	200L	100L	100kg	40~60%	0~999Min	3kw/53rpm	2030×630×980mm	450kg
SPM-300	300L	180L	200kg	40~60%	0~999Min	4kw/41rpm	2280×680×880mm	550kg
SPM-500	500L	300L	300kg	40~60%	0~999Min	5.5kw/41rpm	2670×780×1240mm	900kg
SPM-1M³	1M³	0.6M³	600kg	40~60%	0~999Min	11kw/33rpm	3140×980×1400mm	1600kg
SPM-2M³	2M³	1.2M³	1200kg	40~60%	0~999Min	15kw/33rpm	3860×1200×1650mm	2700kg
SPM-3M³	3M³	1.8M³	1800kg	40~60%	0~999Min	18.5kw/33rpm	4460×1300×1700mm	3600kg
SPM-4M³	4M³	2.4M³	2500kg	40~60%	0~999Min	22kw/27rpm	4950×1400×2000mm	4200kg
SPM-5M³	5M³	3M³	3000kg	40~60%	0~999Min	30kw/27rpm	5280×1550×2100mm	5100kg
SPM-6M³	6M³	3.6M³	3600kg	40~60%	0~999Min	37kw/27rpm	5530×1560×2200mm	5600kg
SPM-8M³	8M³	4.8M³	4800kg	40~60%	0~999Min	45kw/22rpm	5100×1720×2500mm	6500kg
SPM-10M³	10M³	6M³	6000kg	40~60%	0~999Min	45kw/22rpm	5610×1750×2650mm	7800kg
SPM-15M³	15M³	9M³	9000kg	40~60%	0~999Min	55kw/14rpm	5820×2000×2900mm	11000kg
SPM-20M³	20M³	12M³	12000kg	40~60%	0~999Min	75kw/14rpm	6060×2350×3160mm	13000kg
SPM-30M³	30M³	18M³	15000kg	40~60%	0~999Min	110kw/12rpm	6200×2500×3350mm	16000kg
