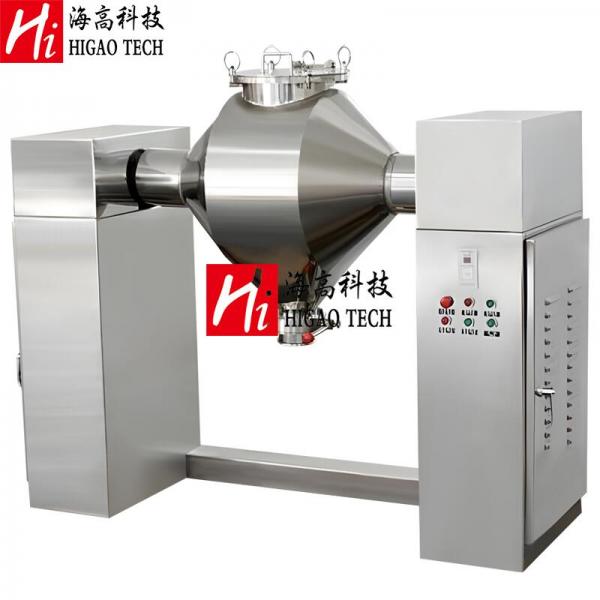

double cone mixer

Higao Tech fabricate professional double cone mixer with good quality and low price in china. Double cone powder mixer machine is used to mix powdery materials in pharmaceutical, chemical, food industries, etc.
  • item no.:

    DCM series double cone mixer
  • Payment:

    T/T 30% deposit and 70% before shipment
  • product origin:

    made in china
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification
Higao Tech fabricate professional double cone mixer with good quality and low price in china. Double cone powder mixer machine is used to mix powdery materials in pharmaceutical, chemical, food industries, etc.

1. Introduction:
Double cone powder mixer machine is applicable for blending granules, particles, pellets and powdery materials in pharmaceutical,chemical,foodstuff,feed additive,pigment and electronic trades etc.
2. Principle and features:
Double cone mixer machine has remarkable mixing effect in blending particles and granules and powdery materials which have relatively good fluidity.

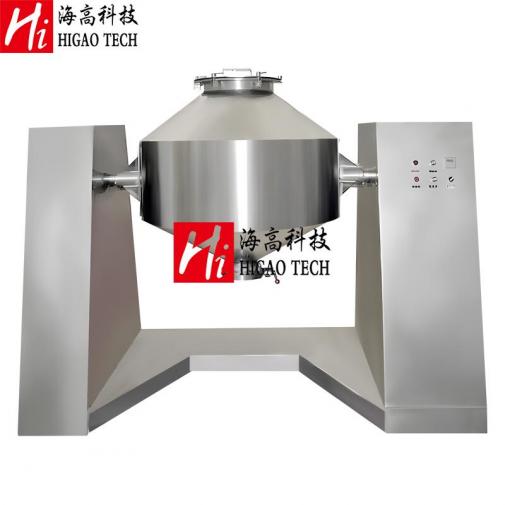

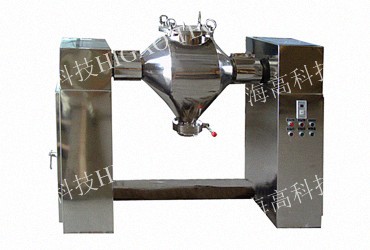

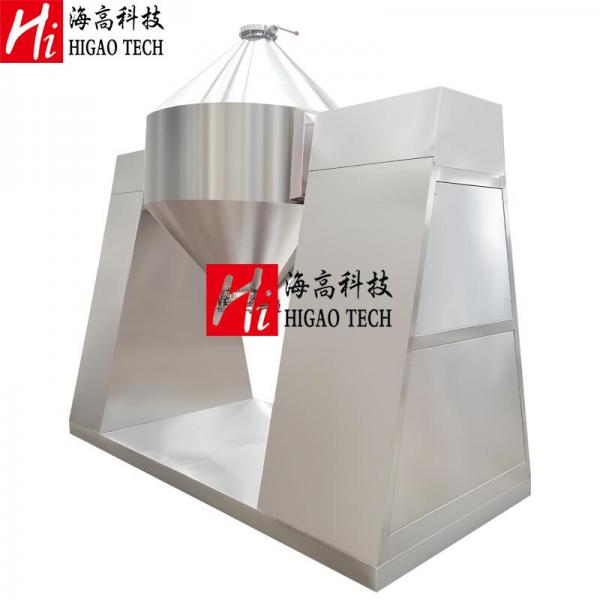

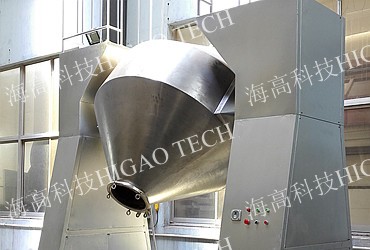

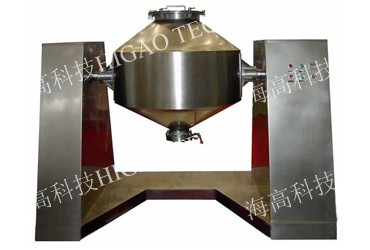

Double cone powder mixer is made of stainless steel. The cone shaped barrel or called W shape barrel is polished shinning both inside and outside, featured with beautiful appearance and easy operation.

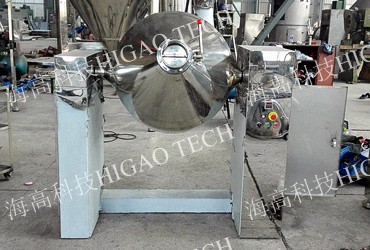

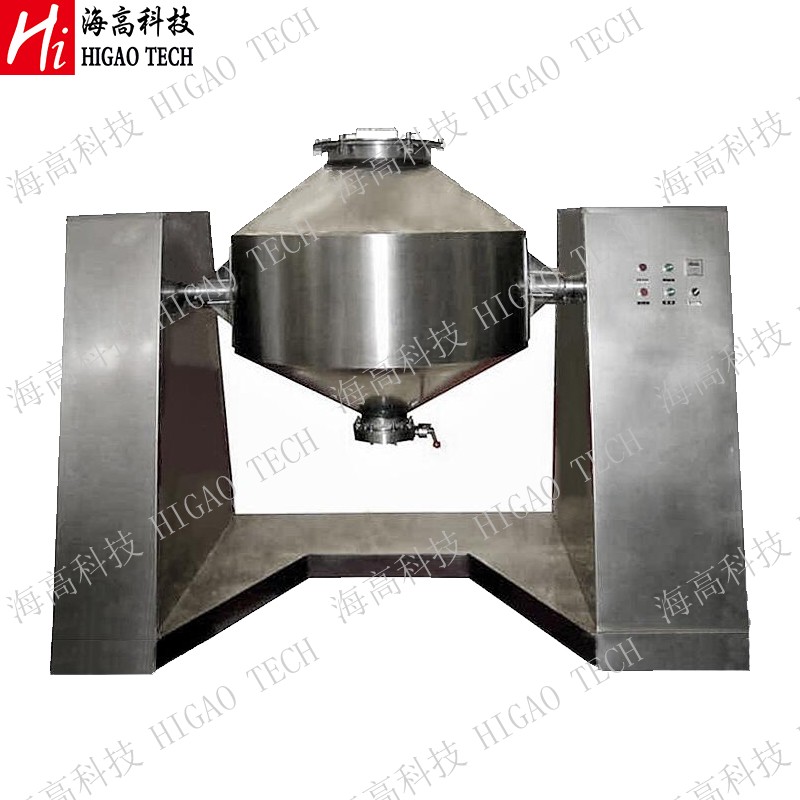

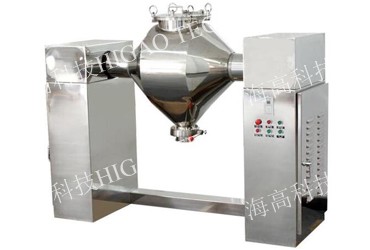

W shape mixer W shape blender double cone mixer
3. Multiple blending structures:
Mixing structure has two types: without blender and with a blender.

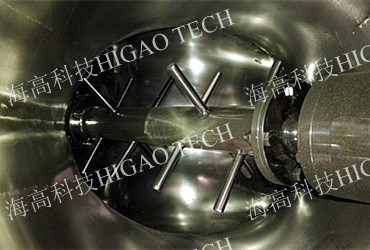

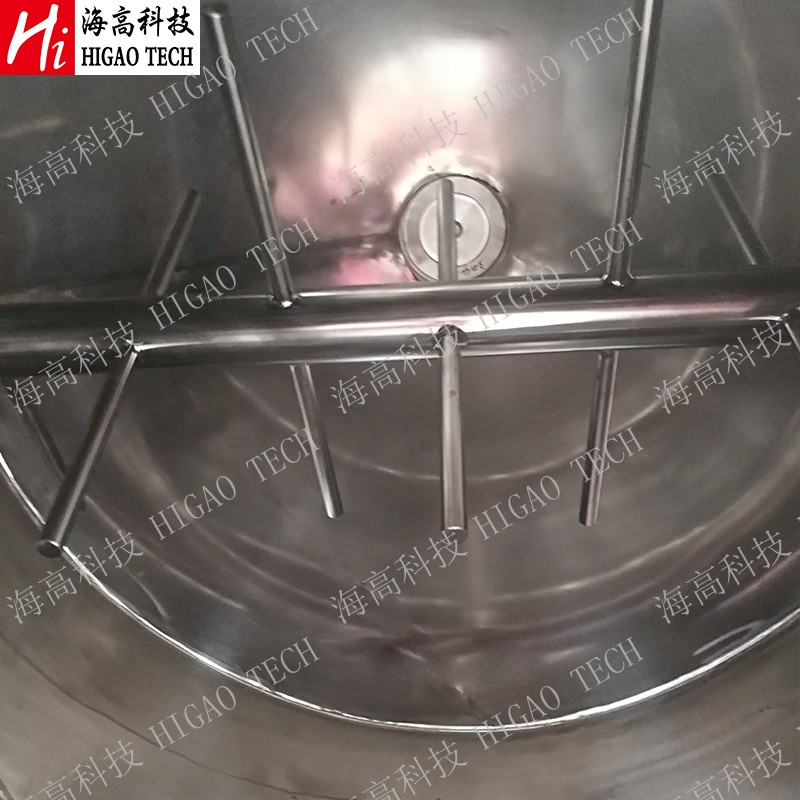

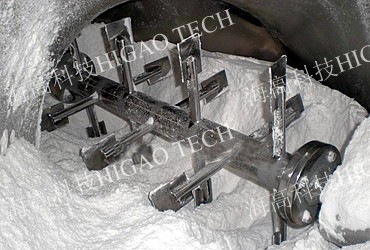

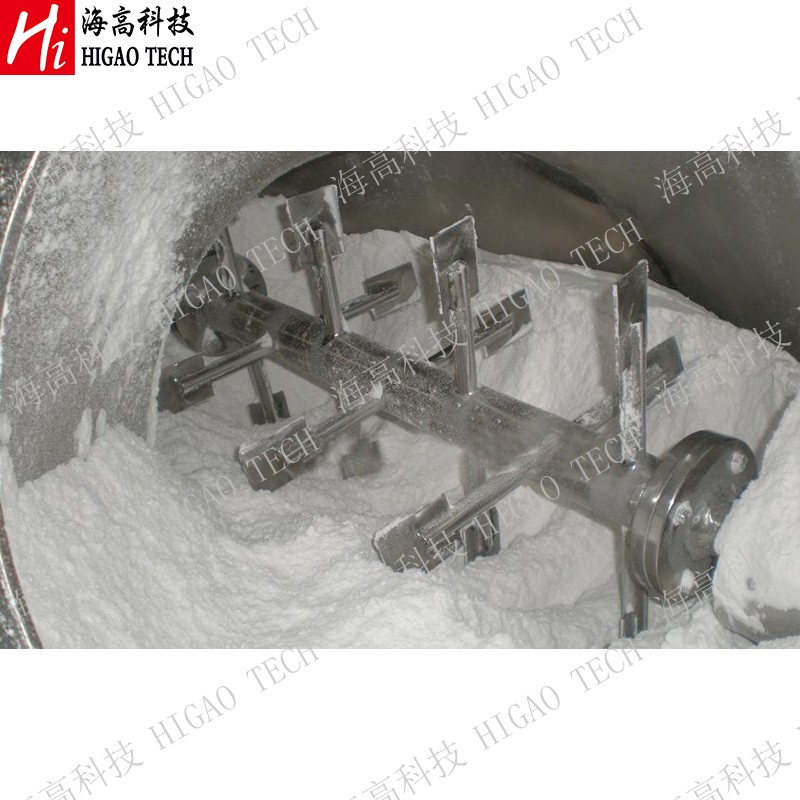

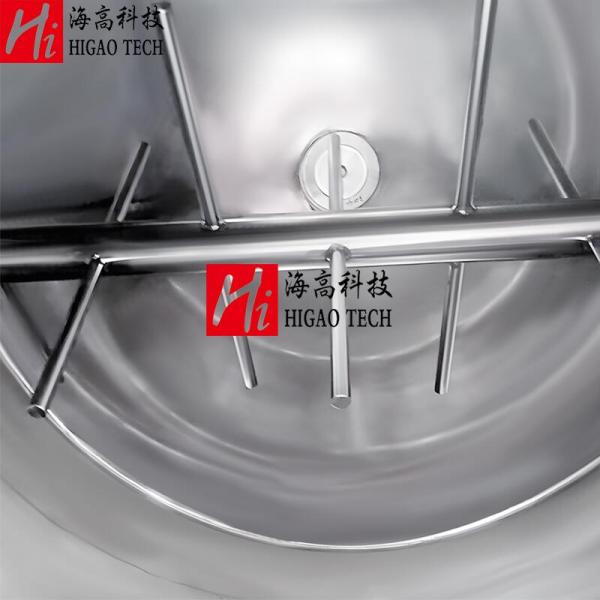

Double Cone Tumbler Mixer can be equipped with an agitating blender inside the mixing barrel. It can improve the mixing degree of homogeneity.

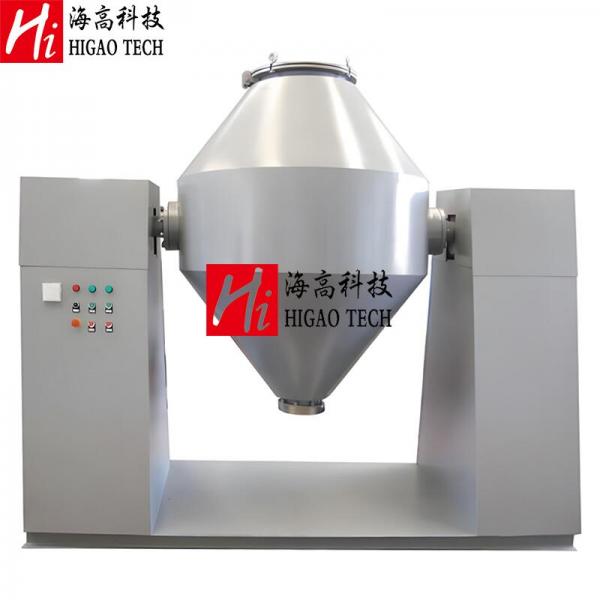

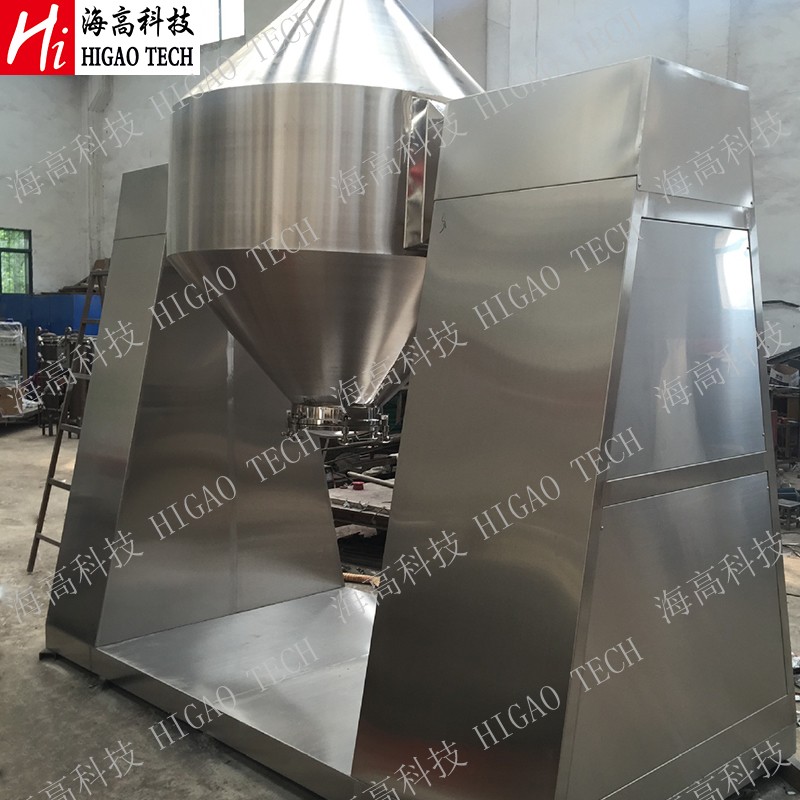

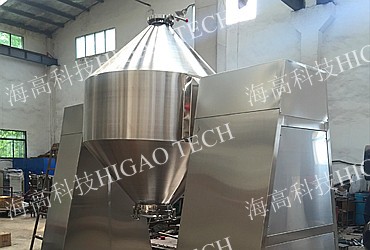

pharmaceutical double cone mixer equipment double cone powder mixer double cone powder blender
4. Surface treatment:

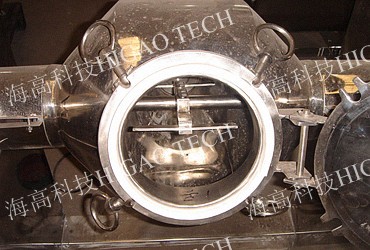

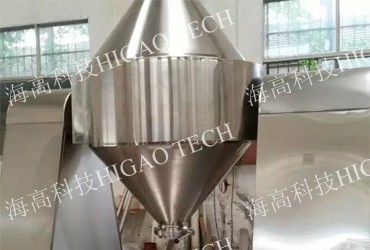

Mirror finish matching with special structure of the cone shape makes a better mixing effect.

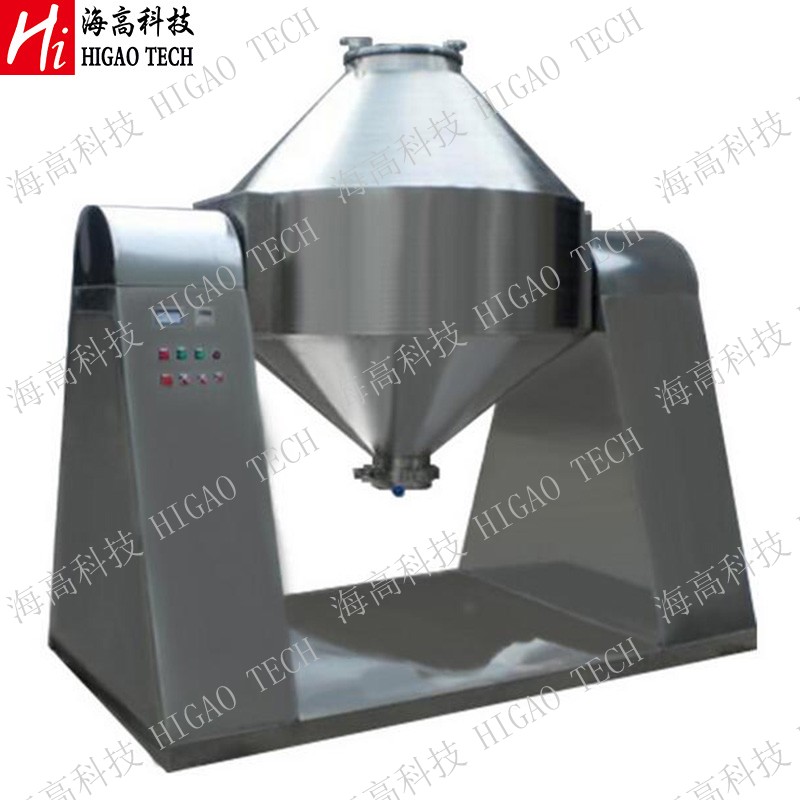

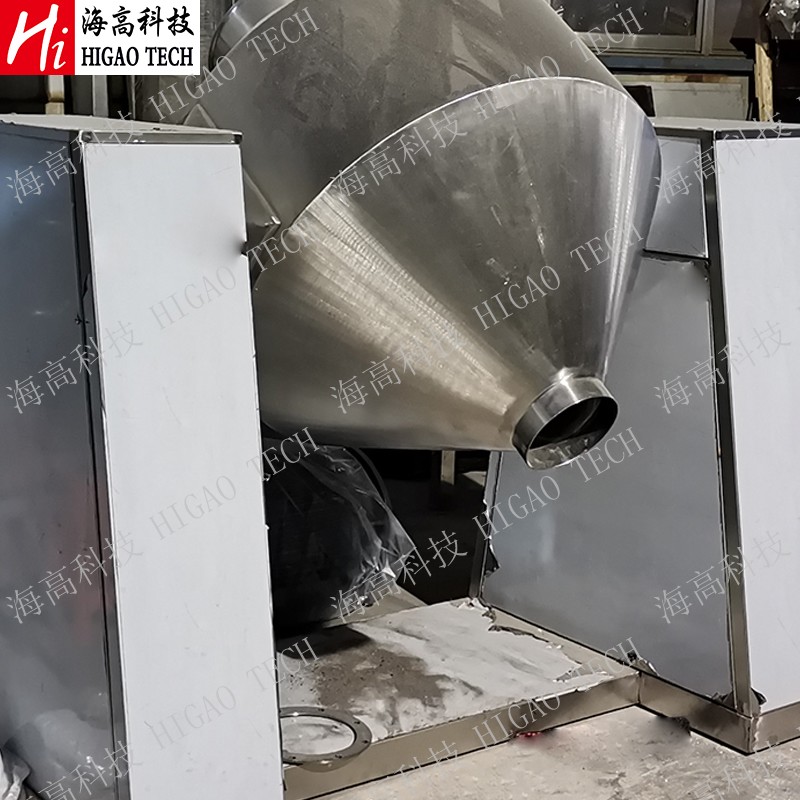

double cone blender double cone tumbler mixer double cone tumbler blender
5. Steel grade of Double Cone Tumbler Mixer:
Double Cone Tumbler Mixer can be made by using stainless steel 304 or SS316L to be safe and healthy.

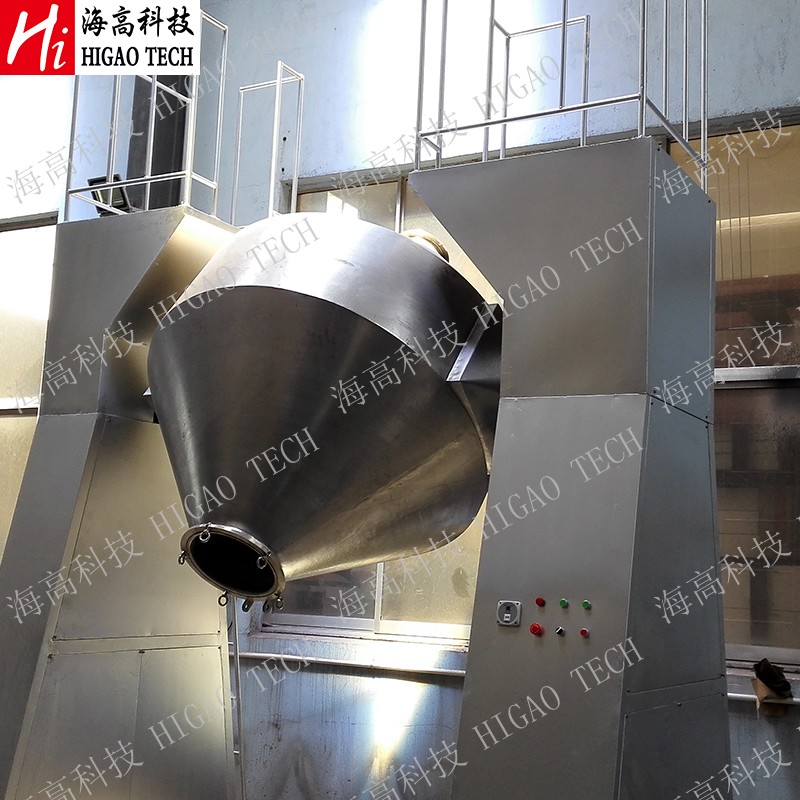

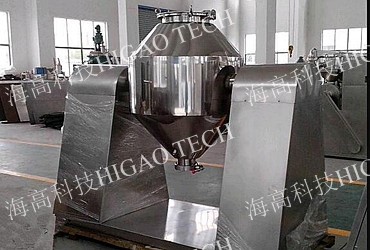

double cone rotating mixer double cone granular mixer double cone drum mixer

DCM Series Double Cone Mixer of HIGAO TECH

Model

Total volume

Loading volume

Mixing motor

Agitating motor

Dimension(L×W×H)

DCM-50

50L

25L

1.1kw/20rpm

0.75kw/60rpm

1500×450×1200mm

DCM-100

100L

50L

1.5kw/20rpm

1.1kw/60rpm

1600×600×1300mm

DCM-200

200L

100L

2.2kw/20rpm

1.1kw/60rpm

1800×700×1500mm

DCM-300

300L

150L

2.2kw/20rpm

1.1kw/60rpm

2100×800×1800mm

DCM-500

500L

250L

3kw/20rpm

2.2kw/60rpm

2300×950×1900mm

DCM-1000

1000L

500L

5.5kw/10rpm

2.2kw/40rpm

2400×1100×2500mm

DCM-1500

1500L

750L

7.5kw/10rpm

4kw/40rpm

2900×1300×2700mm

DCM-2000

2000L

1000L

7.5kw/8rpm

4kw/30rpm

3000×1400×3100mm

DCM-3000

3000L

1500L

11kw/6rpm

5.5kw/20rpm

4000×1500×3500mm

DCM-4000

4000L

2000L

15kw/6rpm

5.5kw/20rpm

4800×1600×3700mm

DCM-5000

5000L

2500L

15kw/5rpm

7.5kw/20rpm

5400×1600×4000mm

DCM-6000

6000L

3000L

17.5kw/5rpm

7.5kw/20rpm

5600×1650×4350mm
