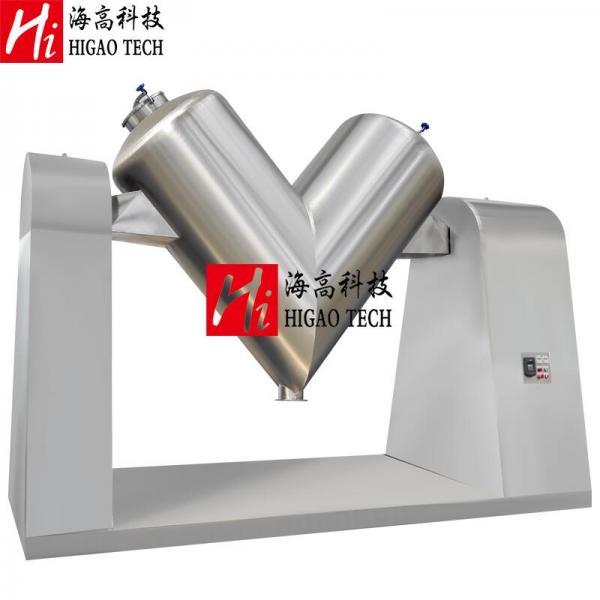

V type mixer

Higao Tech manufacture high quality V type mixer machine for powder mixing with a low price in china. V shaped mixer machine is a normal mixing machine used for many years especially to mix granular materials.
  • item no.:

    VM series V type mixer
  • Payment:

    T/T 30% deposit and 70% before shipment
  • product origin:

    made in china
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification
  • Photo Gallery
Higao Tech manufacture high quality V type mixer machine for powder mixing with a low price in china. V shaped mixer machine is a normal mixing machine used for many years especially to mix granular materials.

1. Introduction:

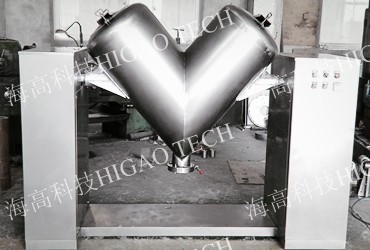

V type mixer machine for powder mixing is used mostly to mix granules, particles in pharmaceutical, foodstuff, chemical and other fields.
V type mixer machine is the most typical powder mixer in many kinds of mixing and blending equipment.

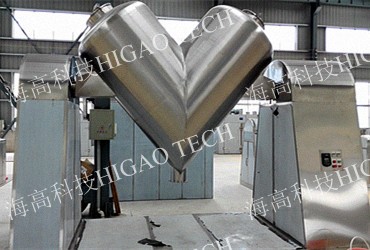

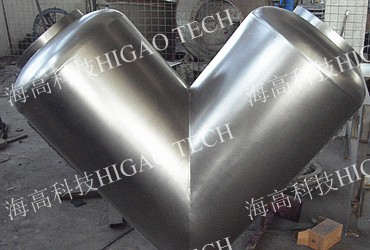

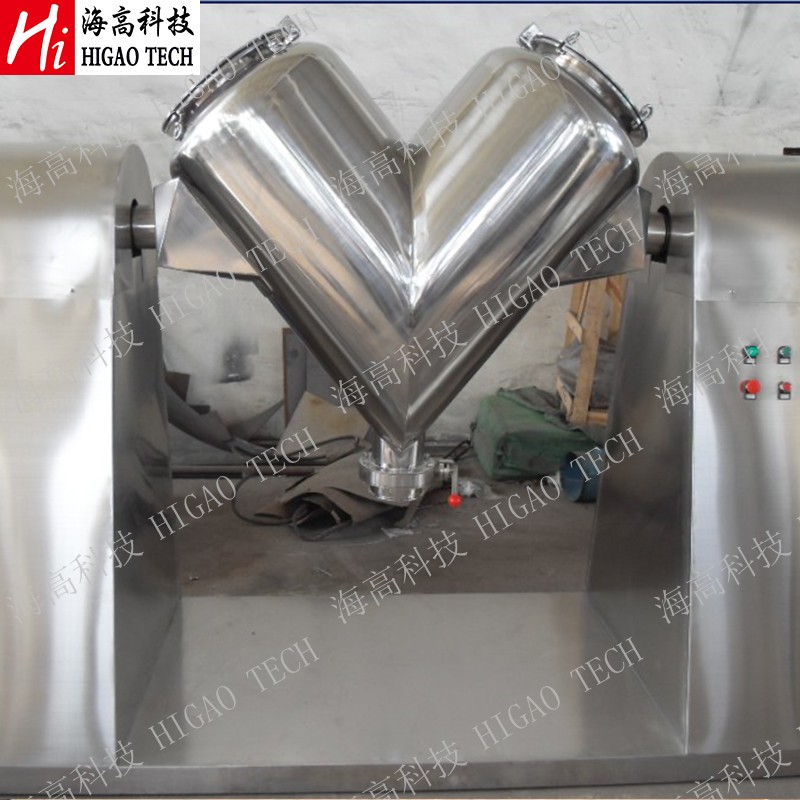

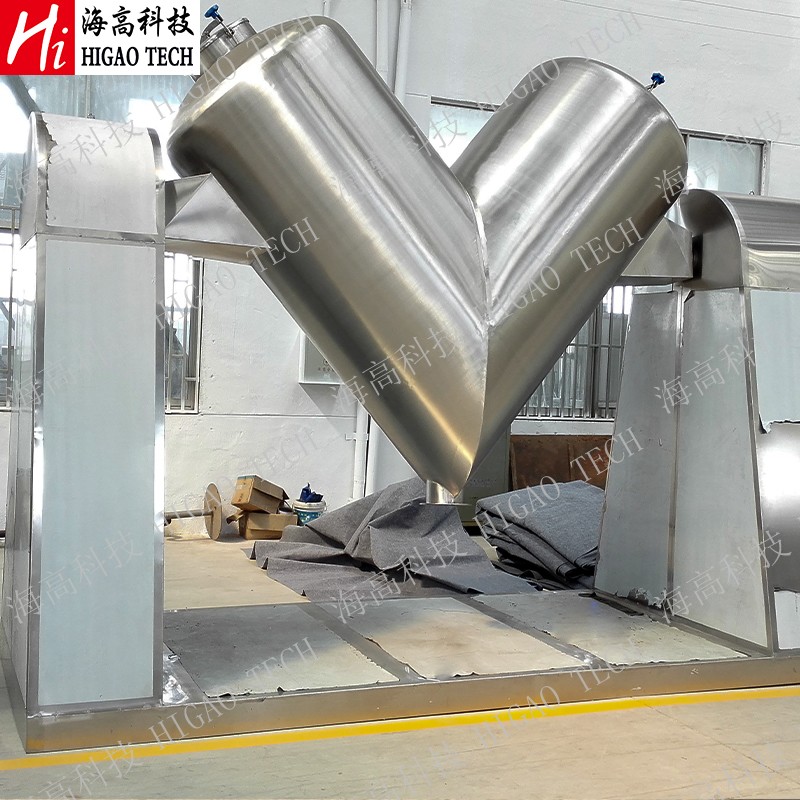

V mixer V blender V shape mixer
2. Principle and features:
V type mixer machine for powder mixing is of special structure, simple mix but useful, high efficient and uniform.And the mixing barrel is made of stainless steel with polishing inside and outside.
V type mixer machine has beautiful appearance, uniform mixing and wide application.

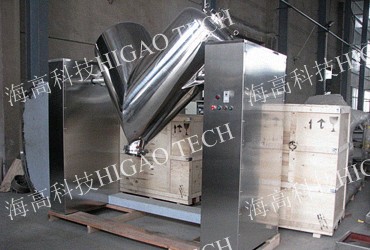

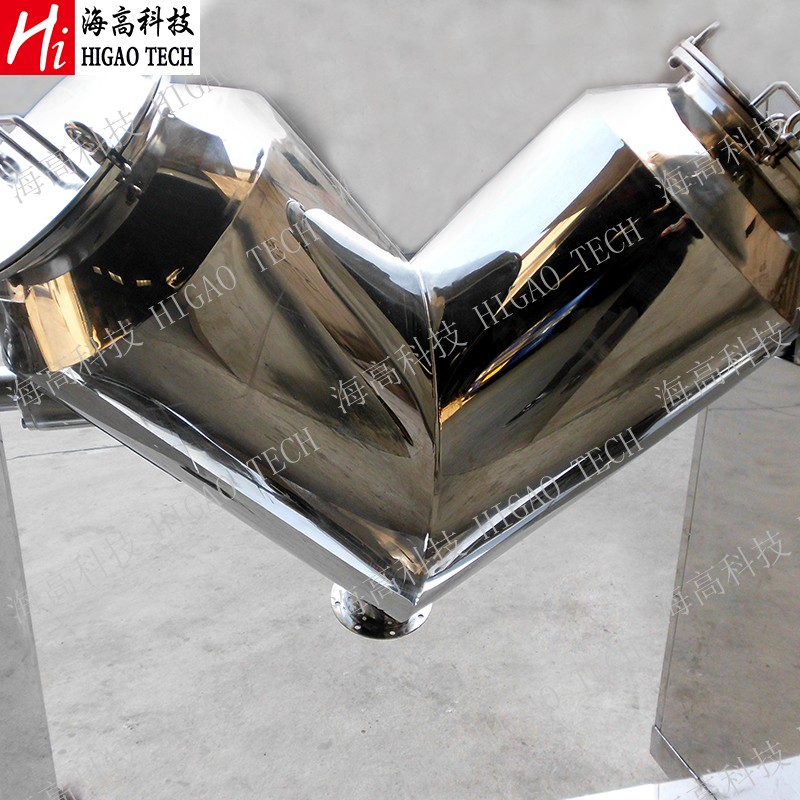

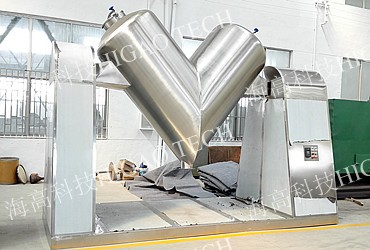

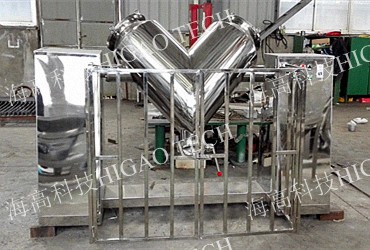

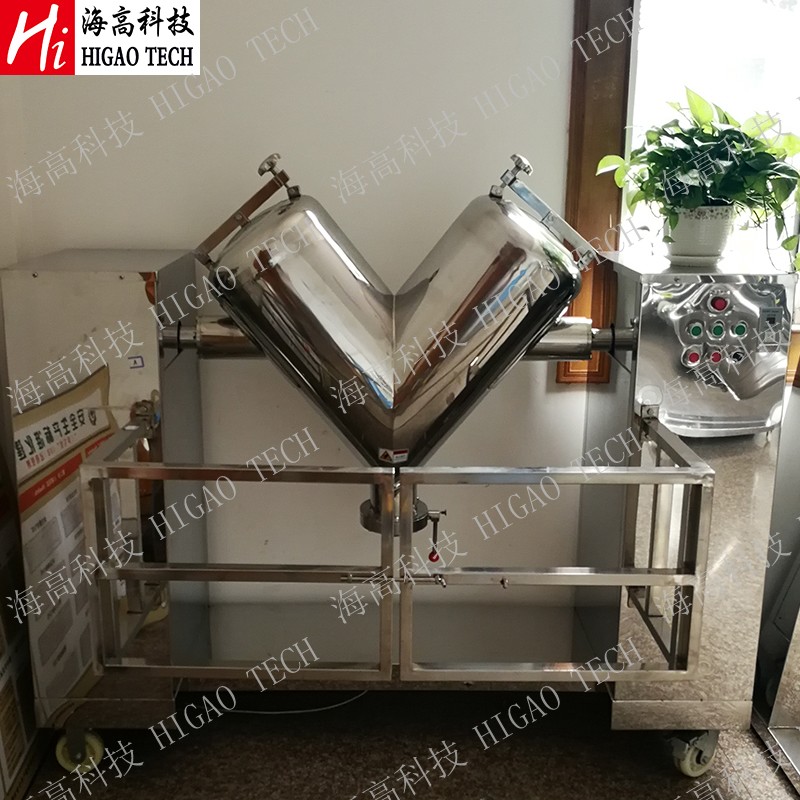

V shaped mixer V type blending mixer V shape blender
3. Multiple blending structures:

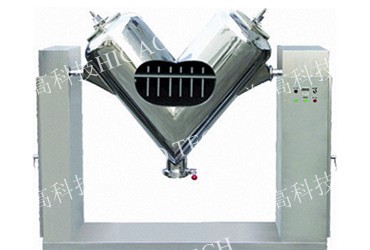

Two types of structures: V Type Mixer without blender(it is empty inside the V barrel) and V Type Mixer with a blender.

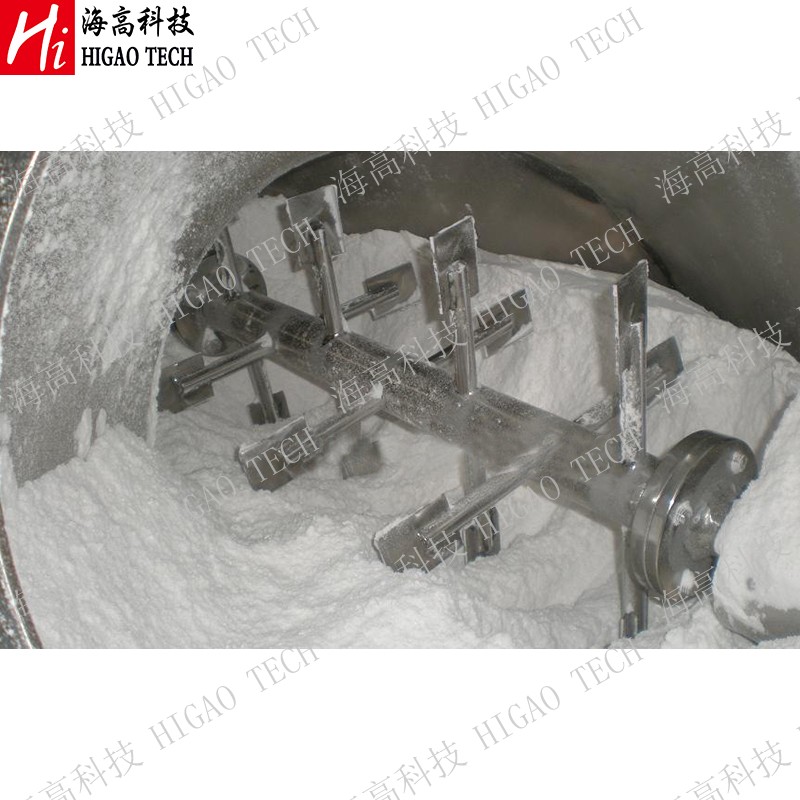

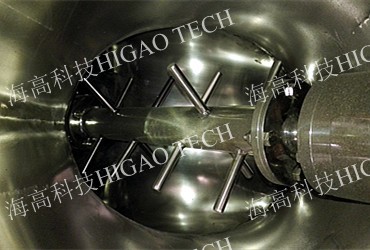

V Type Mixer with a blender structure inside the barrel is used to break the caking or agglomeration that formed during mixing process.

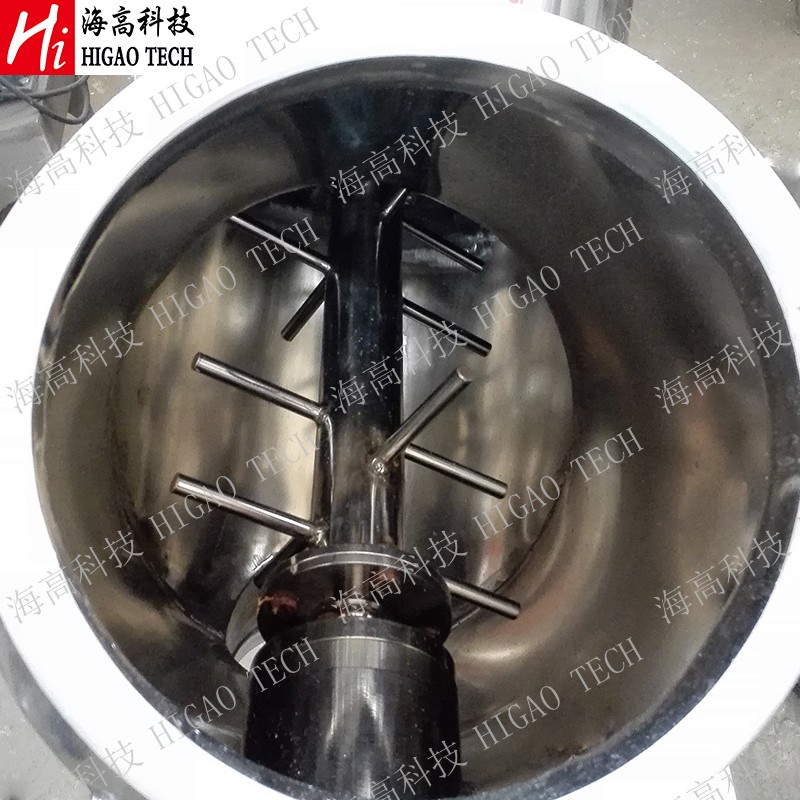

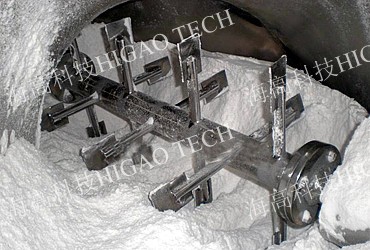

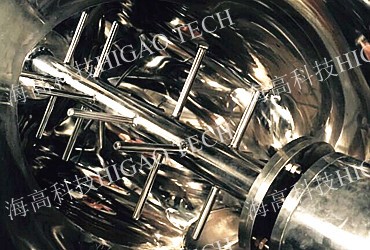

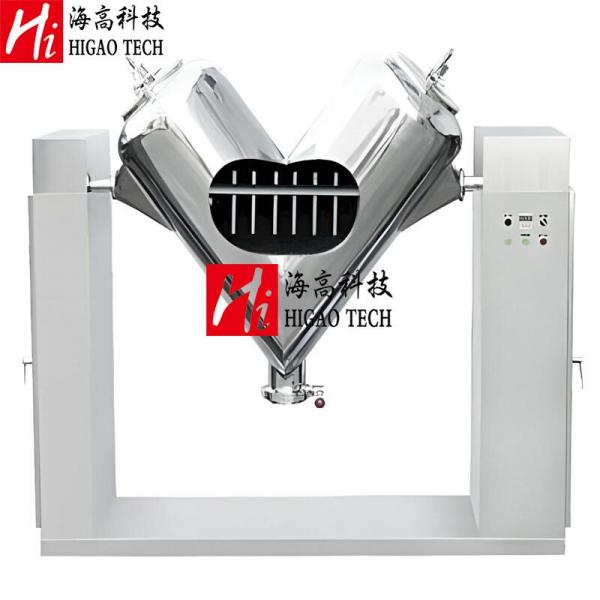

V mixer with agitator V type mixer with agitator V shape mixer with agitator
4. Surface treatment:

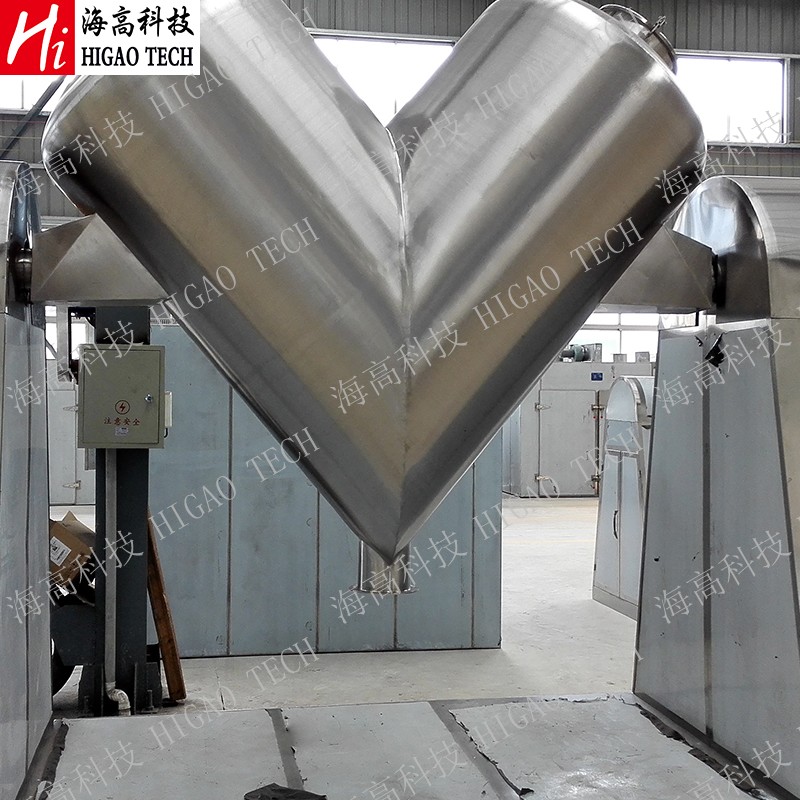

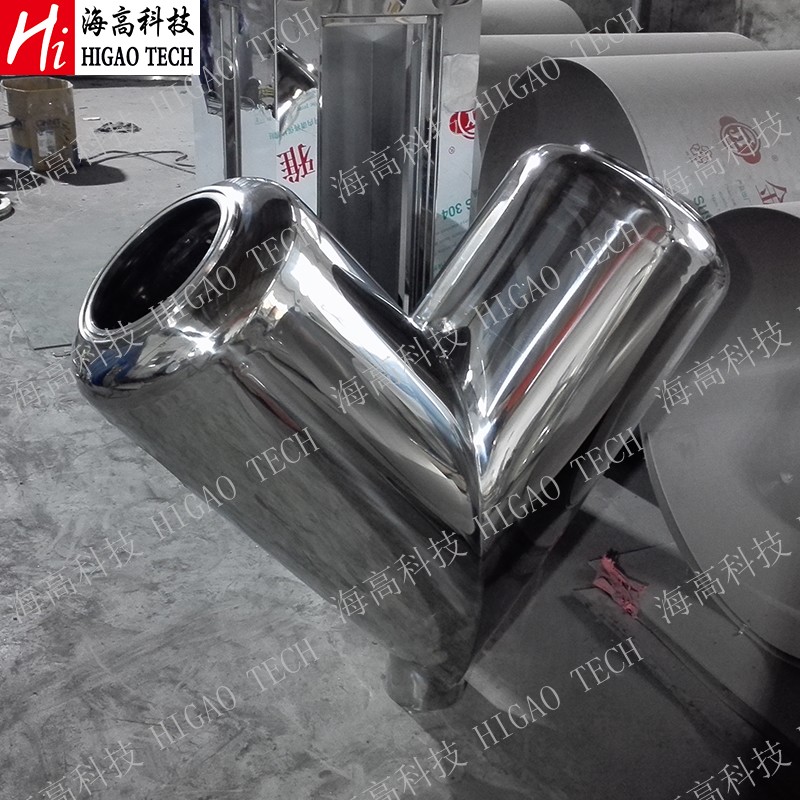

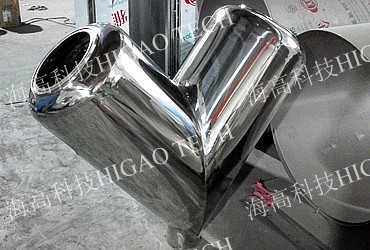

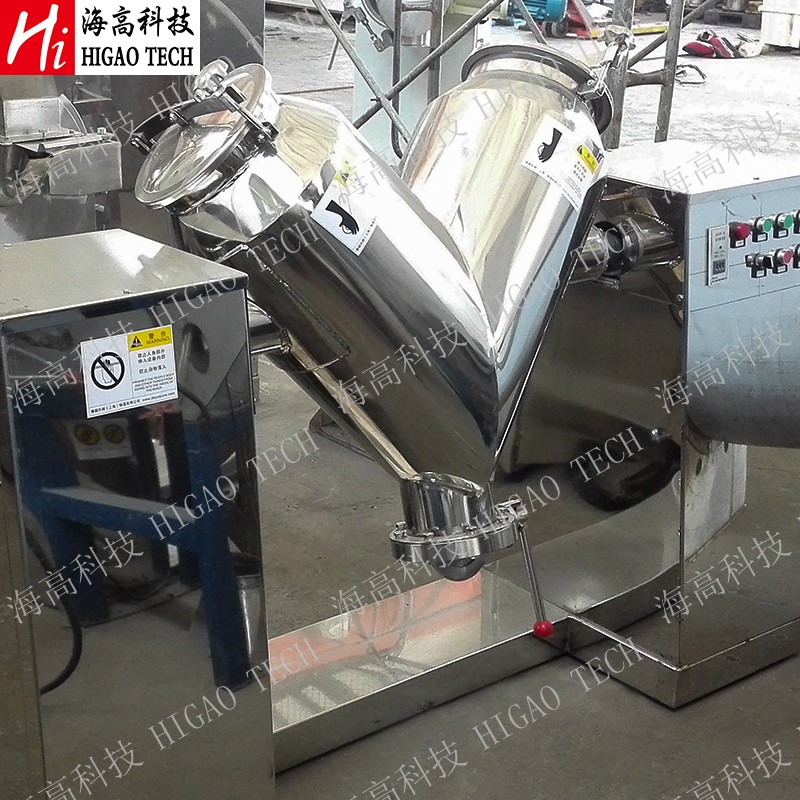

V Type Mixer is polished inside and outside with shinning color. Mirror polish can make the movement of materials inside the mixer more fluent.

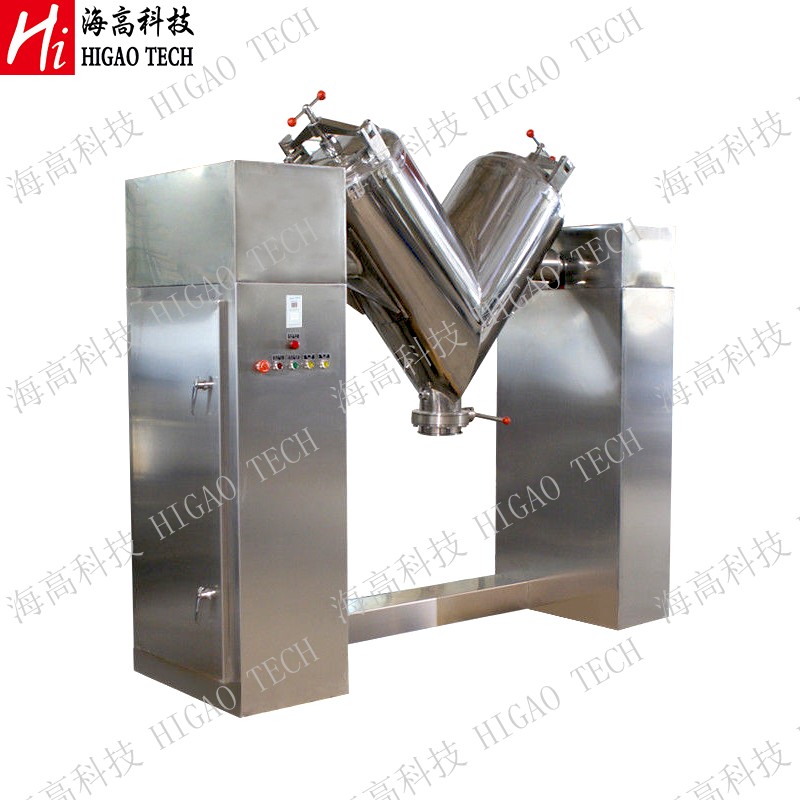

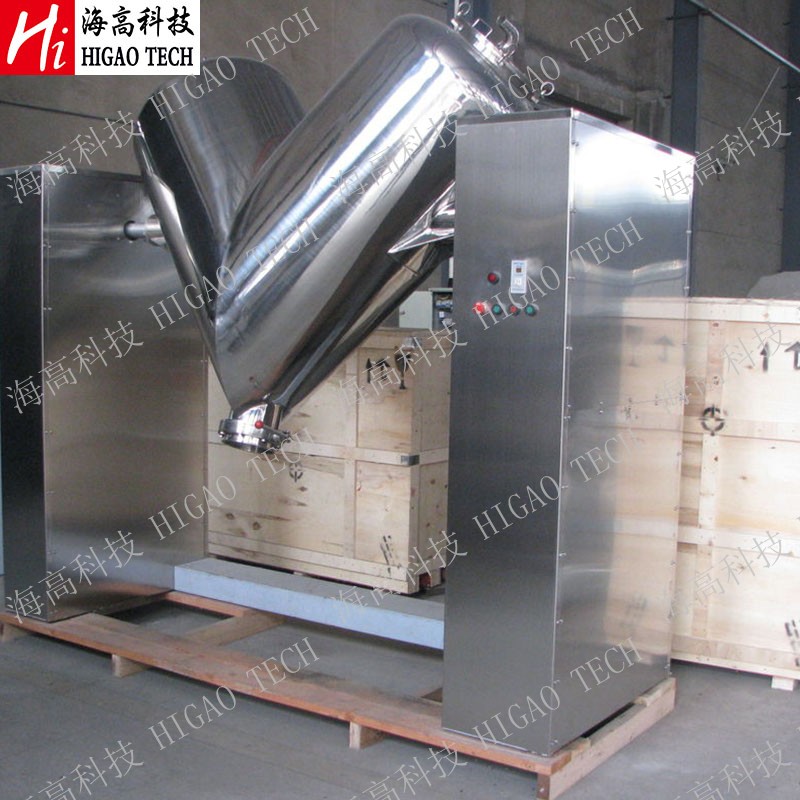

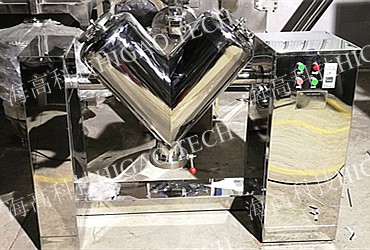

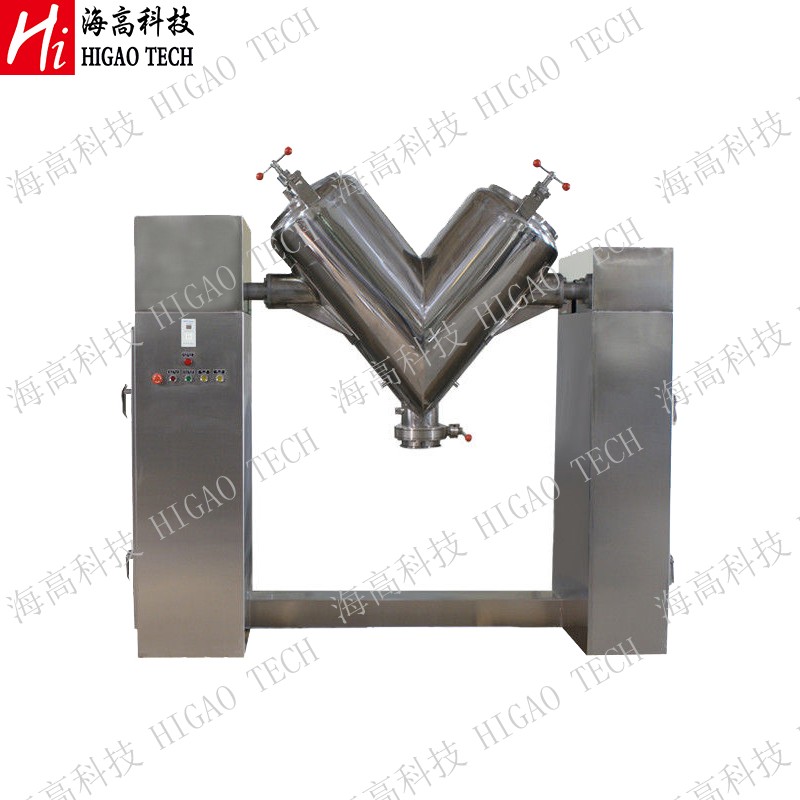

V shaped blender V type mixer V type blender

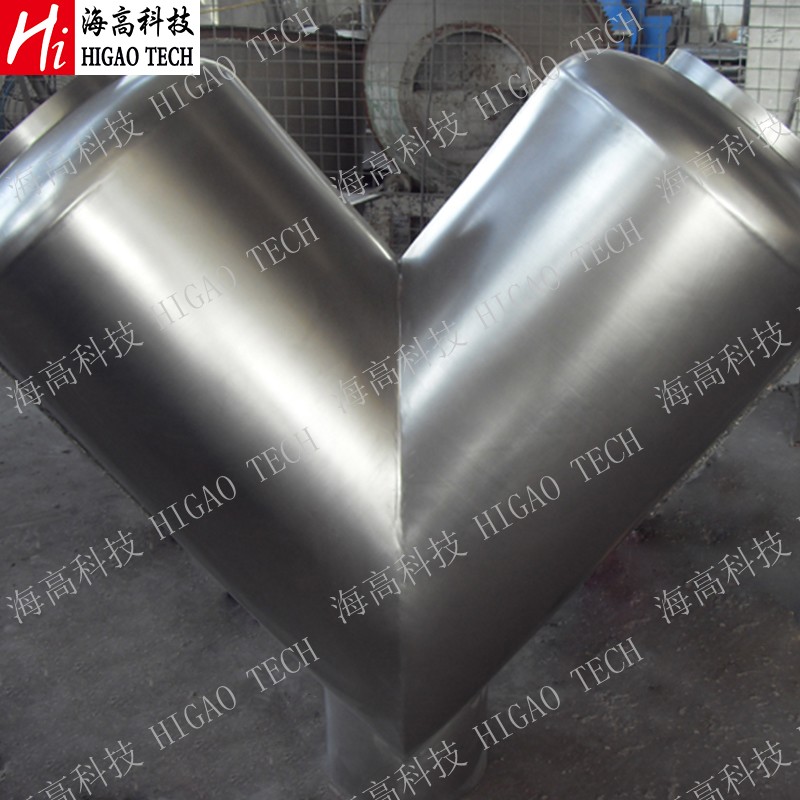

5. Steel grade of V Type Mixer:
V Type Mixer is made of all stainless steel 304 or 316L to meet food grade standard.

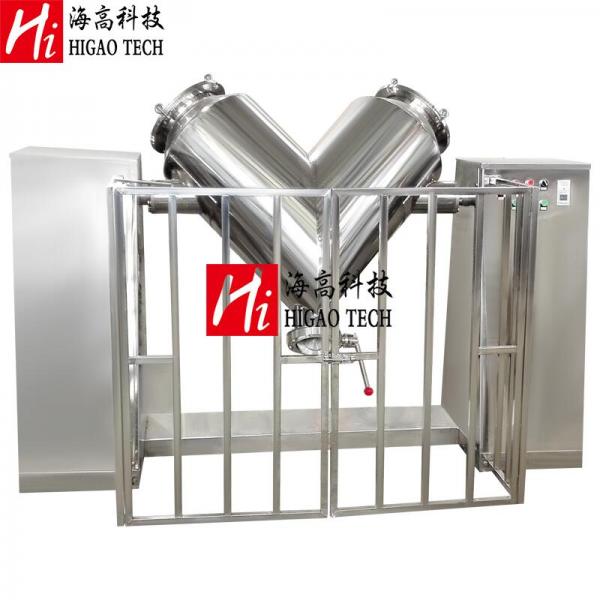

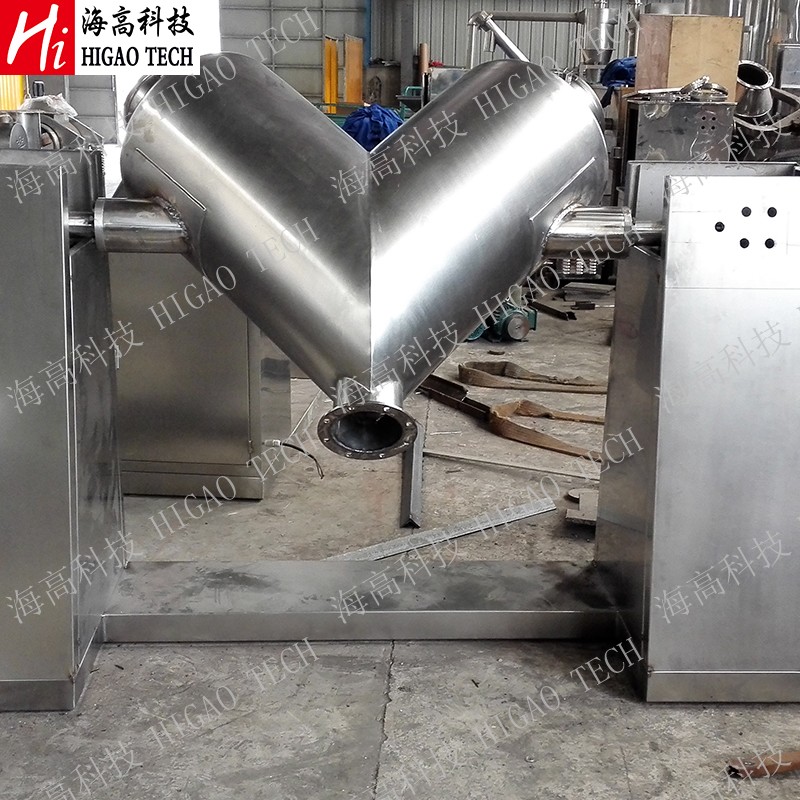

V shape powder mixer V shape powder blender V shape powder agitator

VM Series V Shape Mixer of HIGAO TECH

Model

Total volume

Loading volume

Mixing motor

Agitating motor

Dimension(L×W×H)

Weight

VM-50

50L

25L

0.75kw/20rpm

0.55kw/500rpm

1250×450×1060mm

150kg

VM-100

100L

50L

1.1kw/15rpm

0.75kw/500rpm

1620×500×1480mm

200kg

VM-200

200L

100L

1.1kw/15rpm

0.75kw/500rpm

1800×600×1850mm

260kg

VM-300

300L

150L

1.1kw/12rpm

1.1kw/500rpm

1900×650×1850mm

300kg

VM-500

500L

250L

2.2kw/12rpm

1.5kw/144rpm

2500×800×2050mm

500kg

VM-1000

1000L

500L

4kw/10rpm

2.2kw/144rpm

2850×1050×2450mm

800kg

VM-1500

1500L

750L

5.5kw/10rpm

3kw/144rpm

3400×1100×3100mm

1200kg

VM-2000

2000L

1000L

11kw/8rpm

4kw/144rpm

3820×1100×3200mm

2000kg

VM-3000

3000L

1500L

11kw/7rpm

5.5kw/144rpm

4200×1200×3300mm

2300kg

VM-4000

4000L

2000L

15kw/6rpm

5.5kw/144rpm

4600×1250×3500mm

2500kg
