Higao Tech manufacture high quality twin shaft sigma blade mixer machine for mixing viscous materials, glutinous materials, gummy and agglutinative materials in china.

1. Introduction:
Twin shaft sigma blade mixer machine for viscous materials is especially used to mix paste material, high viscous materials for higher homogeneous distribution in chemical industry, plastics, rubber, ink, carbon, pharmaceutical, foodstuff fields.
Twin shaft blades make the mixing force much stronger and can reach a better homogeneity during mixing powdery materials and adhesives and liquid together.
double shaft sigma mixer

2. Working principle and features:

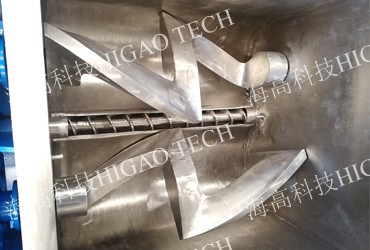

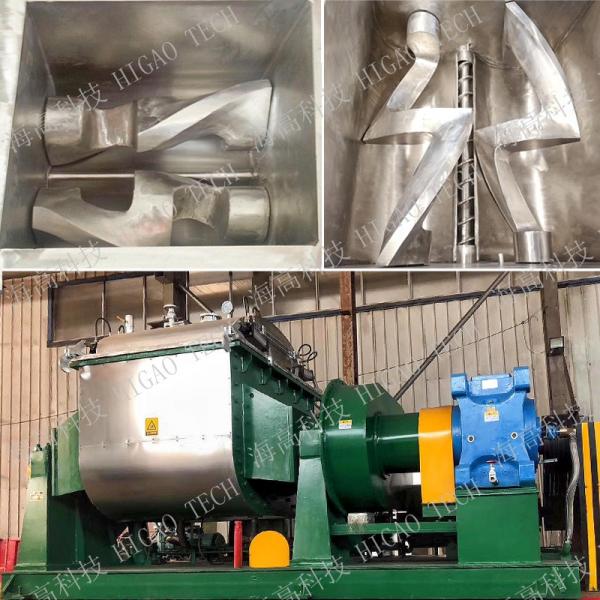

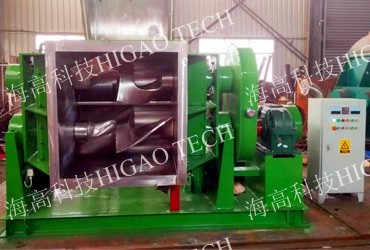

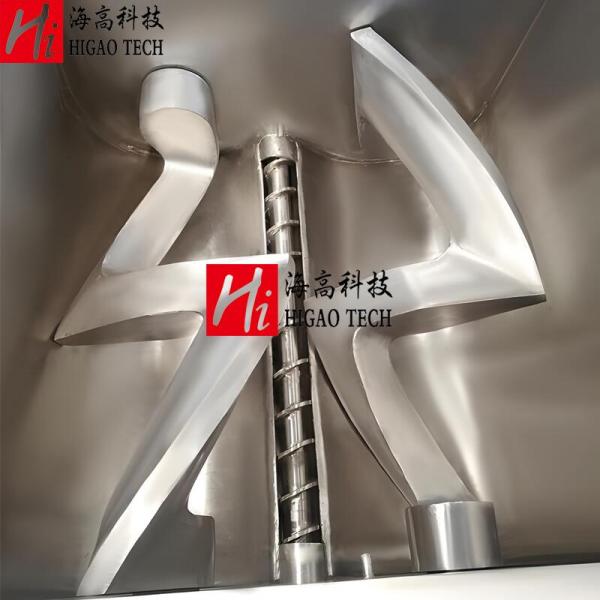

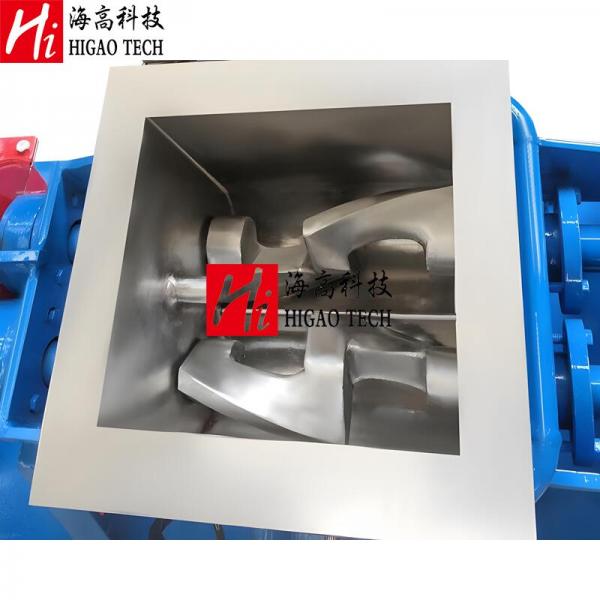

Twin shaft sigma blade mixer machine has double Z or sigma shaped blades which has stronger driving force to push viscous materials or paste materials to move around, also the two Z shaped paddles move at the opposite direction to get a better mixing effect than normal single shaft dough kneader mixer.
The mixing time can be set by adjusting the time relay between 0~999 minutes on the sigma mixer machine, the twin shaft blade mixer machine will stop automatically when time is up.
Then you can adjust the tank to a proper position and push the output button to discharge automatically, which saves working intensity of workers and improves the working efficiency greatly.
eraser/plasticine kneading mixer

BMC/CMC/DMC/SMC fiberglass kneading mixer

3. Liquid spray system, Heating and cooling jacket:

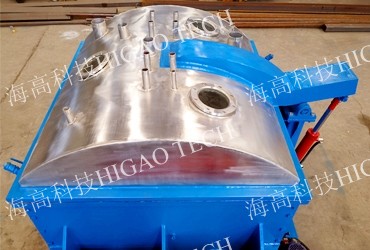

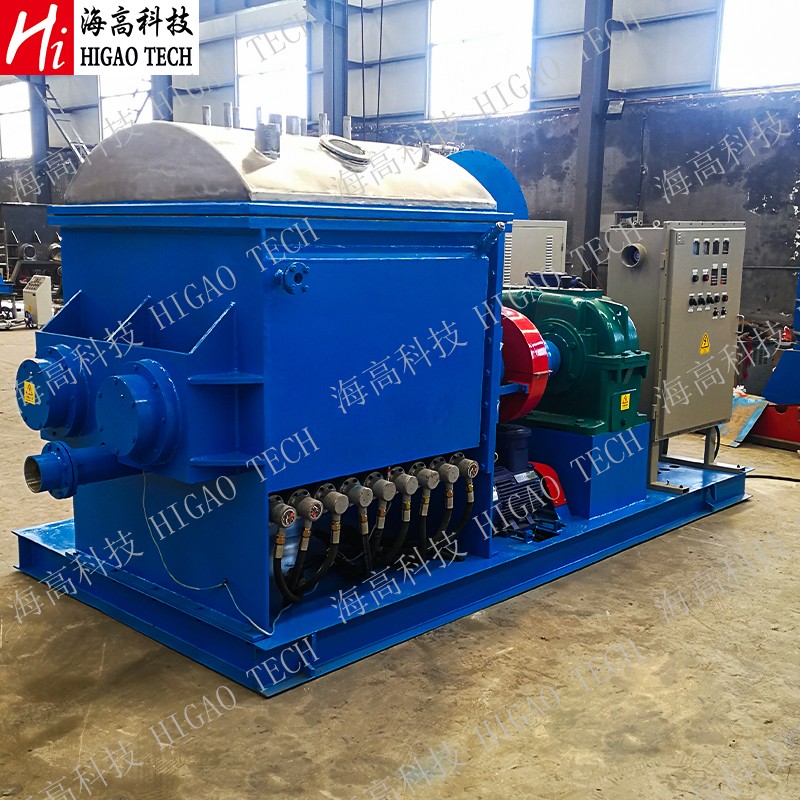

Liquid, adhesive, water, syrup can be sprayed into the sigma blade mixer from the top cover or from the side barrel. Heating jacket is applied to drive the materials to mix and react, so as to get a perfect product at last. Heating source is electricity and steam. Cooling media is water.
hot melt pressure sensitive adhesives sigma kneader mixer

hot melt pressure sensitive adhesives sigma kneader mixer

sigma blade kneader mixer for butyl rubber

4. Vacuum type:
We can make Vacuum type sigma blade mixer if customer needs to use it under vacuum status.
sigma kneader mixer for butyl silicone rubber putty

sigma kneader mixer for butyl silicone rubber putty

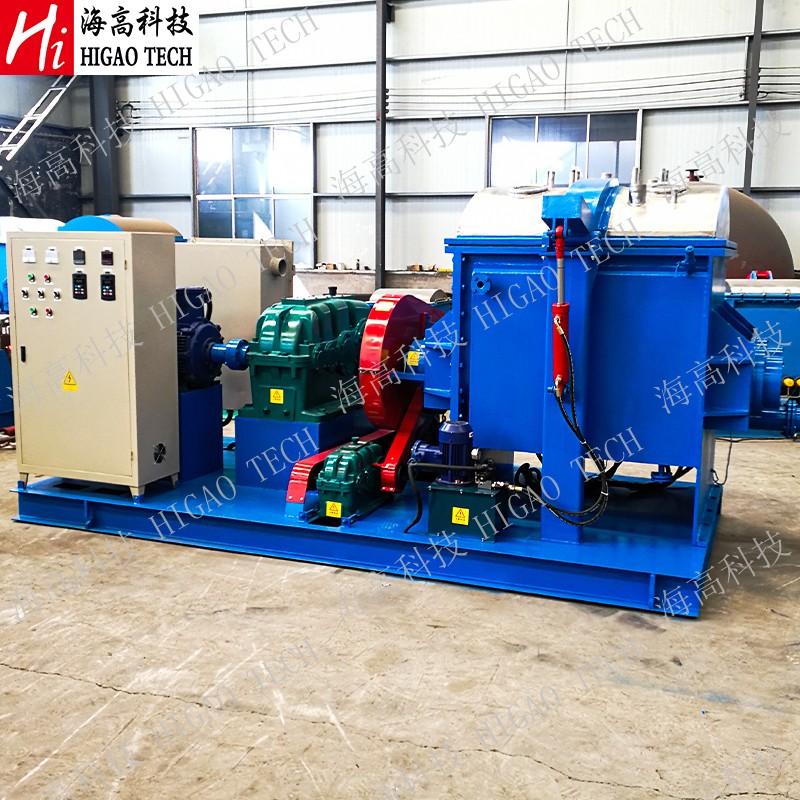

5. Discharging method:

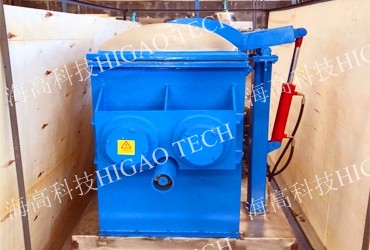

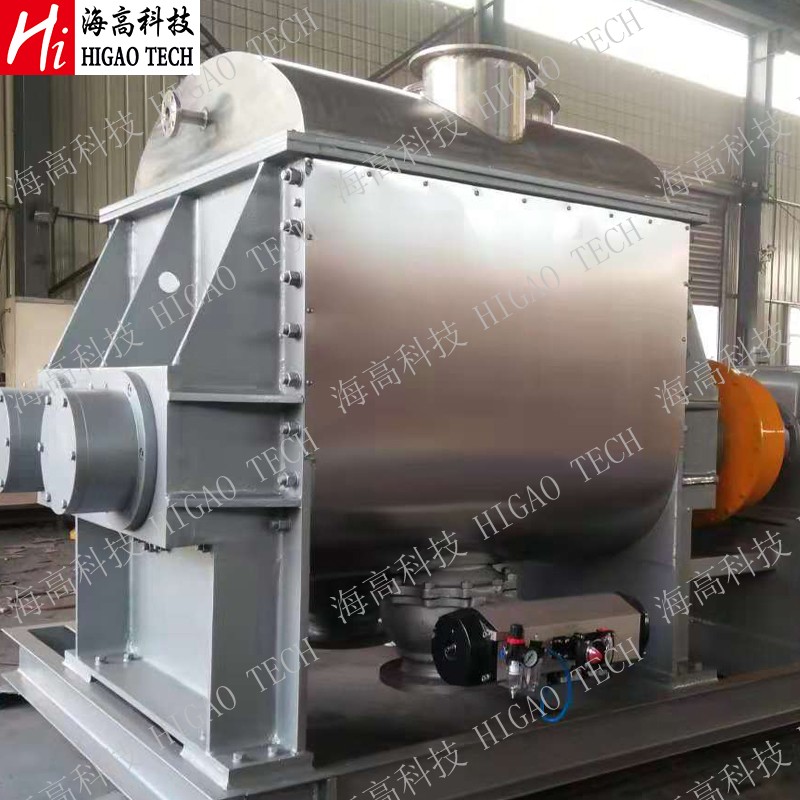

We have hydraulic dumpling, manual dumping, screw dumping, ball valve dumping for customers to choose.
hot melt adhesive sigma blade kneader mixer

hot melt adhesive sigma blade kneader mixer

high viscosity adhesive sigma kneader mixer

6. (EX) Explosion proof requirement:
Because lots of reaction between chemical substances is harmful, flammable and explosive, so you need to use explosive-proof(EX) motors and EX electric control cabinet to make sure the equipment is safe to use for your people.
methyl vinyl gum kneading machine

7. Surface treatment and steel grade:
Carbon steel, stainless steel for product contact only, all stainless steel can be chosen to make twin sigma blade kneading mixer.
soap noodle sigma kneading mixer

DSM Series Twin Shaft Sigma Blade Kneader Mixer of HIGAO TECH
Model	Total volume	Loading capacity	Agitating motor	Agitators speed	Steam heating pressure	Electric heating power	Vacuumized type Vacuum degree	Pressure type Pressure	Dimension(L×W×H)	Weight
DSM-5	5L	~3kg	0.75kw	33rpm+23rpm	0.3Mpa	1kw	-0.094Mpa	0.45Mpa	650×400×700mm	300kg
DSM-10	10L	~6kg	1.1kw	33rpm+23rpm	0.3Mpa	1kw	-0.094Mpa	0.45Mpa	750×450×900mm	400kg
DSM-50	50L	~30kg	2.2~3kw	45rpm+23rpm	0.3Mpa	4kw	-0.094Mpa	0.45Mpa	1170×1100×500mm	550kg
DSM-100	100L	~60kg	3~7.5kw	35rpm+22rpm	0.3Mpa	4kw	-0.094Mpa	0.45Mpa	1650×780×1550mm	1200kg
DSM-200	200L	~120kg	7.5~15kw	35rpm+22rpm	0.3Mpa	6kw	-0.094Mpa	0.45Mpa	1700×770×1600mm	1400kg
DSM-300	300L	~180kg	11~30kw	37rpm+21rpm	0.3Mpa	9kw	-0.094Mpa	0.45Mpa	1800×800×1400mm	1600kg
DSM-500	500L	~300kg	15~37kw	37rpm+21rpm	0.3Mpa	16.2kw	-0.094Mpa	0.35Mpa	3000×1000×1500mm	3000kg
DSM-1000	1000L	~600kg	22~90kw	35rpm+25rpm	0.3Mpa	27kw	-0.094Mpa	0.35Mpa	3450×1300×1600mm	4000kg
DSM-1500	1500L	~900kg	22~90kw	30rpm+16rpm	0.3Mpa	32.4kw	-0.094Mpa	0.35Mpa	3600×1450×1800mm	5500kg
DSM-2000	2000L	~1200kg	30~110kw	30rpm+16rpm	0.3Mpa	40kw	-0.094Mpa	0.35Mpa	3900×1600×2100mm	6500kg
