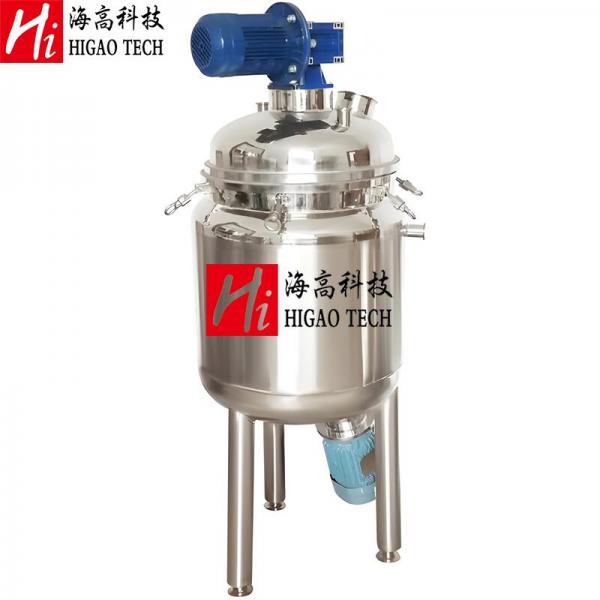

high shear liquid mixer

Higao Tech offer high quality high shear liquid mixer machine for lump-free wetting and dispersing of powder with best price in china.
  • item no.:

    LM series liquid mixer
  • Payment:

    T/T 30% deposit and 70% before shipment
  • product origin:

    made in china
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification
  • Photo Gallery
Higao Tech offer high quality high shear liquid mixer for lump-free wetting and dispersing of powder with best price in china.

1. Description and application:

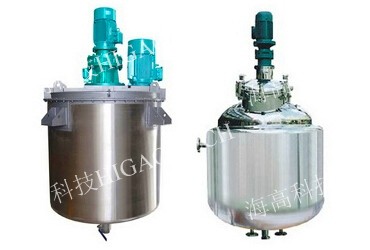

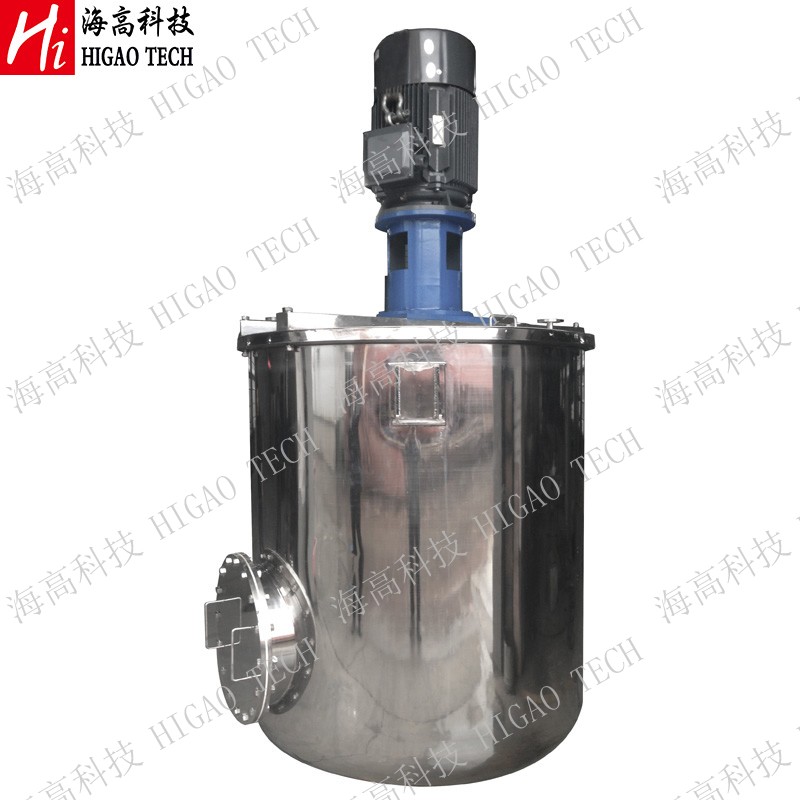

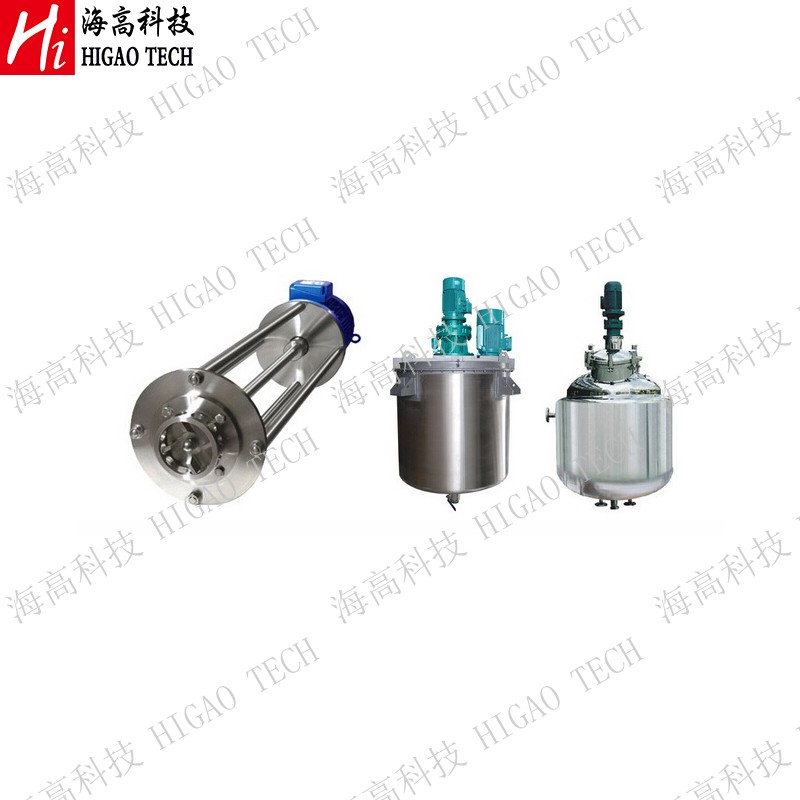

High shear liquid mixer for lump-free wetting and dispersing of powder and granules is a new mixing equipment with novel structure design to handle material in liquid state, like mixing liquid with liquid, liquid with powder, paste material, and dissolving. The mixing agitators are variously combined according to different materials.

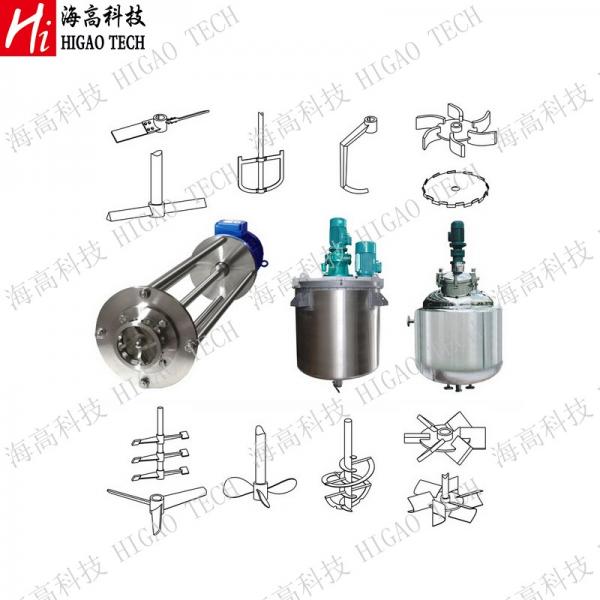

Many internal stirring ways are available for choice, such as: anchor blade paddle with scraper, 3 leaf anchor propeller, high speed dispersion plate, high shear emulsification, screw type mixer, multilevel paddles, etc.

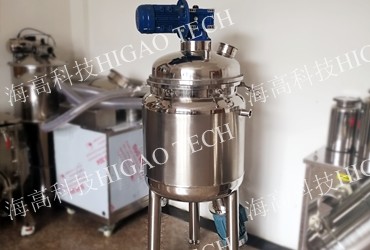

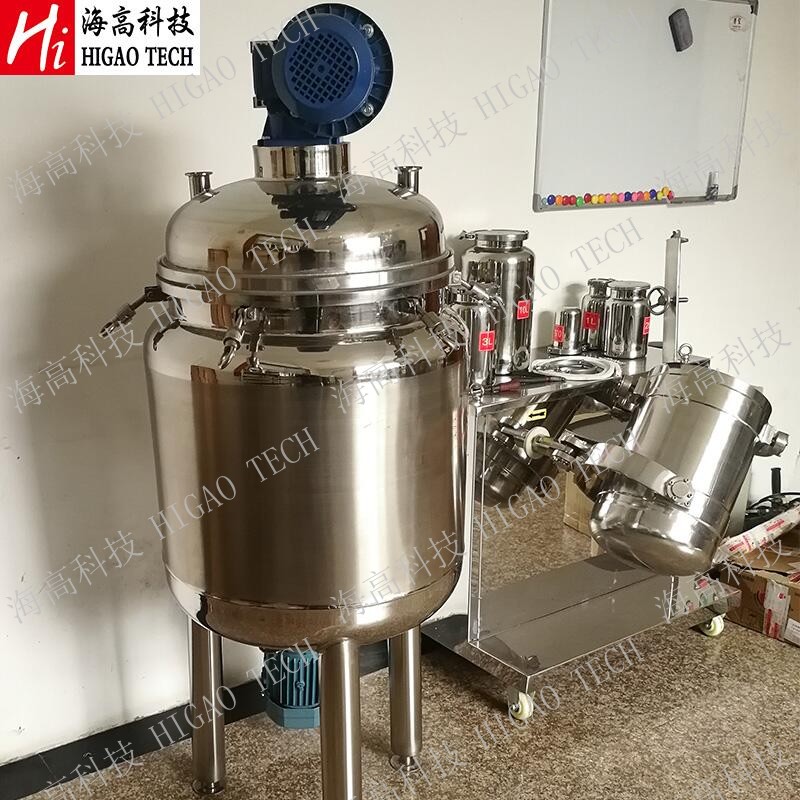

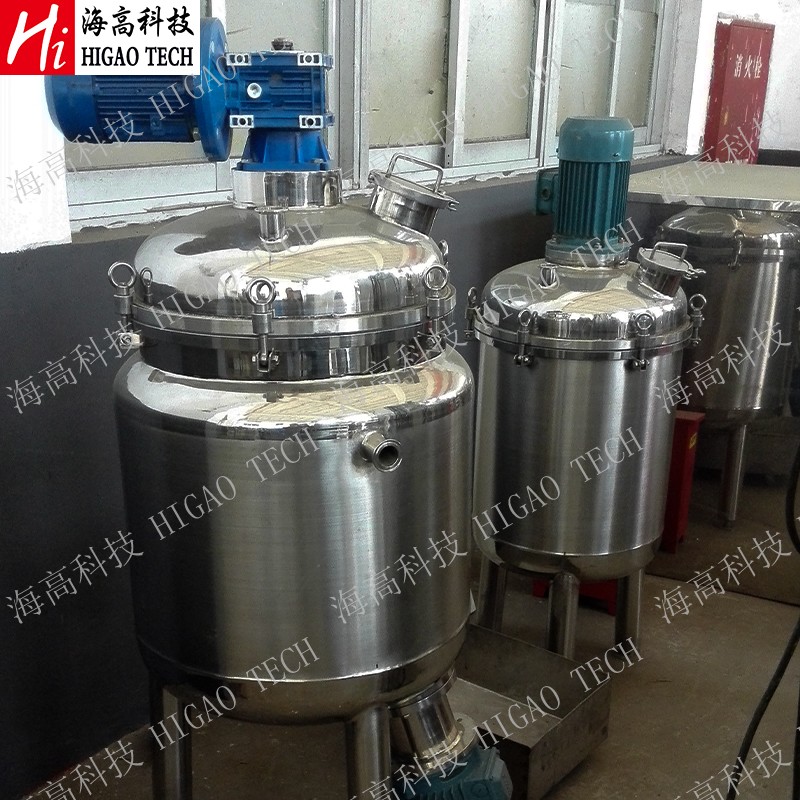

high shear liquid mixer high shear liquid disperser high shear mixer
2. Working principle:
The mixing blades or stirring paddles of liquid mixer machine rotate along a fixed direction under the driving of the power unit. The materials are pushed to do axial rotation and radial rotation during the rotation of the stirring paddles.Stirring blades or blending paddles of the high shear liquid mixer machine has very high linear velocity, which will make materials dispersed evenly in short time.

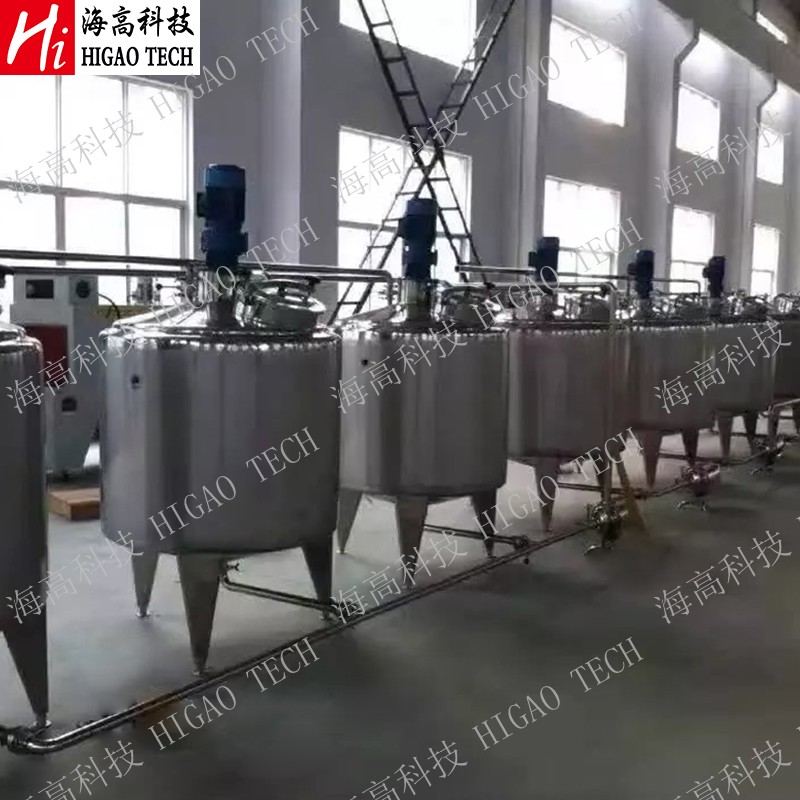

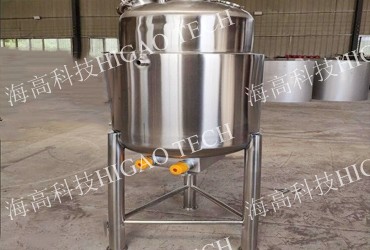

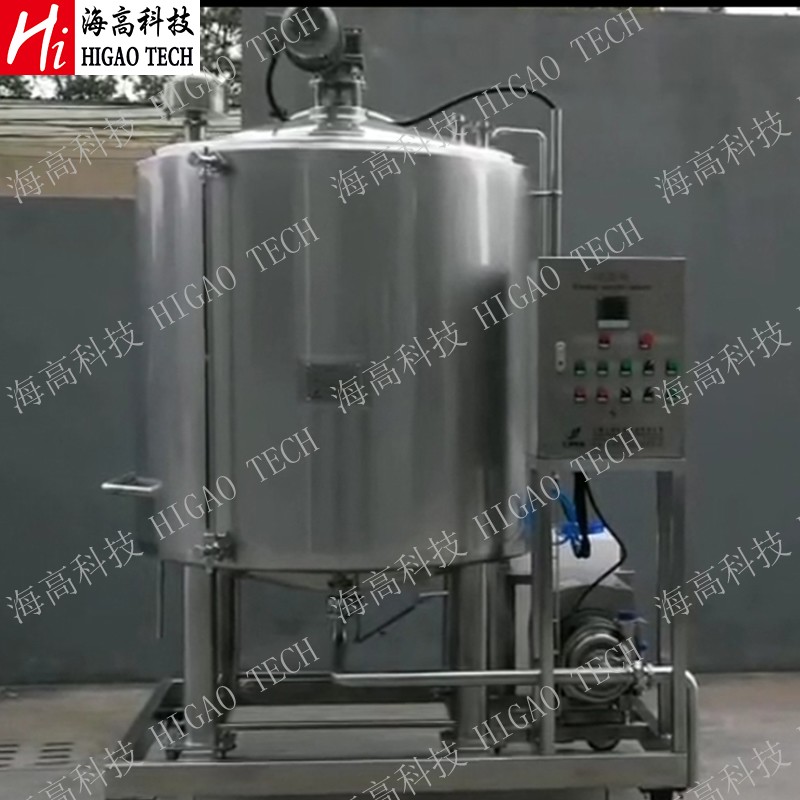

liquid mixer with high speed disperser liquid mixer with high shear disperser liquid mixer with high speed homogenizer

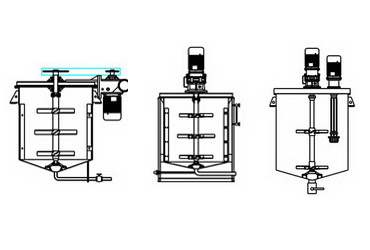

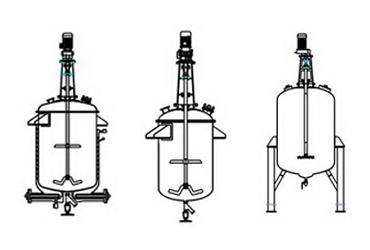

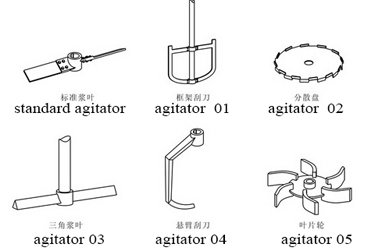

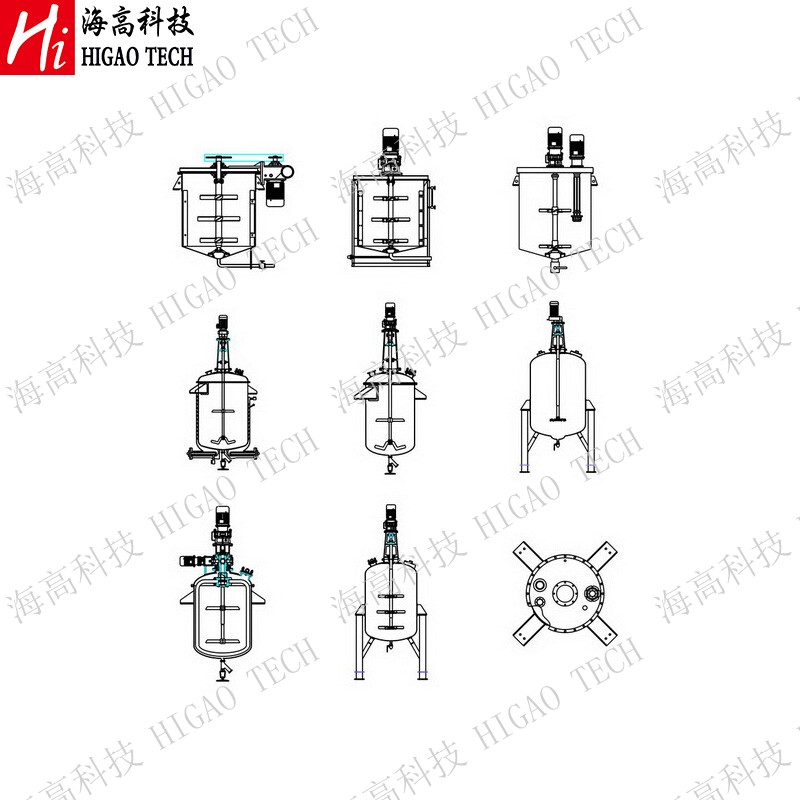

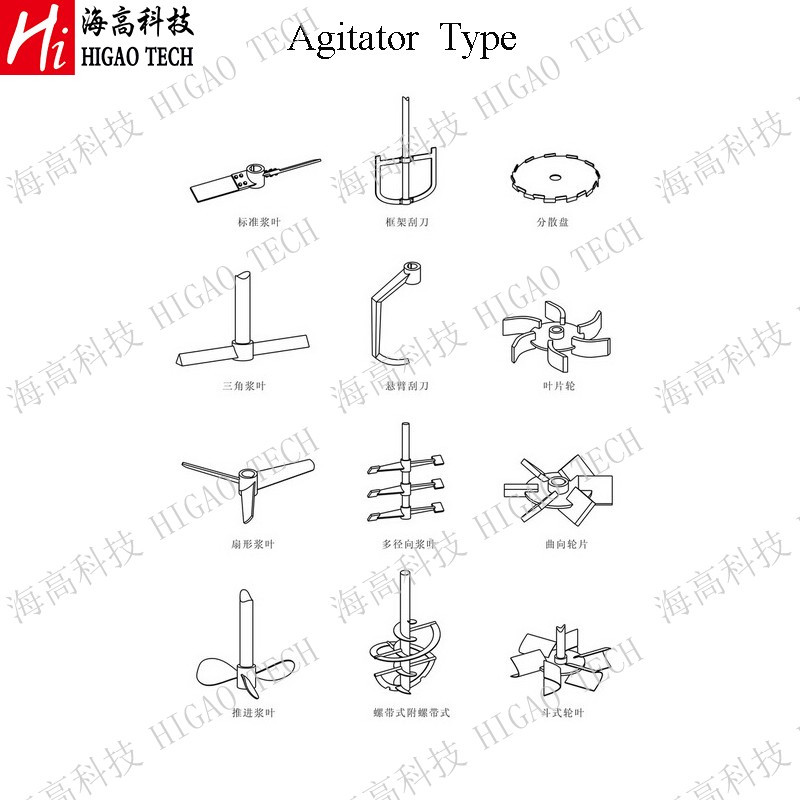

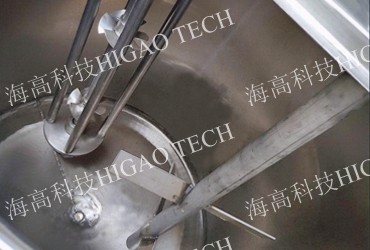

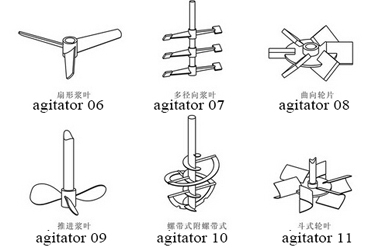

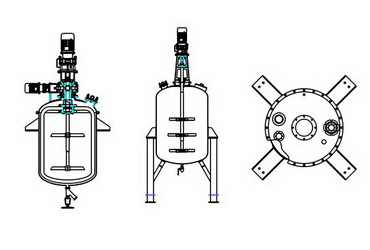

3. Multiple blending structures:
Liquid Mixer has several types of blending structures. Customers can choose as per special demand.

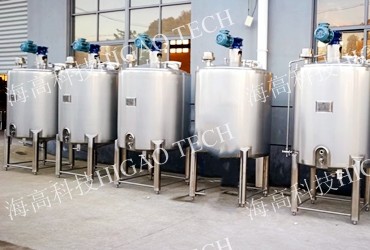

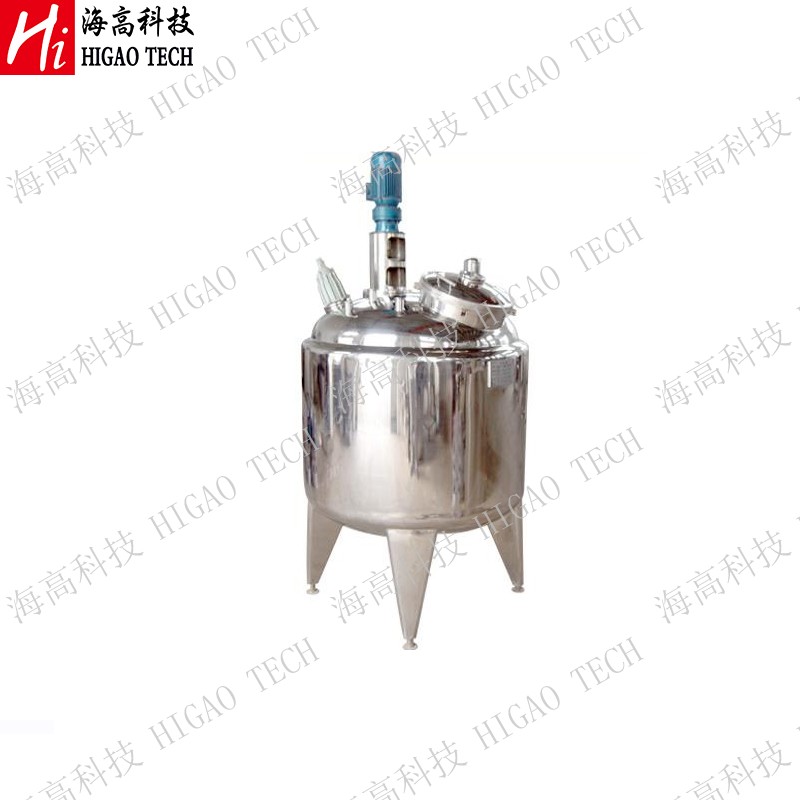

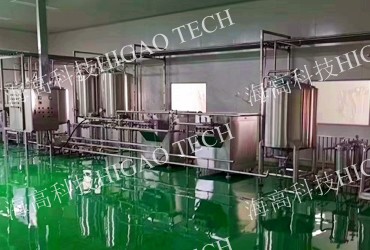

high shear rotor-stator mixer homogenizer high shear liquid mixer for chemical industry high shear liquid mixer for plastic industry

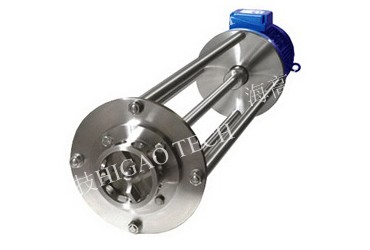

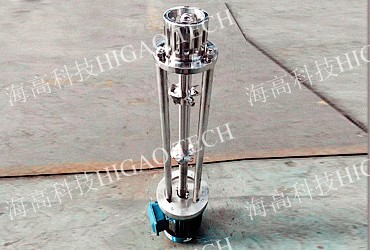

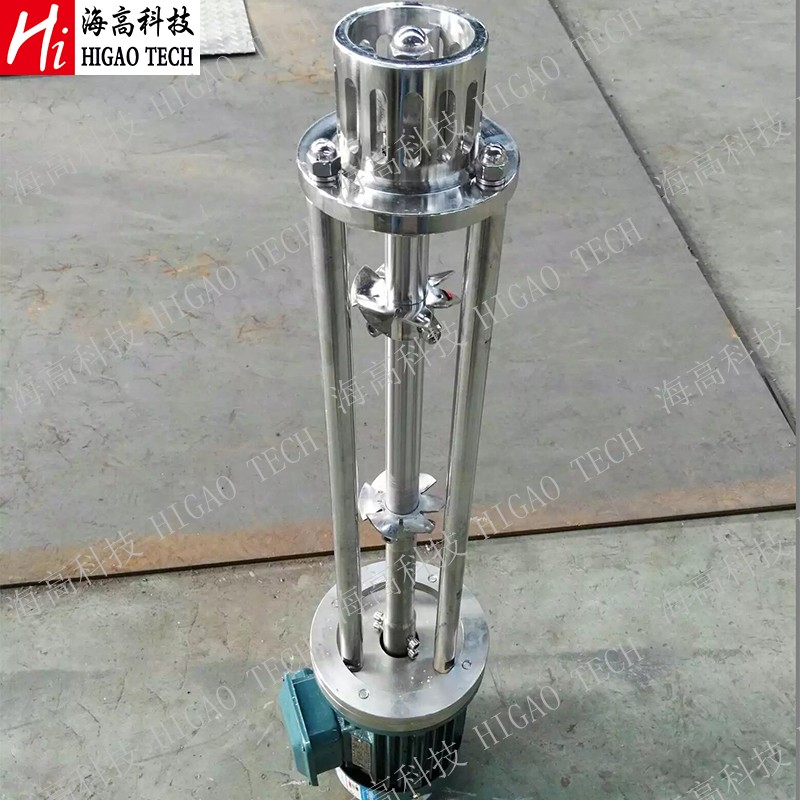

4. Emulsifying and dispersing structure:
We can install a high speed emulsifying motor to push the materials reach a better dispersion.

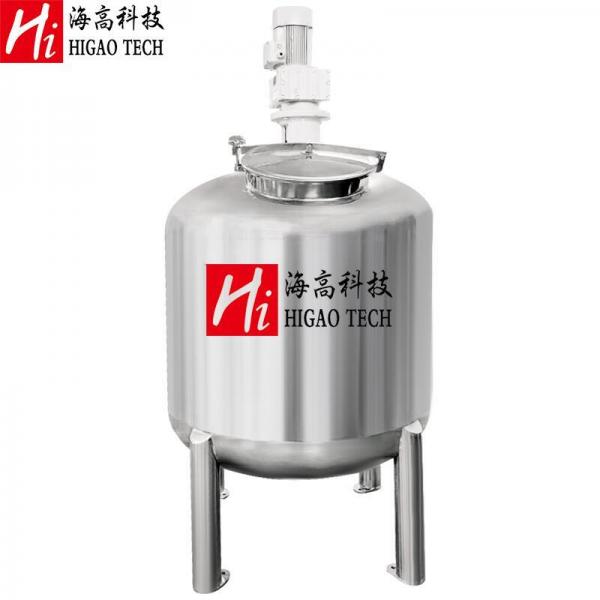

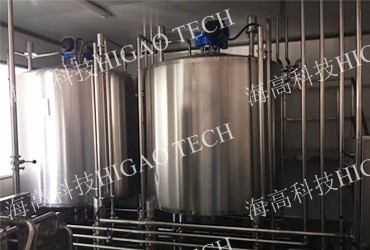

high shear liquid mixer for pharmaceutical industy high shear liquid mixer for food industry high shear liquid mixer for adhesives

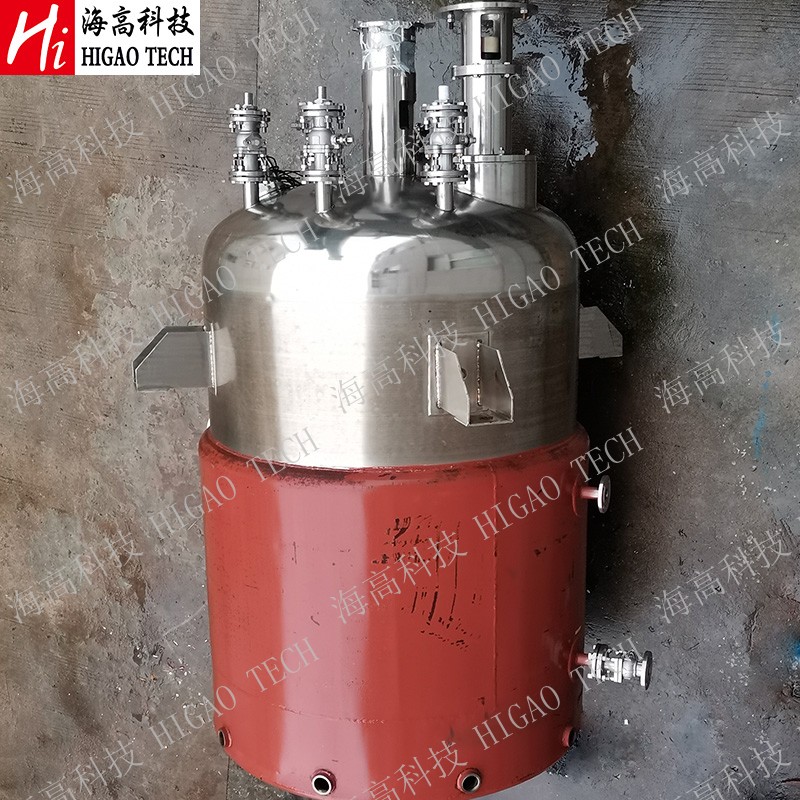

5. Liquid spray system, Heating and cooling jacket, Surface treatment and steel grade:
Liquid spraying device can be installed as per requirement.

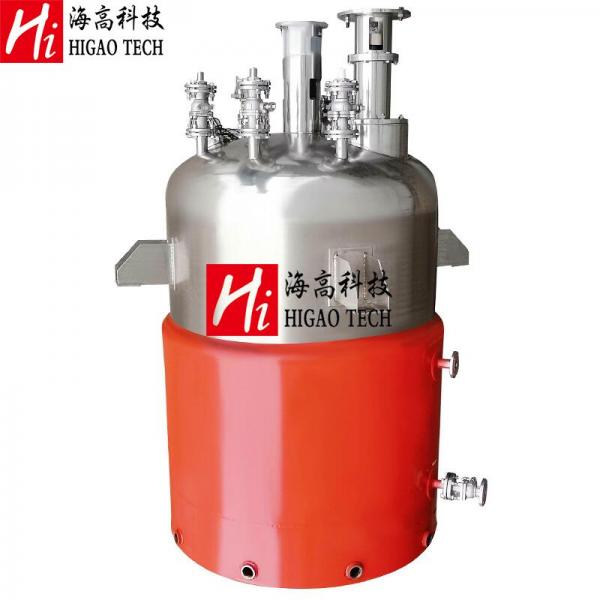

Heating and cooling jacket is available according to customer's temperature.
Liquid mixer is made of food grade stainless steel with mirror polish, matte shinning polish, brushed finish to meet GPM standard.

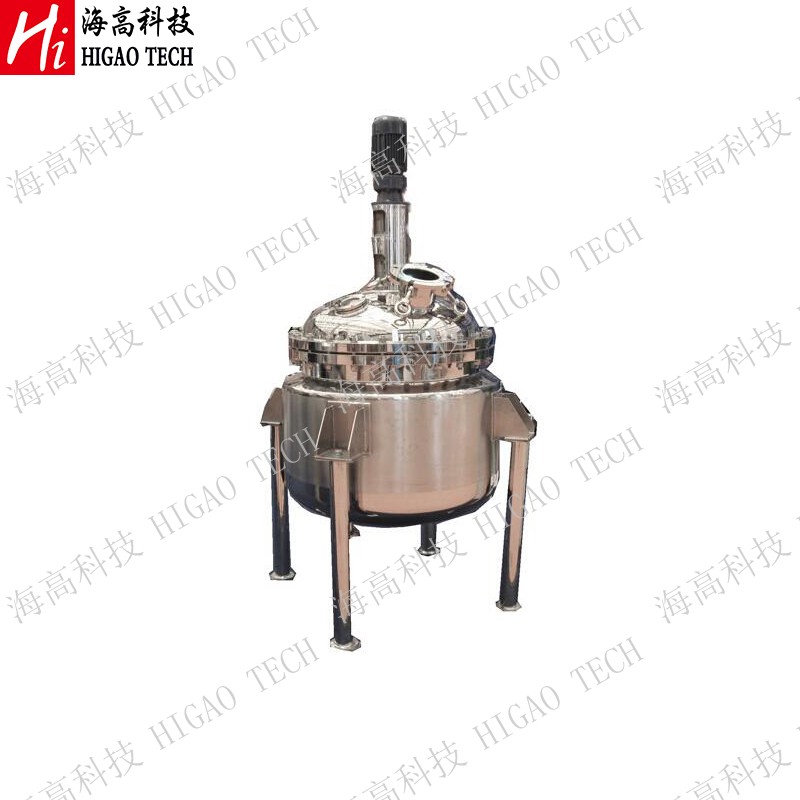

high shear liquid mixer for cosmetics high shear emulsifying mixer high shear homogenizing mixer

LM Series High Shear Liquid Mixer of HIGAO TECH

Model

Total volume

Stirring motor

Emulsifying motor

LM-100

100L

1.5kw/65rpm

3kw/0~1450rpm

LM-300

300L

2.2kw/60rpm

3kw/0~1450rpm

LM-500

500L

3kw/52rpm

5.5kw/0~1450rpm

LM-1000

1000L

4kw/52rpm

7.5kw/0~1450rpm

LM-2000

2000L

5.5kw/52rpm

11kw/0~1450rpm

LM-3000

3000L

7.5kw/43rpm

15kw/0~1450rpm

LM-5000

5000L

11kw/43rpm

22kw/0~960rpm

LM-6000

6000L

18.5kw/35rpm

30kw/0~960rpm

LM-8000

8000L

22kw/25rpm

37kw/0~960rpm

LM-10000

10000L

30kw/18rpm

45kw/0~960rpm

LM-15000

15000L

45kw/12rpm

55kw/0~960rpm


















Contact Us For A Quote
If you have any inquiry or requirement,please leave a message,we will reply as soon as possible within 24 hours.
