lab plow mixer

Higao Tech offer high quality lab plow mixer for powder mixng, viscous liquid pulp and powder mixing for small scale production with a high accuracy mixing purpose. R&D lab departments use it.
  • item no.:

    PM series plow mixer
  • Payment:

    T/T 30% deposit and 70% before shipment
  • product origin:

    made in china
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification
Higao Tech offer high quality lab plow mixer for powder mixng, viscous liquid pulp and powder mixing with best price in china. Lab plough mixer is used a lot for small scale capacity production with a high accuracy mixing purpose.

1. Description and application:
(1) Laboratory plow mixer is suitable for a variety of mixing technologies. Ot is an ideal mixer for R&D department to achieve small testing productions.
(2) Mixing (powder + powder)
(3) Granulation/agglomeration (powder + liquid)
(4) Mixing/moistening/coating (powder + liquid)
(5) Drying (powder + liquid)

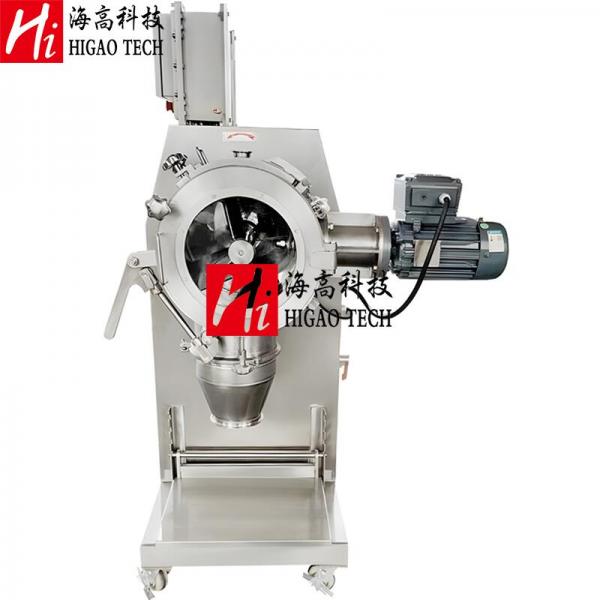

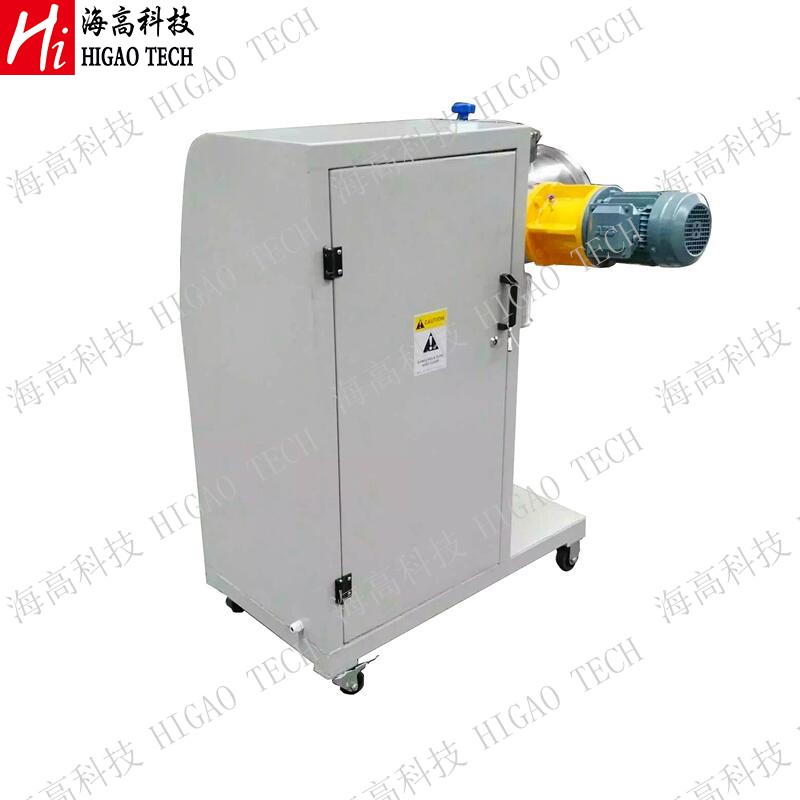

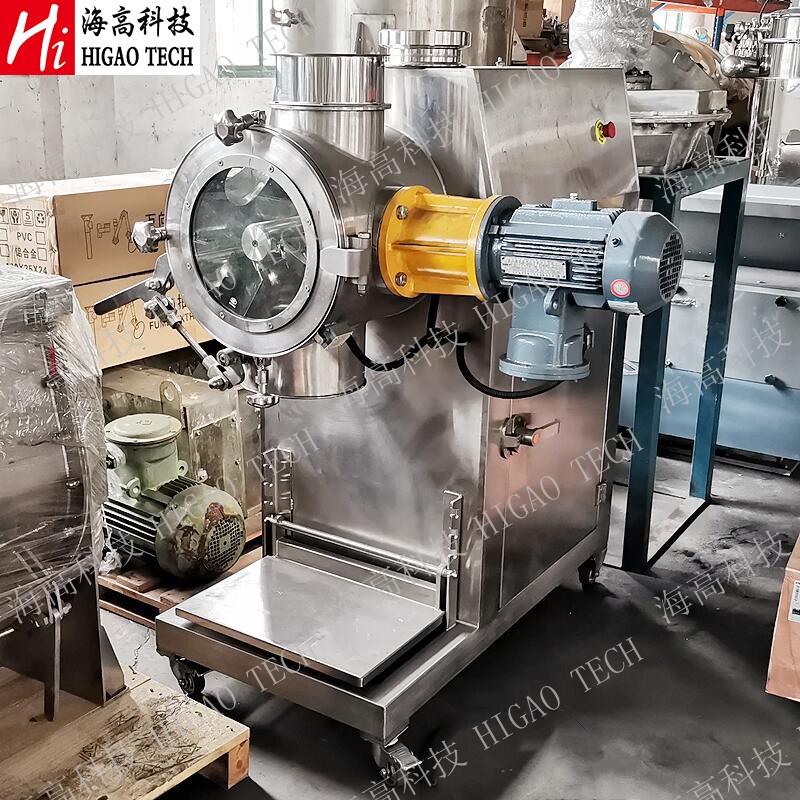

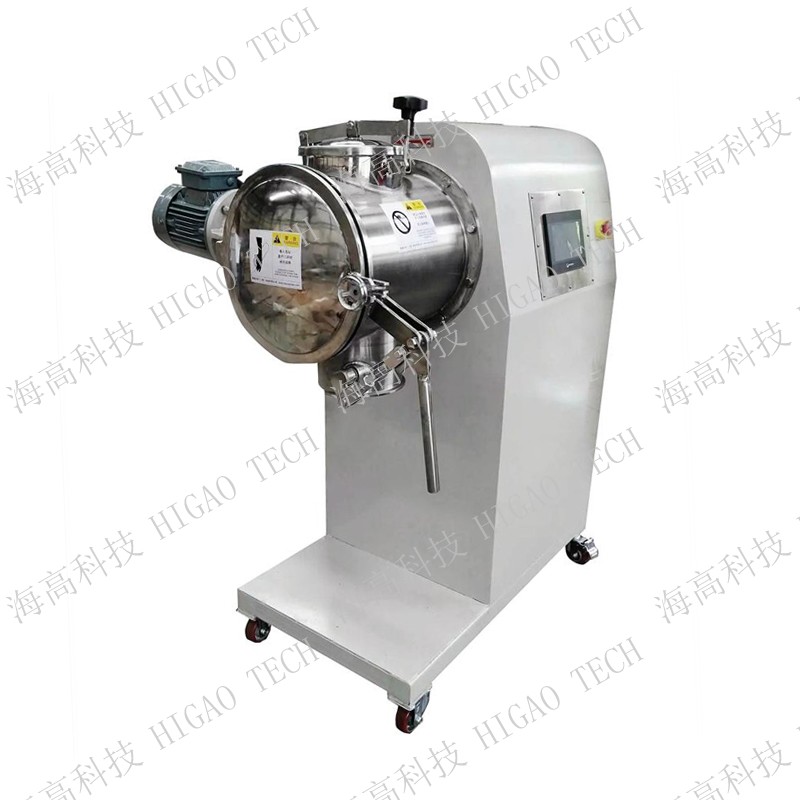

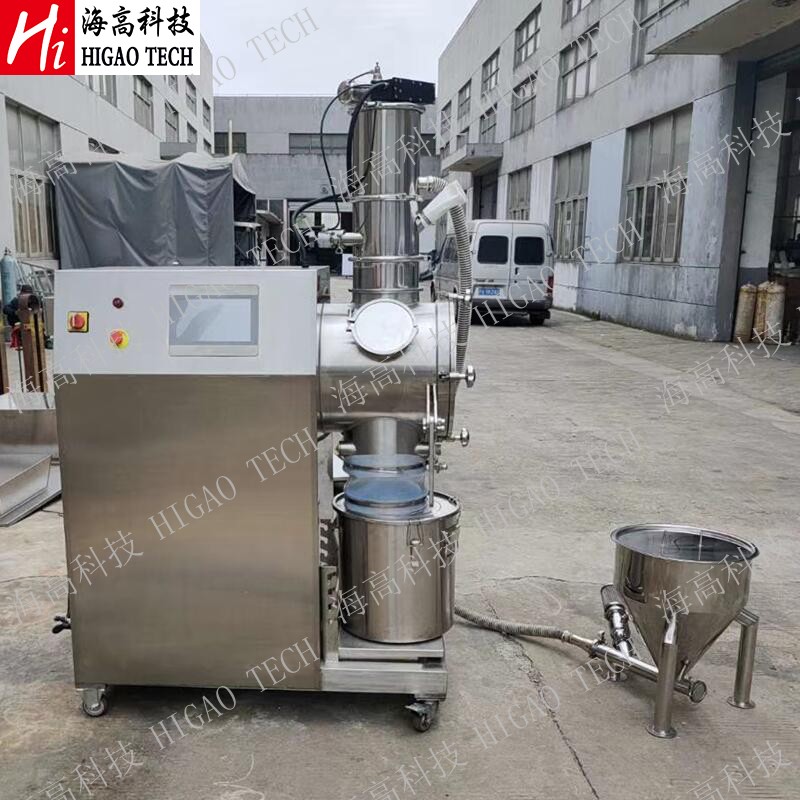

lab plow mixer lab scale plow mixer pilot scale plow mixer
2. Working principle:

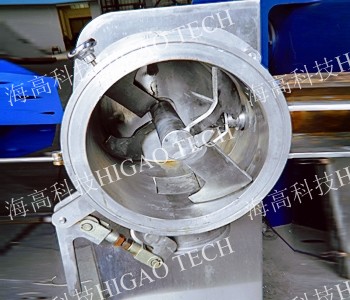

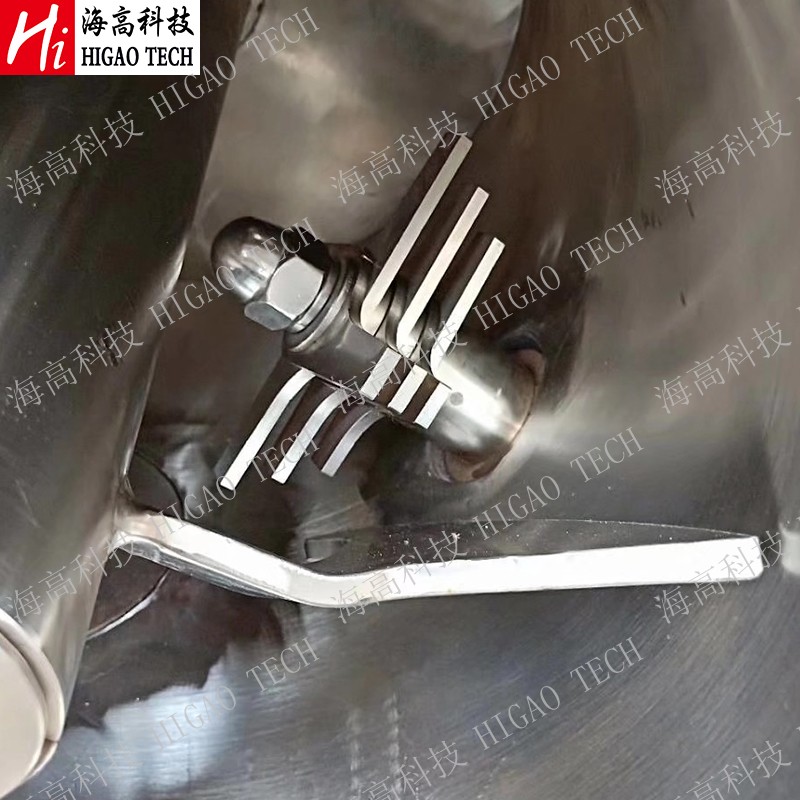

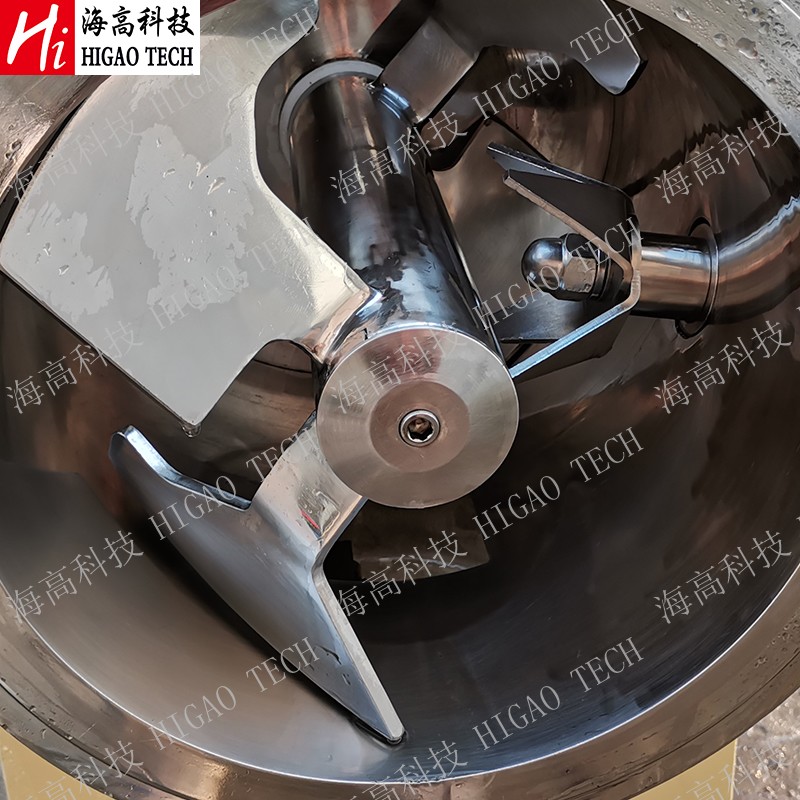

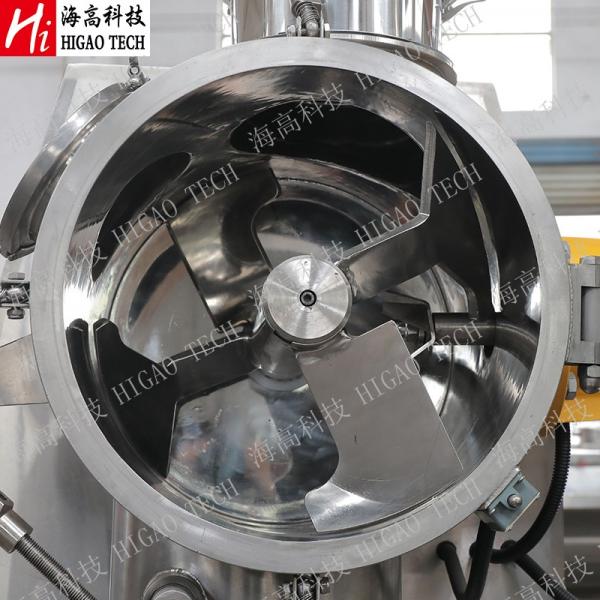

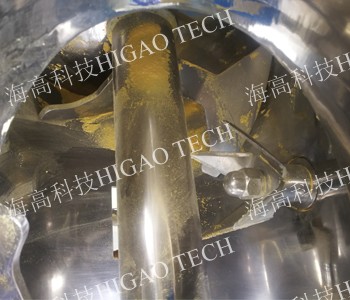

A special shape of the blending paddle is installed inside the mixer machine. Slurry and creamed liquids are mixed and crushed and dispersed repeatedly under the action of the special blending paddle and crushing choppers, and then fully mixed uniformly with liquid, powder, granules, particles, pellets, and other accessories.

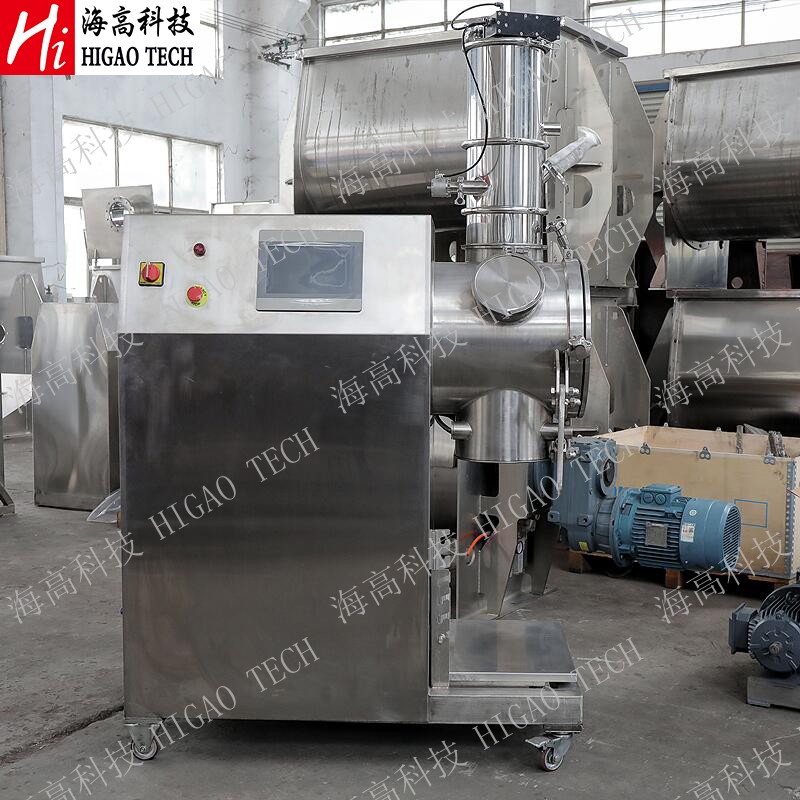

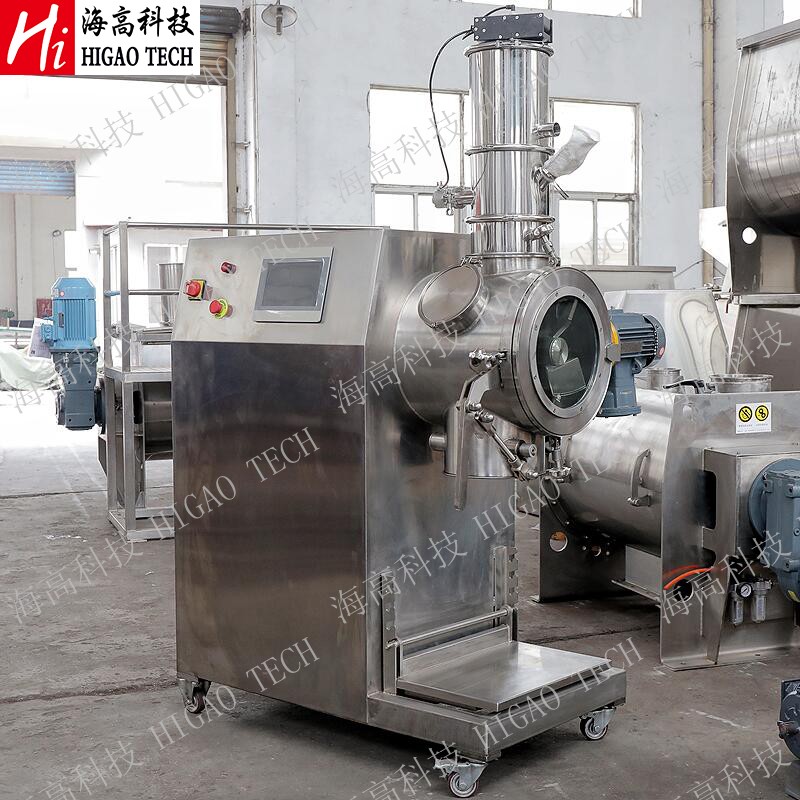

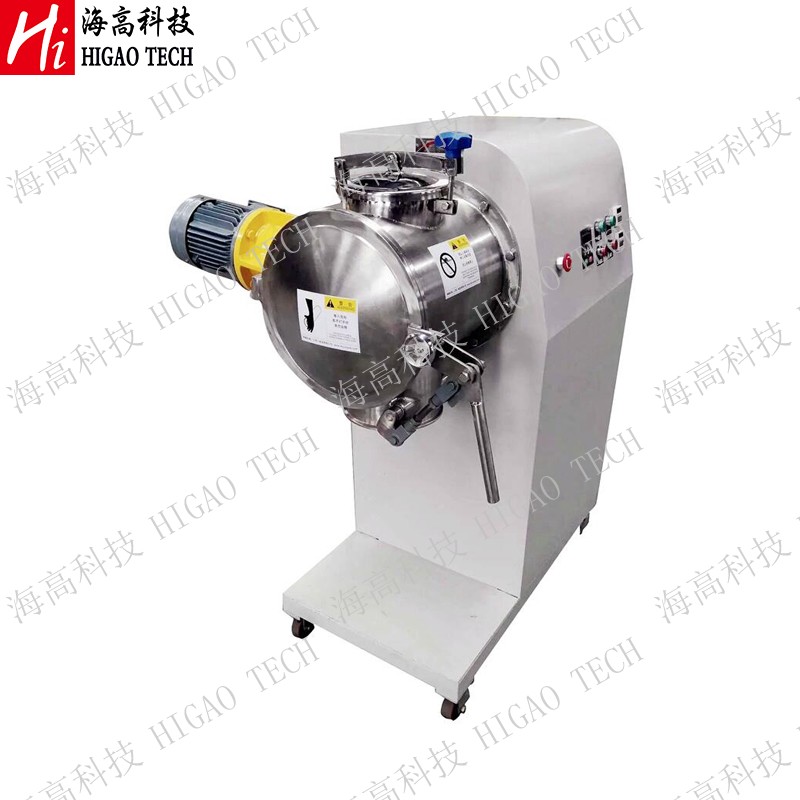

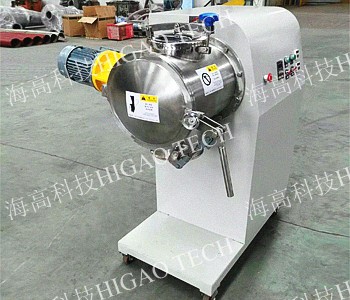

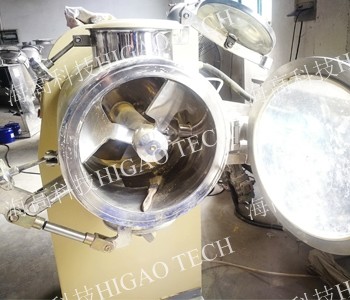

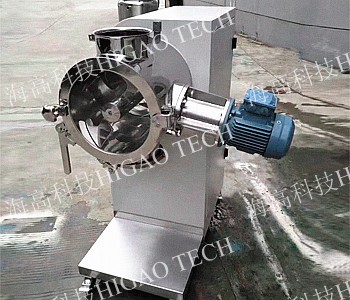

 lab plough mixer lab scale plough mixer pilot scale plough mixer
3. Features:
(1) Suitable for the blending process under the condition of big mixing resistance or big friction drag or easy to wear and abrase equipment.
(2) Materials having large blending resistance are for example: viscous fluid paste, paste materials, adhesive materials, slurry materials, creamed materials, etc.
(3) Featured with fast high efficiency, high degree of mixing uniformity, high output, high anti-resistance.
(4) Mixing time can be finished generally in 1-4 minutes.
(5) Easy to repair and easy to clean.

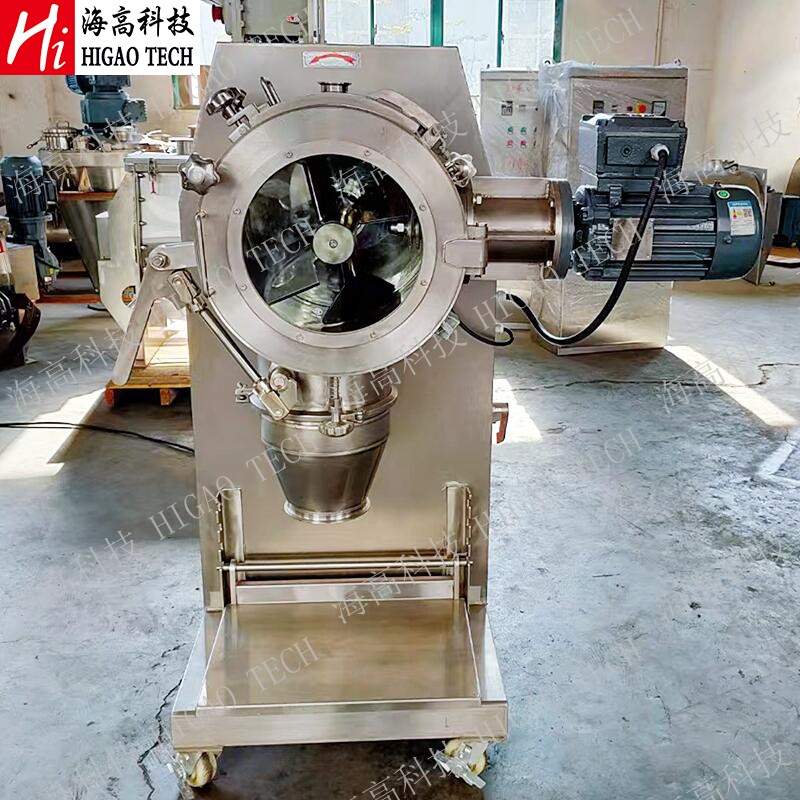

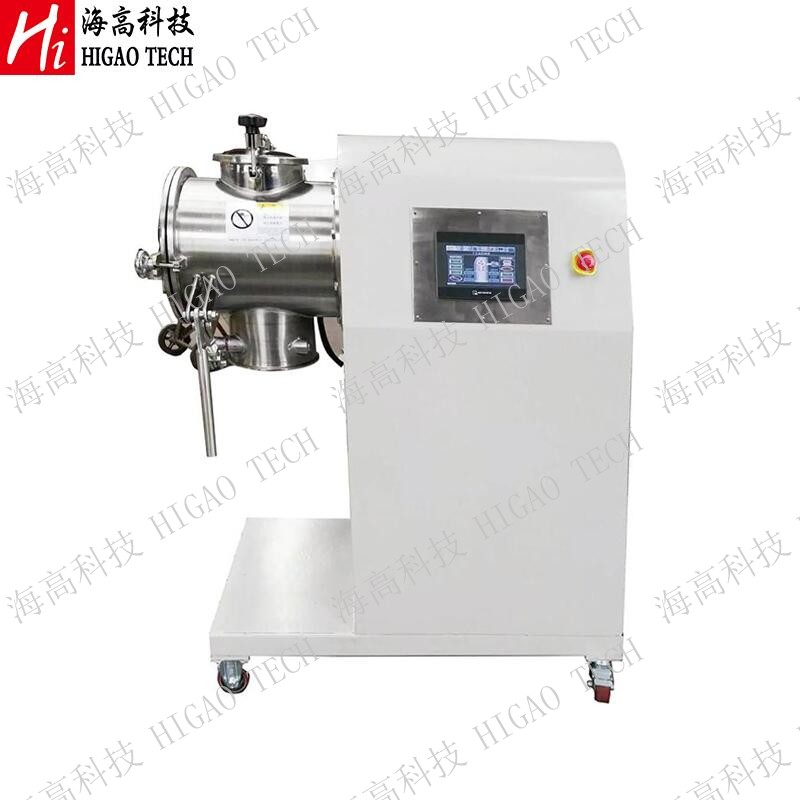

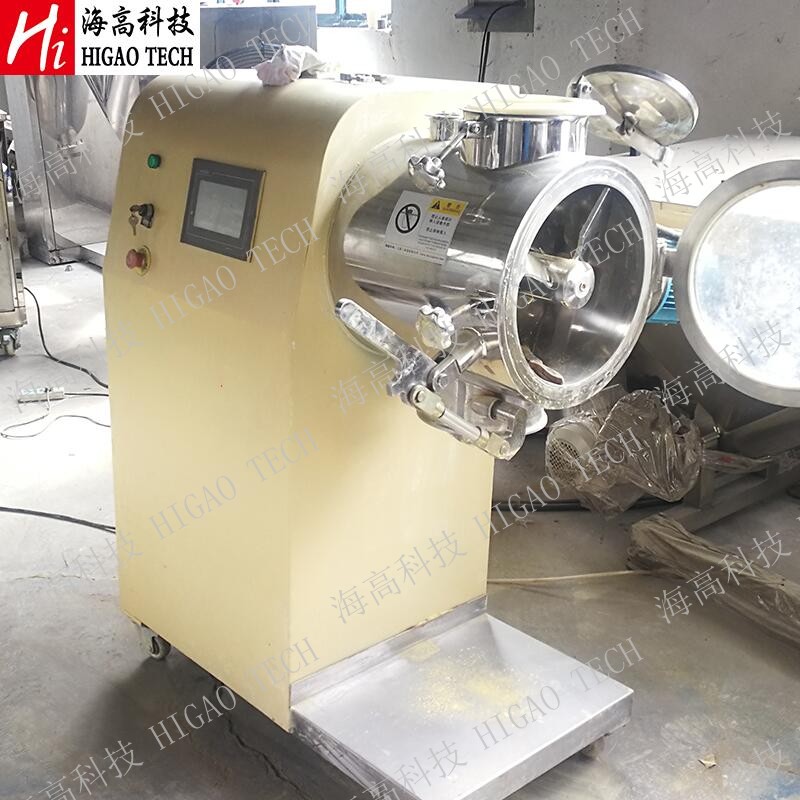

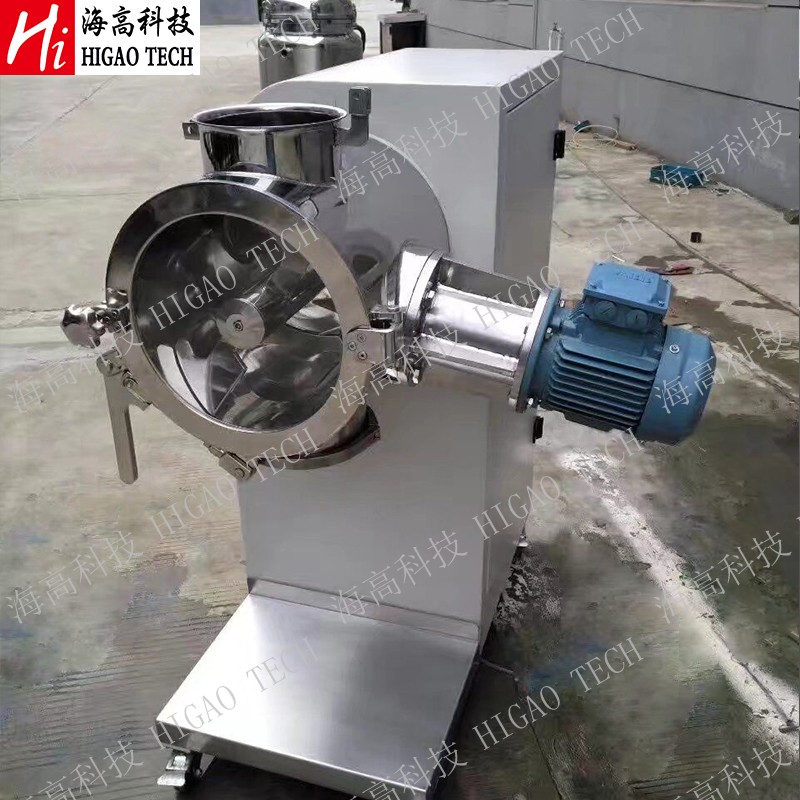

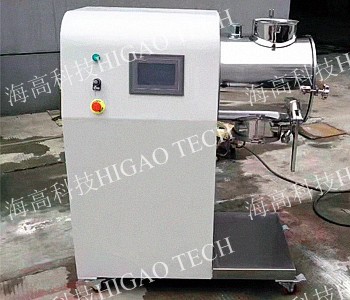

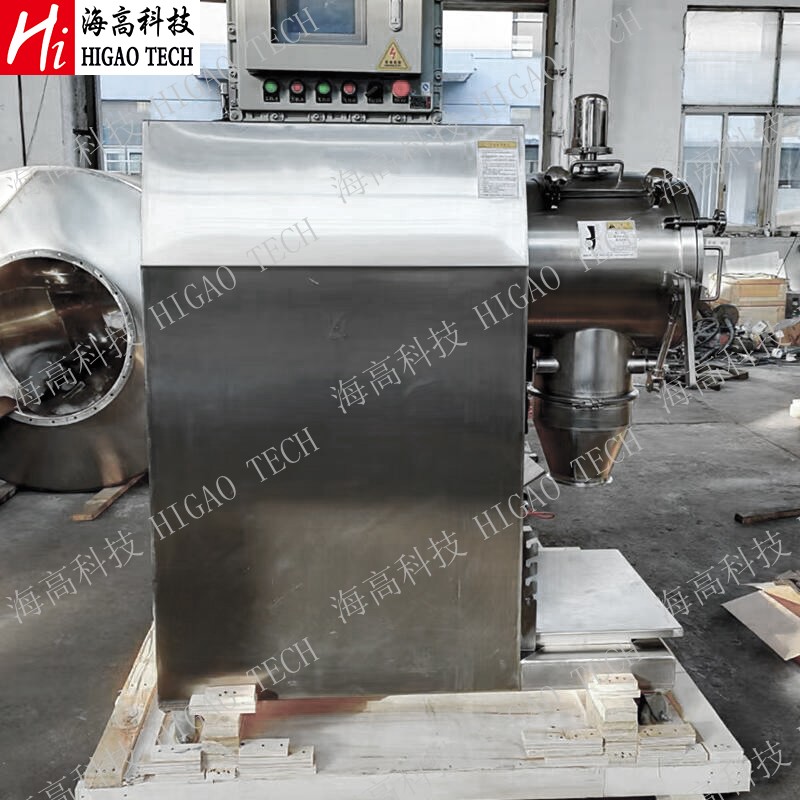

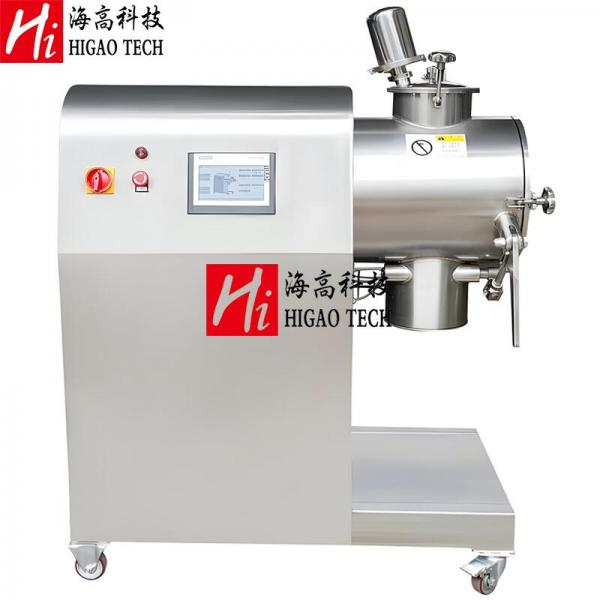

Lab ploughshare mixer Lab scale ploughshare mixer pilot scale ploughshare mixer

PM Series Lab Plow Mixer of HIGAO TECH

Model

Total capacity

Loading capacity

Mixing motor

Dispersing chopper

Control method

Dimension(L×W×H)

Weight

PM-5

5L

2~3L/batch

1.1kw/0~120rpm(inverter)

1.1kw/1440rpm

Push-button / PLC

600×60800mm

30kg

PM-10

10L

4~6L/batch

1.1kw/0~120rpm(inverter)

1.1kw/1440rpm

Push-button / PLC

800×750×1000mm

50kg

PM-20

20L

8~12L/batch

2.2kw/0~120rpm(inverter)

1.1kw/1440rpm

Push-button / PLC

900×850×1200mm

90kg

PM-30

30L

12~18L/batch

3kw/0~120rpm(inverter)

1.5kw/1440rpm

Push-button / PLC

1000×950×1300mm

150kg

PM-50

50L

20~30L/batch

3kw/0~120rpm(inverter)

1.5kw/1440rpm

Push-button / PLC

1100×1050×1400mm

200kg
