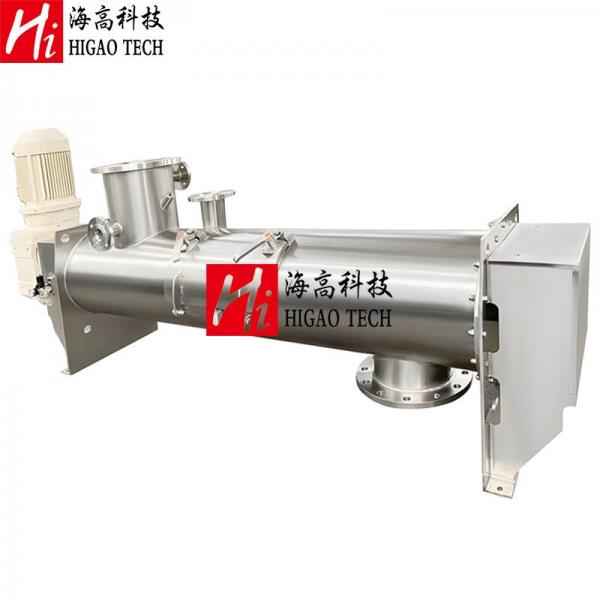

horizontal continuous mixer

Higao Tech produce good quality horizontal continuous mixer for powder and granules mixing in china. Horizontal continuous mixer is used for mixing several materials with almost same proportion and not demanding too high mixing accuracy.
  • item no.:

    CM series continuous mixer
  • Payment:

    T/T 30% deposit and 70% before shipment
  • product origin:

    made in china
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification
Higao Tech produce good quality horizontal continuous mixer for powder and granules mixing in china. Horizontal continuous mixer is used for mixing several materials with almost same proportion and not demanding too high mixing accuracy.

1. Description and working principle:
Continuous mixer for powder and granules mixing can be used for mixing powder and powder, mixing powder and granules, mixing powder and liquids. But mixing effect is not as good as other batch mixers. And proportion of each materials should be about the same.
This continuous mixer machine is designed in round or U shape barrels with various types of blending paddles. The materials are fed into the continuous powder mixer from one side which is blending continuously and then discharge from the other side.
Usually the materials stay in the blending mixer for 30 to 180 seconds in order to keep continuous feeding and blending at the same time.

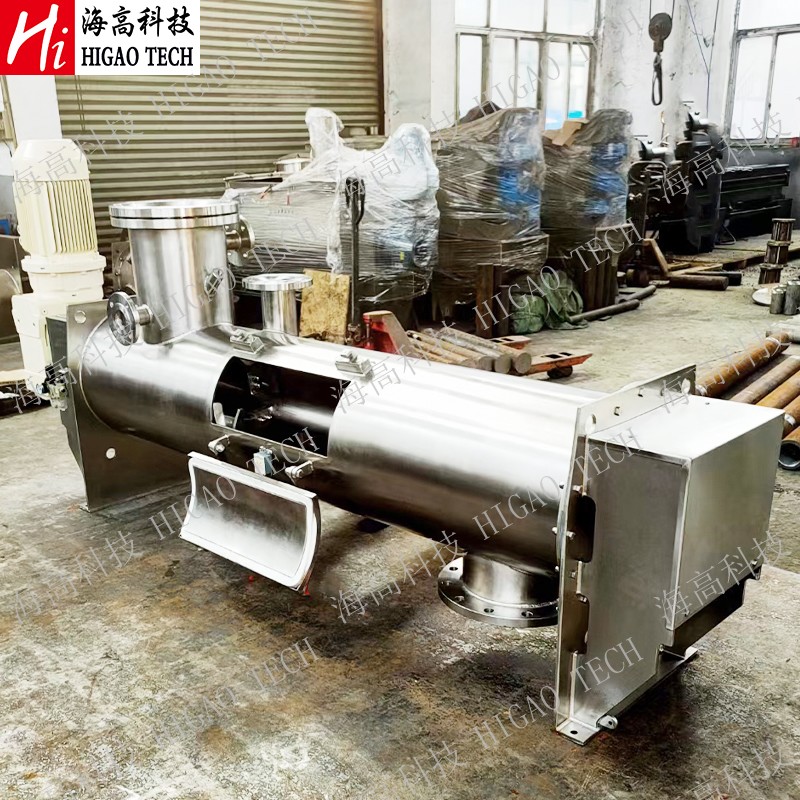

horizontal continuous mixer continuous mixer continuous mixer with heating cooling jacket
2. Applied industries:
Continuous mixing machine is applied in building materials, glass, titanium pigment, calcium carbonate, heat preservation, heat preservation materials, metallurgy, ore mining, paper making industry.
Continuous granular mixer is used for blending two kinds of materials with almost the same proportions. This blending mixer can't be used for blending materials if one kind of material is less than 10% proportion.
Applied materials are thickening powder, fly ash humidifying, feedstuff granules making, lass, titanium pigment, calcium carbonate, bentonite clay, cement concrete.
continuous mixing systems continuous single shaft paddle mixer continuous mixer with high speed choppers
3. Blending structures of Continuous Mixer:
single and double ribbon type, single and double paddle type, single and double plough head type, etc.
continuous double shaft paddle mixer continuous plow mixer continuous ribbon mixer

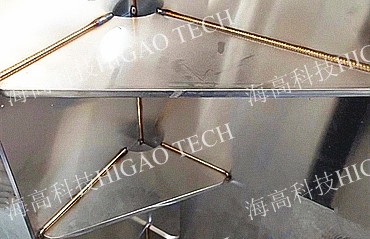

4. Welding and soldering details:
We use Germany industrial standard to make our mixers. The welding tracks are extremely smooth and beautiful.
continuous paddle mixer continuous mixing equipment continuous mixing machine
5. Steel grade of continuous mixer:
Steel materials could be carbon steel, stainless steel 304, 316L, etc. Stainless steel for product contact or all stainless steel.
continuous twin shaft paddle mixer continuous solid liquid mixer continuous mixer with liquid spray system

CM Series Continuous Mixer of HIGAO TECH

Model

Total volume

Blending flow rate/Capacity

Blending motor

Crushing chopper motor/Dispersing motor

Weight

CM-100

100L

Adjustable(inverter)

3kw

1.5kw

520kg

CM-500

500L

Adjustable(inverter)

7.5kw

1.5kw

1000kg

CM-1000

1000L

Adjustable(inverter)

11kw

1.5kw

1600kg

CM-2000

2000L

Adjustable(inverter)

15kw

3kw

2300kg

CM-4000

4000L

Adjustable(inverter)

22kw

3kw

4600kg

CM-5000

5000L

Adjustable(inverter)

30kw

4kw

5500kg

CM-6000

6000L

Adjustable(inverter)

37kw

4kw

6700kg

CM-10000

10000L

Adjustable(inverter)

55kw

5.5kw

9000kg

CM-12000

12000L

Adjustable(inverter)

55kw

5.5kw

11500kg

CM-15000

15000L

Adjustable(inverter)

75kw

5.5kw

13000kg

Contact Us For A Quote
If you have any inquiry or requirement,please leave a message,we will reply as soon as possible within 24 hours.

related products

sigma blade mixer for flour dough kneading

single shaft sigma blade mixer

Higao Tech offer high quality stainless steel single shaft sigma blade mixer to make bread and cake in china. Sigma blade mixer machine is used to mix sticky materials, such as mixing flour and water to make dough, kneading soap, and other viscous materials.

twin shaft sigma mixing machine supplier

twin shaft sigma blade mixer

Higao Tech manufacture high quality twin shaft sigma blade mixer machine for mixing viscous materials in china. Twin shaft blades make the mixing force much stronger and can reach a better homogeneity during mixing powdery materials and liquid together.

double cone mixer supplier

double cone mixer

Higao Tech fabricate professional double cone mixer with good quality and low price in china. Double cone powder mixer machine is used to mix powdery materials in pharmaceutical, chemical, food industries, etc.

double screw cone mixer factory

double screw cone mixer

Higao Tech produce good quality double screw cone mixer machine for powder mixing in china. Double screw conical mixer is used to mix a large amount of materials each time.

horizontal ribbon mixer supplier

horizontal ribbon mixer

Higao Tech offer high quality horizontal ribbon mixer machine used to mix many kinds of powders and granules at a low price in china.

horizontal ploughshare mixer factory

horizontal ploughshare mixer

Higao Tech fabricate professional horizontal ploughshare mixer with oil spraying system with best quality and good price in china.

double shaft paddle mixer

non-gravity double shaft paddle mixer

Higao Tech supply best price of non-gravity double shaft paddle mixer wth high quality and made from stainless steel 304 in china.

high speed mixer machine manufacturer

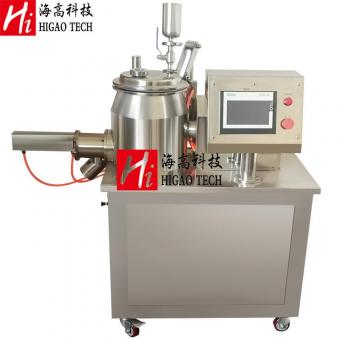

high speed powder mixer
