three dimensional mixer

Higao Tech produce good quality three dimensional mixer machine for pharmarcy, food, and chemical mixing with a low price in china. Three dimensional mixer machine is a non-germ or germ-free mixer, which is used a lot in pharmaceutical industry.

item no.:
3D series three dimensional mixer
Payment:
T/T 30% deposit and 70% before shipment
product origin:
made in china
Color:
Shining Polish or Matte Shinning Polish
shipping port:
Shanghai Port
Lead Time：
30 Days

contact now

Product Detail
specification

Higao Tech produce good quality three dimensional mixer machine for pharmacy, food, and chemical mixing with a low price in china. Three dimensional mixer machine is a non-germ or germ-free mixer, which is used a lot in pharmaceutical industry.

1. Introduction:
Three dimensional mixer machine for pharmacy food chemical mixing is used to mix powder, granules, and particles in pharmaceutical, foodstuff, chemical, light industry, electronic, mining and metallurgy, national defense industry and scientific research institutes.
Three dimensional mixer machine has better mixing effect then some other powder mixers.

2. Principle and features:
Three dimensional mixer machine for pharmacy food chemical mixing is composed of base, rotary arms, and a barrel.
Fed to the barrel, the material is driven by the rotary arms to do three dimensional movements. Three dimensional movements can make a better mixing effect achieving homogeneous distribution.
The mixing barrel is fully closed, which can keep out germ and dust. Therefore three dimensional mixer machine is also called germ-free mixer or non-germ mixer, which is very popular by many pharmacy and food factories.

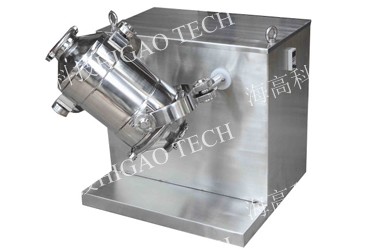

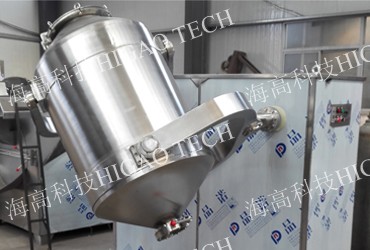

3D movement mixer

3. Surface treatment and steel grade:
The mixing barrel of Three Dimensional Mixer is fully closed and polished brightly, which can keep out germ and dust to meet sanitary standard.
Stainless steel 304 or SS 316L is very popular by Pharmaceutical enterprises and food factories.

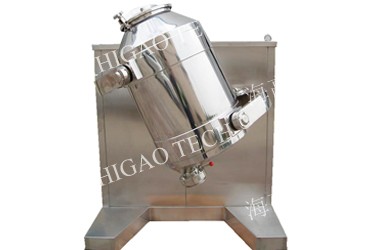

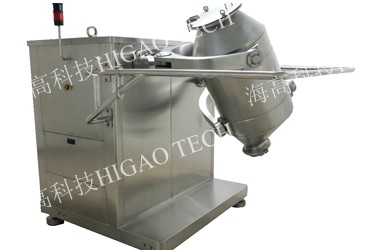

three dimensional granular mixer

3D Series Three Dimensional Mixer (3D Mixer) of HIGAO TECH
Model	Total volume	Loading volume	Motor/speed	Dimension(L×W×H)	Weight
3D-50	50L	35L	0.75kw/0-15rpm	970×950×1200mm	300kg
3D-100	100L	70L	1.5kw/0-15rpm	1200×1600×1500mm	500kg
3D-200	200L	140L	4kw/0-15rpm	1400×1800×1600mm	700kg
3D-300	300L	210L	4kw/0-15rpm	1600×1950×1700mm	1000kg
3D-400	400L	280L	4kw/0-12rpm	1700×2100×1850mm	1200kg
3D-500	500L	350L	5.5kw/0-12rpm	1900×2200×2150mm	1500kg
3D-600	600L	420L	5.5kw/0-11rpm	2100×2400×2250mm	1800kg
3D-800	800L	560L	7.5kw/0-10rpm	2200×2500×2300mm	2000kg
3D-1000	1000L	700L	7.5kw/0-10rpm	2280×2600×2500mm	2500kg
3D-1500	1500L	1200L	15kw/0-10rpm	2500×3100×2600mm	3000kg
3D-2000	2000L	1500L	18.5kw/0-9rpm	2750×3600×3150mm	3700kg
