rotary swing oscillating granulator

Higao Tech manufacture high quality rotary swing oscillating granulator in china used to make granulaes from pasty materials.

item no.:
SG series swing granulator
Payment:
T/T 30% deposit and 70% before shipment
product origin:
made in china
Color:
Shining Polish or Matte Shinning Polish
shipping port:
Shanghai Port
Lead Time：
30 Days

contact now

Product Detail
specification

Rotary swing oscillating granulator

Higao Tech manufacture high quality rotary swing oscillating granulator in china used to make granulaes from pasty materials. The granules made by swing granulator machine need to be dried before packing.

1. Introduction:
Rotary swing oscillating granulator is used to make moist powdery material into granules in pharmaceutical, chemical and foodstuff industries etc.
This granules making machine can also crush blocked materials into required particles.

2. Working Principle and Features:
The motor drives the rotor to swing back and forth repeatedly, which pushes the moist materials out from the sieve, and the extruded materials will be cut into granules at the same time.
Simple structure and easy to operate.
Additional function as a pulverizer to crush dry caking materials into granules or powder.
swing granulator

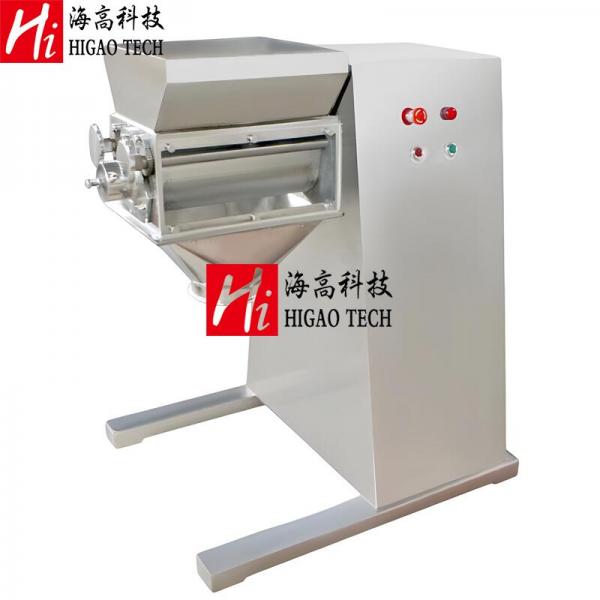

SG Series Swing Granulator of HIGAO TECH
Model	Capacity	Diameter of Sieve	Motor/speed	Swing angle	Dimension(L×W×H)	Weight
SG-60	10~30kg/h	Ф0.4~5mm	0.37kw/46rpm	360°	460×550×580mm	80kg
SG-100	30~150kg/h	Ф0.4~5mm	1.1kw/55rpm	360°	700×500×1000mm	250kg
SG-160	100~300kg/h	Ф0.4~5mm	2.2kw/55rpm	360°	1000×800×1300mm	350kg
SG-250	200~500kg/h	Ф0.4~5mm	5.5kw/40rpm	360°	1200×950×1500mm	500kg

Hot Tags: swing granulator oscillating granulator granules making machine swaying granulator high shear mixer granulator high shear granulator double roller granulator mixer granulator
