Dry and wet powder mixing high shear mixer granulator

Higao Tech supply best price of high shear mixer granulator machine for dry and wet powder mixing and granulation in china used to mix powder by adding binder or additives or liquid.
  • item no.:

    WG series wet granulator
  • Payment:

    T/T 30% deposit and 70% before shipment
  • product origin:

    made in china
  • Color:

    Shining Polish or Matte Shinning Polish With Hairl
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification

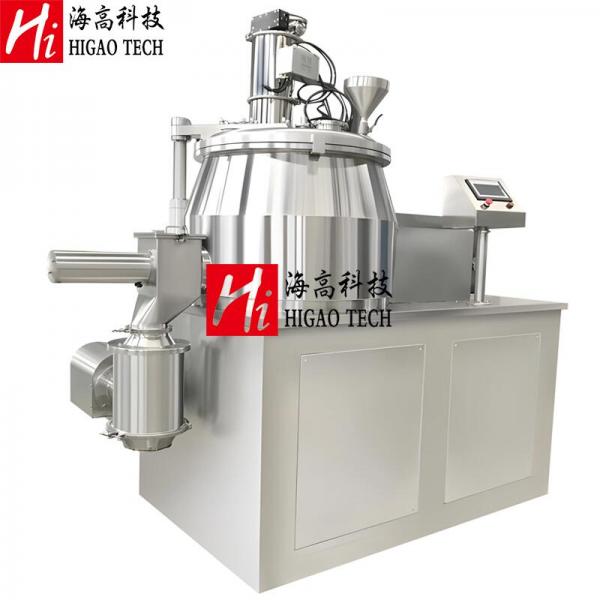

Dry and wet powder mixing high shear mixer granulator


Higao Tech supply best price of high shear mixer granulator machine for dry and wet powder mixing and granulation in china used to mix powder by adding binder or additives or liquid. It can be also treated as a mixing equipment. Customer will need to use swing granulator or rotary granulator machine to make granules after using high shear mixer granulator machine.


1. Introduction and Application:
High shear mixer granulator is wet method mixing and granulating machine. The powdery material and adhesive in cylinder are mixed completely at the bottom of the machine to achieve humid-soft material, and then cut by a high speed chopper to become similar spherical granules.
Liquid binder is usually fed into the closed container with a rapid mixer and a chopper. The result is that the liquid binder and solid will be formed into dense granules.
Dry and wet powder mixing high shear mixer granulator high shear mixer granulator machine


2. Structure and Features:

Including dry mixing, humid mixing or wet mixing, cutting, granulating in the same sealed container.
Efficiency will be raised by 4~5 times compared with ordinary granulator.
25% adhesive can be saved compared with other ordinary granulating machine.
The mixing time per batch is about 2 minutes and granulating time is about 1~4 minutes.
The whole operation has strict safe and protective measures.
High speed chopper is used to break down the wet lump to produce granules.
The mixing speed is adjustable, running at a speed of 100~500rpm.
The cutting speed of chopper is adjustable, running at a speed of 1000~3000rpm, which makes the granules more even.
The final granules have medium density to high density with excellent flow and compression characteristics.
The granulation process is very quick and then usually transferred to a fluid bed drying machine for drying.
wet method mixing granulator high shear mixing granulator machine

WG Series Wet Method High Shear Mixer Granulator of HIGAO TECH

Model

Barrel volume

Batch capacity

Mixing motor/speed

Cutting motor/speed

Consumption of compressed air

WG-10

10L

3kg/batch

1.5~2.2kw/300~600rpm

0.85~1.1kw/1500~3000rpm

0.6M3/Min

WG-50

50L

15kg/batch

4~5.5kw/200~400rpm

1.3~1.8kw/1500~3000rpm

0.6M3/Min

WG-150

150L

50kg/batch

6.5~8kw/180~270rpm

2.4~3kw/1500~3000rpm

0.9M3/Min

WG-200

200L

80kg/batch

9~11kw/180~270rpm

4.5~5.5kw/1500~3000rpm

0.9M3/Min

WG-250

250L

100kg/batch

9~11kw/180~270rpm

4.5~5.5kw/1500~3000rpm

0.9M3/Min

WG-300

300L

130kg/batch

13~16kw/140~220rpm

4.5~5.5kw/1500~3000rpm

1.1M3/Min

WG-400

400L

200kg/batch

18.5~22kw/106~155rpm

6.5~8kw/1500~3000rpm

1.5M3/Min

WG-600

600L

280kg/batch

22~30kw/80~120rpm

9~11kw/1500~3000rpm

1.8M3/Min
