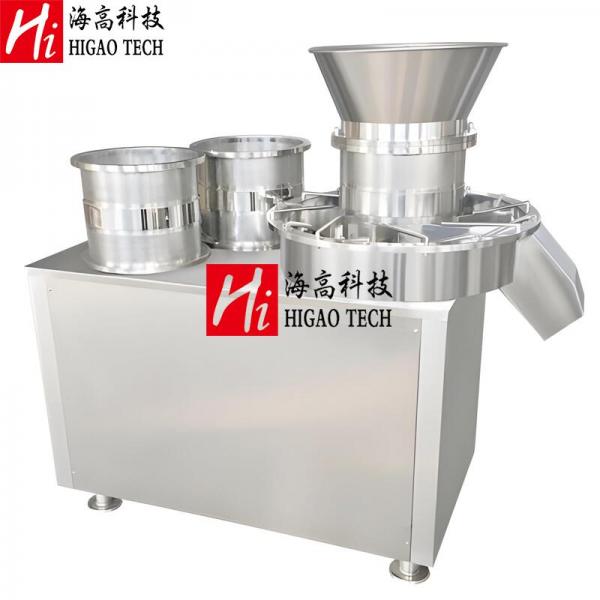

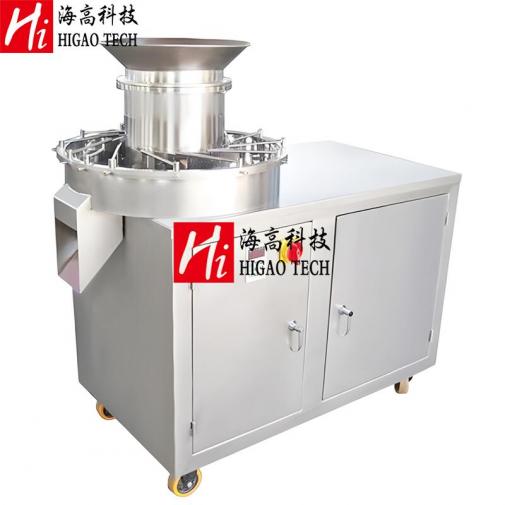

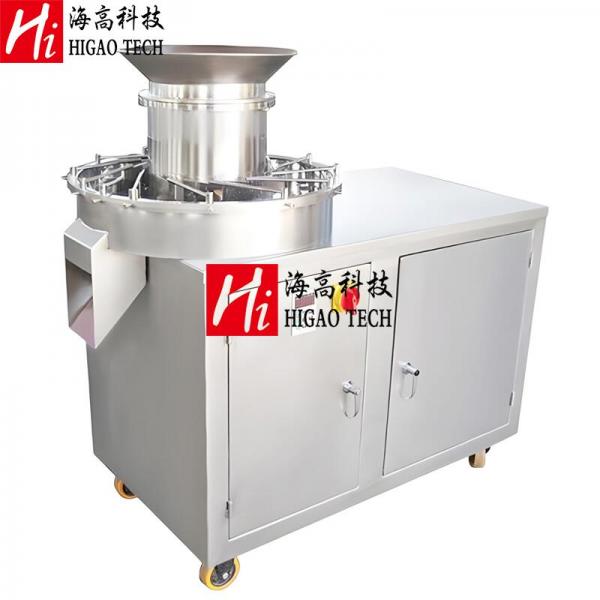

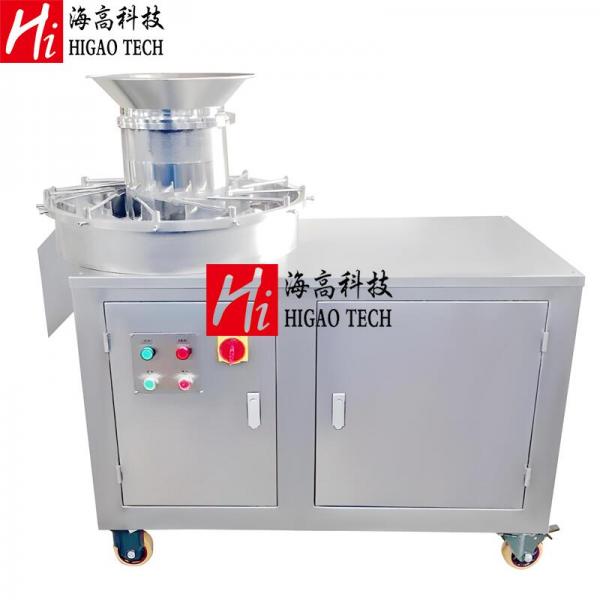

rotary basket extruding granulator

Higao Tech fabricate professional food and pharmacy rotary basket extruding granulator to make granules in china.
  • item no.:

    RG series rotary granulator
  • Payment:

    T/T 30% deposit and 70% before shipment
  • product origin:

    made in china
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification

Rotary basket extruding granulator


Higao Tech fabricate professional food and pharmacy rotary basket extruding granulator to make granules in china. Rotary basket extruding granulator machine is similar to rotary swing oscillating granulator machine, but it is much easier to clean and maintain.


1. Introduction:
Food and feed additives rotary granulator machine to make granules is used to make moist powdery material into granules, especially for material with high viscosity.

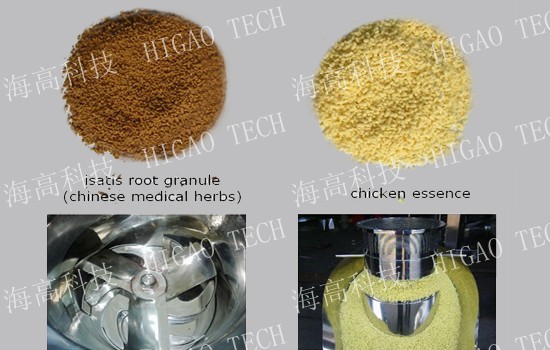

Food granulating machine to make granules is a new type additives granulator machine and used widely rapidly in pharmaceutical,food,agricultural,chemical,stock raising,fertilizer fields. For instance: fertilizer granules,chicken essence,(monosodium glutamate) gourmet powder, indigo root, etc.

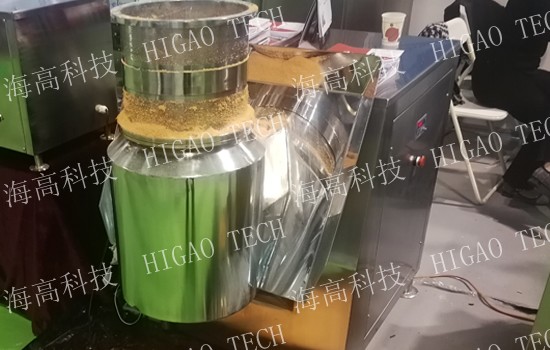

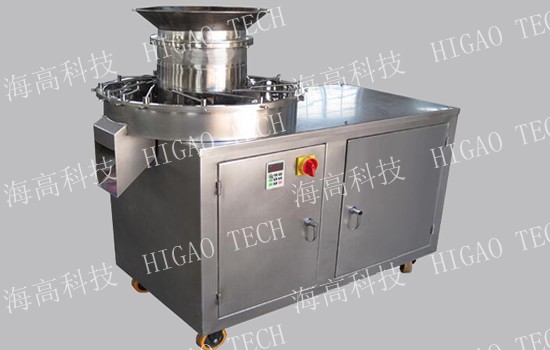

Rotary basket extruding granulator rotary granulator
2. Working Principle:

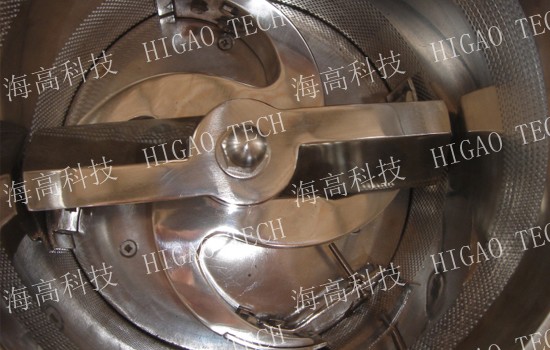

When the pasty materials are fed into the basket granulator, the motor will drive the gear box to make the roller continuously extrude the materials out from the sieve holes, and the granules can go to next drying process.

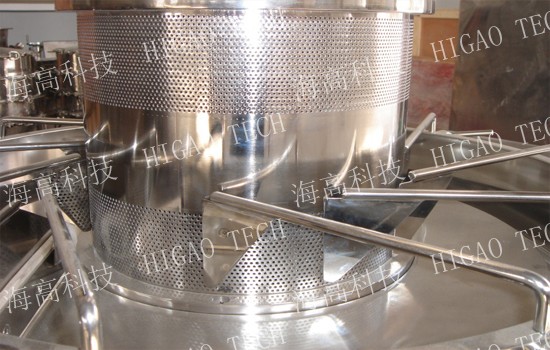

rotary basket granulator basket granulator extruder
3. Features:
The output granule is hard and having beautiful shape.
The granules are extruded uniformly with good shape.
You can adjust the diameter of the granules by using different size of the sieve.
You can adjust the length of the granules by adding a number of cutters outside the sieve hole.
The sieve can be used two times, easy to change and clean.
The machine can work continuously suitable for production line.
We use stainless steel 304# for product contact parts to make this machine, clean and healthy.
Inverter(VFD) can be added according to customer’s demand.

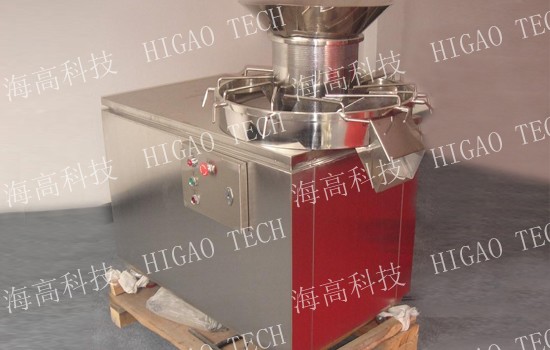

rotary basket granulating extruder rotary basket granulator extruder

RG Series Rotary Basket Granulator of HIGAO TECH

Model

Capacity

Diameter of Sieve

Motor

Dimension(L×W×H)

Weight

RG-80

1~10kg/h

Ф0.8~1.2mm

0.18kw

700×500×1400mm

300kg

RG-200

100~200kg/h

Ф0.8~3mm

3kw

700×500×1400mm

300kg

RG-300

150~300kg/h

Ф0.8~3mm

4kw

800×700×1500mm

450kg

RG-450

200~500kg/h

Ф0.8~3mm

7.5~11kw

1100×850×1650mm

600kg
