high efficient fluidizing dryer with mixing and drying

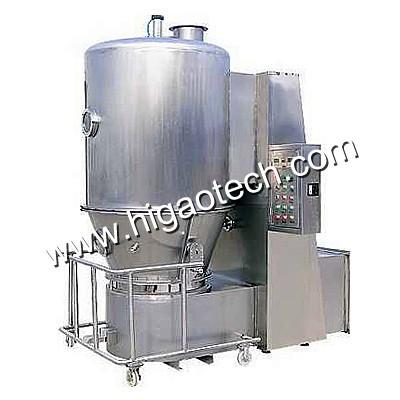

high efficiency fluidizing dryer

Higao Tech offer high quality high efficiency fluidizing dryer with a reasonable price in china. Combine mixing and drying function together to reach a better drying result.

item no.:
FD series high efficiency fluidizing dryer
Payment:
T/T 30% deposit and 70% before shipment
product origin:
made in china
Color:
Shining Polish or Matte Shinning Polish
shipping port:
Shanghai Port
Lead Time：
30 Days

contact now

Product Detail
specification

Higao Tech offer high quality high efficiency fluidizing dryer with a reasonable price in china. Combine mixing and drying function together to reach a better drying result.

1. Introduction:
High efficiency fluidizing dryer machine is used to dry wet granules or wet powdery materials sized at 0.1-6mm in pharmacy, foodstuff, and chemical fields, etc.

2. Working Principle:

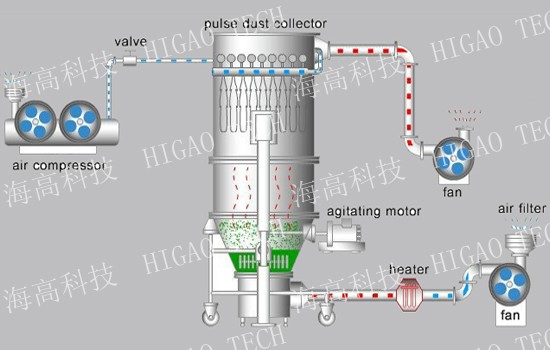

Under function of the fan, the natural air passes through purification cabinet, heater and small hole of the bed board and then the natural air becomes high speed airflow. The airflow contacts with the wet materials and makes the material into boiled status and takes out the moisture (or solvent) in materials and finally vaporized quickly.

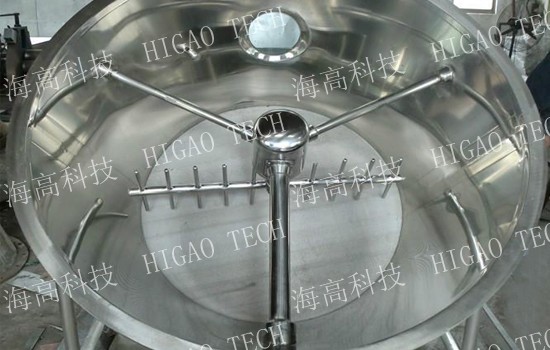

The drying bucket for storing materials has a blender inside, which makes the drying process quick and uniform without dead corner. Drying time can be adjusted freely according to characteristics of the materials.

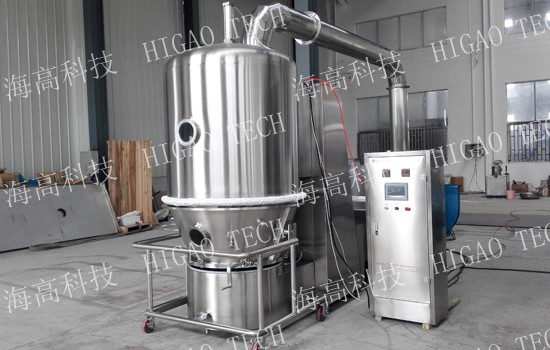

high efficiency fluidizing dryer

3. Features:
(1) The shape of this fluidizing bed is round structure, which avoids dead corner.
(2) There is a blender inside High efficient fluidizing dryer, which can avoid agglomeration of wet materials and forming channel flow during drying.
(3) The bag filter in the top is made from anti-static special fiber, which assures the operation is safe and clean.

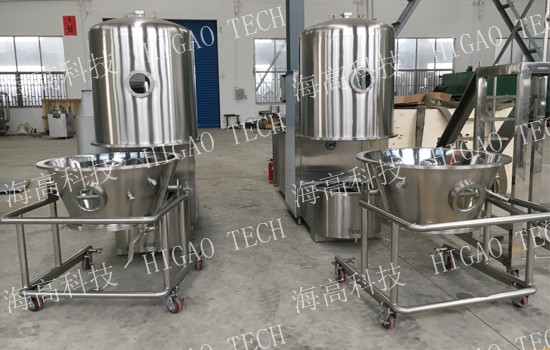

(4) Turning over ht materials storage bucket to discharge the dried granules, which is quick and convenient.
(5) Operated by sealed negative pressure and designed by GMP.
(6) We can also design automatic feeding and discharging system as request.
(7) Quick drying speed, uniform temperature. Usually the drying time for each batch is about 20-30 minutes.

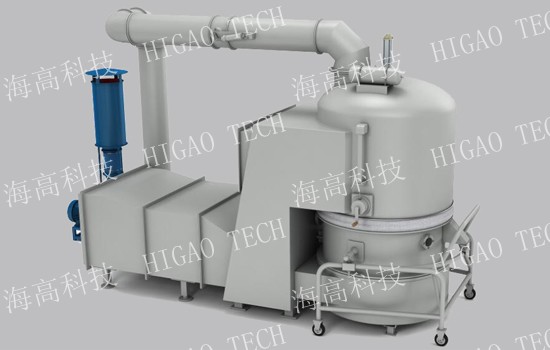

high efficiency fluidizing dryer

FD Series High Efficiency Fluidizing Dryer of HIGAO TECH
Specification \ Model	FD-60	FD-100	FD-120	FD-150	FD-200	FD-300	FD-500	FD-1000
Feeding capacity	60kg/batch	100kg/batch	120kg/batch	150kg/batch	200kg/batch	300kg/batch	500kg/batch	1000kg/batch
Motor power of Fan	7.5kw	11kw	15kw	18.5kw	22kw	30kw	45kw	75kw
Air blast of Fan	2361M³/h	3488M³/h	4000M³/h	4901M³/h	6032M³/h	7800M³/h	10800M³/h	15000M³/h
Air pressure of Fan	594mmH₂O	533mmH₂O	533mmH₂O	679mmH₂O	787mmH₂O	950mmH₂O	950mmH₂O	1200mmH₂O
Blending motor power	0.55kw	0.75kw	1.1kw	1.1kw	1.5kw	1.5kw	2.2kw	2.2kw
Blending speed	15rpm	15rpm	15rpm	15rpm	15rpm	15rpm	15rpm	15rpm
Steam pressure	0.4~0.6Mpa	0.4~0.6Mpa	0.4~0.6Mpa	0.4~0.6Mpa	0.4~0.6Mpa	0.4~0.6Mpa	0.4~0.6Mpa	0.4~0.6Mpa
Steam consumption	160kg/h	170kg/h	220kg/h	240kg/h	282kg/h	350kg/h	450kg/h	800kg/h
Power of electric heating	54kw	58kw	63kw	72kw	81kw	99kw	117kw	135kw
Temperature of Air inlet	50~100℃	50~100℃	50~100℃	50~100℃	50~100℃	50~100℃	50~100℃	50~100℃
Pressure of compressed air	0.6Mpa	0.6Mpa	0.6Mpa	0.6Mpa	0.6Mpa	0.6Mpa	0.6Mpa	0.6Mpa
Consumption of compressed air	0.36M³/h	0.45M³/h	0.54M³/h	0.54M³/h	0.6M³/h	0.6M³/h	0.9M³/h	1.2M³/h
Operating time	15-30 Minutes (depends on materials)
Height of the main machine	2700mm	2900mm	2900mm	2900mm	3100mm	3600mm	3850mm	5800mm
Weight of main machine	1000kg	1200kg	1500kg	1600kg	1800kg	2300kg	3000kg	4500kg
