high efficiency fluidizing dryer
Higao Tech offer high quality high efficiency fluidizing dryer with a reasonable price in china. Combine mixing and drying function together to reach a better drying result.
item no.:
SVD series square vacuum dryerPayment:
T/T 30% deposit and 70% before shipmentproduct origin:
made in chinaColor:
Shining Polish or Matte Shinning Polishshipping port:
Shanghai PortLead Time:
30 Days

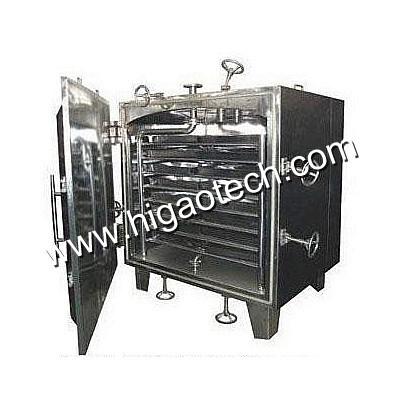

SVD Series Square Static Vacuum Dryer of HIGAO TECH |
||
Specification \ Model |
SVD-10 |
SVD-15 |
Inner size of drying chamber |
1500×1060×1220mm |
1500×1400×1220mm |
Outer size of drying chamber |
1924×1513×1720mm |
1934×1513×2060mm |
Layers of baking shelf |
5 layers |
8 layers |
Distance between layers |
122mm |
122mm |
Size of baking disk |
460×640×45mm |
460×640×45mm |
Qty of baking disk |
20pcs |
32pcs |
Permitted pressure inside the pipe of baking shelf |
≤ 0.784Mpa |
≤ 0.784Mpa |
Temperature inside chamber |
≤150℃ |
≤150℃ |
Vacuum level in chamber without load |
0.09~0.096Mpa |
0.09~0.096Mpa |
When use condenser, model and power of vacuum pump |
2X-70A, 5.5Kw |
2X-70A, 5.5Kw |
When not use condenser, model and power of vacuum pump |
SK-3, 5.5Kw |
SK-3, 5.5Kw |
Weight of drying chamber |
1400kg |
2100kg |
