high efficiency fluidizing dryer
Higao Tech offer high quality high efficiency fluidizing dryer with a reasonable price in china. Combine mixing and drying function together to reach a better drying result.
item no.:
RVD series round vacuum dryerPayment:
T/T 30% deposit and 70% before shipmentproduct origin:
made in chinaColor:
Shining Polish or Matte Shinning Polishshipping port:
Shanghai PortLead Time:
30 Days

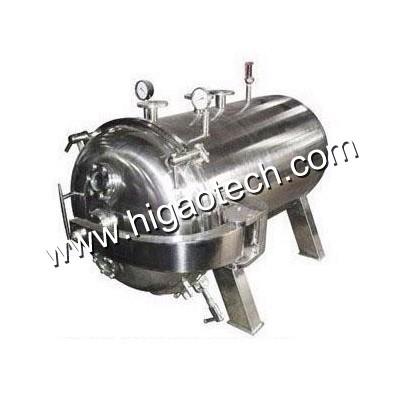

RVD Series Round Static Vacuum Dryer of HIGAO TECH |
||||
Specification \ Model |
RVD-60 |
RVD-80 |
RVD-100 |
RVD-140 |
Inner size of drying chamber |
φ 600×976mm |
φ 800×1247mm |
φ 1000×1527mm |
φ 1400×2054mm |
Outer size of drying chamber |
1135×810×1020mm |
1700×1045×1335mm |
1693×1190×1500mm |
2386×1657×1920mm |
Layers of baking shelf |
4 layers |
4 layers |
6 layers |
8 layers |
Distance between layers |
81mm |
82mm |
102mm |
102mm |
Size of baking disk |
310×600×45mm |
520×410×45mm |
460×640×45mm |
460×640×45mm |
Qty of baking disk |
4pcs |
8pcs |
12pcs |
32pcs |
Permitted pressure inside the pipe of baking shelf |
≤ 0.784Mpa |
≤ 0.784Mpa |
≤ 0.784Mpa |
≤ 0.784Mpa |
Temperature inside chamber |
≤150℃ |
≤150℃ |
≤150℃ |
≤150℃ |
Vacuum level in chamber without load |
0.09~0.096Mpa |
0.09~0.096Mpa |
0.09~0.096Mpa |
0.09~0.096Mpa |
When use condenser, model and power of vacuum pump |
2X-15A, 2Kw |
2X-30A, 3Kw |
2X-30A, 3Kw |
2X-70A, 5.5Kw |
When not use condenser, model and power of vacuum pump |
SK-1.5, 4Kw |
SK-3, 5.5Kw |
SK-3, 5.5Kw |
SK-6, 11Kw |
Weight of drying chamber |
250kg |
600kg |
800kg |
1200kg |
