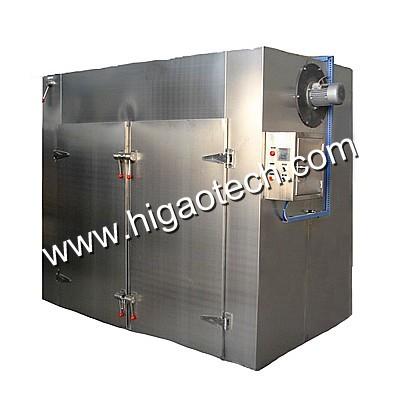

hot air circulation drying oven

Higao Tech manufacture high quality hot air circulation drying oven with best price in china. Usually customers use steam or electricity to heat the materials inside the circulation oven.
  • item no.:

    CT series drying oven
  • Payment:

    T/T 30% deposit and 70% before shipment
  • product origin:

    made in china
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification
Higao Tech manufacture high quality hot air circulation drying oven with best price in china. Usually customers use steam or electricity to heat the materials inside the circulation oven.

1. Introduction and application:
Hot air circulation drying oven is suitable for heating and solidificating, drying and dehydrating the materials and products in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries.
Applied materials:medicinal raw material, Chinese traditional herbal medicine,plaster,powder,particle, drinking agent,pill, packing bottle, pigment,dyestuff, de-watering vegetable, dried fruit piece,sausage,plastics,resin, electric component, baking varnish and etc.

2. Working Principle:
Most hot air is circulated in the drying oven. The Heat efficiency is high and the energy is saved. By using the forced ventilation function, there are adjustable air distribution plates inside the drying oven. The materials can be dried uniformly.

3. Features:
(1) Heating source: steam, electricity, heat conduction oil, far infrared, or both steam + electricity.
(2) Drying temperature of steam: 50-130 ℃, Max.140 ℃. (3) Drying temperature of electricity or far infrared: 50-300 ℃.
(4) Automatic control system and computer control system for customers to choose.
(5) Normal used steam pressure from 0.2-0.8Mpa(2-8 bar).
(6) For CT-1 electric heated, rated power consumption is 15Kw, but real consumption is 5-8Kw.
(7) The special requirements should be indicated when placing order.
(8) If operation temperature is over 140 ℃ or less than 60 ℃, please indicate when placing order.
(9) Low noise, easy to install and maintain.
(10) Hot air circulation oven can be used for drying various materials.

CT Series Hot Air Circulation Drying Oven of HIGAO TECH

Model

Drying Capacity

Power Supply

Electric Power

Fan Power

Steam Consumption

Baking Cart/Car

Baking Tray

Dimension(L×W×H)

CT-1

60kg/batch

Steam

Electricity

Heat Transfer oil

Far-infrared

(Optional)

6~9kw

0.45kw

10kg/h

1 door with 1 cart

24pcs

1400×1200×1800mm

CT-2

120kg/batch

15kw

0.45kw

20kg/h

2 doors with 2 carts

48pcs

2300×1200×2000mm

CT-3

240kg/batch

30kw

0.9kw

45kg/h

2 doors with 4 carts

96pcs

2300×2200×2000mm

CT-4

360kg/batch

45kw

1.35kw

71kg/h

3 doors with 6 carts

144pcs

3400×2200×2000mm

CT-5

480kg/batch

60kw

1.8kw

90kg/h

4 doors with 8 carts

192pcs

4460×2200×2300mm
