Fluidized granulator dryer

Higao Tech fabricate professional fluidized granulator dryer for powder coating and granulation in china with mixing, granulation and drying process at the same time.
  • item no.:

    FL series fluidized granulator dryer
  • Payment:

    T/T 30% deposit and 70% before shipment
  • product origin:

    made in china
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification

Fluidized granulator dryer


Higao Tech fabricate professional fluidized granulator dryer for powder coating and granulation in china with mixing, granulation and drying process at the same time.


1. Introduction and Application:
Fluidized granulator dryer machine for powder coating and granulation is used for granulation in pharmacy industry: tablet, electuary and capsule etc.
Used for granulation in foodstuff industry: cocoa, coffee, milk powder, granule syrup and flavoring etc.
Used for granulation in other industry: pesticide, feedstuff, chemical fertilizer, pigment and dyestuff chemical etc.
Used for drying wet powdery materials or granules etc.
Used for coating granules, pill protective layer, color preparation, film and enteric coating etc.

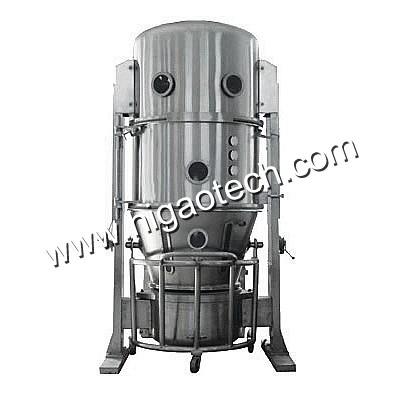

fluidized granulating machine fluidized granulating machine
2. Working Principle:
The powder or granules in the container (fluid-bed) appear the state of fluidization, it is pre-heated and mixed by clean and heated air.
At the same time the solution of adhesive solvent is fogged and atomized into the container, which will make some particles become granules with adhesive.
Continuous drying of hot air makes the moisture in granules evaporated and the adhesive solidified.
Finally the powder becomes ideal, uniform and cellular and spherical granules.
fluidized granulating machine


3. Features:

(1) Powder mixing, granulation, and drying are completed in one-step.
(2) Improve the fluidity of granules and reduce the dust.
(3) Multi-fluid nozzle guarantees that the formed granule is uniform and reducing the rate of powder.
(4) Using anti-static filter cloth to assure the operation is safe.
(5) Explosion-proof device can be chosen to protect the workers.
(6) Quick loading and discharging, easy to clean and without dead corner.

FL Series Fluidized Granulator Dryer of HIGAO TECH

Specification      \      Model

FL-3

FL-5

FL-15

FL-30

FL-45

FL-60

FL-90

FL-120

FL-150

FL-200

FL-300

FL-500

Container

Volume(L)

12

22

45

100

155

220

300

420

550

670

1000

1500

Diameter(mm)

300

400

550

700

850

1000

1100

1200

1300

1400

1600

1800

Capacity

Min.(kg/h)

1.5

4

10

15

20

30

50

80

90

100

150

250

Max.(kg/hr)

4.5

6

20

45

60

90

120

160

250

300

450

750

Fan

Capacity(M3/h)

1000

1200

1400

1800

2400

3000

3800

4500

5200

6000

7000

8000

Pressure(mmH2O)

375

375

480

480

480

950

950

950

950

950

950

950

Power(kw)

3

4

5.5

7.5

7.5

11

11

18.5

22

22

30

45

Steam

Pressure(Mpa)

0.3~0.6

0.3~0.6

0.3~0.6

0.3~0.6

0.3~0.6

0.3~0.6

0.3~0.6

0.3~0.6

0.3~0.6

0.3~0.6

0.3~0.6

0.3~0.6

Consumption(kg/h)

15

23

42

70

100

141

160

211

240

282

366

451

Compressed Air

Pressure(Mpa)

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

Consumption(M3/min)

0.9

0.9

0.9

0.9

0.9

1.0

1.0

1.0

1.1

1.1

1.5

1.5

Working temperature (℃)

Automatically adjustable from room temperature 20~120℃

Working time (minute)

40-90 minutes (depends on properties of raw materials)

Yield rate of product (%)

≥95%
