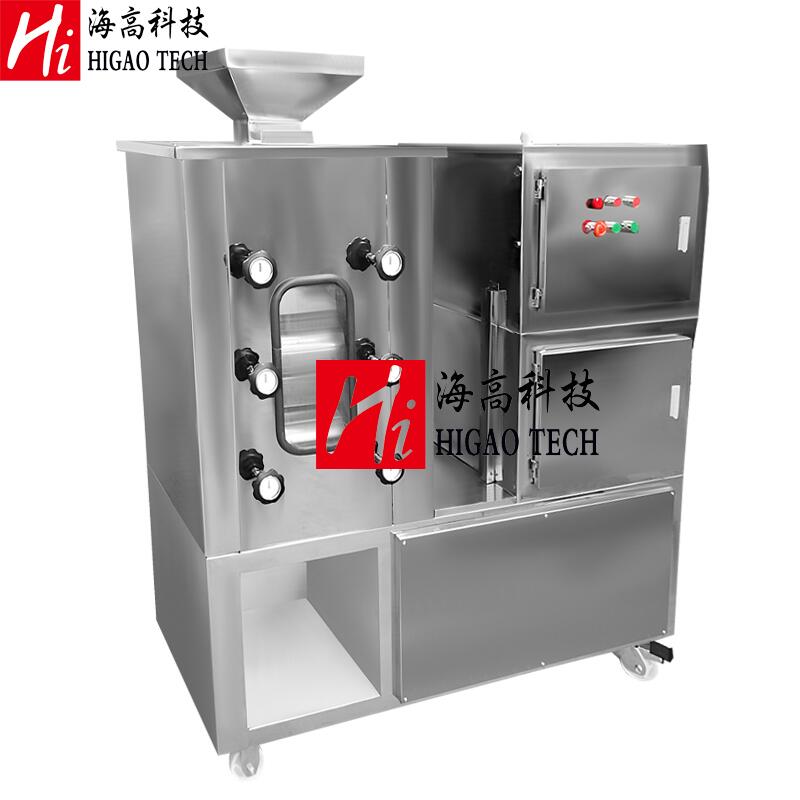

roller mill pulverizer machine

Higao Tech manufacture high quality stainless steel roller mill pulverizer machine mostly used for oily materials pulverizing in china. Such as sesame, chia seed, cashew, peanut, almond, walnut, brasil nuts, coffee beans.
  • item no.:

    RM series roller mill
  • Payment:

    T/T 30% deposit and 70% before shipment
  • product origin:

    made in china
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification
  • Photo Gallery

Roller mill pulverizer machine


Higao Tech manufacture high quality stainless steel roller mill pulverizer machine mostly used for oily materials pulverizing in china.


1. Introduction:
Roller mill pulverizer machine is used to pulverize or crush oily materials or oily plant seeds into granules or powder from 8~60 mesh in food, spices, chemical industries.
Applied oily products are peanut, sesame, almond, chia seed, cashew, biscuits, cookies, coffee beans, cocoa beans, sunflower seeds, coffee beans, brasil nuts,etc.

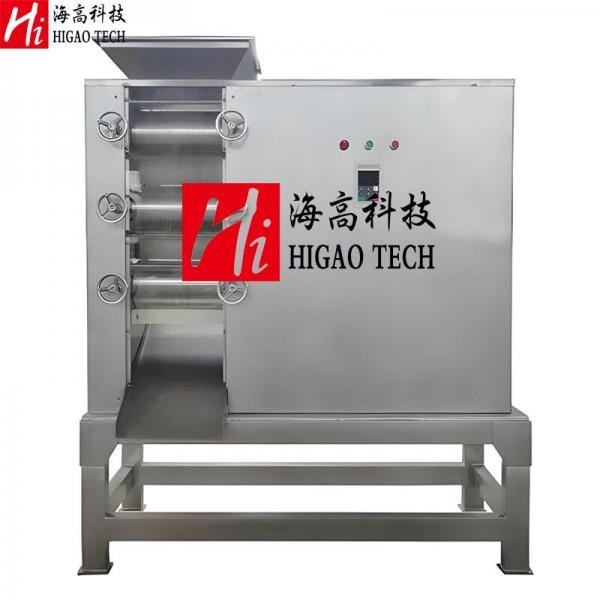

roller mill pulverizer machine roller mill pulverizing machine oily nuts pulverizer machine
2. Working Principle:

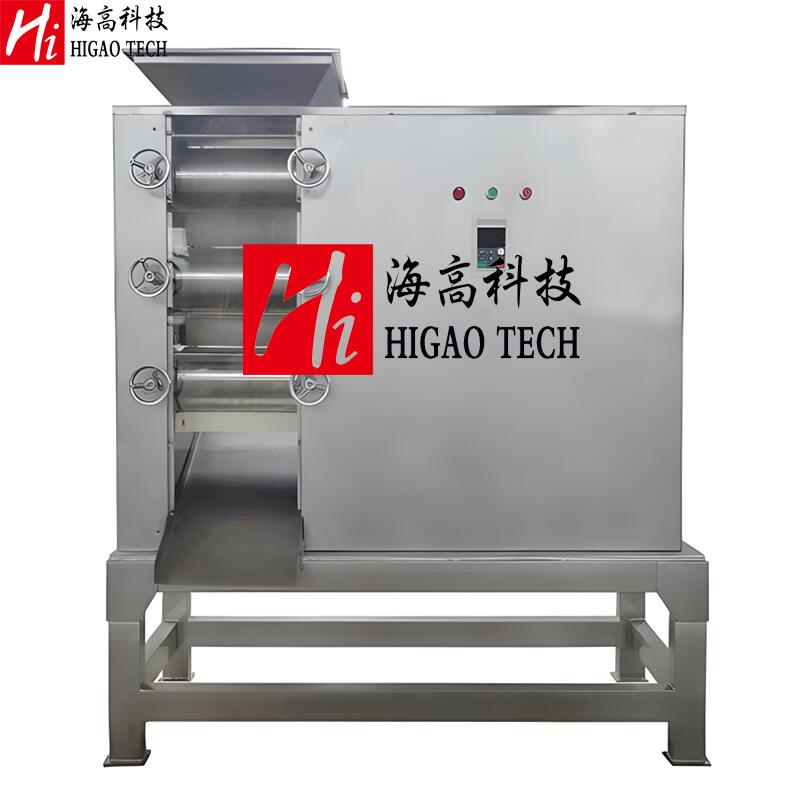

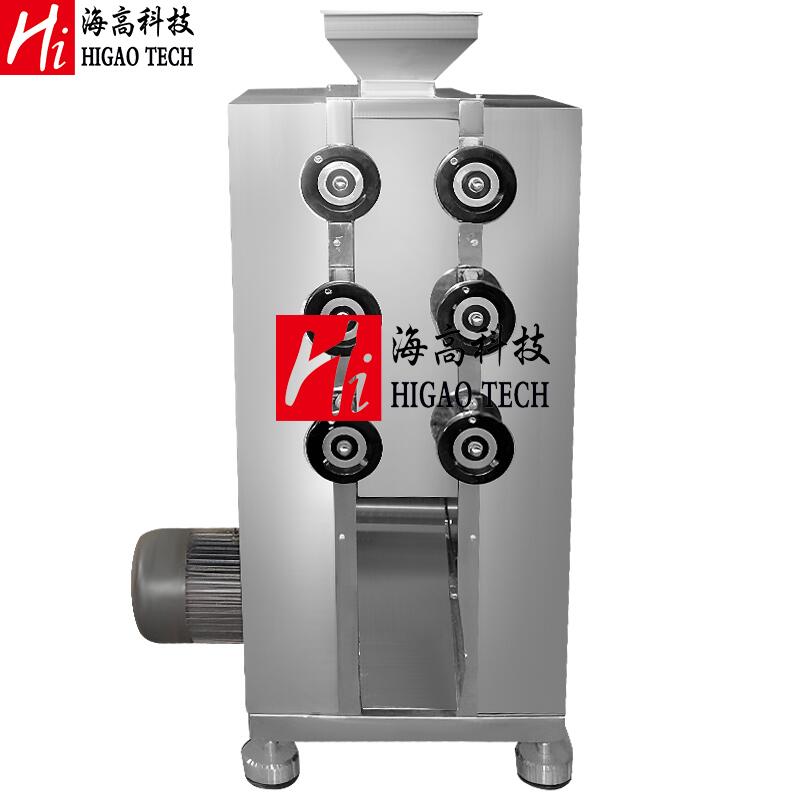

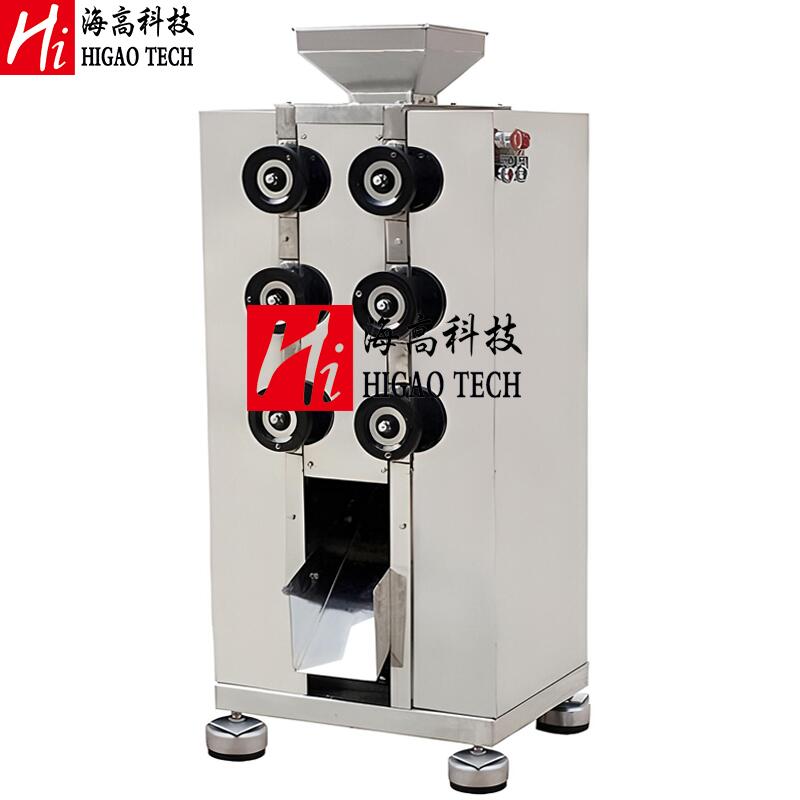

Consists of feeding hopper, pulverizing rollers, fineness adjusting handles, supporting frames.
Oily materials are pulverized into granules or powder by the pressing and squeezing forces between the two rotary rollers.
oily seeds pulverizer machine oily materials pulverizer machine oily materials crusher machine
3. Features:
Output size can be between 8~60 mesh according to different materials.
If you toast or fry your raw materials first, you can get a better output size.
Adjust the distance between the two rollers on the same layer to change the final size.
We provide multi-layer of rollers for different requirements.
We have designed several special structures of the rollers for different materials and output size.

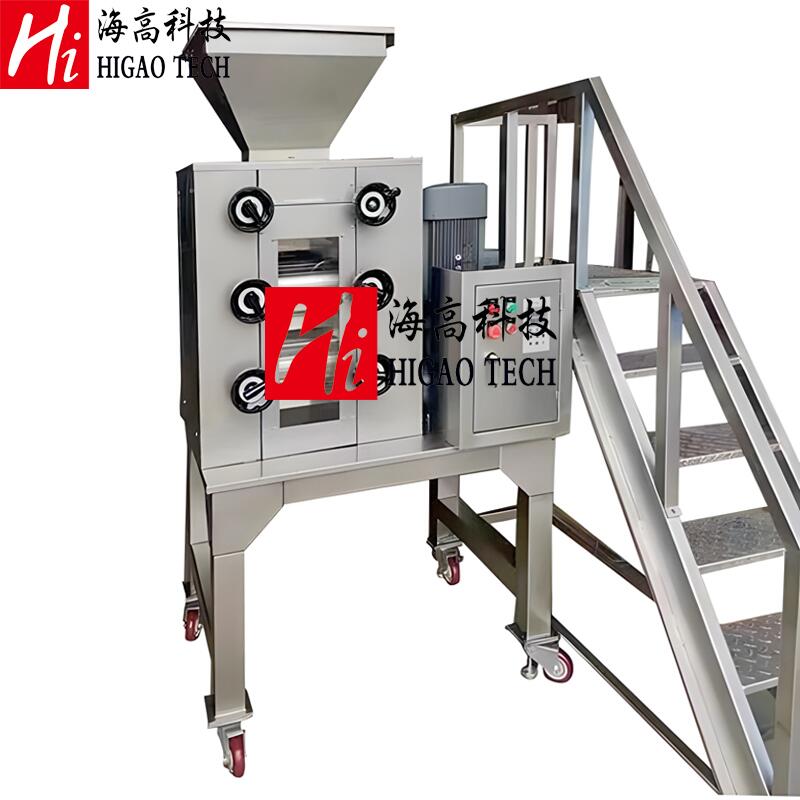

Conveyor can be equipped to feed raw materials to the hopper.
Magnetic frames can be added on the top of the feeding hopper to remove the irons mixed in raw materials.
We can provide commissioning for customers free of charge for fatty and oily and greasy products before placing order.
oily nuts pulverizing mill machine oily nuts powder making machine fatty nuts and seeds pulverizer mill

RM Series Roller Mill Pulverizer of HIGAO TECH

Model

Decks and rollers

Capacity

Output size

Motor power

Dimension(L×W×H)

Weight

RM-100

1 deck 2 rollers

20~80kg/h

8~20 mesh

0.75 kw

500×500×900mm

250kg

2 deck 4 rollers

20~80kg/h

8~40 mesh

1.5 kw

500×500×1150mm

300kg

3 deck 6 rollers

20~80kg/h

8~60 mesh

2.2 kw

500×500×1350mm

350kg

4 deck 8 rollers

20~80kg/h

8~80 mesh

3 kw

500×500×1600mm

400kg

RM-150

1 deck 2 rollers

50~200kg/h

8~20 mesh

2.2 kw

700×500×900mm

500kg

2 deck 4 rollers

50~200kg/h

8~40 mesh

3 kw

700×500×1150mm

550kg

3 deck 6 rollers

50~200kg/h

8~60 mesh

4 kw

700×500×1350mm

600kg

4 deck 8 rollers

50~200kg/h

8~80 mesh

5.5 kw

700×500×1650mm

650kg

RM-300

1 deck 2 rollers

100~500kg/h

8~20 mesh

3 kw

900×700×1200mm

750kg

2 deck 4 rollers

100~500kg/h

8~40 mesh

4 kw

900×700×1500mm

950kg

3 deck 6 rollers

100~500kg/h

8~60 mesh

5.5 kw

900×700×1800mm

1150kg

4 deck 8 rollers

100~500kg/h

8~80 mesh

7.5 kw

900×700×2050mm

1300kg

RM-500

1 deck 2 rollers

200~1000kg/h

8~20 mesh

5.5 kw

1100×750×1250mm

950kg

2 deck 4 rollers

200~1000kg/h

8~40 mesh

7.5 kw

1100×750×1500mm

1300kg

3 deck 6 rollers

200~1000kg/h

8~60 mesh

11 kw

1100×750×1850mm

1600kg

4 deck 8 rollers

200~1000kg/h

8~80 mesh

11 kw

1100×750×2150mm

1900kg
