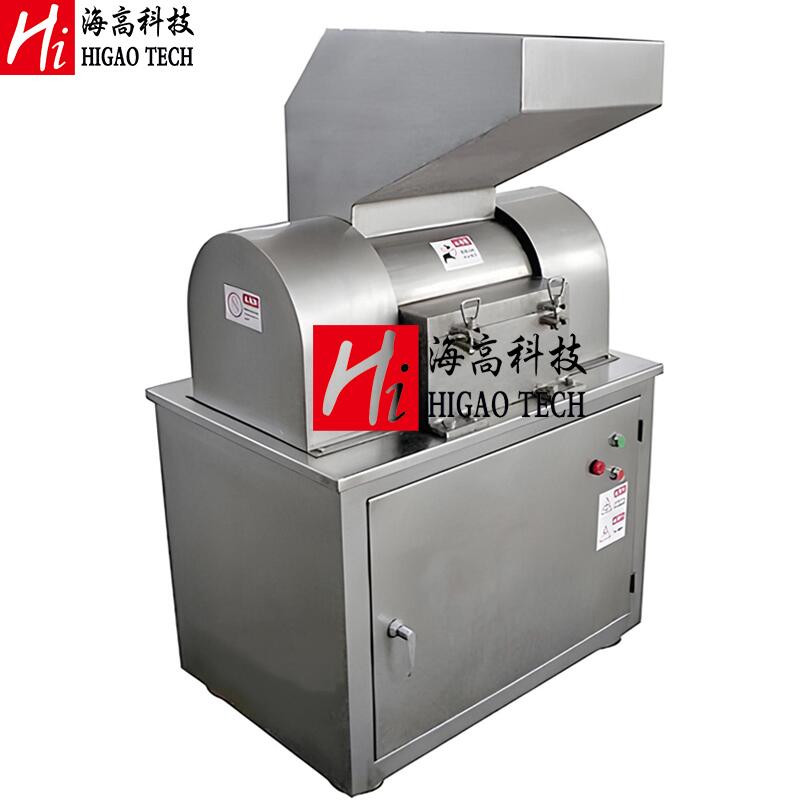

Horizontal pre-crusher pulverizer machine

Higao Tech fabricate stainless steel horizontal pre-crusher pulverizer machine used as a preliminary pulverizing process to reduce the size of big raw materials in china.
  • item no.:

    PC series Pre-crusher
  • Payment:

    T/T 30% Deposit + 70% Balance Before Delivery
  • product origin:

    Made In China
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification
  • Photo Gallery

Horizontal pre-crusher pulverizer machine


Higao Tech fabricate stainless steel horizontal pre-crusher pulverizer machine used as a preliminary pulverizing process to reduce the size of big raw materials in china.


1. Introduction:

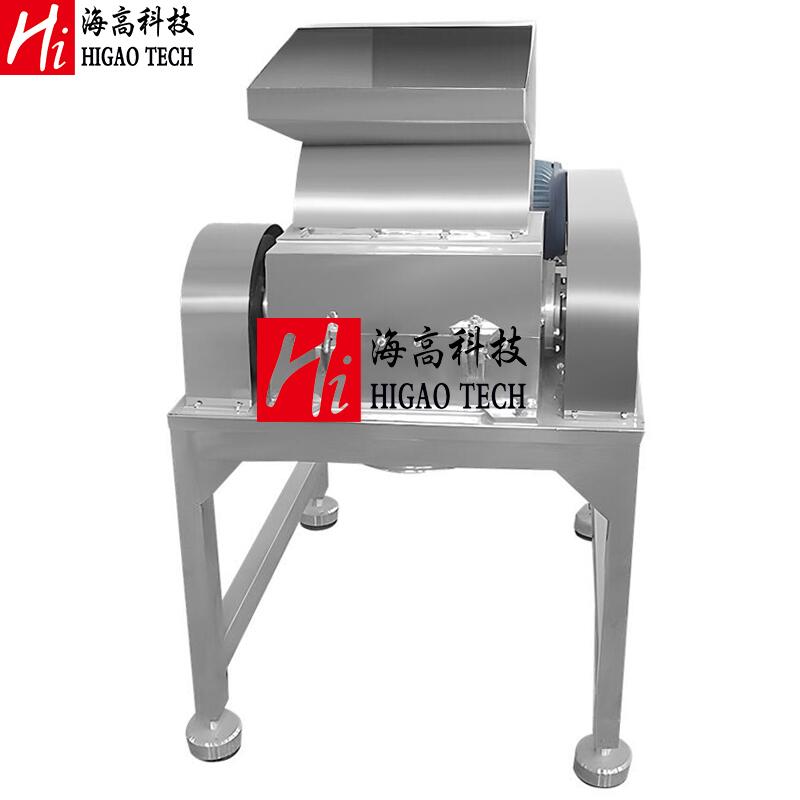

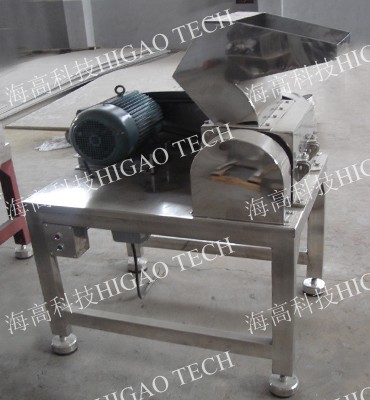

Stainless steel pre-crusher pulverizer machine is a horizontal type preliminary batch pulverizer before fine crushing process. Pre crusher machine is used to pulverize big blocks into small pieces prepared for next fine pulverizing process.
Horizontal pre-crusher pulverizer machine for size reduction is used widely in pharmaceutical,chemical and foodstuff fields etc.
Applied materials are featured with moderate hardness, less viscosity, less fiber etc. such as some rocks, wood, hard herbs, etc.

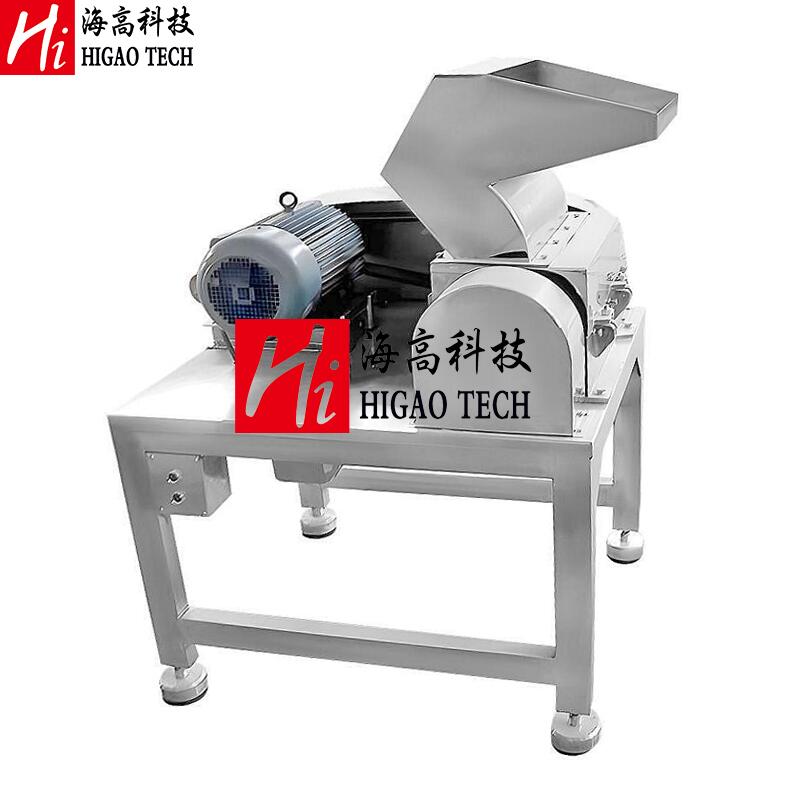

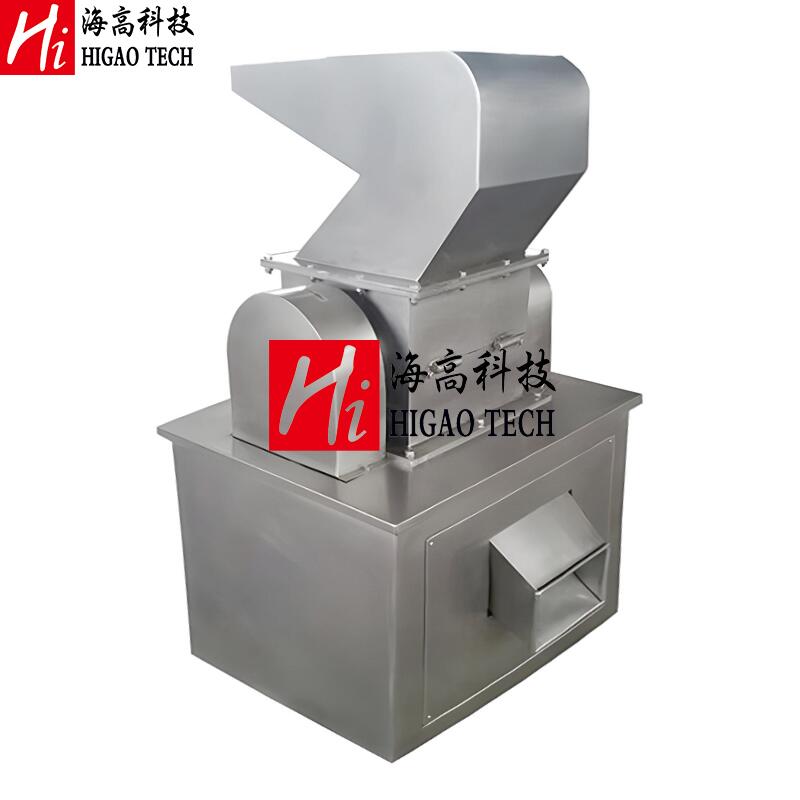

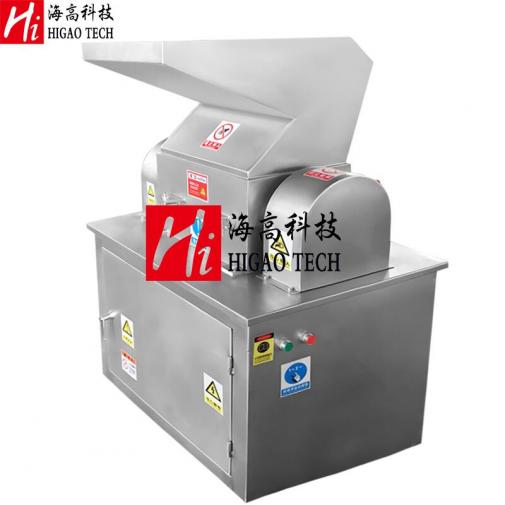

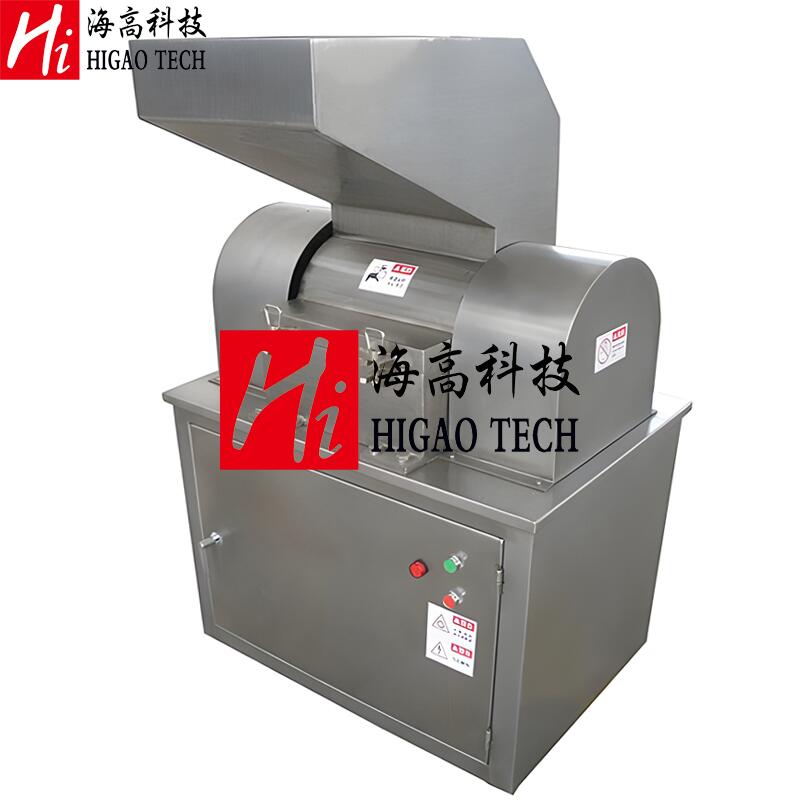

horizontal pre-crusher pulverizer machine horizontal coarse crusher horizontal preliminary crusher
2. Working Principle and Features:

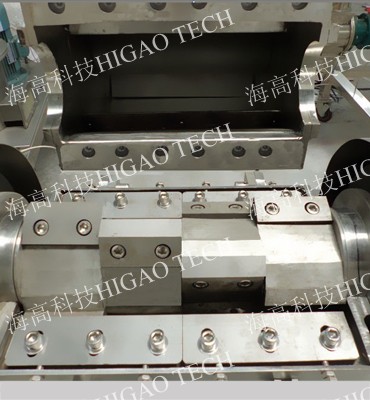

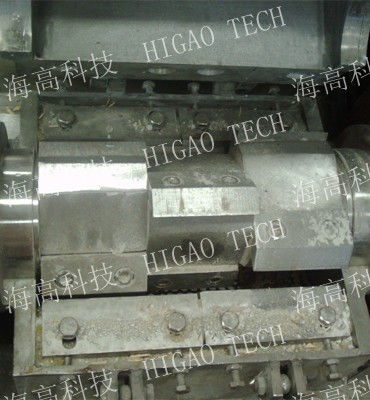

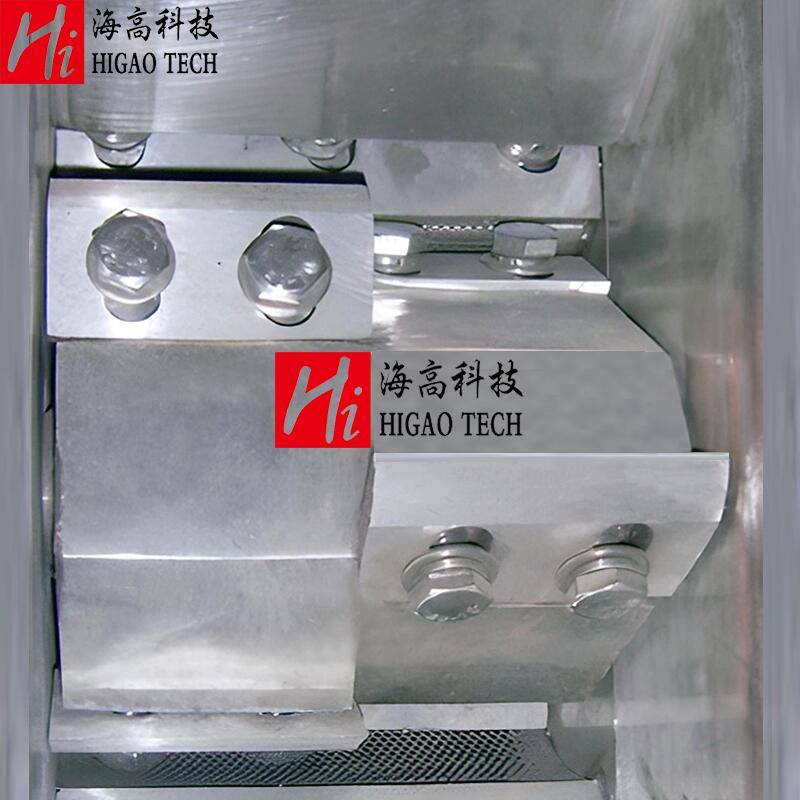

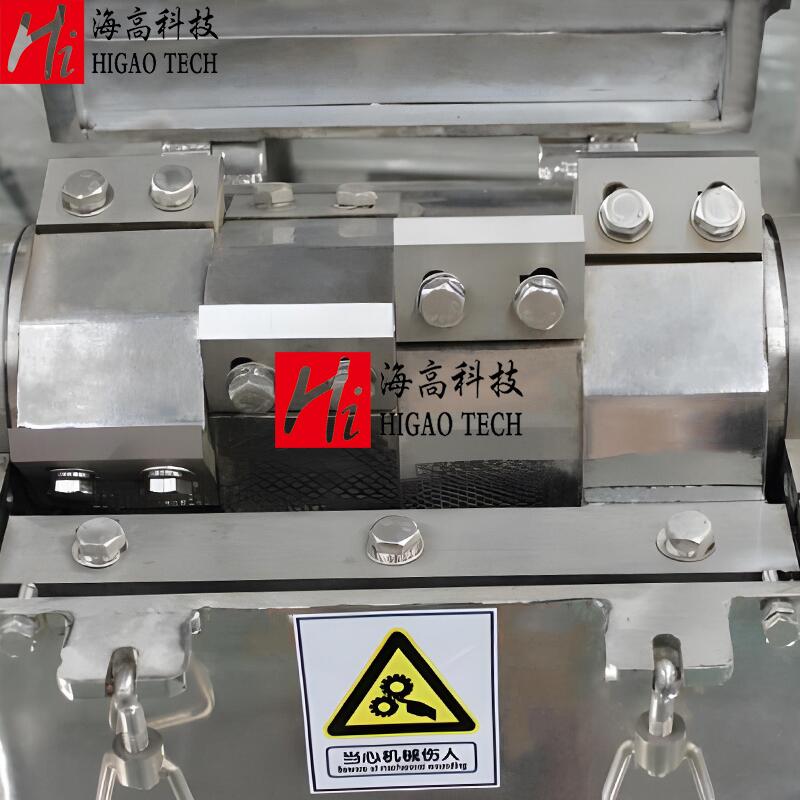

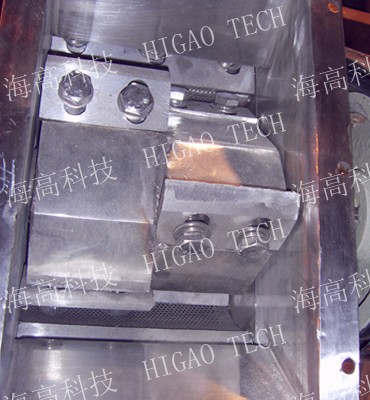

The material is fed into the pulverizing chamber through the feeding hopper, pulverized by simultaneous cutting of both fixed and movable knives on the horizontal shaft, then flows to the exit automatically under centrifugal force from the rotating knives.
Designed according to GMP standard and made of stainless steel SUS304#, which makes the medicine and food clean and healthy.

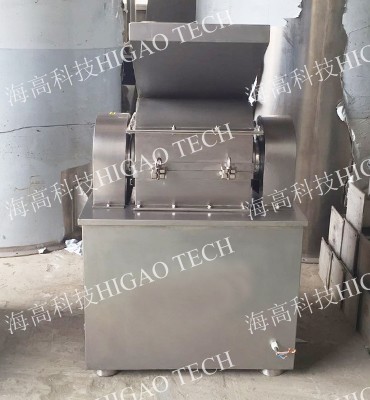

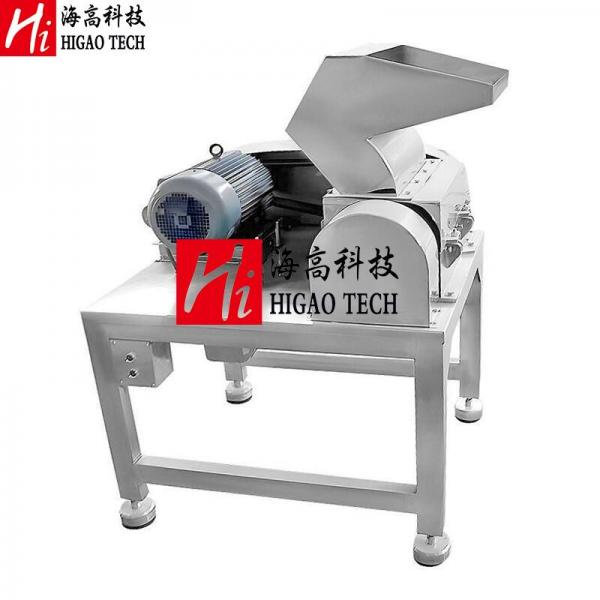

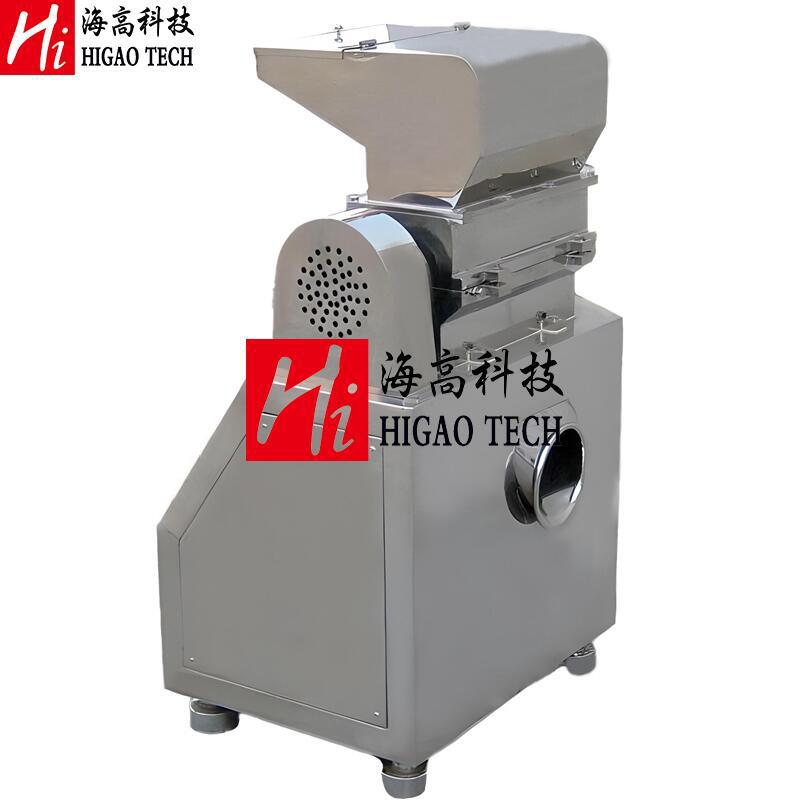

horizontal size reduction machine horizontal coarse pulverizer machine knife type coarse crusher

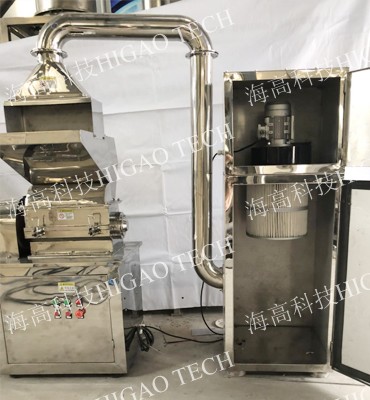

3. Dust collecting system:
Customers can choose to install a dust collector to remove the flying dust that will come out of the collecting cloth bag.
Batch type dust collector and continuous dust collector are available.

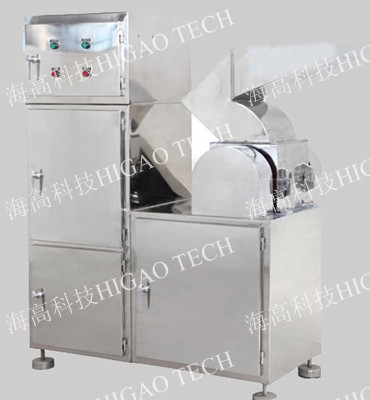

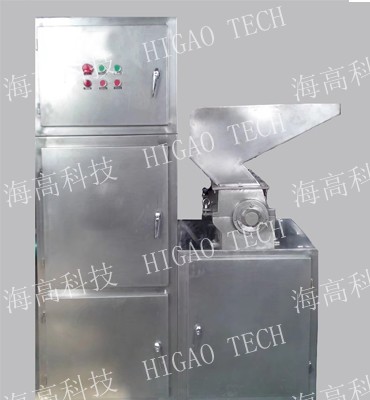

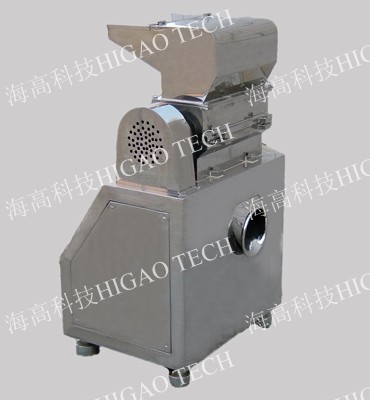

horizontal pre-crusher pulverizer with dust collector horizontal coarse crusher with dust collecting system horizontal preliminary pulverizer machine with dust suction system

PCA Series Horizontal Pre-Crusher Pulverizer of HIGAO TECH

Model

Capacity

Inlet size

Output size

Motor/speed

Dimension(L×W×H)

Weight

PCA-10

80~200kg/h

«100mm

0.5~20mm

3kw/400rpm

900×600×1450mm

200kg

PCA-20

100~500kg/h

«100mm

0.5~20mm

4kw/400rpm

900×700×1450mm

300kg

PCA-30

200~1000kg/h

«100mm

0.5~20mm

5.5kw/400rpm

900×800×1450mm

400kg

PCA-40

500~1500kg/h

«100mm

0.5~20mm

11kw/400rpm

1000×900×1450mm

500kg
