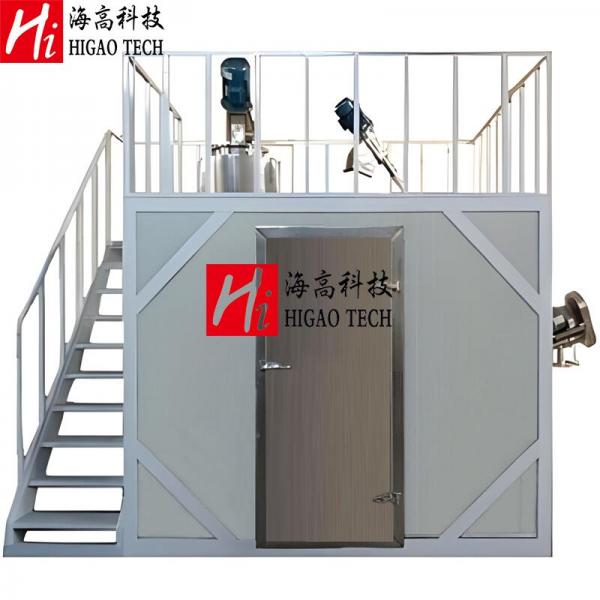

liquid nitrogen cryogenic freeze pulverizer machine

Higao Tech supply best price and quality of liquid nitrogen cryogenic freeze pulverizer machine in china. Freeze pulverizer can get an ideal grinding result at brittle point frozen by liquid nitrogen.
  • item no.:

    FM series freeze pulverizer
  • Payment:

    T/T 30% deposit and 70% before shipment
  • product origin:

    made in china
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification

Liquid nitrogen cryogenic freeze pulverizer machine


Higao Tech supply best price and quality of liquid nitrogen cryogenic freeze pulverizer machine in china. Freeze pulverizer can get an ideal grinding result at brittle point frozen by liquid nitrogen.


1. Introduction:
Liquid nitrogen cryogenic freeze pulverizer machine is especially used to pulverize oily materials and materials with high sugar content into granules or powder. And some special materials that can not be pulverized under normal temperature.
Alliped materials: medicines, chemicals, resins, plastics, pharmaceuticals, cosmetics,spices, seasonings, foodstuff. Applied materials that rich in oil and sugar: chili, pepper, coriander seeds, cumin seeds, fennel seed, aniseed, cinnamon, walnut, red date, jujube, Chinese wolfberry, hawthorn, fatty materials. Different materials may have different crushing fineness, so please send your inquiry to us before choosing this low temperature frozen pulverizer machine.

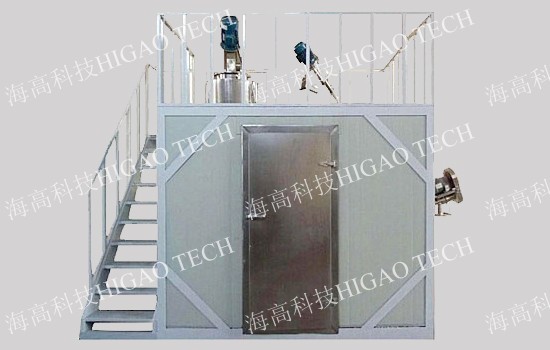

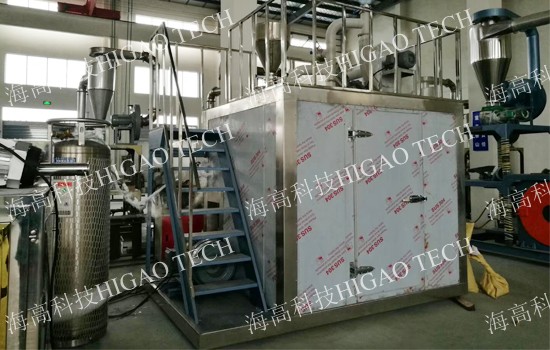

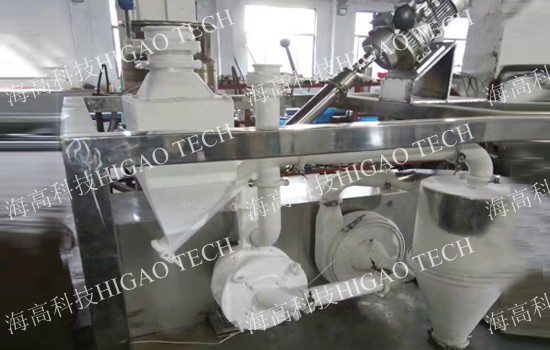

liquid nitrogen pulverizer machine liquid nitrogen freeze pulverizer
2. Working Principle:

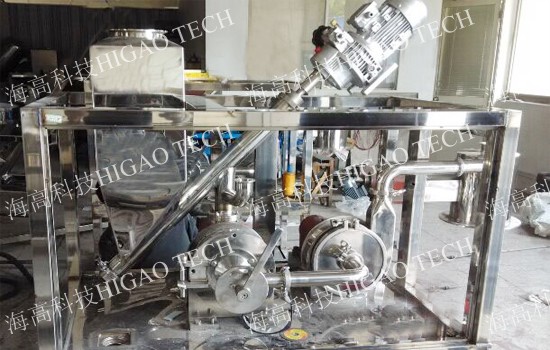

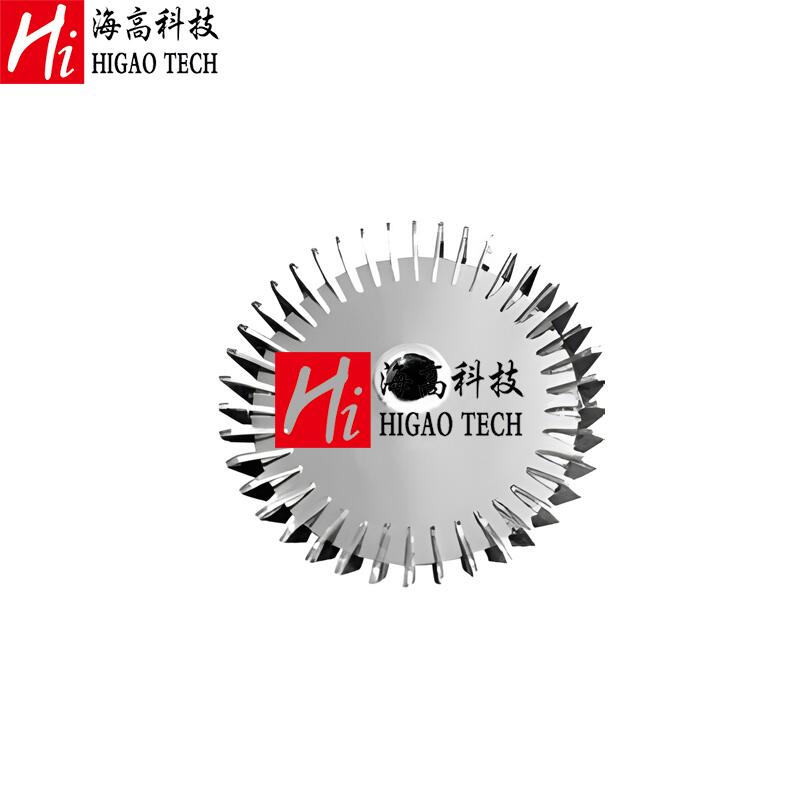

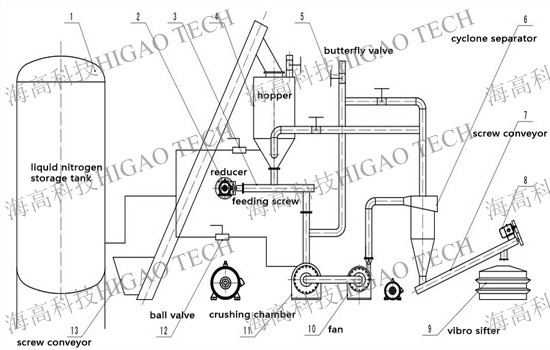

Liquid nitrogen cryogenic freeze pulverizer machine consists of screw feeder, grinding parts, cyclone separating part, blower, electric control box and supporting frames.
The temperature of liquid nitrogen is (-196℃)196 minus degrees.
The materials rich in oil and sugar are fed into the hopper and frozen by the liquid nitrogen, suddenly the characteristics of the materials will change and become brittle and crispy, then pulverized into powder inside the grinding chamber and discharge from the cyclone separator.

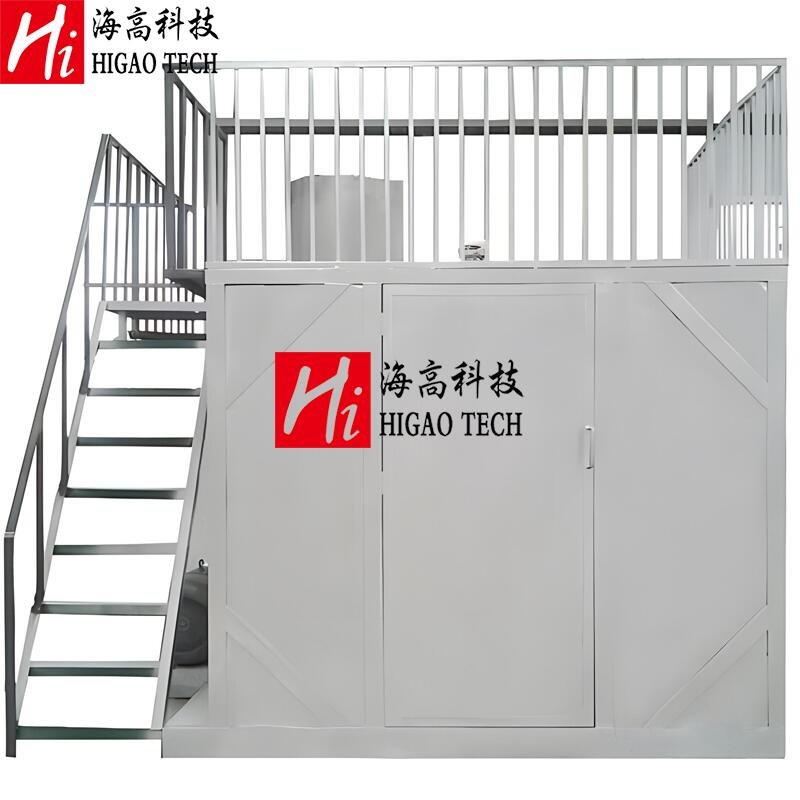

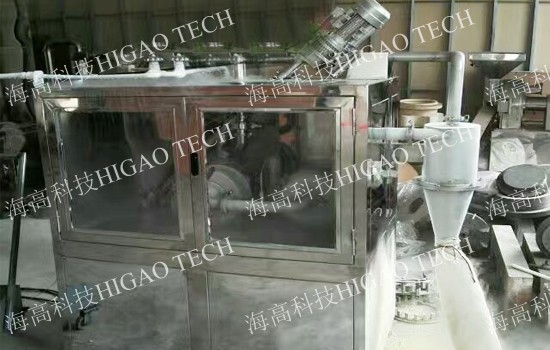

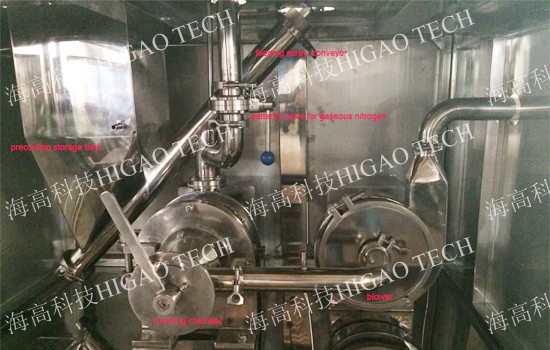

low temperature freeze pulverizer machine low temperature liquid nitrogen cryogenic freeze pulverizer machine
3. Features:
Combined pulverizer machine with liquid Nitrogen.
Made of special antifreezing stainless steel, solid and durable. Clean and healthy.
There is no dust during the whole process, easy to operate and maintain.
Total plant includes screw conveying machine and vibrating screening machine.
Work safely and efficiently to save cost and create values at the same time.
We can supply the machine to generate Liquid Nitrogen(N2) and the storage Tank for liquid nitrogen if customer asks.

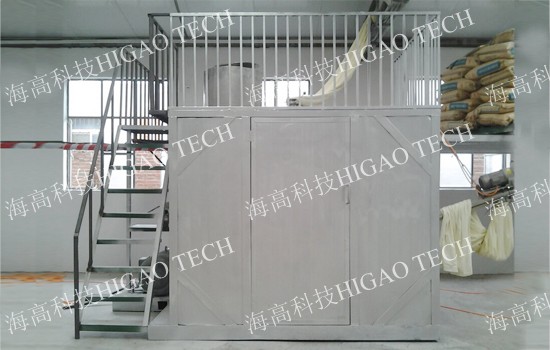

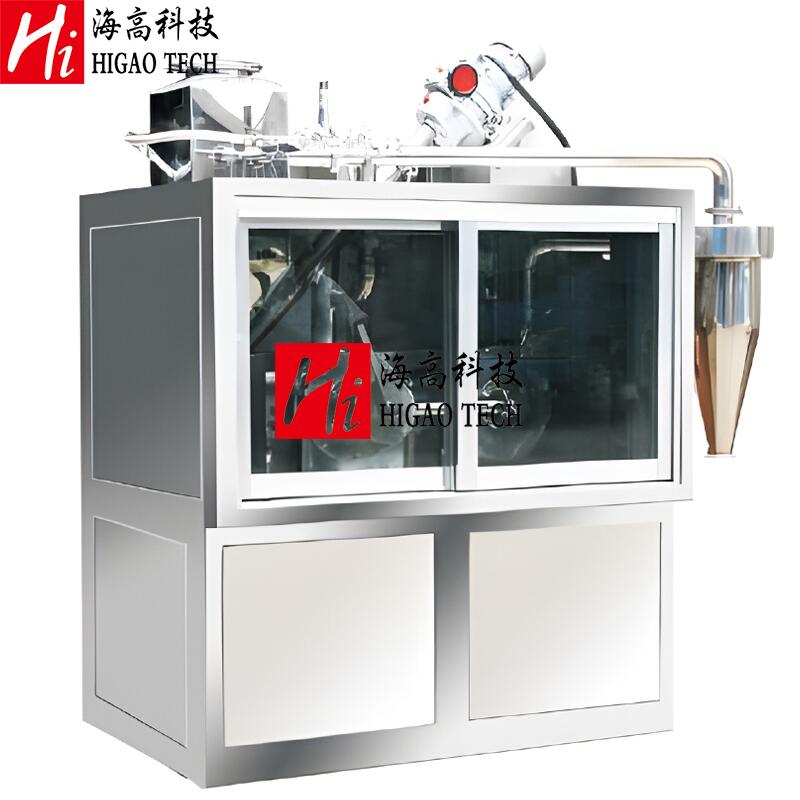

cryogenic freeze pulverizer machine frozen pulverizer machine

cryogenic grinding system liquid nitrogen cryogenic freeze pulverizer machine

FM Series Liquid Nitrogen Cryogenic Freeze Pulverizer of HIGAO TECH

Model

Precooling time

Crushing temperature

Capacity

Feeding size

Output size

Motor power/speed

Dimension(L×W×H)

Weight

FM-20

5~10minutes

0 ~ -196(adjustable)

10~100kg/h

5mm

10~320mesh

7.5kw/6000rpm(adjustable)

2100×1800×1800mm

500kg

FM-40

5~10minutes

0 ~ -196(adjustable)

80~500kg/h

5mm

10~320mesh

55kw/4500rpm(adjustable)

4000×2000×2800mm

3000kg
