Vertical coarse pulverizer machine

Higao Tech supply high quality vertical coarse pulverizer machine to break up block materials, caked materials, agglomerated materials into small pieces as coarse crushing and pulverizing in china.
  • item no.:

    CP Series coarse pulverizer
  • Payment:

    T/T 30% Deposit + 70% Balance Before Delivery
  • product origin:

    Made In China
  • Color:

    Shining Polish Or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification
  • Photo Gallery
  • video

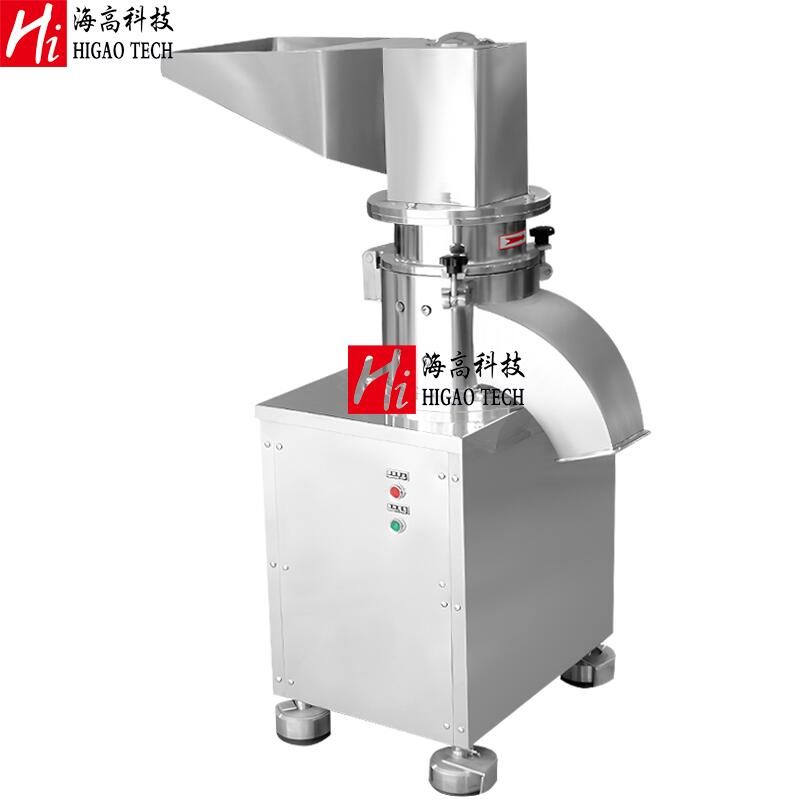

Vertical coarse pulverizer machine


Higao Tech supply high quality vertical coarse pulverizer machine to break up block materials, caked materials, agglomerated materials into small pieces as coarse crushing and pulverizing in china.


1. Introduction:
Vertical coarse pulverizer machine is used to crush big block of materials into smaller pieces. It is a preliminary pulverizing process before fine crushing process in pharmaceutical, chemical and foodstuff fields etc.
For example: to grind herbal leaves into small particles or granules or pellets, such as tea leaf, tea leaves to make tea bag, or hemp, tobacco to make cigarettes.

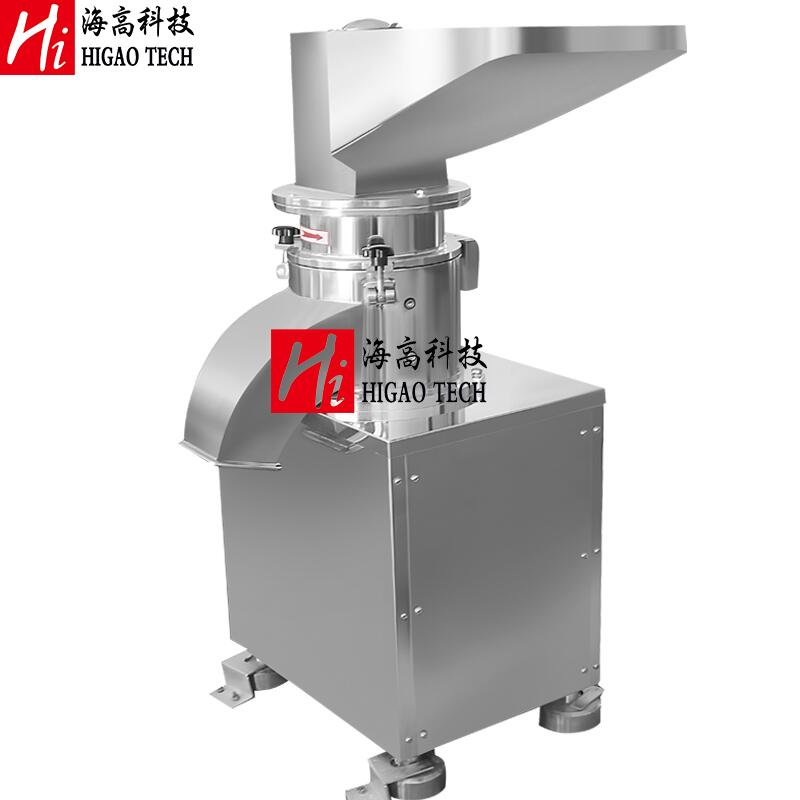

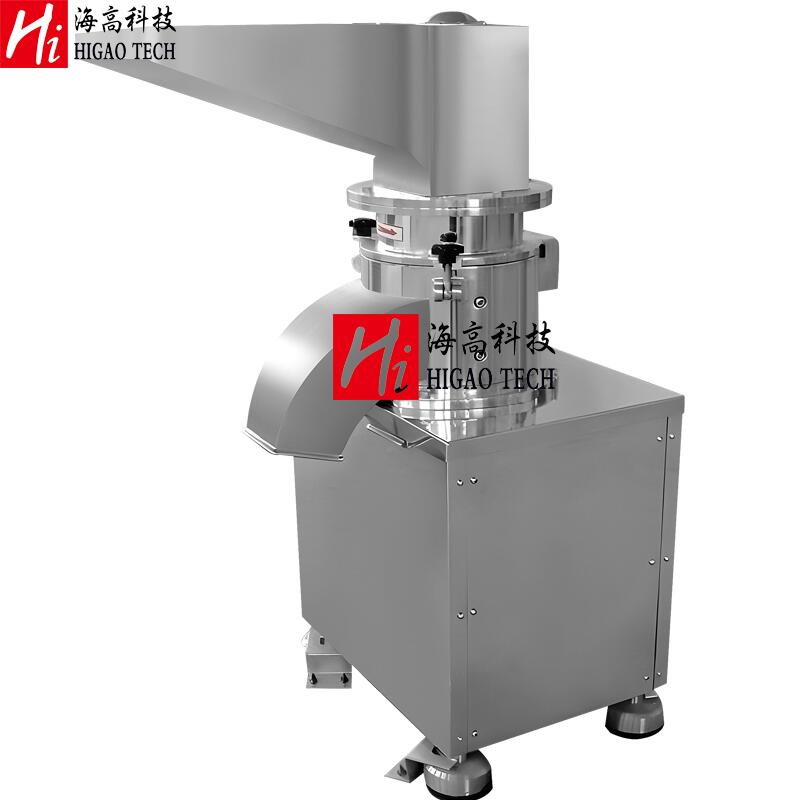

coarse crusher machine coarse pulverizer machine coarse crushing machine
2. Working Principle and features:

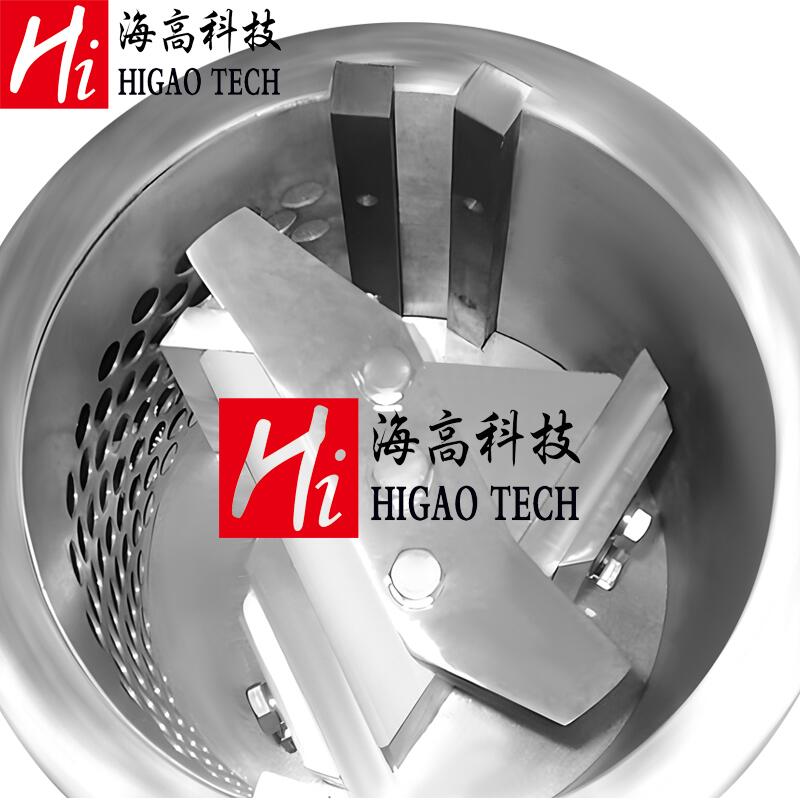

Big material is fed into the chamber through a hopper, crushed by simultaneous cutting of both fixed and movable knives, then flows to the exit automatically under centrifugal force.
Designed according to GMP standard and made of stainless steel, which makes the medicine and food clean and healthy.
Better crushing effect for materials which has moderate hardness, less viscosity, less fiber etc.
tea leaves grinding machine tea leaf grinder machine herbal leaf grinder machine
3. Dust collecting device can be added according to different requirement:
There are two kinds of dust collecting devices: one is batch type dust collector, another is continuous dust collector.
We can add a dust collector to remove the dust during production. To protect the workers and environment safe and clean.
tobacco leaf grinding machine with dust collector vertical coarse pulverizer machine hemp grinder machine

CPA Series Vertical Coarse Pulverizer of HIGAO TECH

Model

Capacity

Inlet size

Output size

Motor/speed

Dimension(L×W×H)

Weight

CPA-20

100~500kg/h

«100mm

0.5~20mm

5.5kw/480rpm

560×850×1300mm

300kg

CPA-30

300~1000kg/h

«100mm

0.5~20mm

11kw/480rpm

1100×800×1400mm

500kg
