spraying dryer granulator machine

Higao Tech supply best price of spraying dryer granulator for liquid drying and granulation in china. Spraying dryer granulator machine is suitable for Chinese traditional medicine to make tablet, capsule and dissolved medicines, or coating of granules.
  • item no.:

    PGL series spray dryer granulator machine
  • Payment:

    T/T 30% deposit and 70% before shipment
  • product origin:

    made in china
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification

Spraying dryer granulator machine


Higao Tech supply best price of spraying dryer granulator for liquid drying and granulation in china.


1. Introduction and Application:
Spraying dryer granulator machine is suitable for Chinese traditional medicine to make tablet, capsule and dissolved medicines, or coating of granules.

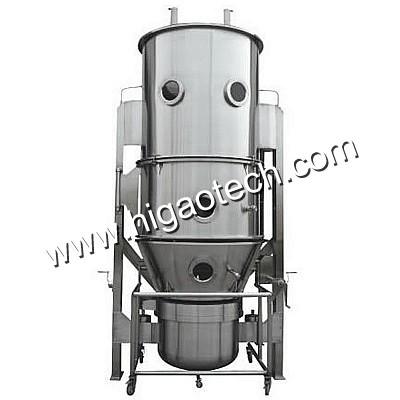

spraying dryer granulator machine spraying dryer granulator machine Spraying dryer granulator machine


2. Features:

(1) Integrated with spraying, drying, fluid granulating, this can make liquid material into granule in one step.
(2) Realize continuous spraying process of immersed paste.
(3) Particularly fit for micro auxiliary raw materials, high viscosity products, high sugar products, heat sensitive products, thermal-sensitive products.
(4) The structures of liquid spraying drying chamber, filtering chamber, fluid-bed and secondary air supply system have been greatly improved.
(5) The final moisture of products can reach 0.1%. The rate of forming granule is more than 95%.
(6) Equipped with powder returning device. It can make granules from 0.2-2mm.
(7) The improved multi-flow atomizer can treat extractum with gravity of 1.3g/cm3.
(8) Simple structure, reliable operation and improved spraying and drying efficiency.
(9) Compared with FL series Fuidized bed granulator dryer machine, spraying dryer granulater machine is more stable and air adjustment is more reasonable.
(10) Spraying dryer granulator machine overcomes the "dead bed" phenomenon.

PGL Series Spraying Dryer Granulator of HIGAO TECH

     Specification           \         Model

PGL-3

PGL-5

PGL-10

PGL-20

PGL-30

PGL-40

PGL-80

PGL-120

PGL-150

Container of material

(L)

26

50

100

220

300

420

670

1000

1500

Liquid treating capacity

(kg/h)

2-4

4-6

6-15

15-25

20-40

30-60

60-100

120-160

100-200

Specific gravity of liquid

(kg/L)

≤ 1.3

≤ 1.3

≤ 1.3

≤ 1.3

≤ 1.3

≤ 1.3

≤ 1.3

≤ 1.3

≤ 1.3

Steam

Pressure (Mpa)

0.4~0.6

0.4~0.6

0.4~0.6

0.4~0.6

0.4~0.6

0.4~0.6

0.4~0.6

0.4~0.6

0.4~0.6

Consumption (kg/h)

25

50

120

160

240

280

300

380

465

Compressed air

Pressure (Mpa)

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

Consumption (M3/min)

0.4

0.6

0.9

1.9

1.1

1.1

1.3

1.6

1.8

Power of electric heater

(KW)

9

15

21

25.5

51.5

60

75

85

100

Auxiliary fan

(M3/min)

0.4

0.6

0.9

0.9

1.1

1.1

1.3

1.6

1.8

fan power/main body

(KW)

0.55/3

0.75/4

0.75/7.5

1.1/11

1.5/18.5

1.5/18.5

1.5/22

2.2/30

2.2/37

Operating temperature

(℃)

Automatically adjustable from room temperature 20~120℃

Final water content of product

(%)

≤0.5% (depends on properties of raw materials)

Collection rate of product

(%)

≥95%
