pin mill with cyclone separator and pulse dust collector

Higao Tech provide best price and high quality of pin mill with cyclone separator and pulse dust collector in china. Pin mill with cyclone separator and pulse dust collector is the most popular crushing type combined many advantages itself.
  • item no.:

    PME Series Pin Mill
  • Payment:

    T/T 30% deposit + 70% balance before delivery
  • product origin:

    Made In China
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification

Pin mill with cyclone separator and pulse dust collector


Higao Tech provide best price and high quality of pin mill with cyclone separator and pulse dust collector in china. Pin mill with cyclone separator and pulse dust collector is the most popular crushing type combined many advantages itself. Automatic discharging system and dust collecting system makes the user much easier to operate and maintain.


1. Introduction:

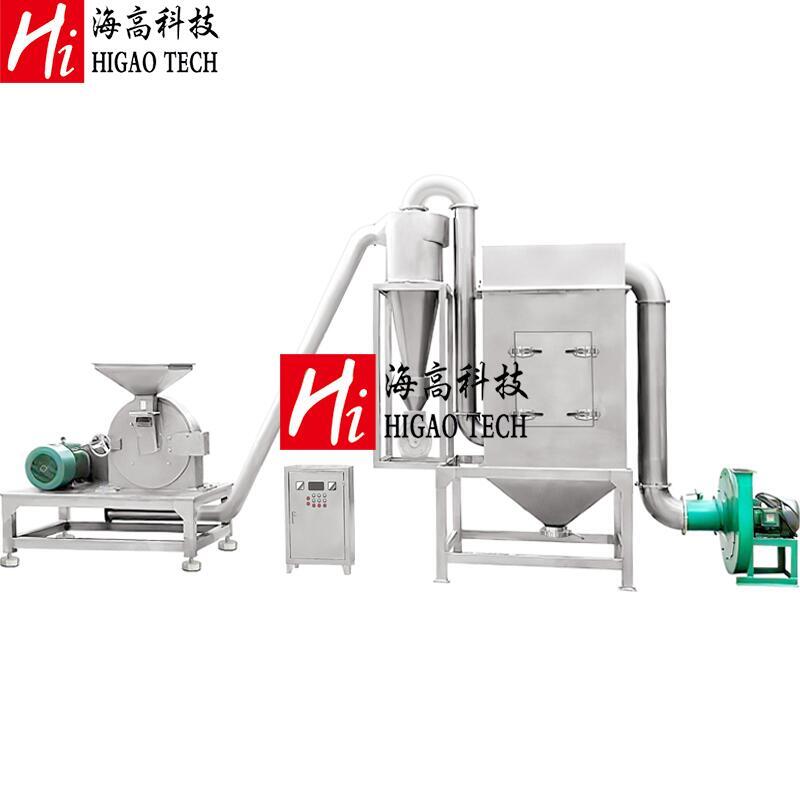

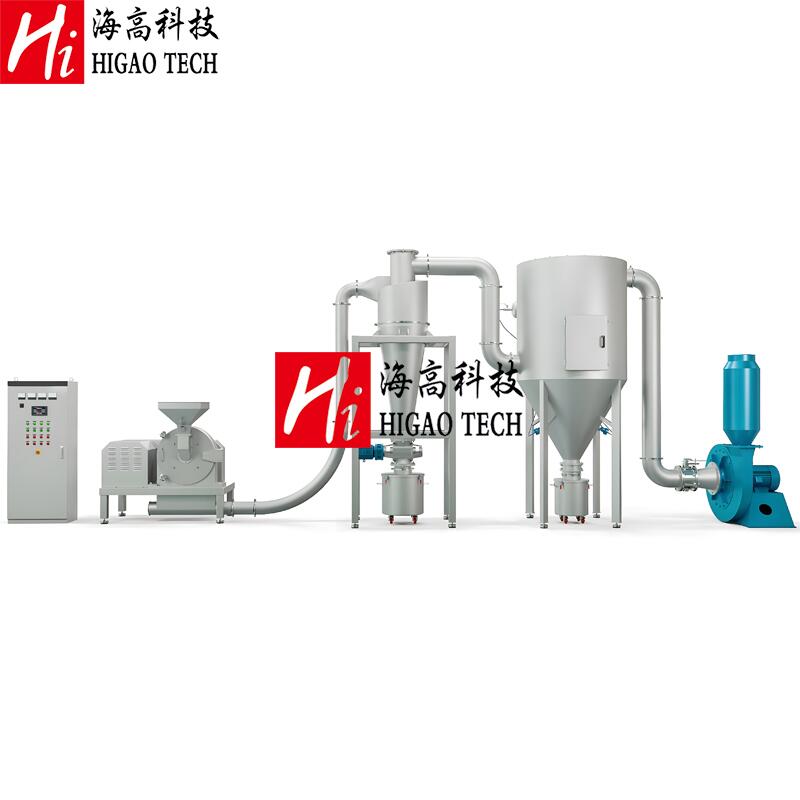

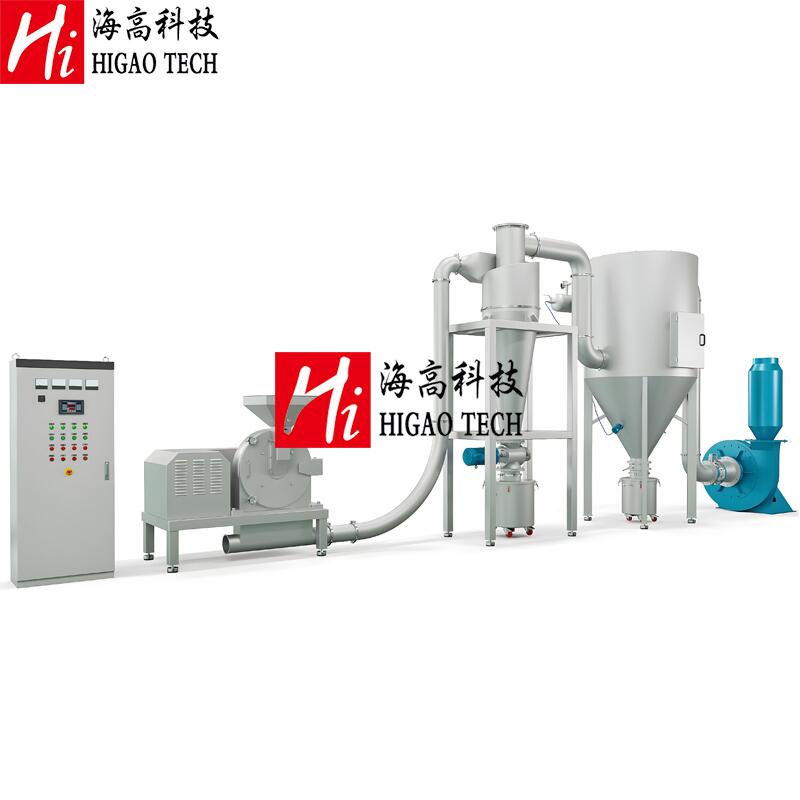

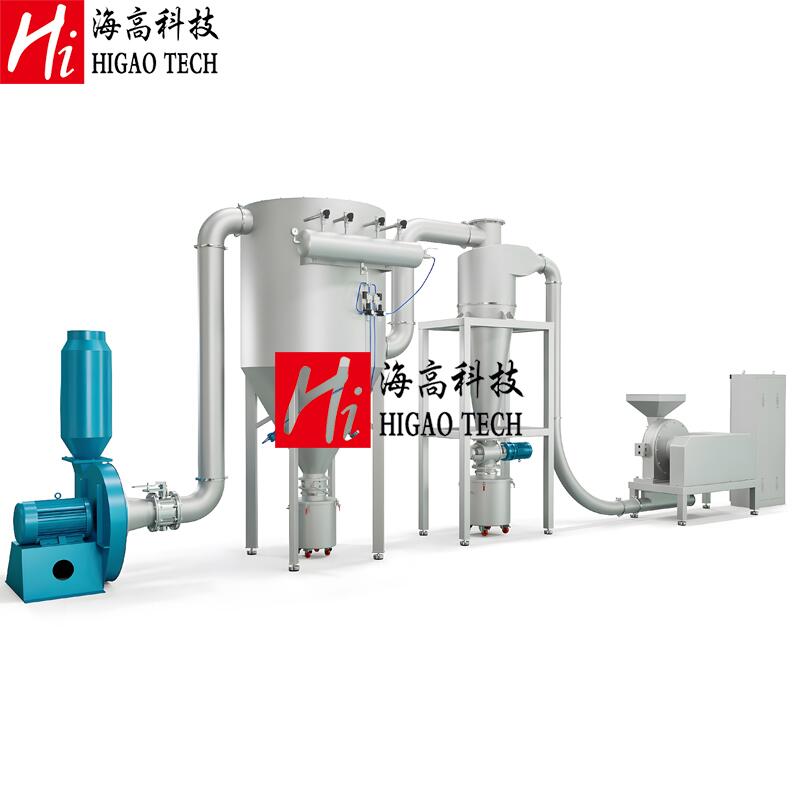

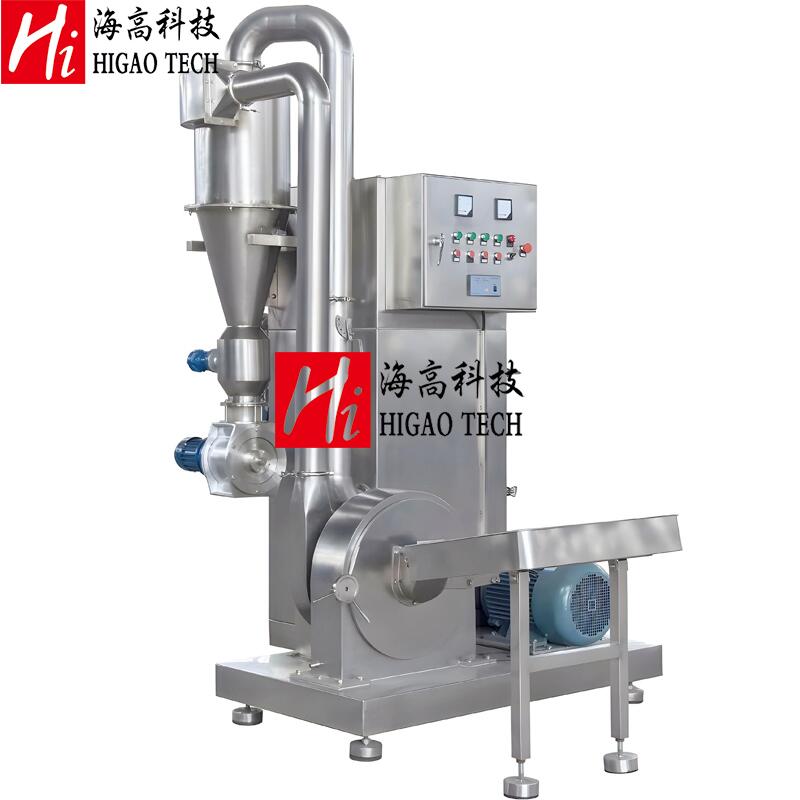

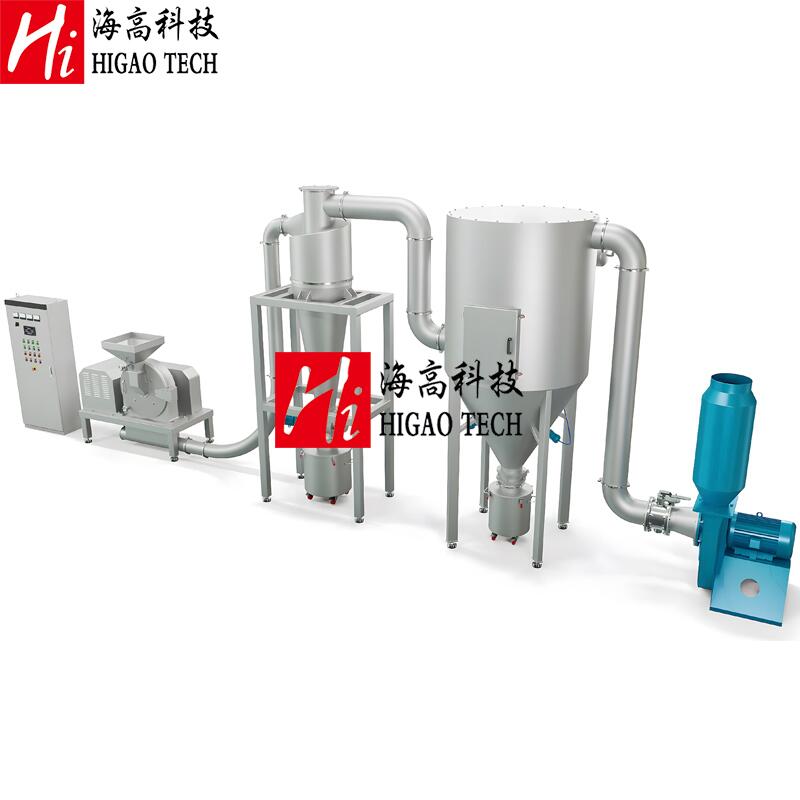

Composed of pin mill pulverizer machine, cyclone separating part and dust collecting part.
Used to grind granules or particles into fine powder in pharmaceutical, chemical and food industries etc.

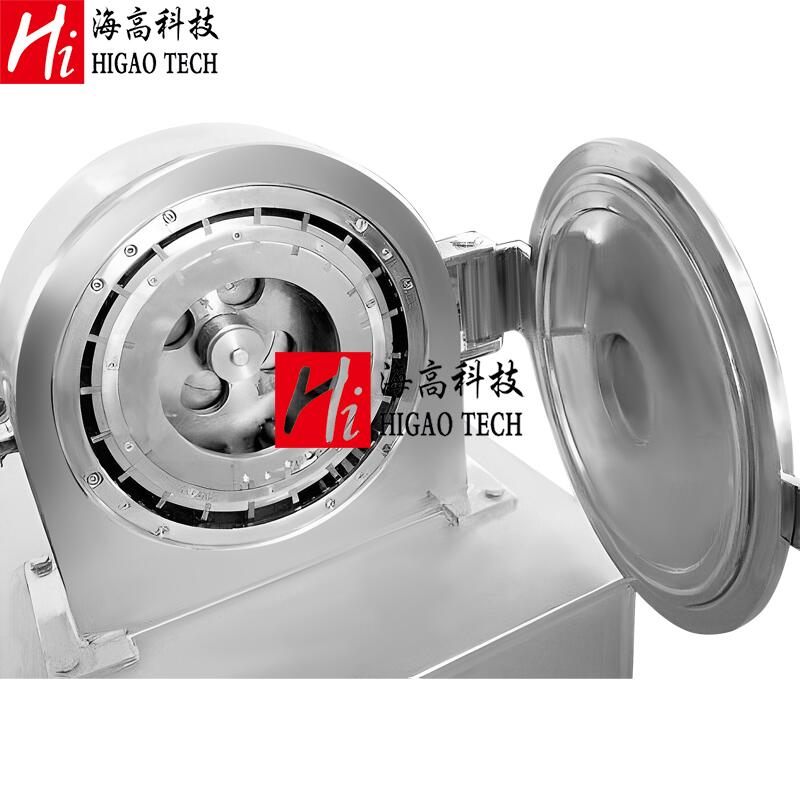

pin mill with cyclone separator and pulse dust collector food pulverizer with cyclone separator and pulse dust collector
2. Working principle:

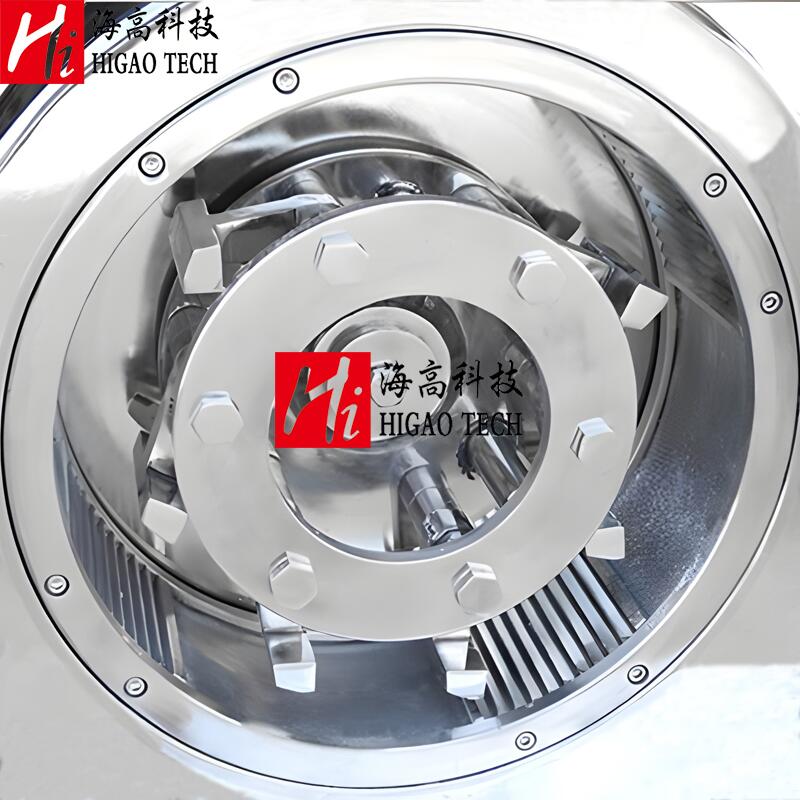

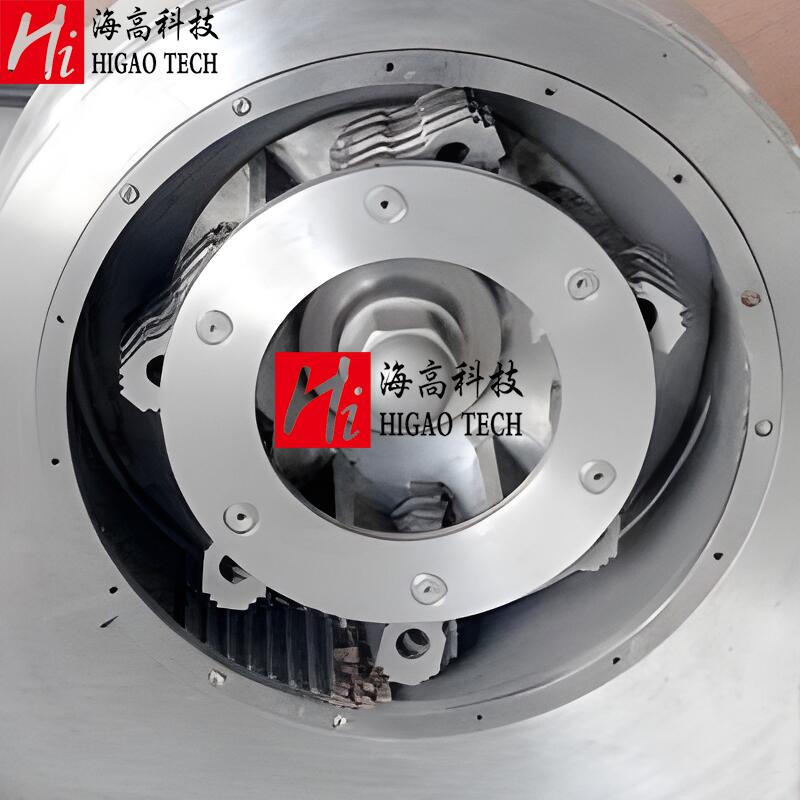

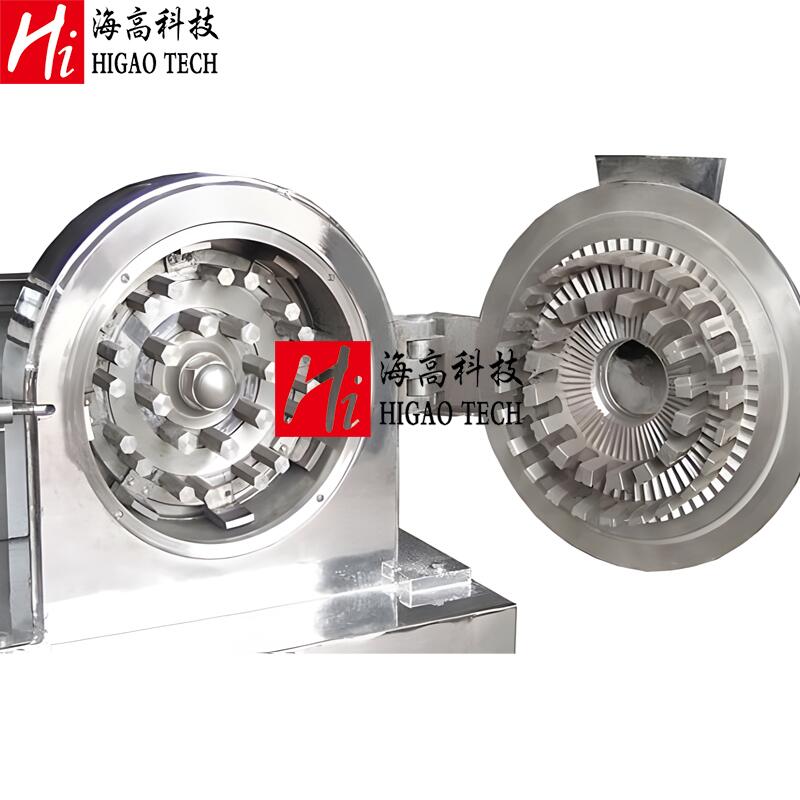

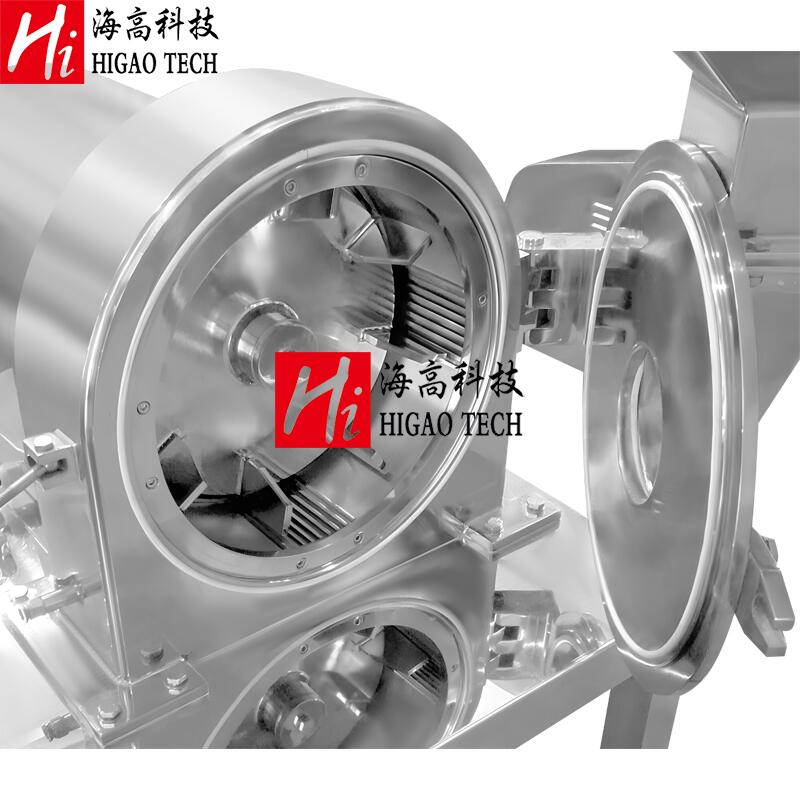

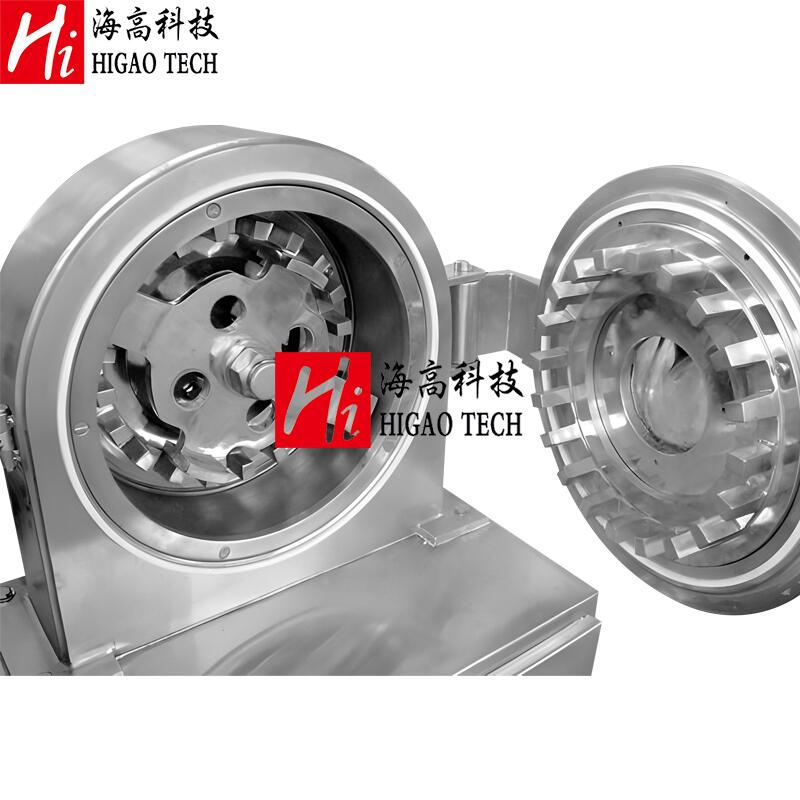

The material is crushed by impact and friction of the fixed tooth rings and rotating pins, then the crusher materials which meet customers demand will flow into the cyclone separating system by centrifugal force of the blower, and finally output from the rotary valve, the dust will be suctioned and filtrated by filters in the dust collecting system.

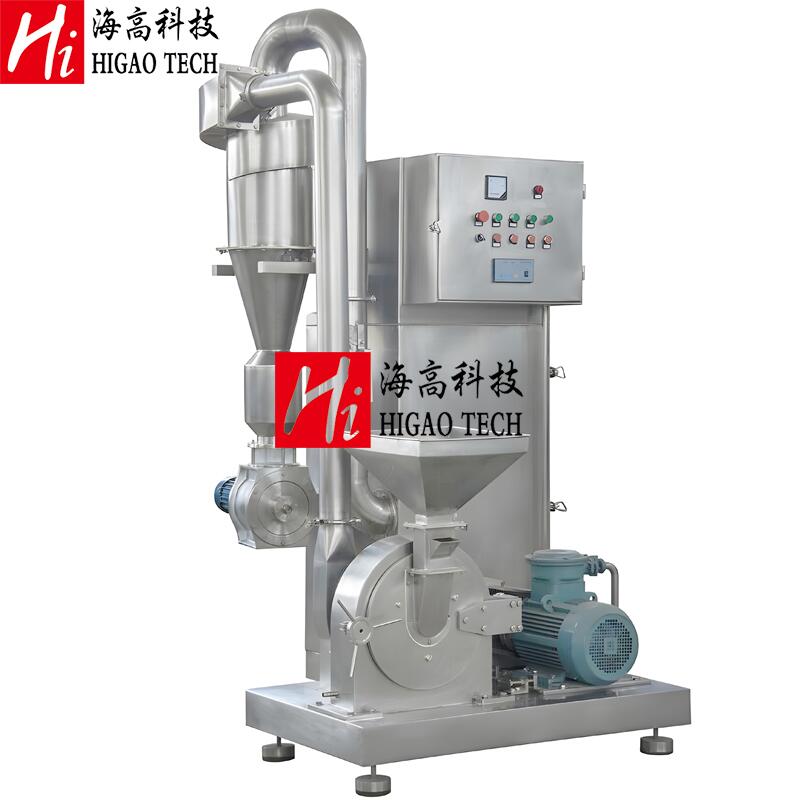

pharmaceutical pulverizer with cyclone separator and pulse dust collector chemical pulverizer machine with cyclone separator and pulse dust collector
3. Features:

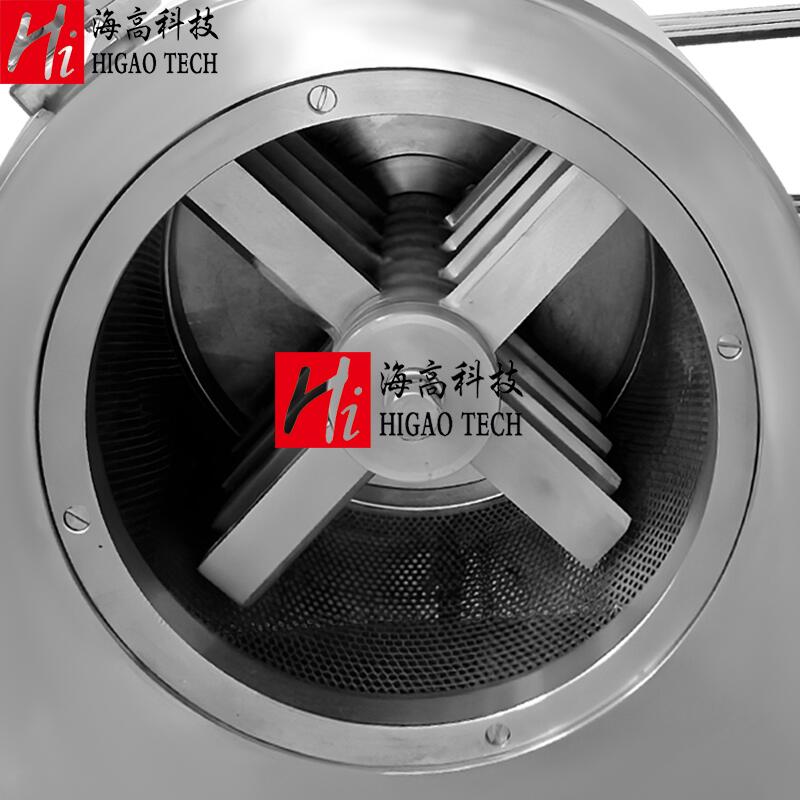

Change the mesh size of the screen to get different output size of final product.
Designed according to GMP standard and wholly made of stainless steel.
Remove the flying dust in the work plant and makes the operation more convenient.
Water cooling jacket can be added to cool down the crushing chamber.
It is a continuous pulverizer machine, saving time and high efficiency.
Easy to maintain and operate.

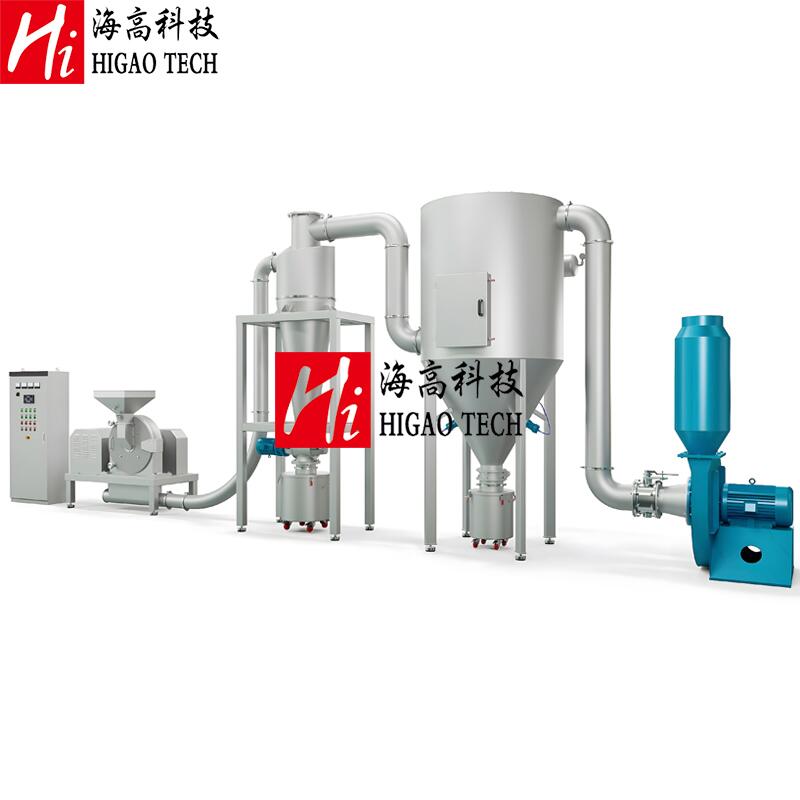

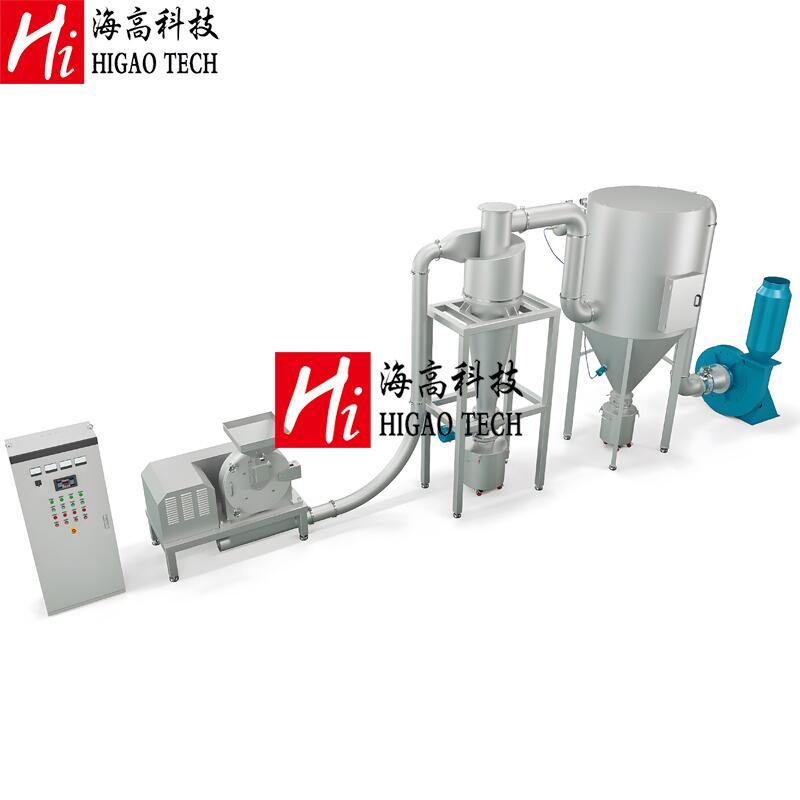

pin mill pulverizer with cyclone separator and pulse dust collecting system cyclone pulse dust collecting pulverizer machine

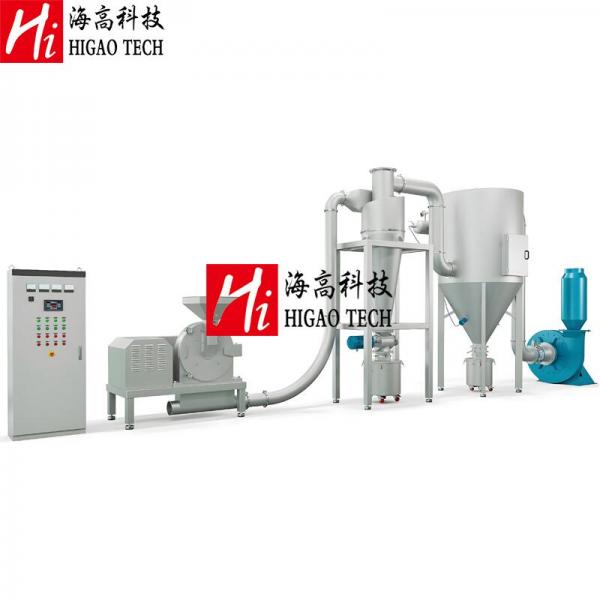

PME Series Pin Mill Pulverizer with Cyclone Separator and Dust Collector of HIGAO TECH

Model

Capacity

Inlet size

Output size

Total Motor Power

Dimension(L×W×H)

Weight

PME-20

60~150kg/h

«6mm

20~120mesh

4+1.5+0.75kw

3000×850×2300mm

200kg

PME-30

100~300kg/h

«6mm

20~120mesh

5.5+2.2+0.75kw

3500×850×2400mm

300kg

PME-40

300~1000kg/h

«10mm

20~120mesh

11+3+0.75kw

4500×900×2400mm

500kg

PME-60

500~2000kg/h

«12mm

20~120mesh

18.5+5.5+1.1kw

6600×1000×2400mm

700kg

PME-80

800~3000kg/h

«12mm

20~120mesh

30+11+1.5kw

7800×1100×2500mm

1000kg

PME-100

1000~4000kg/h

«15mm

20~120mesh

45+15+1.5kw

8200×1200×2650mm

1800kg

PME-120

1500~5000kg/h

«15mm

20~120mesh

55+18.5+1.5kw

9500×1302800mm

3000kg
