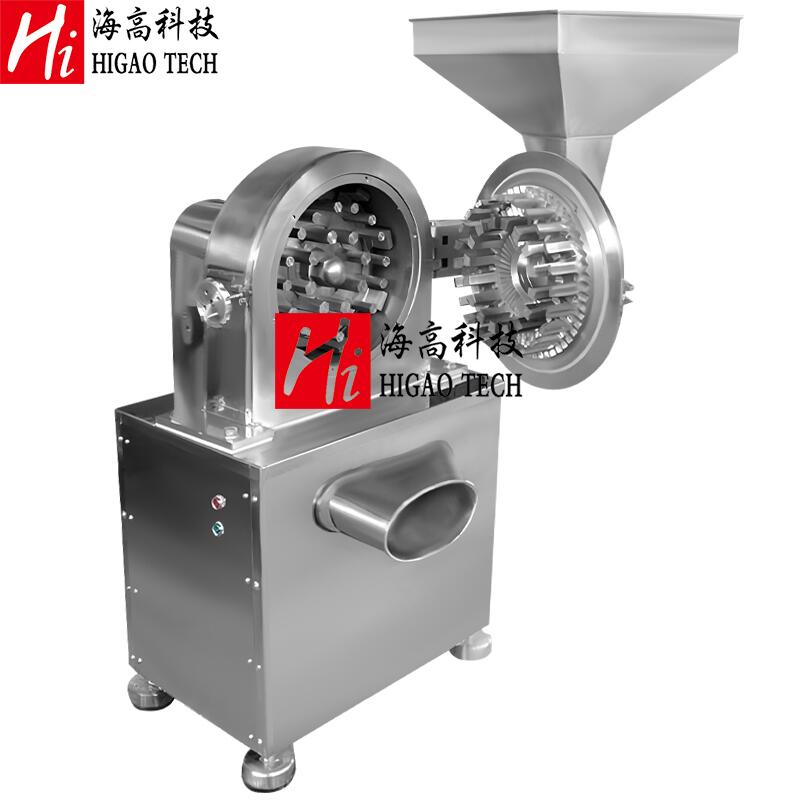

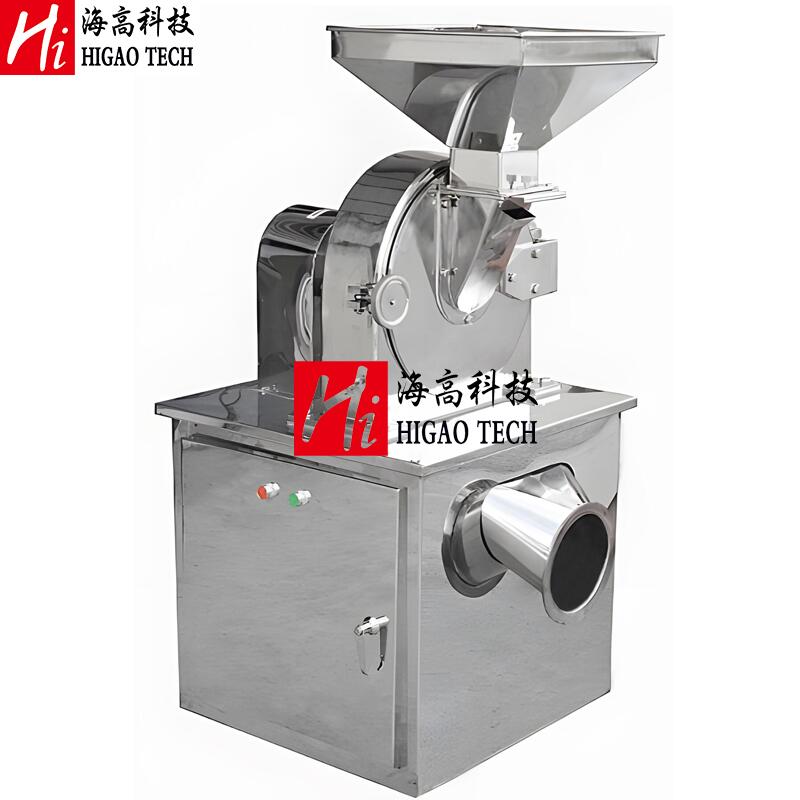

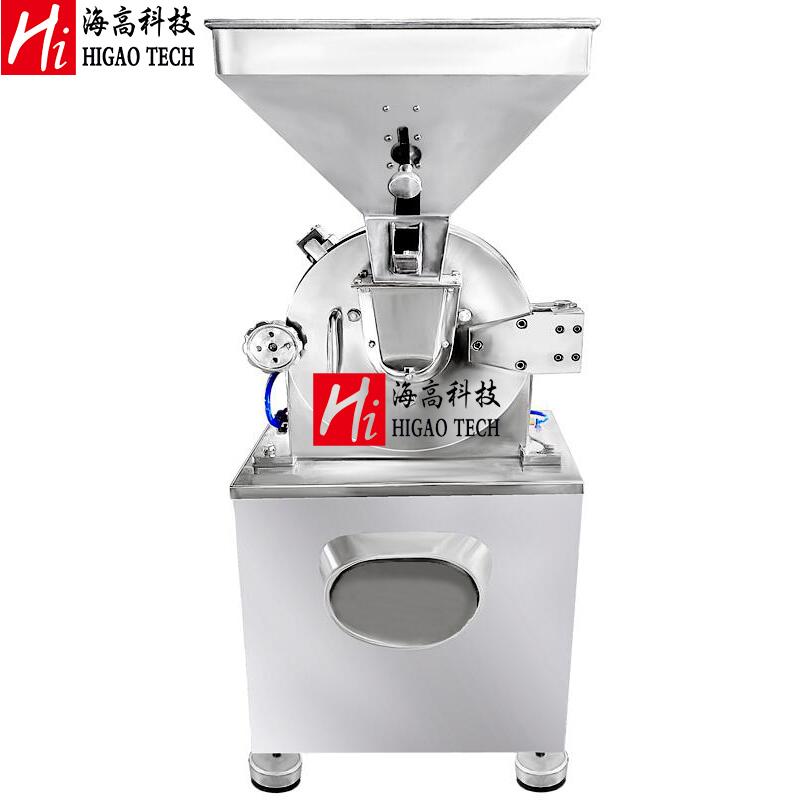

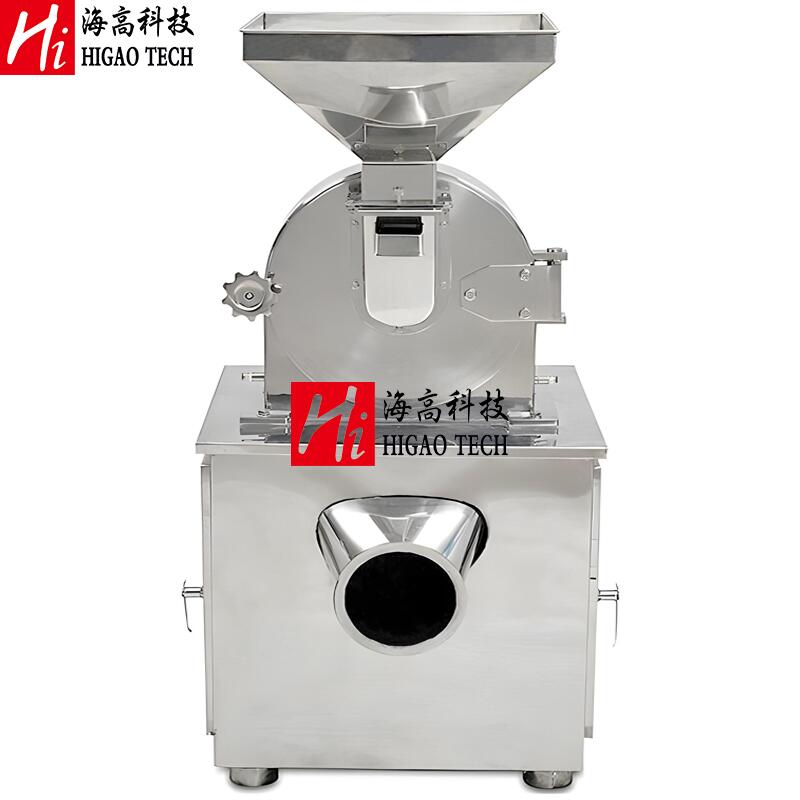

pin mill pulverizer machine

Higao Tech supply high quality stainless steel Pin Mill Pulverizer Machine to make powder with high quality and best price in china.
  • item no.:

    PMA Series Pin Mill
  • Payment:

    T/T 30% deposit and 70% before shipment
  • product origin:

    Made In China
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification
Higao Tech supply high quality stainless steel PMA Series Pin Mill Pulverizer Machine to make powder with high quality and best price in china.

1. Introduction:
Pin Mill Pulverizer Machine is used to pulverize granules or particles with moderate hardness, less viscosity, less fiber into fine powder.
Pin Mill Pulverizer Machine has becomes the universal equipment especially used in sugar, salt, beans, dehydrated fruits and vegetables pulverizing and some spice and seasonings production.
pin mill pulverizer pin mill grinding pulverizer pin mill pulverizer machine
2. Working principle:

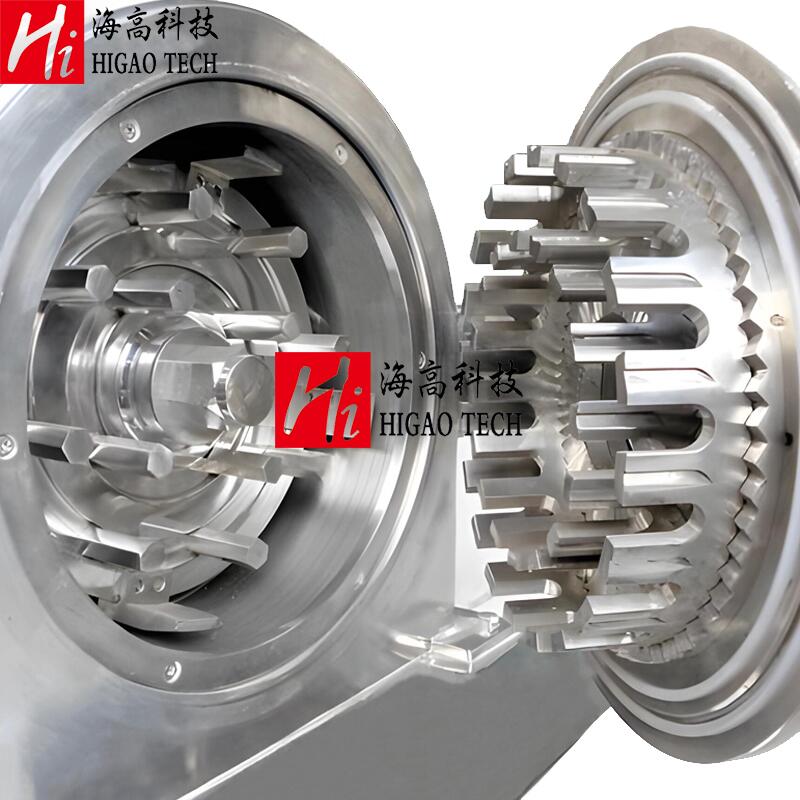

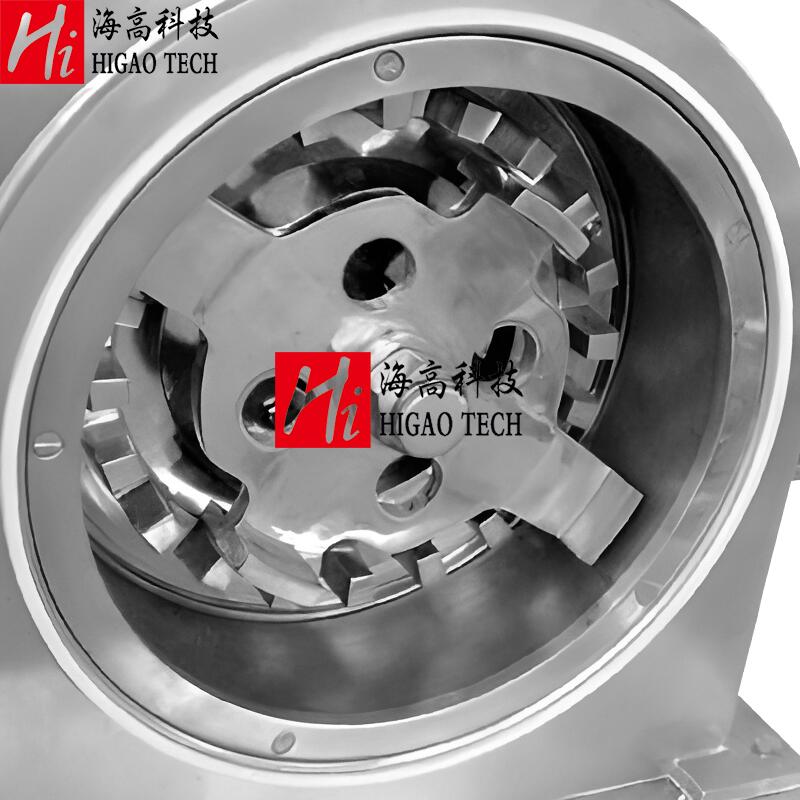

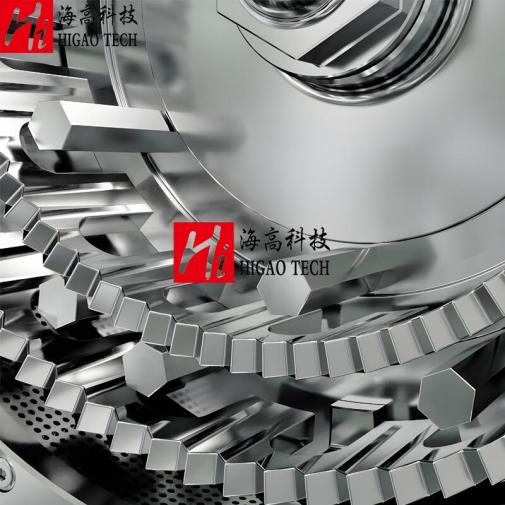

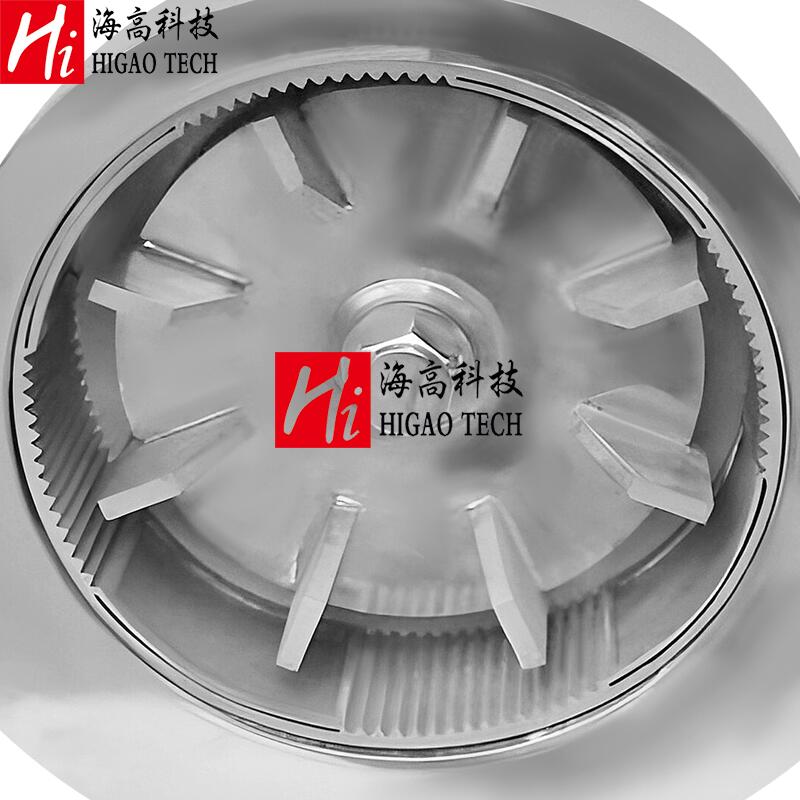

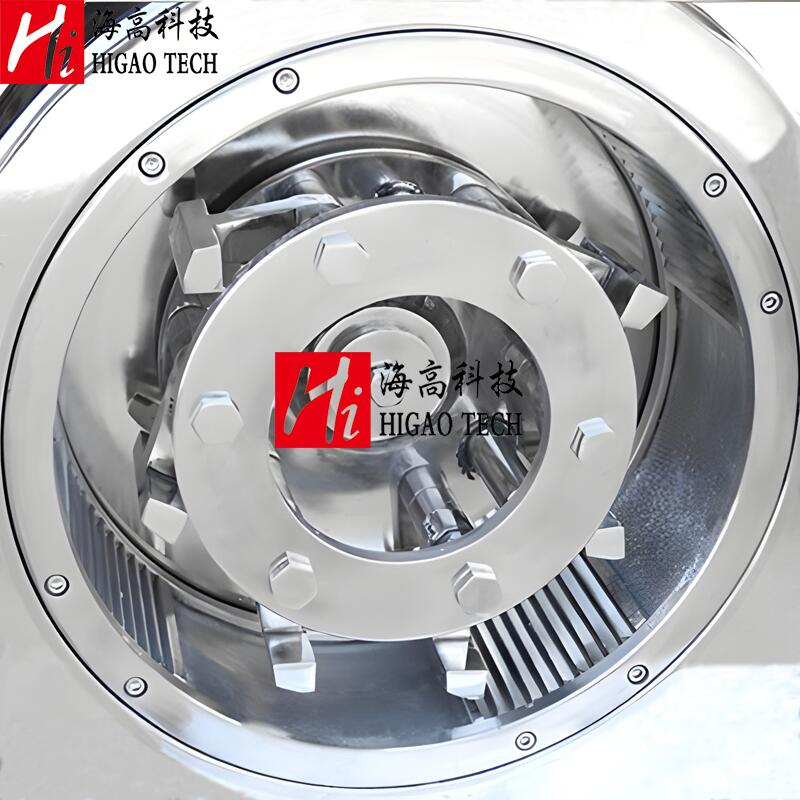

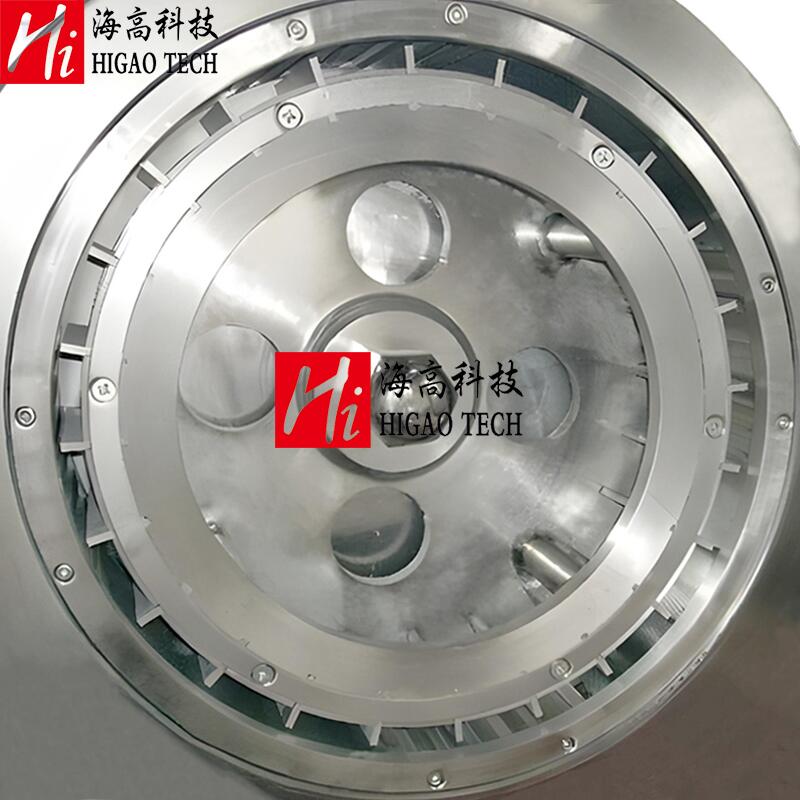

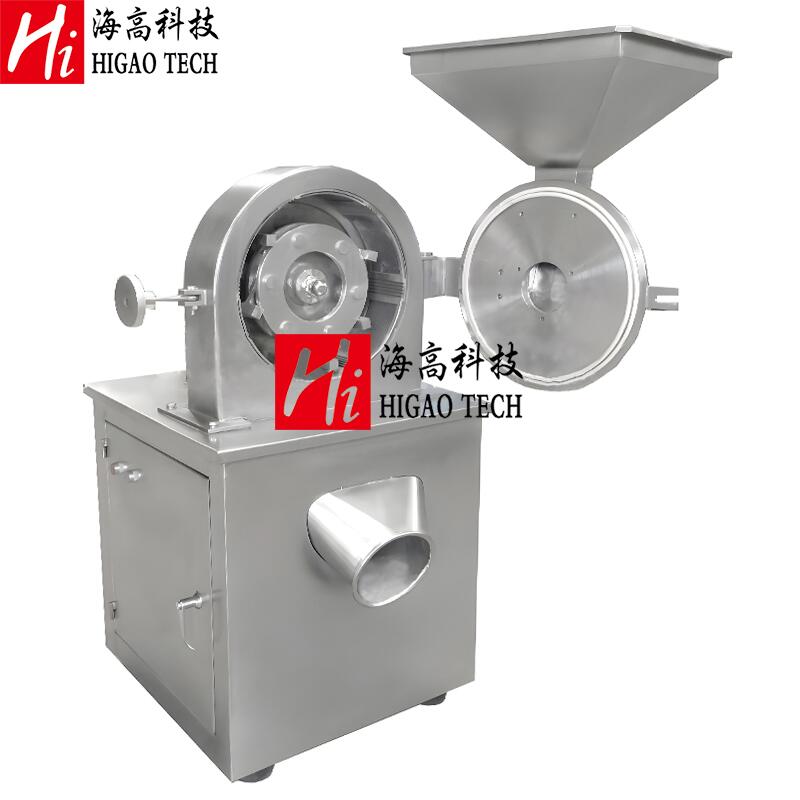

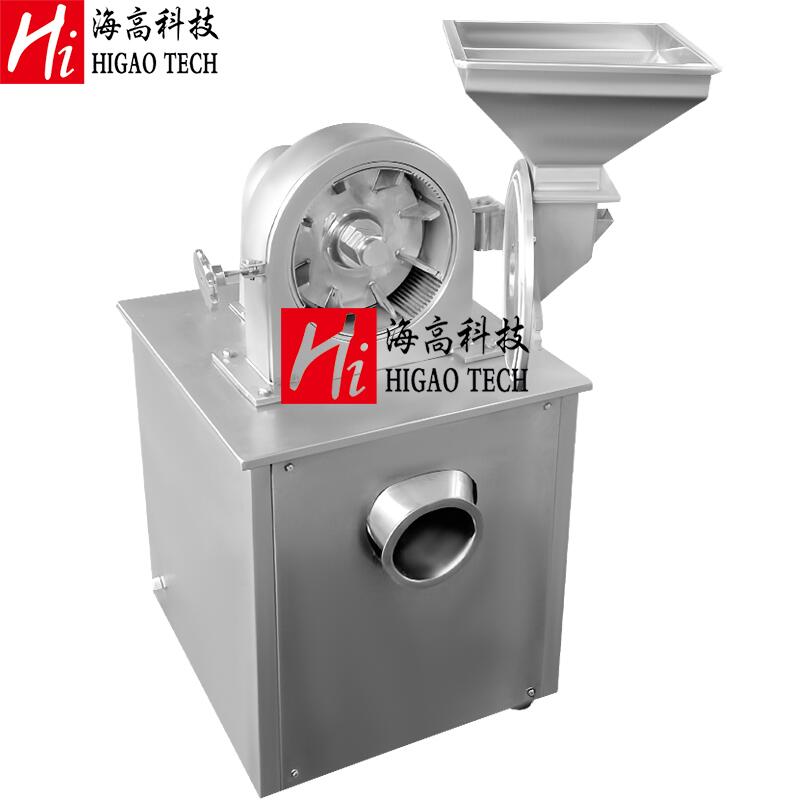

The material is crushed by impact and friction of the teeth or pin between movable and fixed disks under the relative motion. Use a cloth bag to collect the final product at the discharging port.

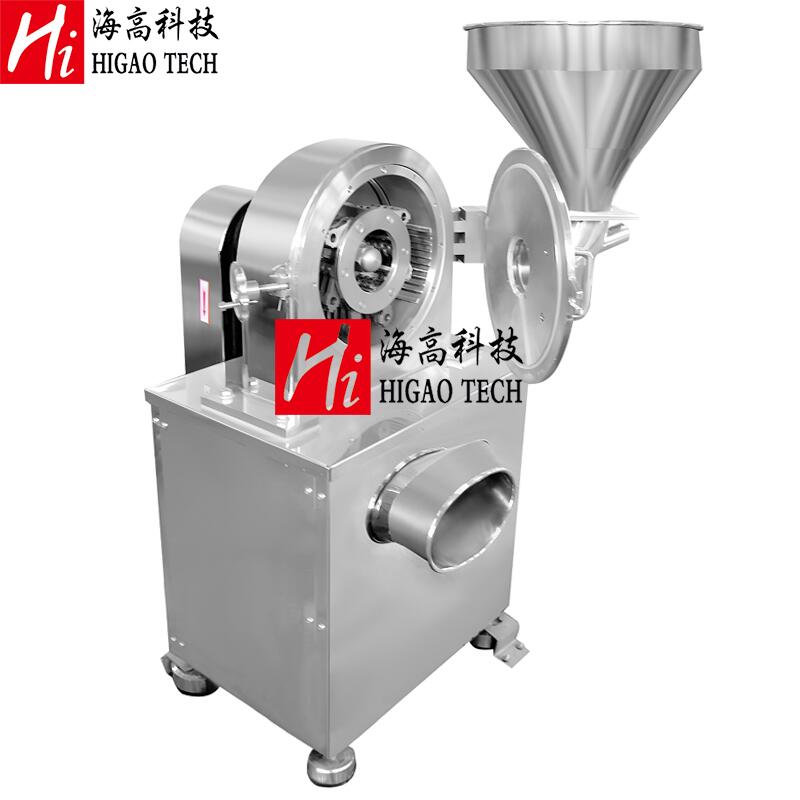

pin mill crushing machine pin mill grinding machine pin mill grinder machine
3. Features:
Woolly made of stainless steel.
Designed according to GMP standard.
Crushing chamber can be equipped with water cooling jacket.
Output size can be adjustable by changing different size of sieves.
Can be equipped with a dust collecting device to remove the dust.
Can be equipped with a cyclone separating device for a continuous production.
 pin mill crusher machine pin mill pulveriser machine pin mill pulverizing machine

PMA Series Pin Mill Pulverizer of HIGAO TECH

Model

Capacity

Inlet size

Output size

Motor/speed

Dimension(L×W×H)

Weight

PMA-15

10~50kg/h

«6mm

20~120mesh

2.2kw/6000rpm

550×400×850mm

100kg

PMA-20

60~150kg/h

«6mm

20~120mesh

4kw/4500rpm

550×600×1250mm

200kg

PMA-30

100~300kg/h

«6mm

20~120mesh

5.5kw/3800rpm

600×700×1450mm

300kg

PMA-40

300~1000kg/h

«10mm

20~120mesh

11kw/3400rpm

800×900×1550mm

500kg

PMA-60

500~2000kg/h

«12mm

20~120mesh

18.5kw/2800rpm

900×900×1850mm

700kg

PMA-80

800~3000kg/h

«12mm

20~120mesh

37kw/2000rpm

1100×950×1900mm

1000kg
