tabletop pulverizer machine

Higao Tech produce multi-functional movable pulverizer called tabletop pulverizer machine to make fine powder from raw materials with medium hardness and low viscosity in china. Tabletop pulverizer machine is easy to move and discharge.
  • item no.:

    PMB Series Pin Mill
  • Payment:

    T/T 30% deposit + 70% balance before delivery
  • product origin:

    Made In China
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification
  • Photo Gallery
  • video
Higao Tech produce multi-functional movable pulverizer called tabletop pulverizer machine to make fine powder from raw materials with medium hardness and low viscosity in china. Tabletop pulverizer machine is easy to move and discharge.

1. Introduction:

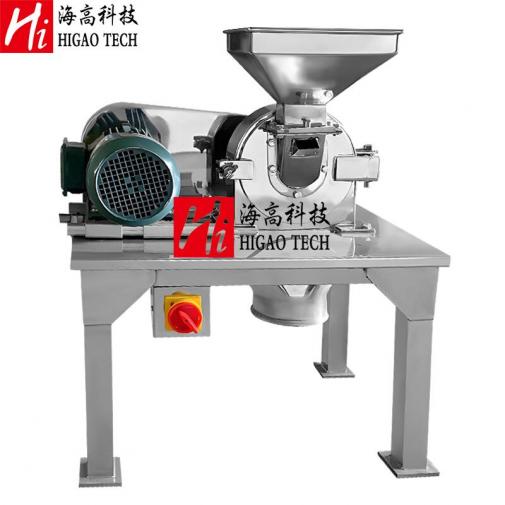

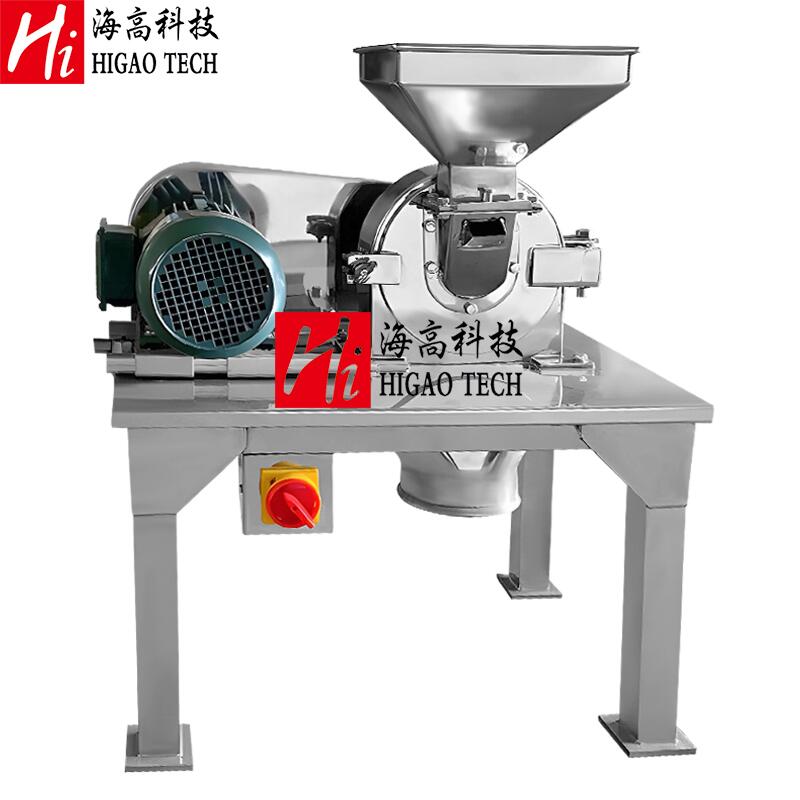

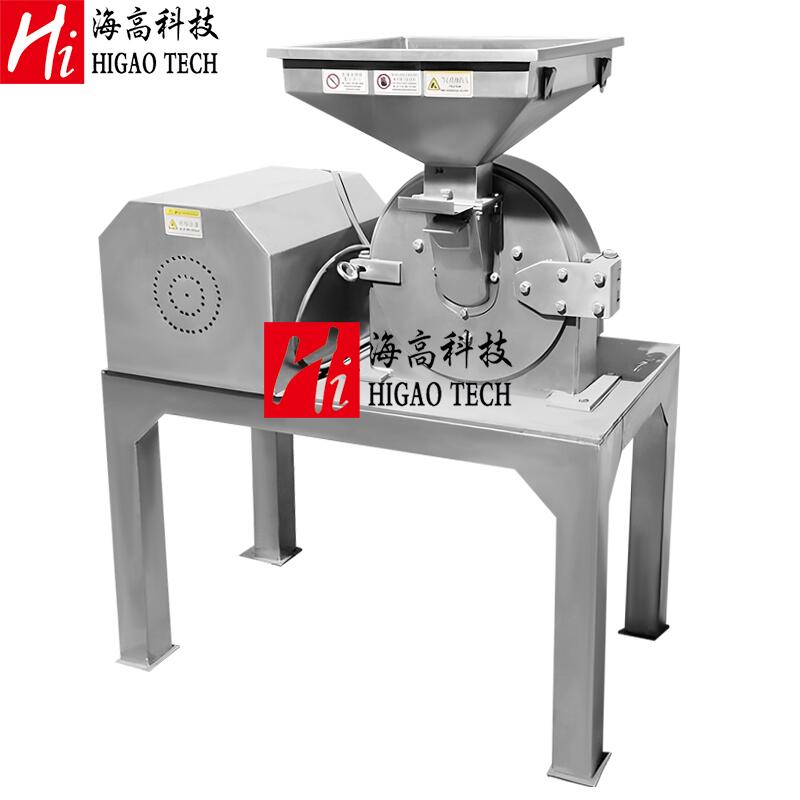

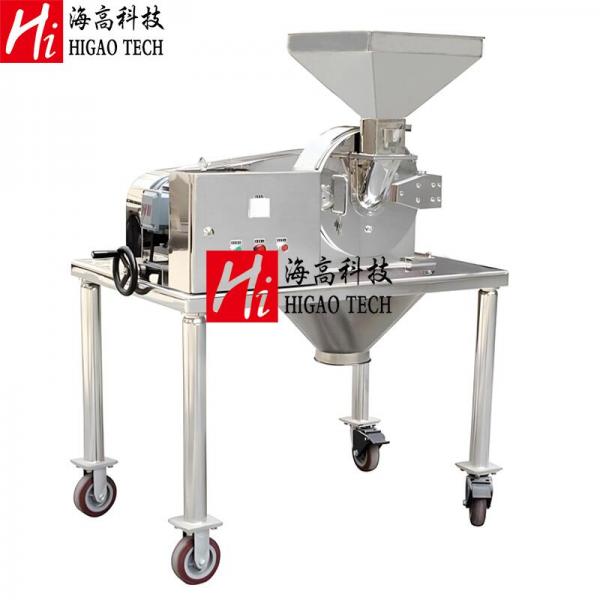

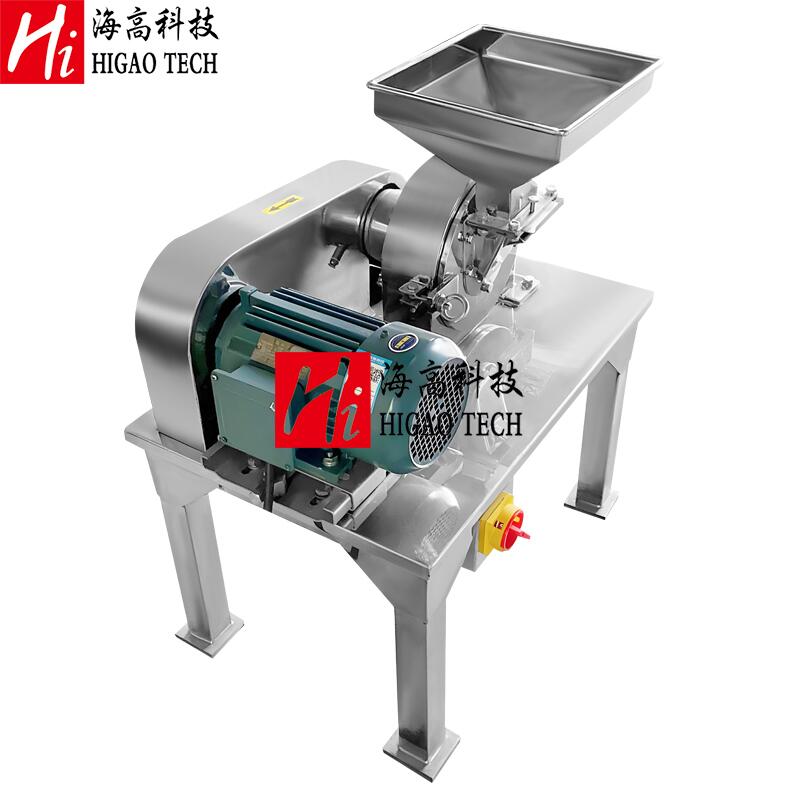

Tabletop pulverizer machine is called movable pulverizer machine or table type pulverizer machine with four wheels.
Multi-functional movable pulverizer machine is used to pulverize granules and particles into fine powder in pharmaceutical, chemical and food industries etc.
tabletop pulverizer mill desktop pulverizer mill benchtop pulverizer mill
2. Working principle:

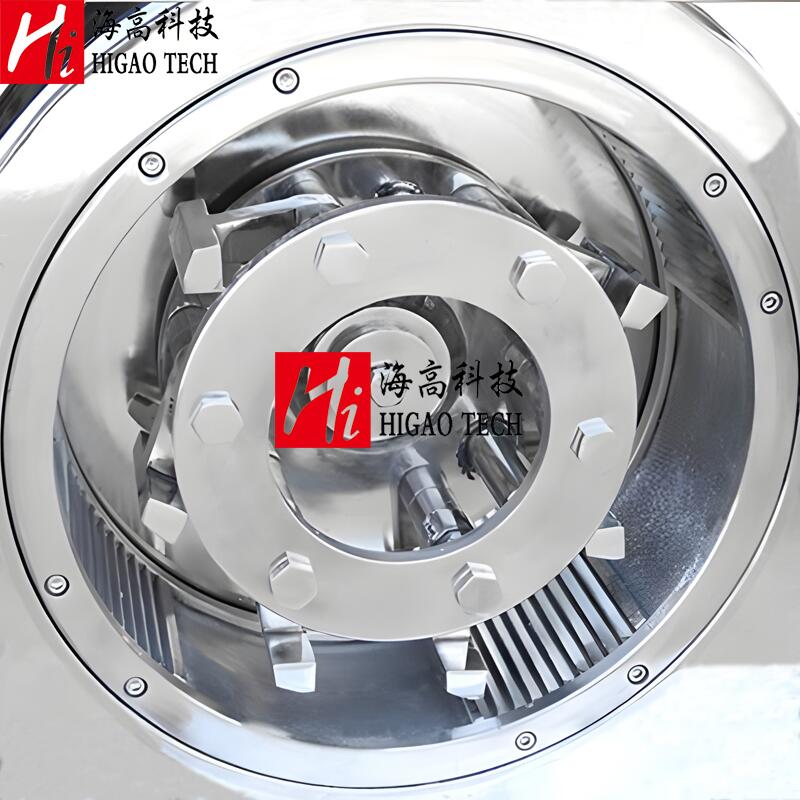

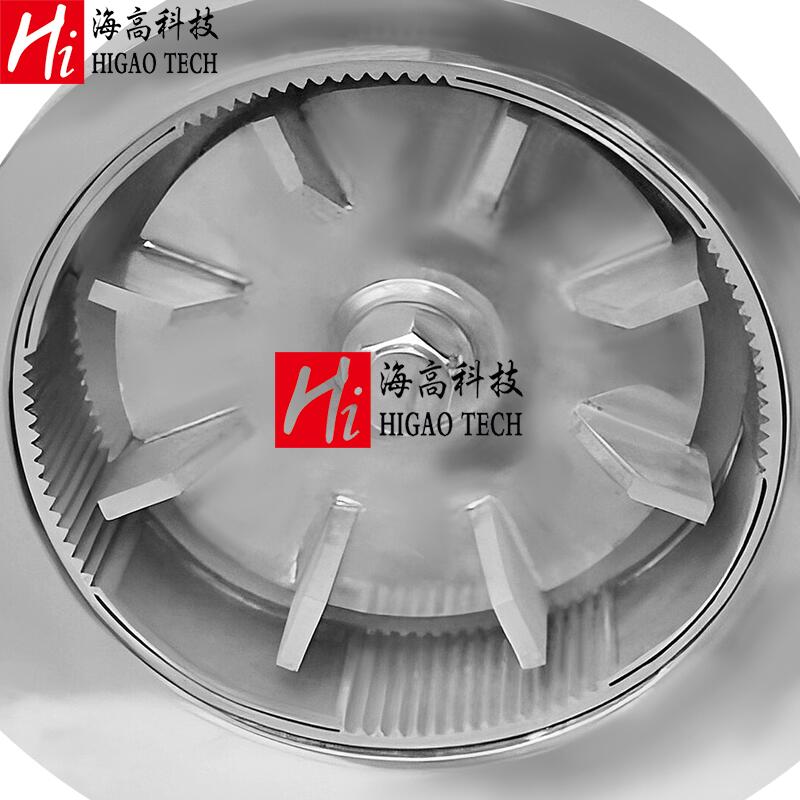

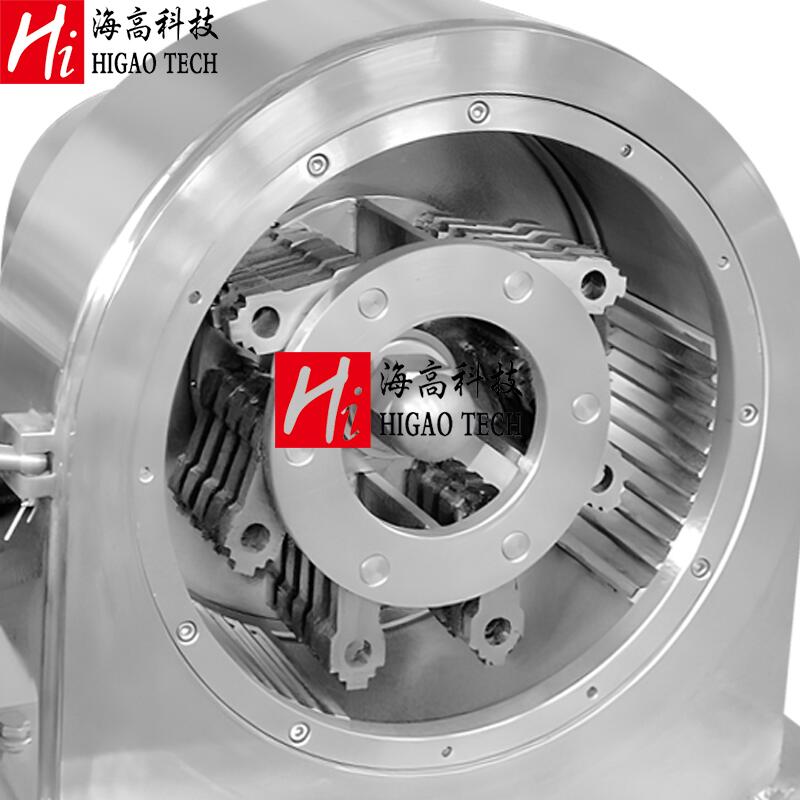

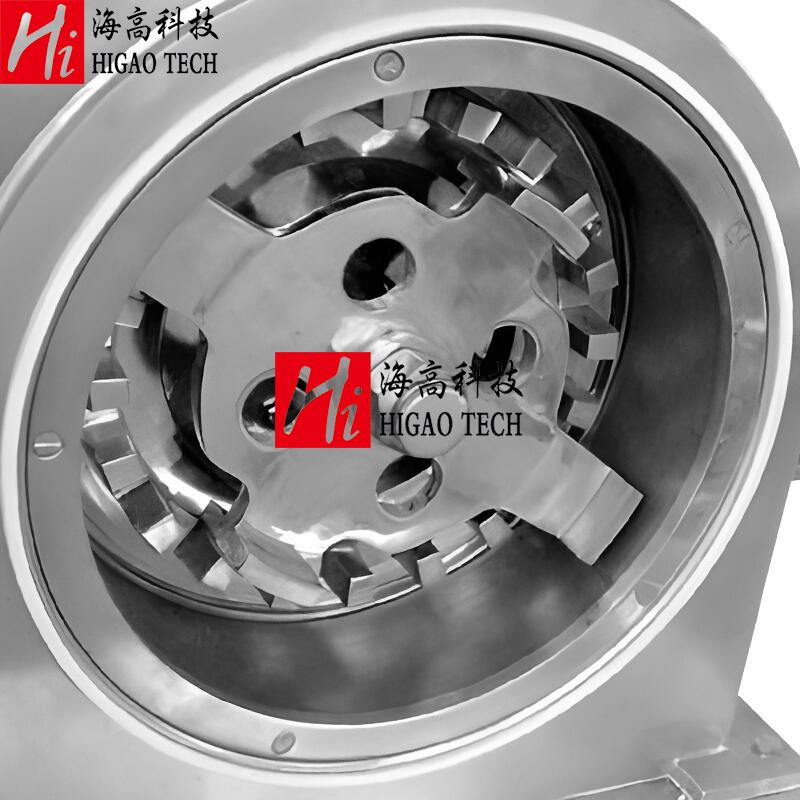

The material is crushed by relative movement of the crushing knives between movable and fixed plates driven by the motor. The crushed material will discharge to the collecting cloth bag under the centrifugal force.
universal pulverizer machine moveable tabletop pulverizer machine portable benchtop pulverizer grinder machine
3. Features:

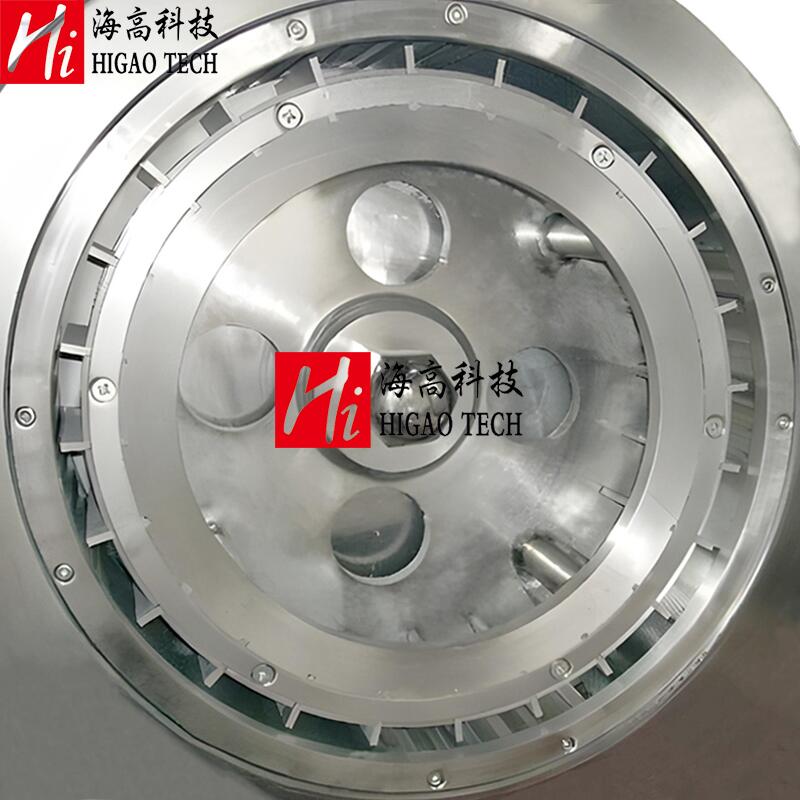

Use different size of the sieve to adjust the crushing fineness.
Designed according to GMP standard and wholly made of stainless steel.
Water cooling jacket can be added for a low temperature.
Safety switch is installed on the machine to protect the operator.

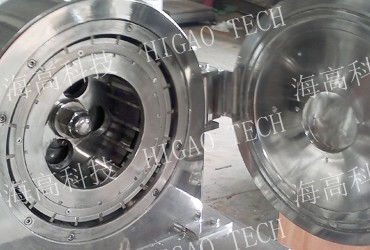

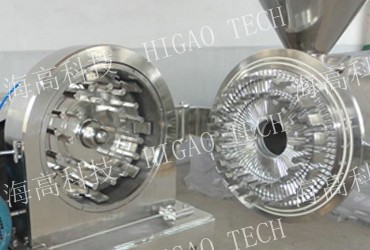

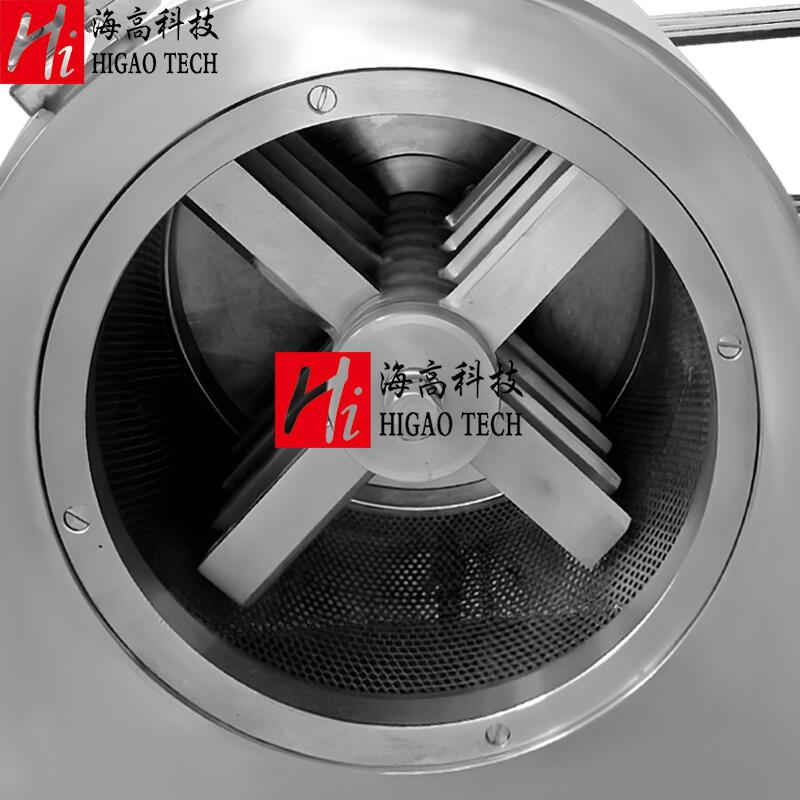

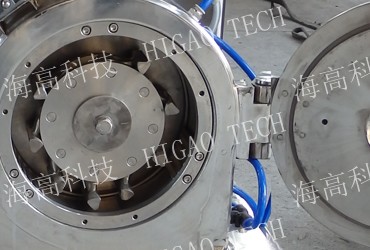

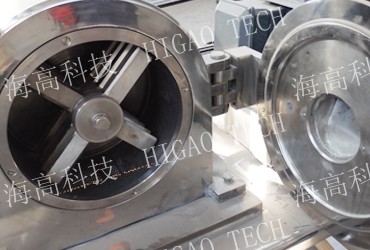

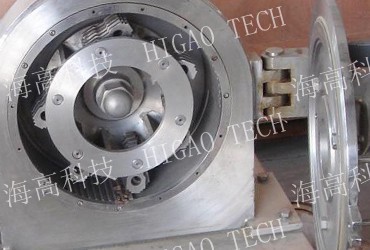

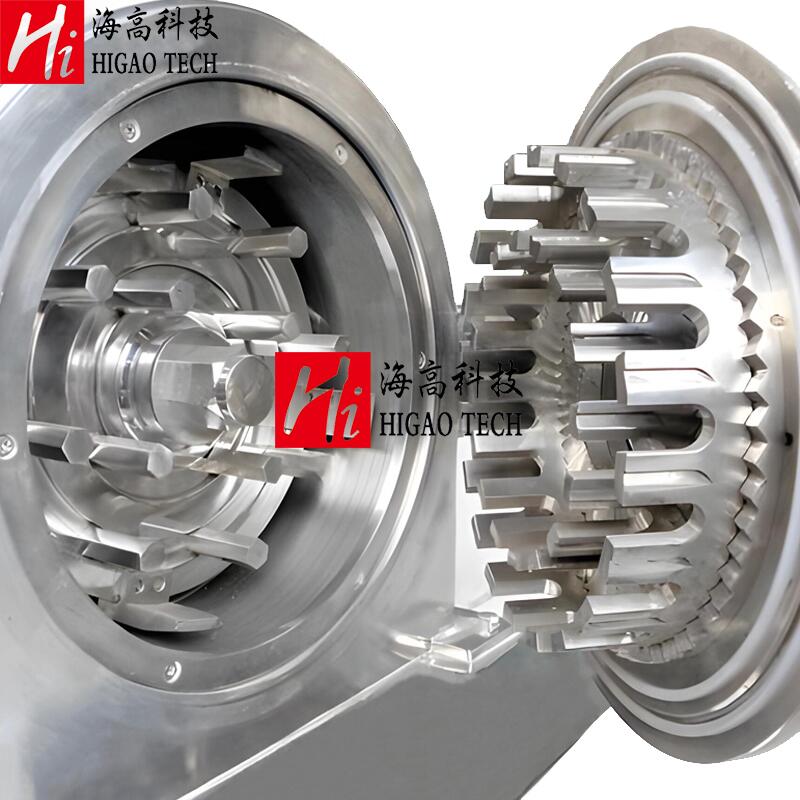

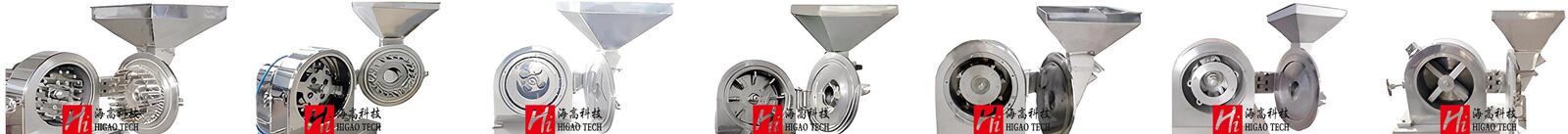

Many types of crushing structures are available. Such as Pin Mill, ImpactMill, Air cooled mill, Turbo Mill, hammer mill, beater mill, knife mill,etc.
table top pulverizer machine desk top grinder machine bench top crusher machine

moveable pulverizer machine desk top grinding mill multifunctional pulverizer machine

multipurpose pulverizing mill machine multifunctional grinding mill machine multifunctional crushing mill machine

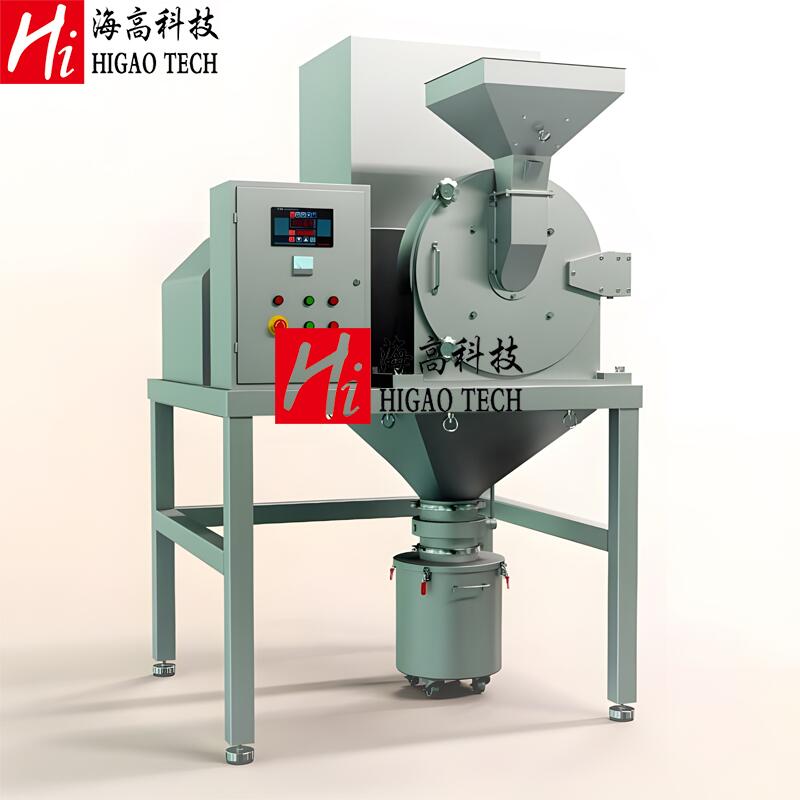

PMB Series Tabletop Pin Mill Pulverizer of HIGAO TECH

Model

Capacity

Inlet size

Output size

Motor/speed

Dimension(L×W×H)

Weight

PMB-15

10~50kg/h

«6mm

20~120mesh

2.2kw/6000rpm

600×400×850mm

100kg

PMB-20

60~150kg/h

«6mm

20~120mesh

4kw/4500rpm

70450×1250mm

200kg

PMB-30

100~300kg/h

«6mm

20~120mesh

5.5kw/3800rpm

800×500×1450mm

300kg

PMB-40

300~1000kg/h

«10mm

20~120mesh

11kw/3400rpm

900×600×1550mm

500kg

PMB-60

500~2000kg/h

«12mm

20~120mesh

18.5kw/2800rpm

1000×700×1850mm

700kg

PMB-80

800~3000kg/h

«12mm

20~120mesh

37kw/2000rpm

1100×800×1900mm

1000kg

















Contact Us For A Quote
If you have any inquiry or requirement,please leave a message,we will reply as soon as possible within 24 hours.
