ultrasonic vibrating screen machine

Higao Tech offer high quality ultrasonic vibrating screen machine for separating powder and pellets with best price in china. Ultrasonic vibrating screen machine is used mostly for very fine powder that can not be separated by normal screening machines.
  • item no.:

    US series ultrasonic screen
  • Payment:

    T/T 30% deposit and 70% before shipment
  • product origin:

    made in china
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification
Higao Tech offer high quality ultrasonic vibrating screen machine for separating powder and pellets with best price in china. Ultrasonic vibrating screen machine is used mostly for very fine powder that can not be separated by normal screening machines..

1. Introduction:
Ultrasonic vibrating screen machine is a size separating equipment which adopts advanced intelligent ultrasonic controller and has solved many problems caused by single frequency.
It is the reasonable combination of ultrasonic function and vibrating screener.
The working principle of ultrasonic vibrating screen is adding an ultrasonic energy transform device on the screen surface of 3D vibrator separator and filter. This device can make the screen surface superpose ultrahigh frequency vibrational energy, so that it can keep clear of the mesh and achieve the ideal screen situation.

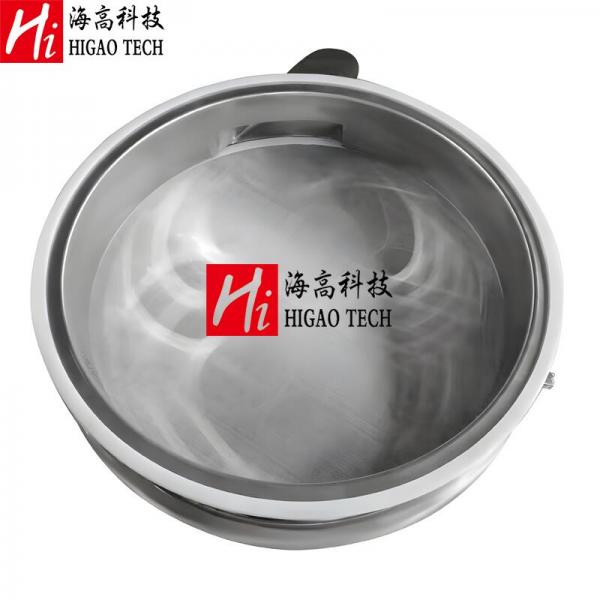

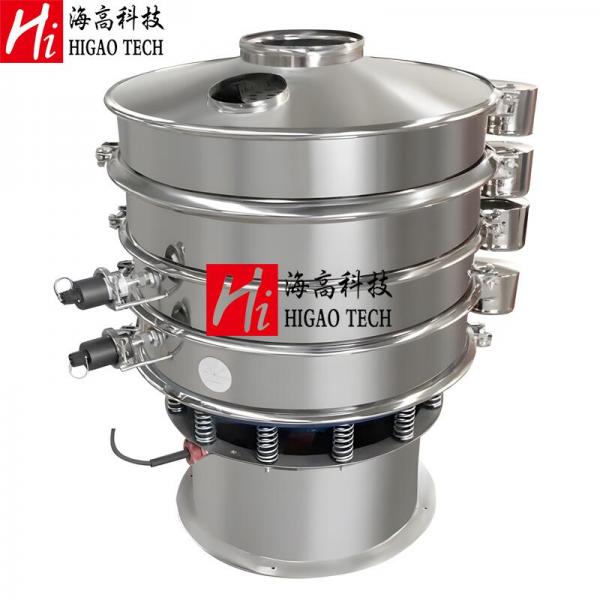

ultrasonic vibrating screen machine ultrasonic vibrating screening machine
2. Features:
1) Prominent advantages in solving materials containing high adsorption, easy reuniting, high electrostatic, high precision, high density, light specific gravity etc.
2) Realizing high precision. Can separate 25μm powder, can filter 10μm liquid materials.
3) With sieve self-cleaning function, no-blocking sieve, stable sieving efficiency.
4) Have the function of effectively controlling sieving granularity scale.
5) Ultrasonic vibrating sieving machine can be used with single layer/deck or multilayer/more decks.
6) A set of intelligent ultrasonic generator can use three controllers at the same time.
7) Can work 24hours nonstop and do not need to cool down the temperature of the power and energy exchanger.
8) Can keep the features of the processed materials.
9) Sieving precision can be enhanced by 1-100% and capacity can be enhanced by 1-10 times.
10) Engergy exchanger and sieve are connected by screws and clamps, easy to dismantle and install for cleaning.
11) Do not use rubber balls to clean the sieve. Avoid second contamination from the wearing of the rubber balls.
ultrasonic vibrating screener machine ultrasonic vibrating sieve
3. Applied materials:
carborundum/silicon carbide, alloy powder, Molybdenum powder, stainless steel powder, tungsten powder, nickel powder, cobalt powder, powder dope, quartz powder, malt powder, virus powder, virazole powder, coffee powder, electromagnetism powder, cathode materials, laser powder.
ultrasonic vibrating separator ultrasonic sieving machine

US Series Ultrasonic Vibrating Screening Machine of HIGAO TECH

Model

No. of Deck

Capacity

Screened/sifter size

Motor

Dimension(L×W×H)

Special Vibrating Media

US-600

1 deck/layer

100~600kg/h

10~500mesh

0.22kw

750×750×700mm

Ultrasonic

US-800

1 deck/layer

200~1000kg/h

10~500mesh

0.55kw

850×850×800mm

Ultrasonic

US-1000

1 deck/layer

500~2000kg/h

10~500mesh

0.75kw

1100×1100×900mm

Ultrasonic

US-1200

1 deck/layer

800~3000kg/h

10~500mesh

1.1kw

1300×1300×1000mm

Ultrasonic

US-1500

1 deck/layer

1000~4000kg/h

10~500mesh

1.5kw

1700×1700×1100mm

Ultrasonic

Contact Us For A Quote
If you have any inquiry or requirement,please leave a message,we will reply as soon as possible within 24 hours.
