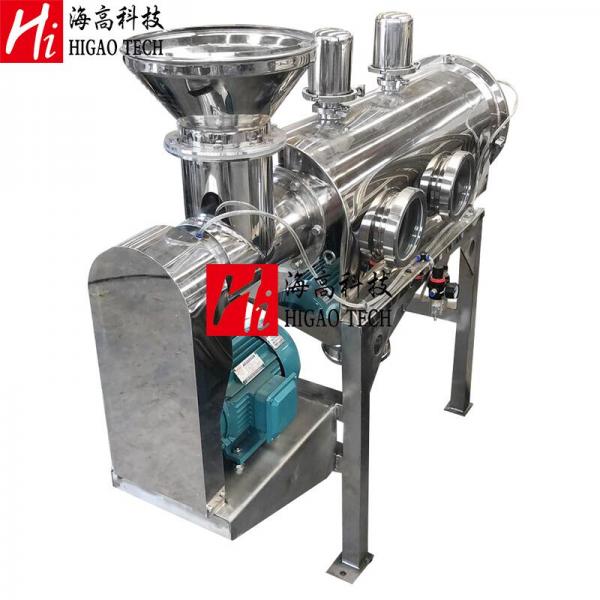

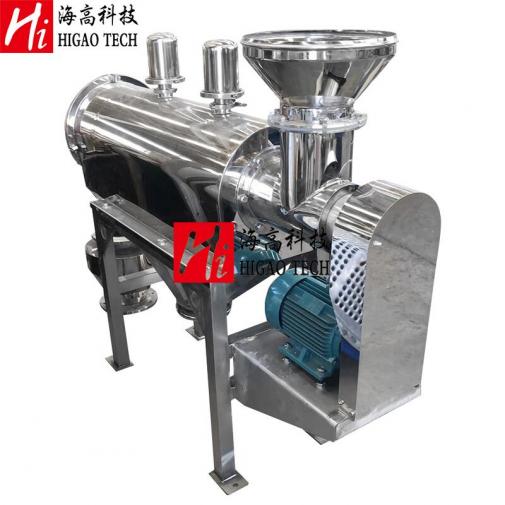

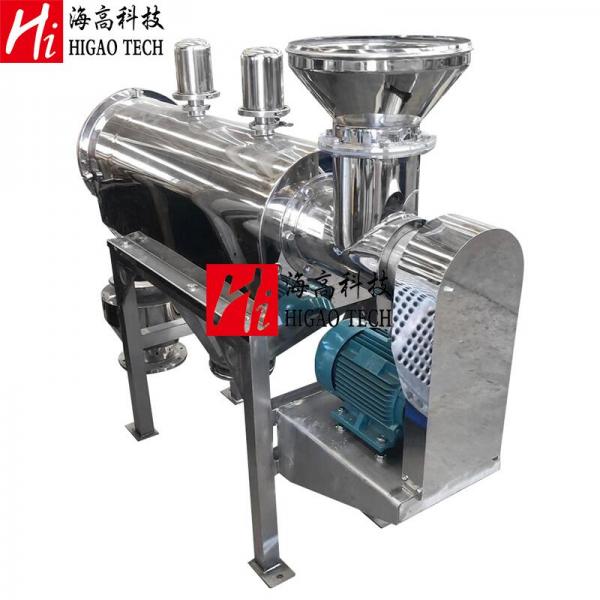

horizontal airflow vibrating screen machine

Higao Tech produce good quality horizontal airflow vibrating screen machine is more suitable for screening of ultra-light, multi-fiber materials in china.
  • item no.:

    AS series airflow screen
  • Payment:

    T/T 30% deposit and 70% before shipment
  • product origin:

    made in china
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification
Higao Tech produce good quality horizontal airflow vibrating screen machine is more suitable for screening of ultra-light, multi-fiber materials in china.

1. Introduction:
Horizontal airflow vibrating screen machine is a separating equipment fit for sieving and screening materials which contains many fiber, high viscosity, high electrostatic, light specific gravity, easy reuniting/aggregation.
Used widely in pharmaceutical, chemical, foodstuff industry. Beside, it can break the powdery blocks which gather together easily.
horizontal airflow vibrating screen machine horizontal airflow screening machine
2. Working Principle and Features:
The shape of the mesh is cylindrical and placed inside the machine. After the material is fed into the machine and mixed with the high speed airflow through the screw conveying system, and then atomized into the screen cylinder.
The rotating blades generates the centrifugal force and cyclone impellent force simultaneously. So the material is sprayed over the sieve mesh, the material smaller than the mesh hole is discharged, and the material bigger than the mesh hole will advance forwards and discharged from the coarse outlet port along the tube wall to achieve the purpose of efficient screening.
Automatic mesh self-cleaning by airflow, no jam, no noise, good sealing, high efficiency and no flying dust.

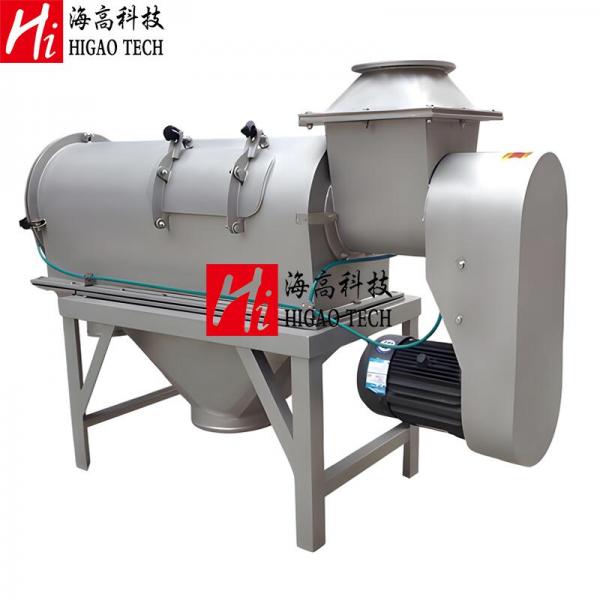

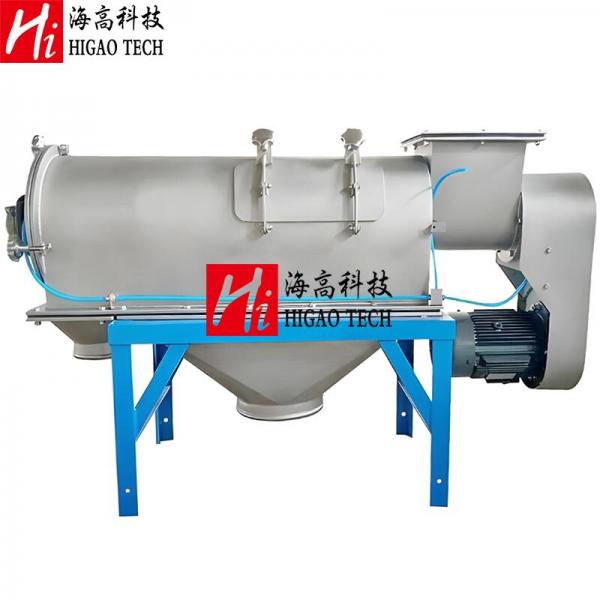

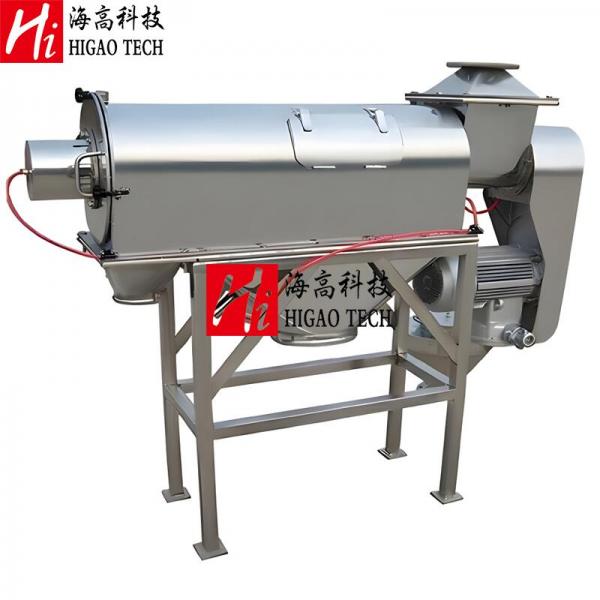

horizontal centrifugal screen machine centrifugal sifter separator

AS Series Horizontal Airflow Vibrating Screening Machine of HIGAO TECH

Model

Capacity

Screen Mesh Size

Motor/speed

Dimension(L×W×H)

Weight

AS-18-65

50~500kg/h

0~500mesh

2.2kw/1440rpm

1600×500×1100mm

200kg

AS-30-100

100~1000kg/h

0~500mesh

3kw/820rpm

1800×650×1350mm

400kg

AS-50-130

200~2000kg/h

0~500mesh

5.5kw/820rpm

195750×1550mm

600kg

Contact Us For A Quote
If you have any inquiry or requirement,please leave a message,we will reply as soon as possible within 24 hours.
