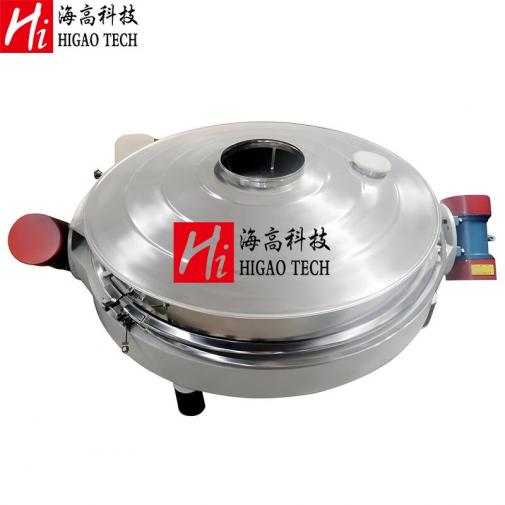

Direct Discharge Vibrating Screen Machine

Direct discharge vibrating screen machine is used to remove impurities and loosen materials for coarse and precise separation of granules and powder in flour, starch, washing powder, metal powder, additives, chemical industry, non-mining and other industries.
  • item no.:

    DS Series Direct Discharge Screener
  • Payment:

    T/T 30% deposit and 70% before shipment
  • product origin:

    Made In China
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification
Direct discharge vibrating screen machine is used to remove impurities and loosen materials of granules and powder in food, chemical, pharmaceutical industries.

1. Introduction:
Direct discharge vibrating screening machine is used to remove impurities and loosen the materials in the powder production line.
Now it is mainly used for coarse separation and precise separation of granules and powder in flour, starch, washing powder, metal powder, additives, chemical industry, non-mining and other industries. With large output capacity, it is easy to connect to production lines.
The vibrating structure is of two types: single motor and double motors. The moving trails of the materials can be adjusted with various movement, which increases the usability of direct discharge vibrating screening machine.

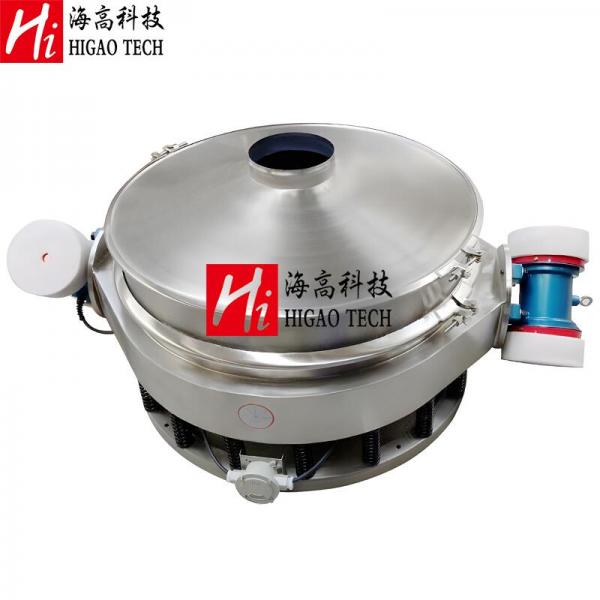

Direct Discharge Vibrating Screen Machine direct discharge vibrating screening machine
2. Working principle:
Two sets of eccentric blocks (unbalanced eccentric blocks) at the upper and lower ends of the shaft can change the rotating movement of the vibrating motor into a combined mixed acting force with horizontal, vertical or inclined or centrifugal movement. Then transmit this mixed force to the surface of the sieve, so as to achieve the separating purpose finally.
By changing the phase angle and weight of the upper and lower eccentric blocks to change the excitation force and the movement tracks of the materials.

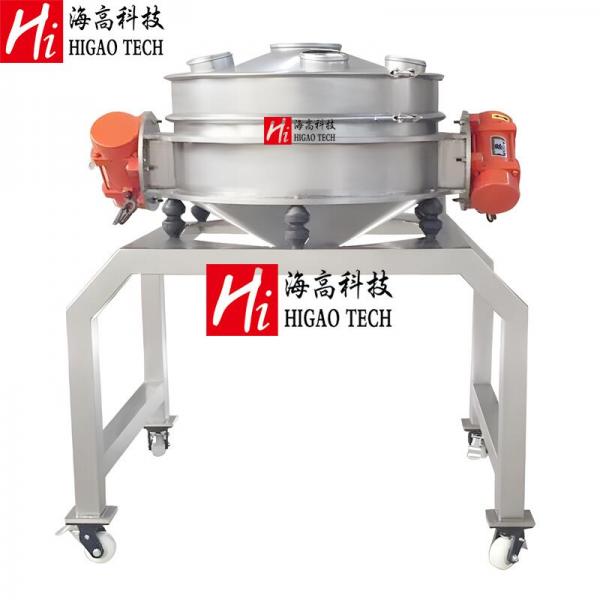

direct discharge vibrating sifter direct discharge sifter
3. Features:
1.Made of stainless steel 304(SUS304#), beautiful and durable.
2.Compact designed structure with small dimension, easy to move.
3.Easy to disassemble and assemble, easy to clean.
4.Without sanitary dead ends, conform with food grade and GMP standard.
5. It can carry out 24 hours continuous working with low noise.
6. Low energy consumption with high working efficiency.
7. Materials stay in the screening machine for a short time, the material will discharge direct and very quickly, so it can handle large capacity.
8. Fully closed structure and good sealing to prevent liquid leakage and dust flying to be environment-friendly.
9. Upper discharge port/exit can be adjusted within 360 degrees to match installation in working site.

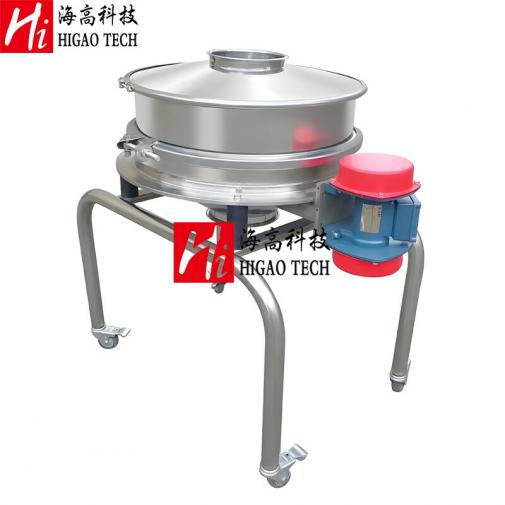

direct discharge screening separator direct discharge vibrating sieving machine

DS Series Direct Discharge Vibrating Screening Machine of HIGAO TECH

Model

Diameter of Screen

Screen Area

Motor Power

Dimension(L×W×H)

Weight

DS-600

Φ520mm

0.2M2

0.12kw

7560500mm

200kg

DS-800

Φ720mm

0.4M2

0.55kw

1000×80600mm

300kg

DS-1000

Φ890mm

0.6M2

1.1kw

120970×650mm

420kg

DS-1200

Φ1100mm

0.9M2

1.1kw

1450×1200×760mm

550kg

DS-1500

Φ1400mm

1.5M2

1.5kw

1800×1500×800mm

650kg

DS-1800

Φ1700mm

2.4M2

2.2kw

2100×1700×950mm

800kg

DS-2000

Φ1900mm

2.9M2

2.2kw

2300×1900×1050mm

950kg
