Products

Auger Filler

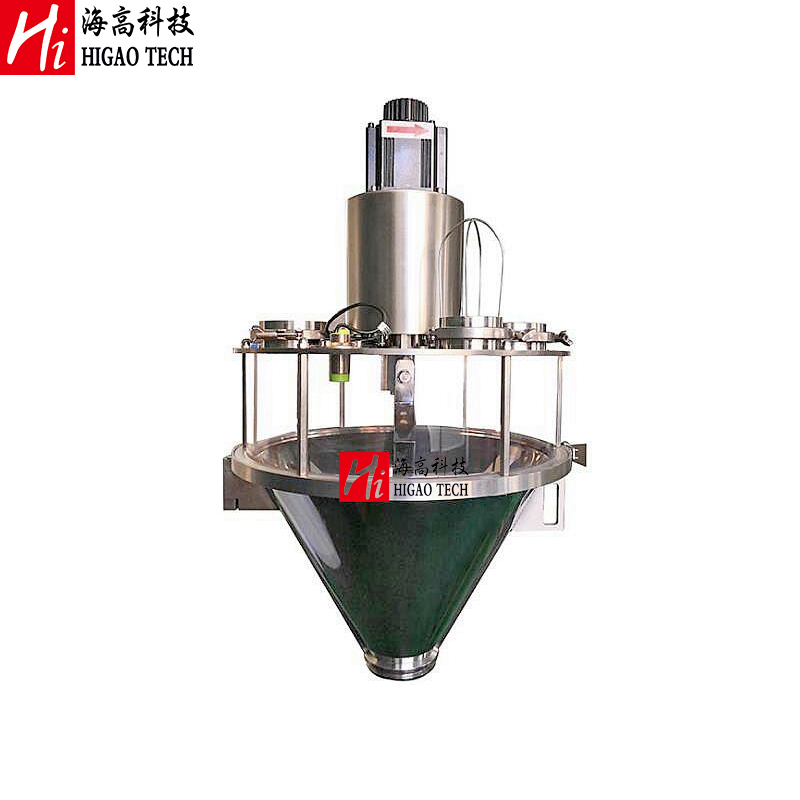

Auger filler is used for filling of most powders. Auger Filler can be made freely as a semi-automatic powder filling machine or combine with packaging equipment to be an automatic packing production line.
  • item no.:

    AF Series Auger Filler
  • Payment:

    T/T 30% deposit + 70% balance before delivery
  • product origin:

    Made In China
  • Color:

    Shining Polish or Matte Shinning Polish
  • shipping port:

    Shanghai Port
  • Lead Time:

    30 Days
  • Product Detail
  • specification
  • Photo Gallery
Higao Tech Manufacturer Various granule and powder weighing metering and filling equipment and machinery for food, chemical, pharmaceutical industries.
food phamaceutical chemical auger weighing powder filling equipment
Introduction:
Auger filler is used for filling of most powders.
Auger Filler can be made freely as a semi-automatic powder filling machine or combine with packaging equipment to be an automatic packing production line.
Auger Filler Machine can also be put above a bagging machine or packaging machine to combine into a VFFS Series automatic vertical form fill seal packaging machine.
And it can work with doybag packer, horizontal packing machine to form a automatic small bag packing line.
auger filler auger filler machine
Features of Powder Auger Filler:
1.Quick disassembling hopper, easy to open and clean.
2.The servo motor and the servo drive control the screw.
3.All stainless steel structure, the material contact part are SS304 or SS316L.
4.Equipped with a height adjustment hand wheel, convenient to adjust the height of the whole machine.
5.Suitable for materials from ultra-fine powder to small particles and other materials.
6.Quick-removal auger for a fast disassembling and clean.

AF Series Auger Filler of HIGAO TECH

Model

AF-25

AF-50

AF-60

AF-75

Hopper volume

25L

50L

60L

75L

Filling weight range

1~200g

10~2000g

10~5000g

10~5000g

Filling accuracy

100g, ≤±2%

100~200g, ≤±1%

100g, ≤±2%

100~500g, ≤±1%

>500g, ≤±0.5%

100g, ≤±2%

100~500g, ≤±1%

>500g, ≤±0.5%



Filling speed

15~60 times/Min

(Depend on the product property and filling weight)

15~45 times/Min

(Depend on the product property and filling weight)

15~45 times/Min

(Depend on the product property and filling weight)

15~45 times/Min

(Depend on the product property and filling weight)

Power supply

3P-AC220-415V 50/60Hz

3P-AC220-415V 50/60Hz

3P-AC220-415V 50/60Hz

3P-AC220-415V 50/60Hz

Total motor power

1.2kw

1.9kw

2.5kw

3.7kw

Machine weight

150kg

250kg

300kg

350kg


auger filler equipment
auger filling machine
powder auger filler
powder auger filling machine
auger filler for powder filling
auger type powder filler
screw type auger filler
screw type powder filling machine
auger filler weighing equipment
auger filler weighing machine
auger filler metering equipment
auger filler metering machine
auger type powder filling weighing equipment screw type powder filling weighing equipment
auger type powder filling weighing machine
screw type powder filling weighing machine
screw auger weighing powder filler machine
auger screw weighing powder filling machine
Contact Us For A Quote
If you have any inquiry or requirement,please leave a message,we will reply as soon as possible within 24 hours.
