Higao Tech produce good quality double screw cone mixer machine for powder mixing in china. Double screw conical mixer is used to mix a large amount of materials each time.

item no.:

SM series double screw cone mixer

Payment:

T/T 30% deposit and 70% before shipment

product origin:

made in china

Color:

Shining Polish or Matte Shinning Polish

shipping port:

Shanghai Port

Lead Time：

30 Days

Product Detail
specification
Photo Gallery

Higao Tech produce good quality double screw cone mixer machine for powder mixing in china. Double screw conical mixer is used to mix a large amount of materials each time.

1. Introduction:
Double screw cone mixer for powder mixing is used to mix powder, granules, crystallized particles, pellets and agglomeration or caking, also mixing with spraying liquids.
Double screw mixer machine is applied in requirement of gentle mixing and no-leftover discharge.
Double screw mixing machine is also suitable for intermediate storage of temporary blending.

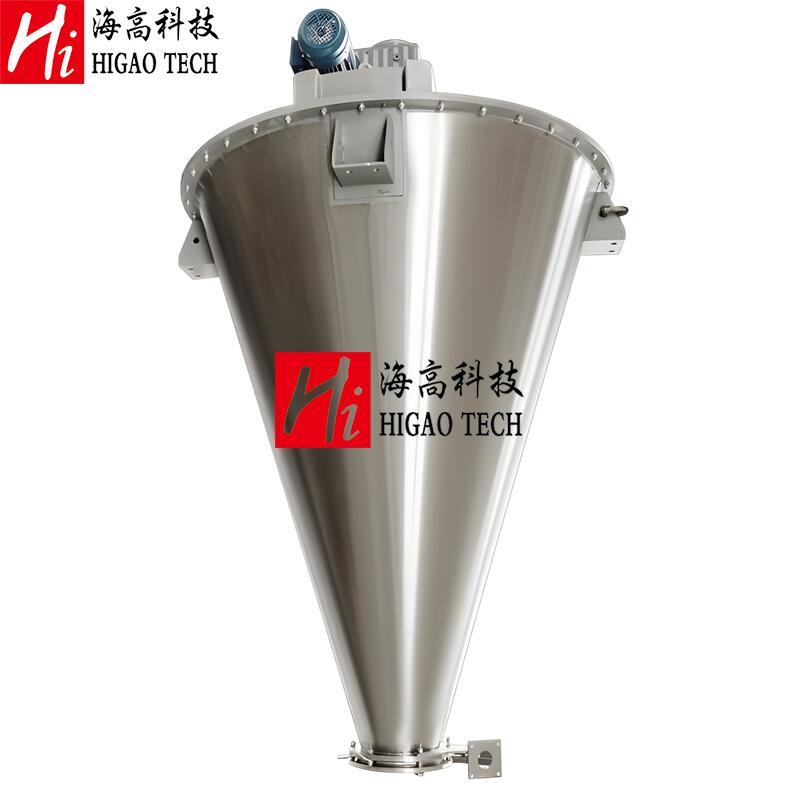

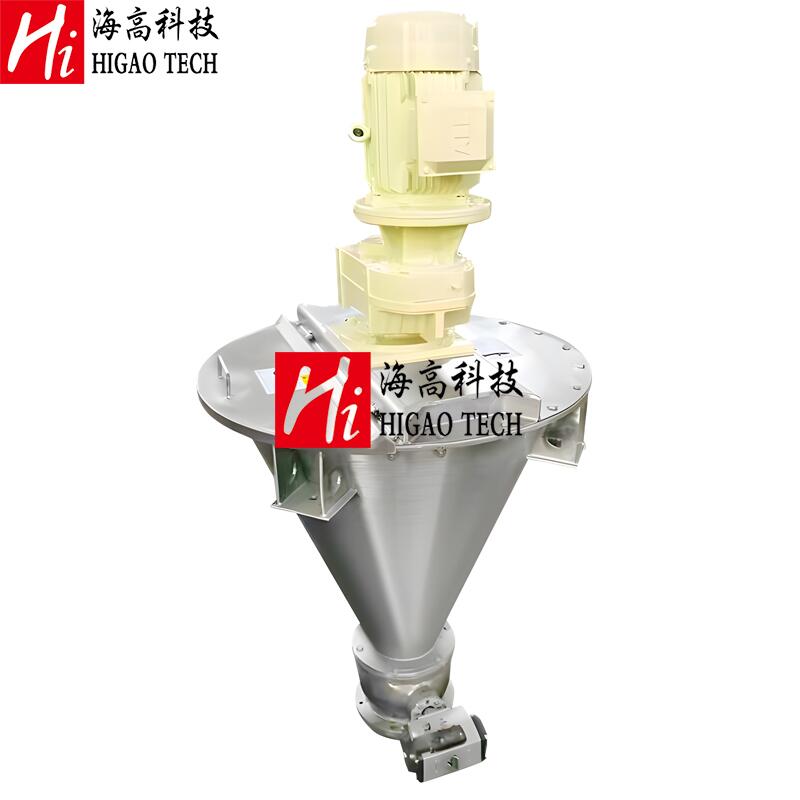

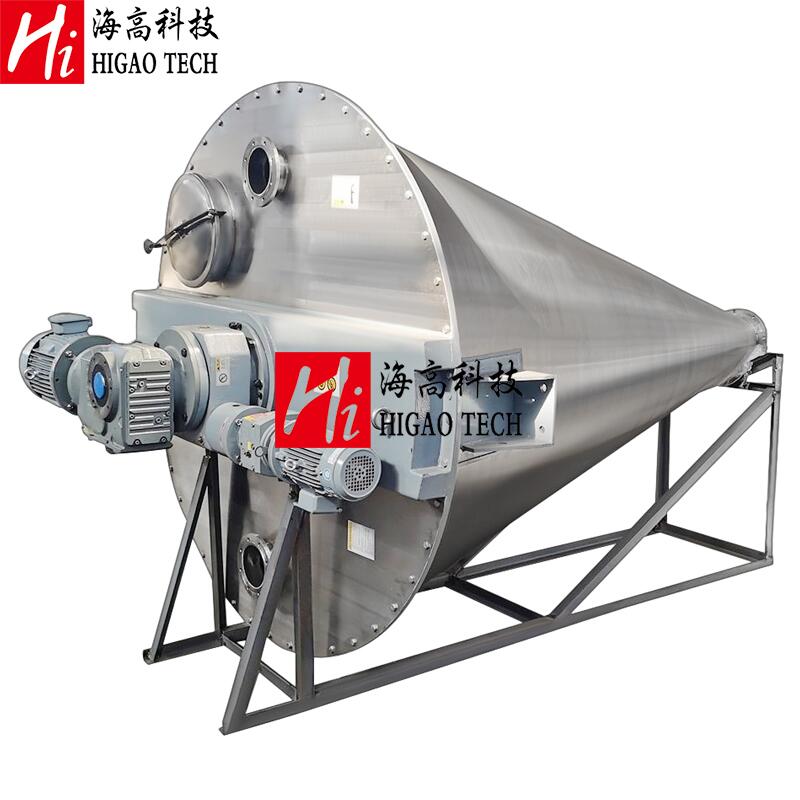

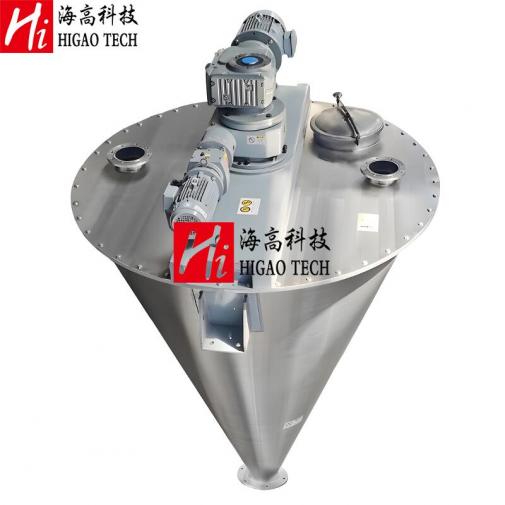

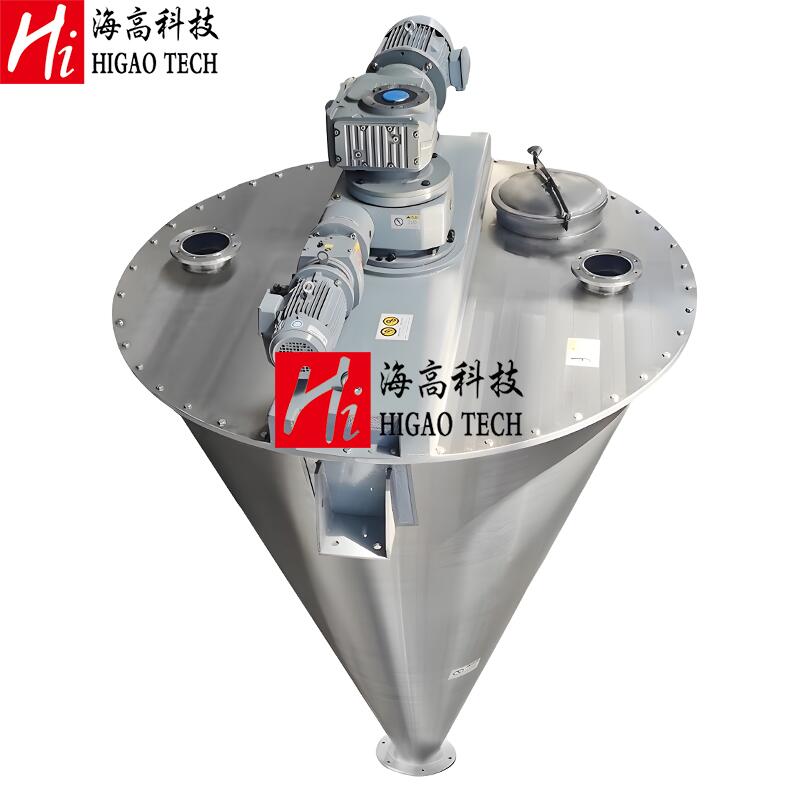

vertical double screw cone mixer

2. Principle and features:

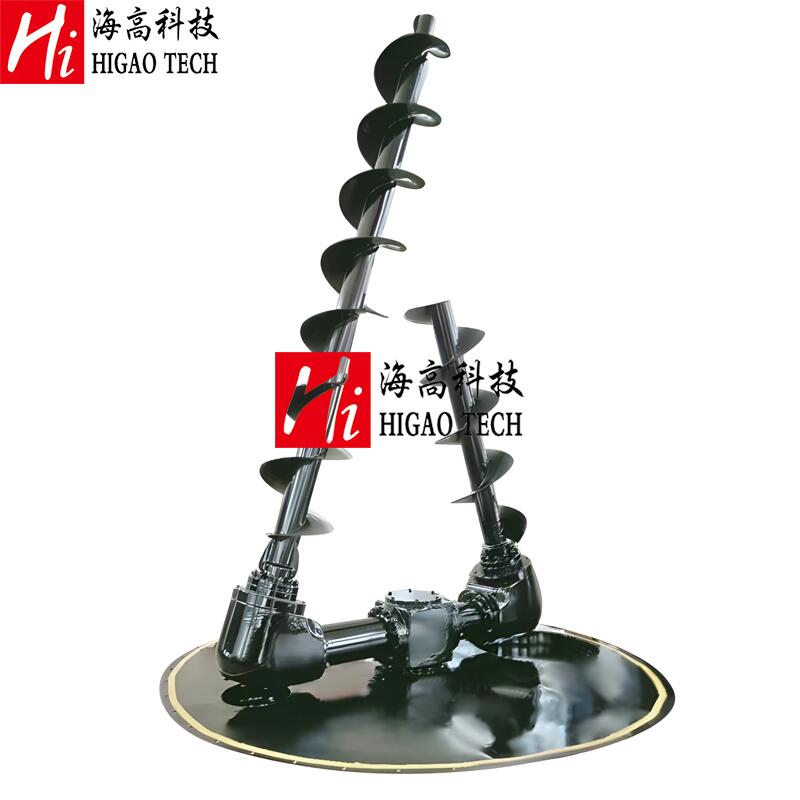

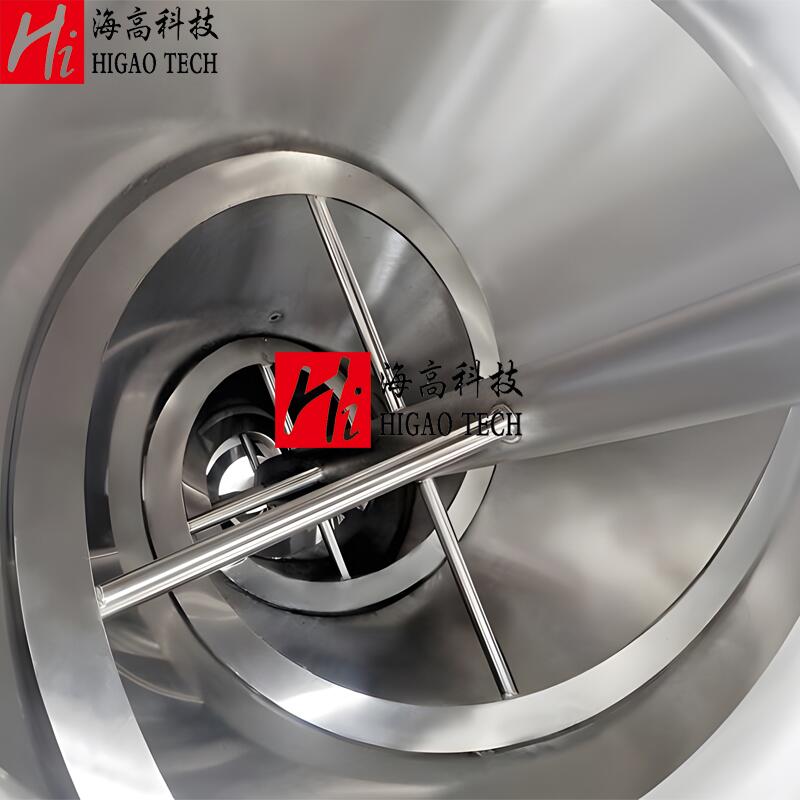

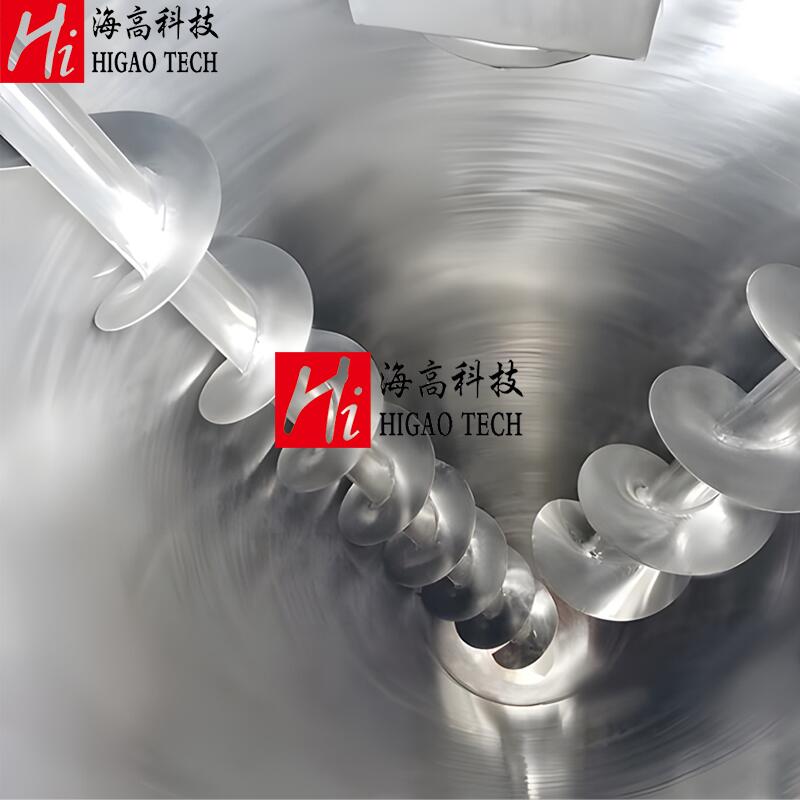

Suspending arm of double screw cone mixer has two blending screws which are of different length and diameter. Suspending arm does revolution and the two asymmetric screws make self rotation at the same time, which makes the powdery materials elevated up and down and also does circular movement. So materials can be mixed completely and evenly under four kinds of movements.
Double screw mixing machine is characterized by gentle, high accurate mixing, good homogeneity and no damage to product.

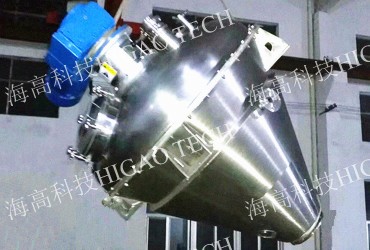

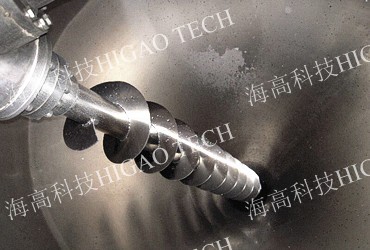

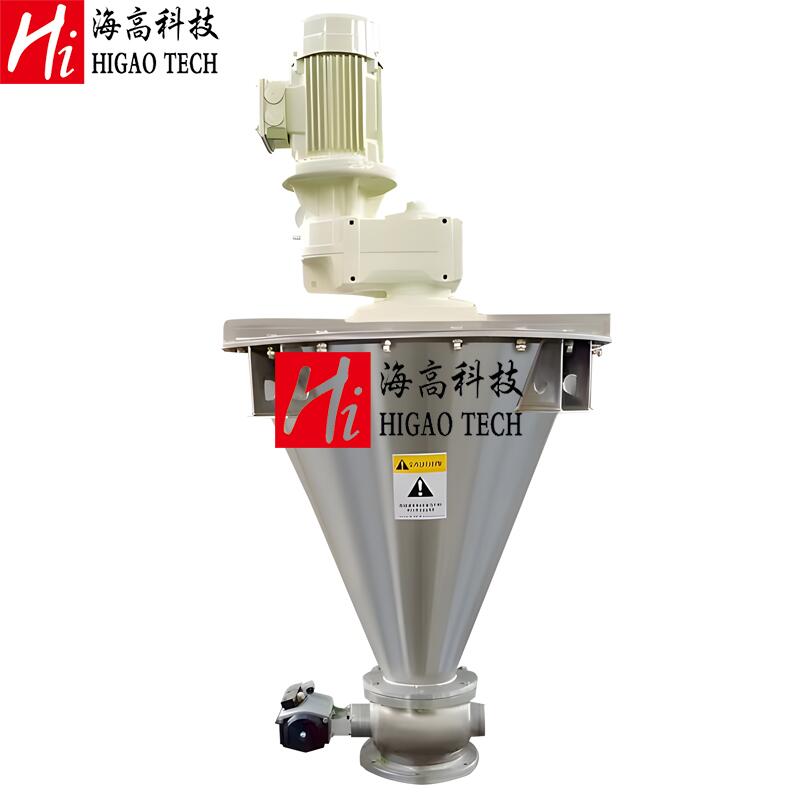

single screw conical mixer

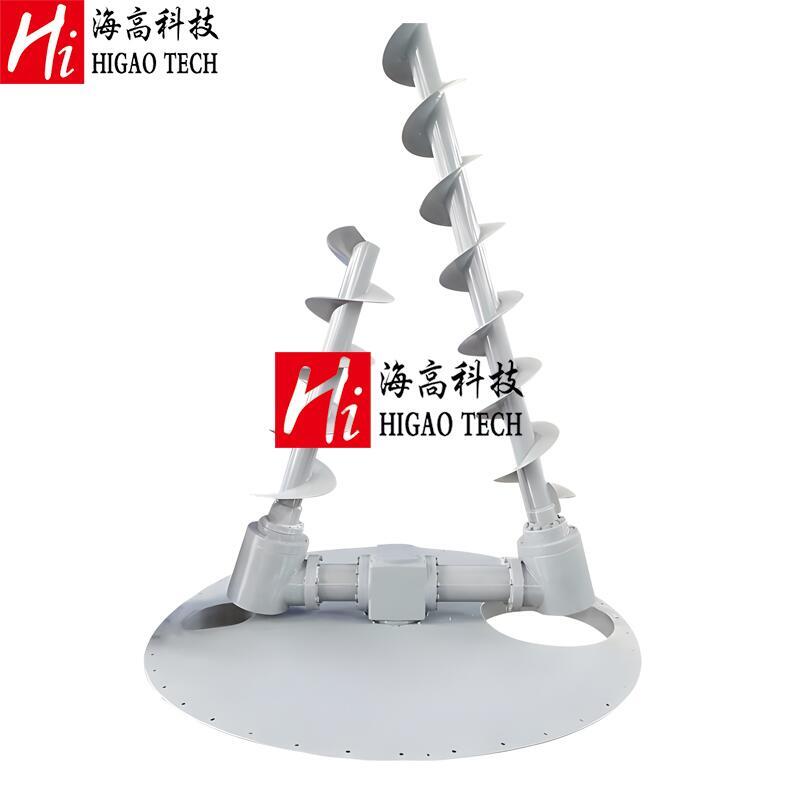

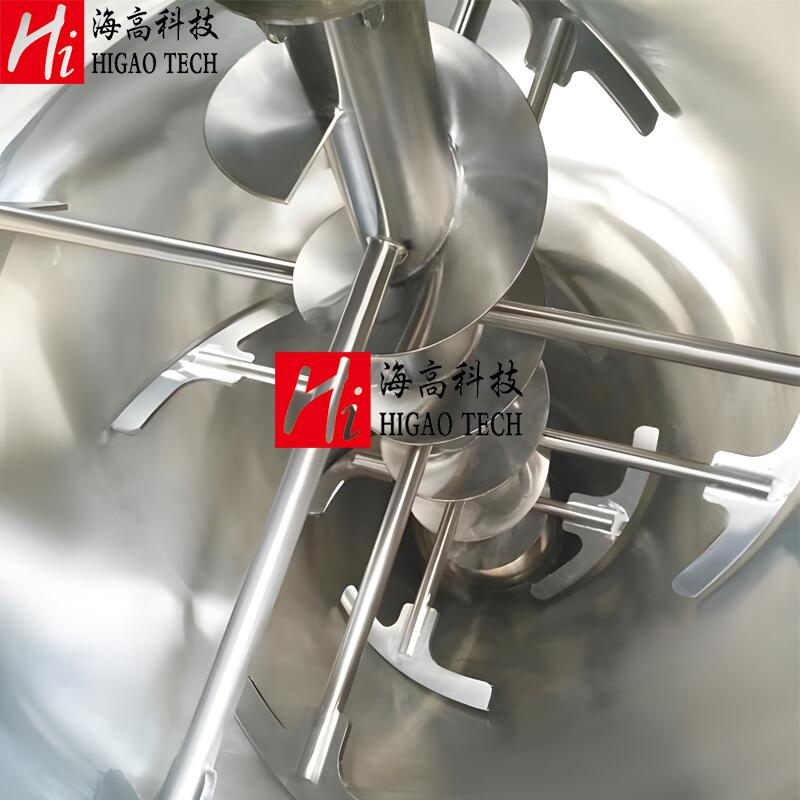

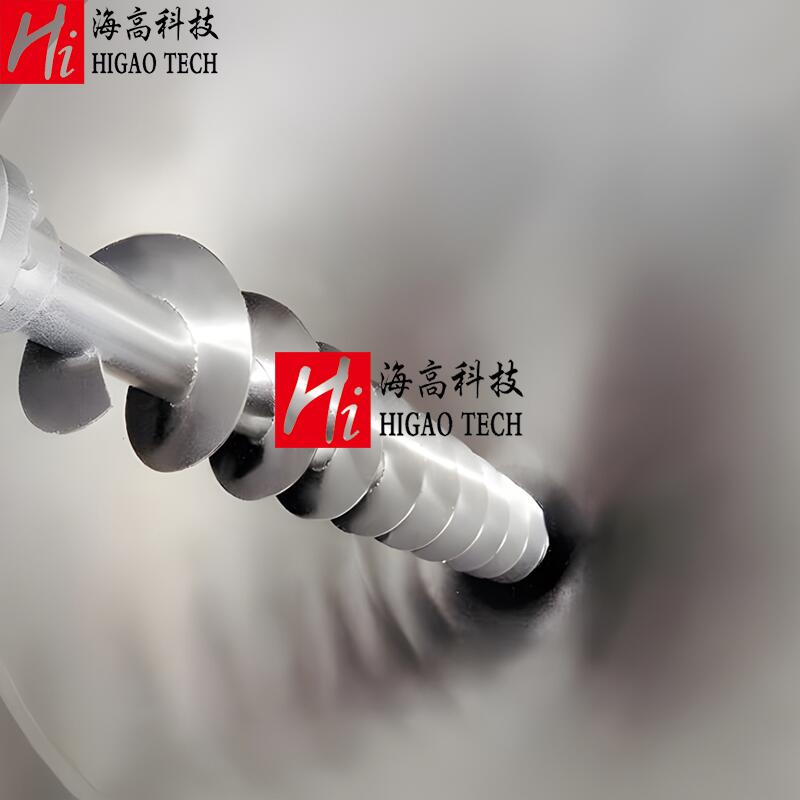

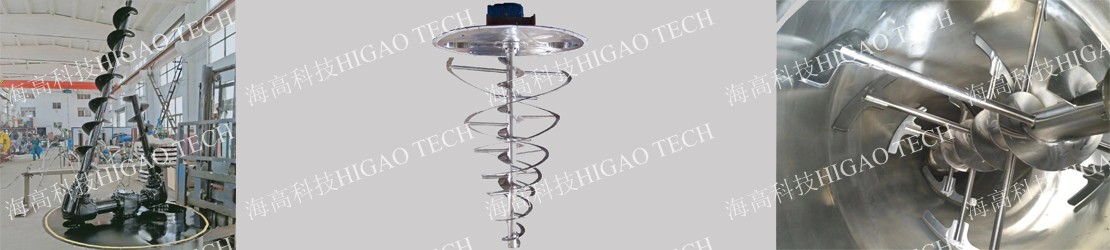

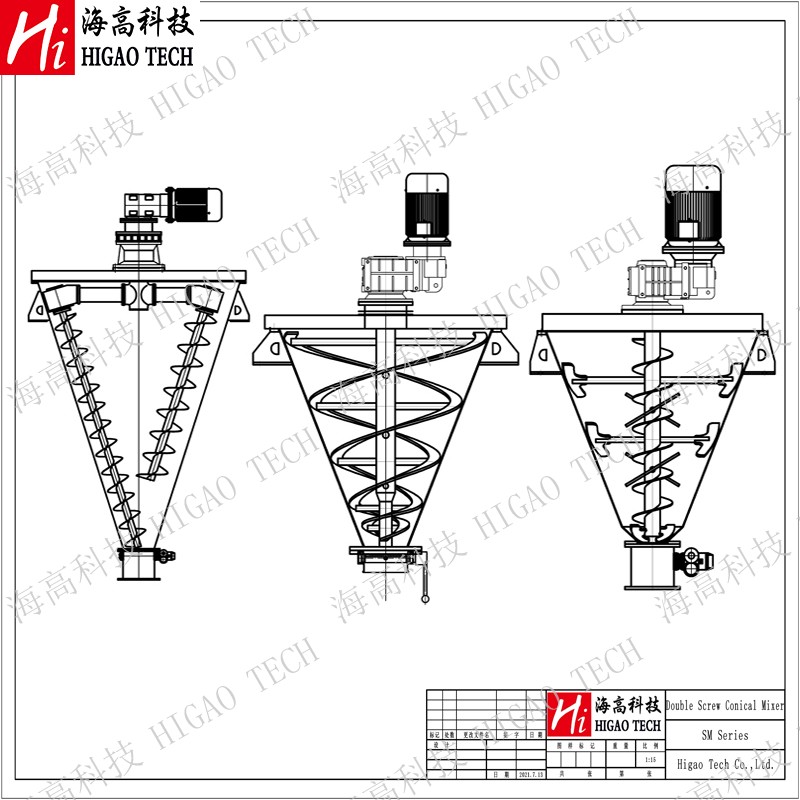

3. Blending structures of Double Screw Cone Mixer:
Double screw type, ribbon type and paddle type are mainly used.
conical ribbon mixer

4. Liquid spray system, Heating and cooling jacket：
Double Screw Cone Mixer can also be equipped with liquid spraying device and heating or cooling jacket.
vertical ribbon mixer

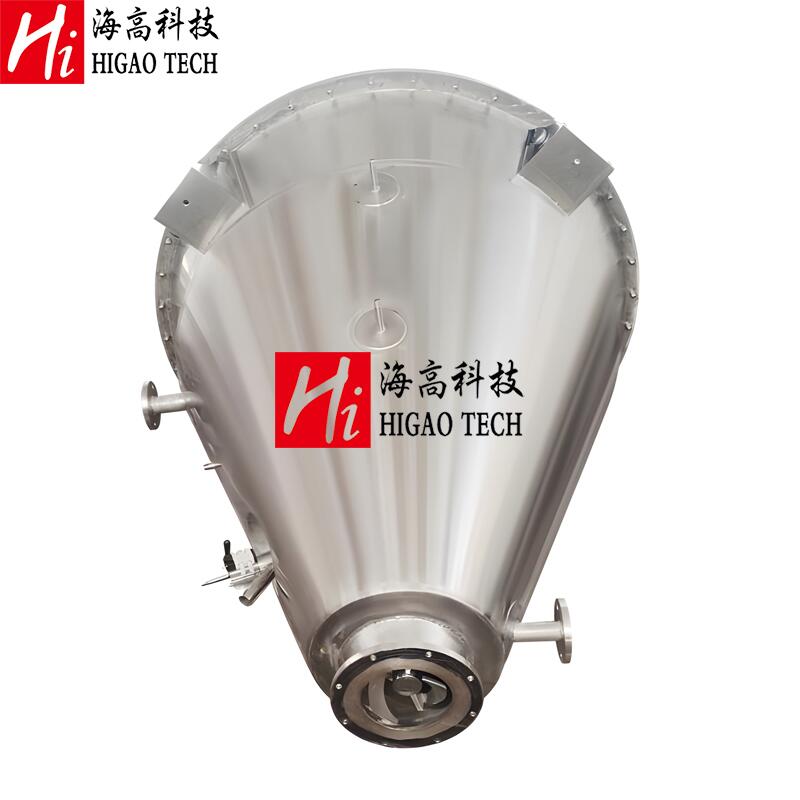

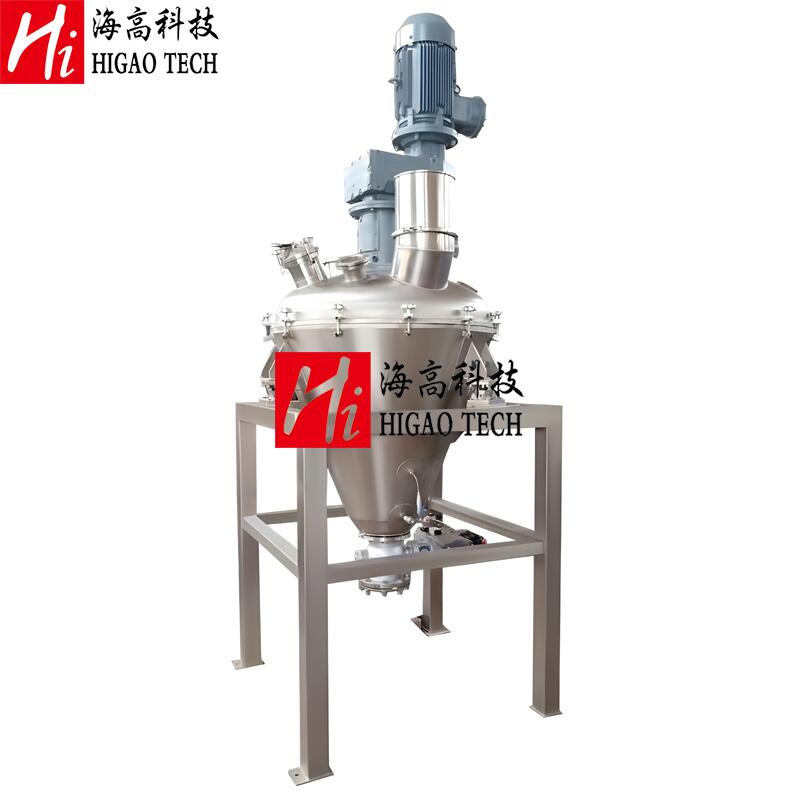

double screw cone mixer with heating jacket

5. Discharging method:
There are many discharging ways for customers to choose: manual plum blossom dislocation valve, pneumatic butterfly valve, spherical valve, ball valve, etc.

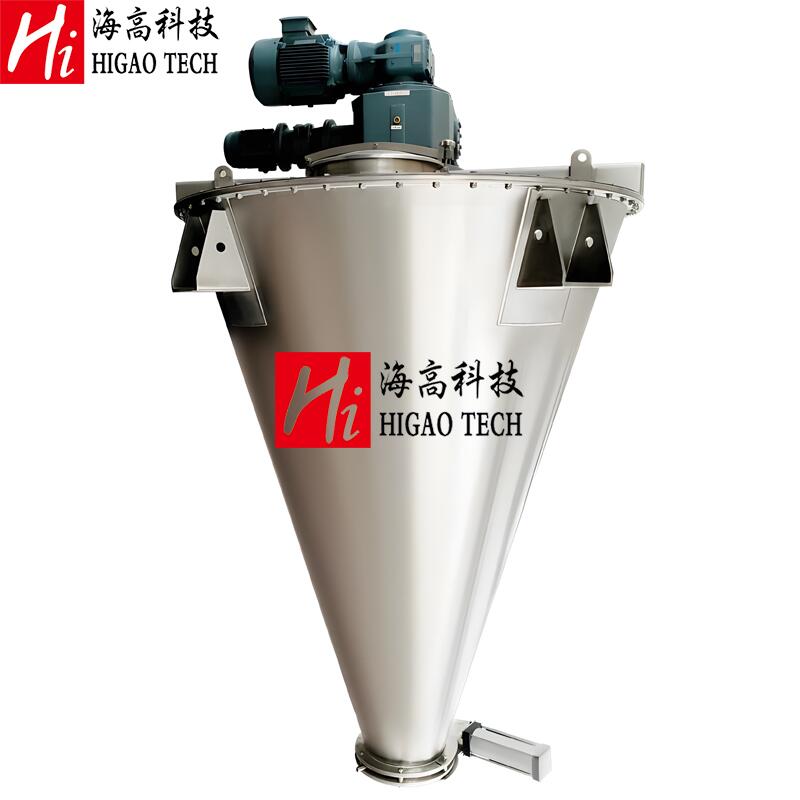

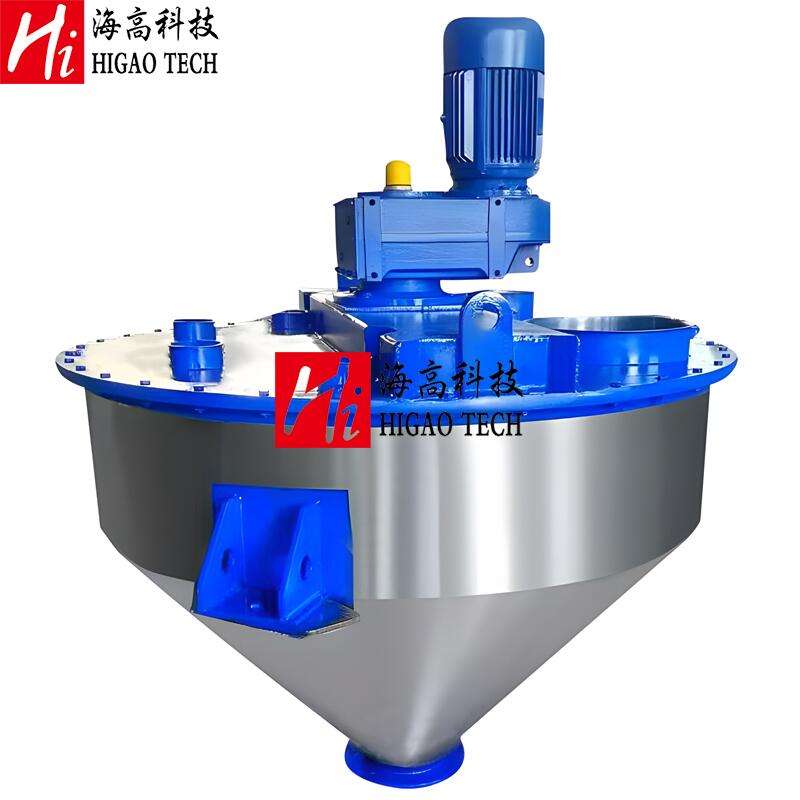

conical screw mixer

conical screw mixer with pneumatic discharge valve

conical screw mixer with rotary discharge valve

6. Welding and soldering details:
Conical shape of this mixer match with fluent soldering seam looks more magnificent.

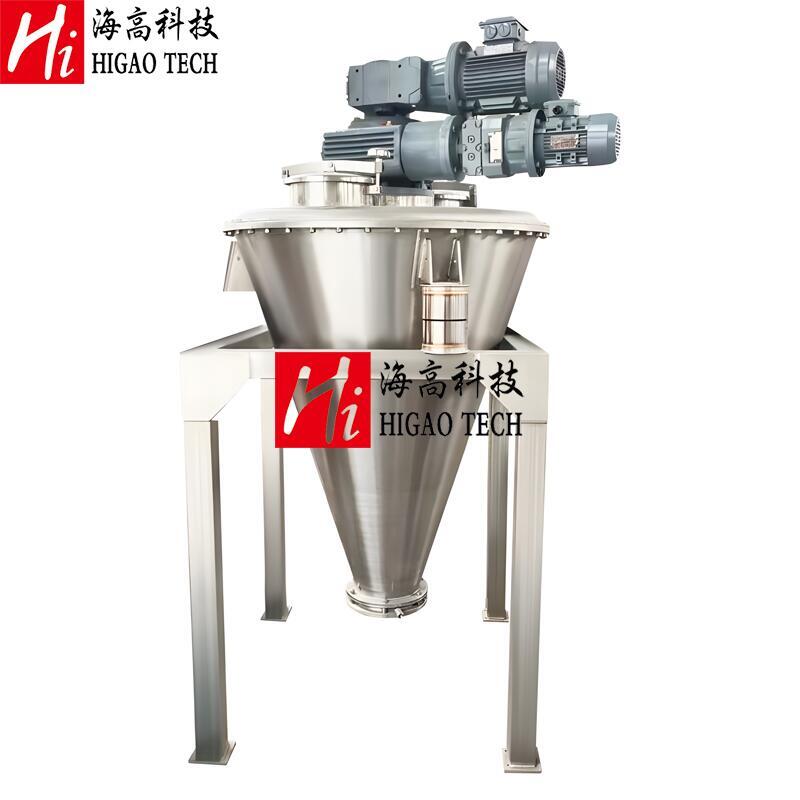

double screw nauta mixer

7. Steel grade of double screw conical mixer machine:
Customers can choose different steel materials: mild steel, stainless steel, etc. Then we will follow their instruction to produce this conical mixer.
conical screw nauta mixer

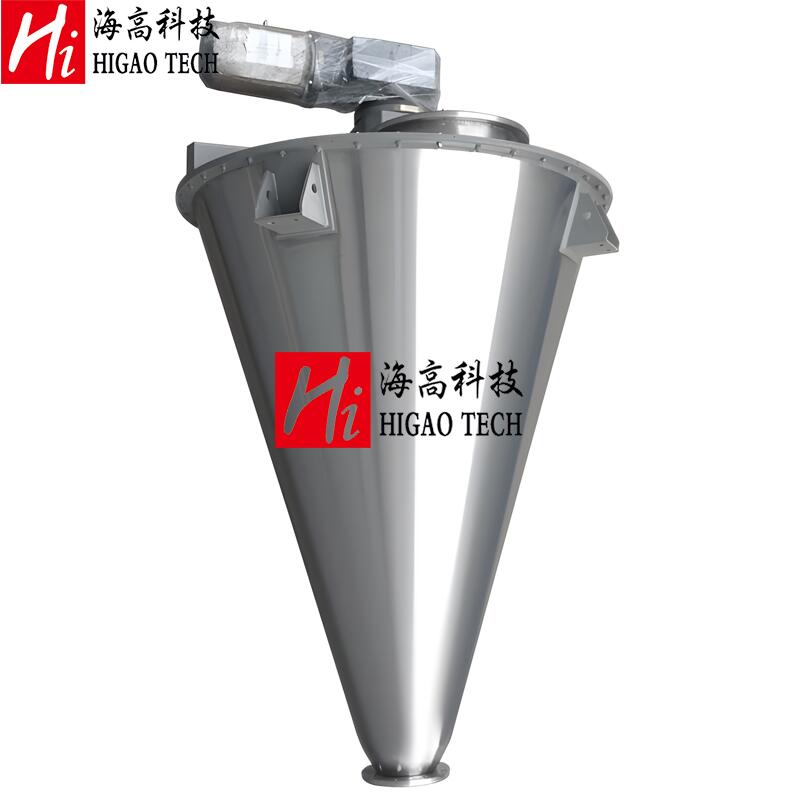

SM Series Double Screw Cone Mixer (Conical Mixer) of HIGAO TECH
Model	Total volume	Loading volume	Capacity	Motor	Diameter×Height	Weight
SM-100	100L	60L	60kg	2.2kw	Ø700×1500mm	150kg
SM-200	200L	120L	120kg	3kw	Ø950×1600mm	250kg
SM-300	300L	180L	180kg	3kw	Ø1000×2060mm	400kg
SM-500	500L	300L	300kg	4kw	Ø1150×2350mm	600kg
SM-1000	1000L	600L	600kg	5.5kw	Ø1580×2840mm	1000kg
SM-1500	1500L	900L	900kg	5.5kw	Ø1800×3200mm	1500kg
SM-2M³	2M³	1.2M³	1200kg	7.5kw	Ø1950×3500mm	1800kg
SM-3M³	3M³	1.8M³	1800kg	7.5kw	Ø2170×3760mm	2300kg
SM-4M³	4M³	2.4M³	2500kg	11kw	Ø2280×4360mm	2500kg
SM-5M³	5M³	3M³	3000kg	15kw	Ø2470×4550mm	3000kg
SM-6M³	6M³	3.6M³	3600kg	15kw	Ø2560×4800mm	3500kg
SM-8M³	8M³	4.8M³	48000kg	18.5kw	Ø2790×5600mm	3900kg
SM-10M³	10M³	6M³	6000kg	18.5kw	Ø3000×5900mm	4500kg
SM-12M³	12M³	7.2M³	72000kg	22kw	Ø3200×6000mm	4800kg
SM-15M³	15M³	9M³	9000kg	22kw	Ø3450×6400mm	5500kg
SM-20M³	20M³	12M³	12000kg	30kw	Ø3900×7100mm	8000kg
SM-25M³	25M³	15M³	15000kg	37kw	Ø4100×7500mm	10000kg
SM-30M³	30M³	18M³	18000kg	45kw	Ø4300×7800mm	12000kg
